Manual Goniometric Stages

• Pure rotational motion about a fixed point in line with the stage

• Products are categorized based on horizontal or vertical axis of rotation

Optic Rotation Mounts

Kinematic Mirror Mounts

Gimbal Mirror Mounts

Goniometer, Horizontal Axis Of Rotation

Simtrum Part No.	Travel(°)	Hole Type	Platform dimension(mm)	Maximum Load(N)	Material	Minimum reading(arcsec)	Distance to Point of Rotation from Top Surface (mm)	Axis of Rotation	Drive Direction

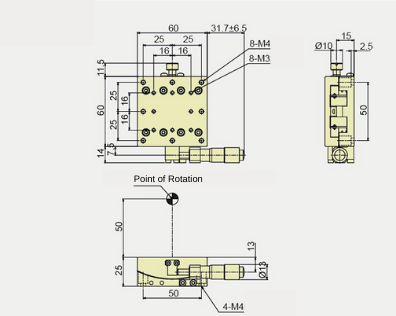

GNHL5045	±4.5	Top: M3,M4 Bottom: Counterbore holes for M4 Cap Screws	60x60	49	Aluminium	33	50	Horizontal	Left

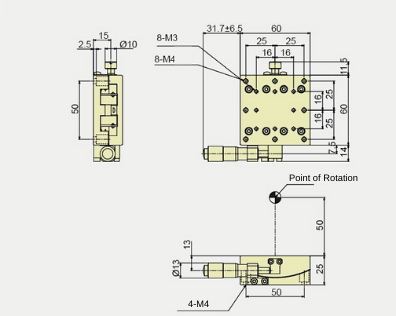

GNHR5045	±4.5	Top: M3,M4 Bottom: Counterbore holes for M4 Cap Screws	60x60	49	Aluminium	33	50	Horizontal	Right

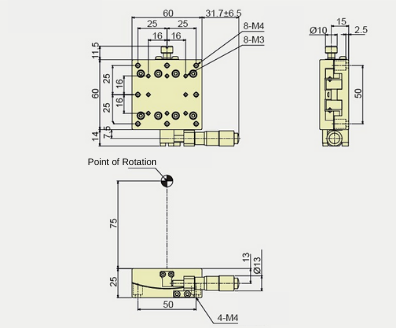

GNHL7545	±4.5	Top: M3,M4 Bottom: Counterbore holes for M4 Cap Screws	60x60	49	Aluminium	24	75	Horizontal	Left

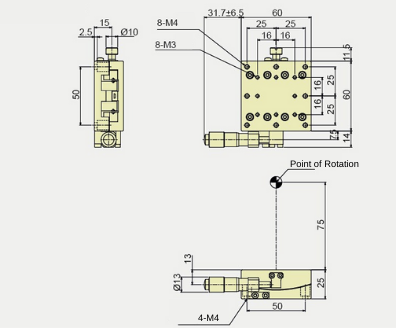

GNHR7545	±4.5	Top: M3,M4 Bottom: Counterbore holes for M4 Cap Screws	60x60	49	Aluminium	24	75	Horizontal	Right
The information in the chart above is a general guide to choosing the suitable manual goniometric stages for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Goniometer, Vertical Axis Of Rotation

Simtrum Part No.	Travel(°)	Hole Type	Platform dimension(mm)	Maximum Load(N)	Material	Minimum reading(arcsec)	Axis of Rotation

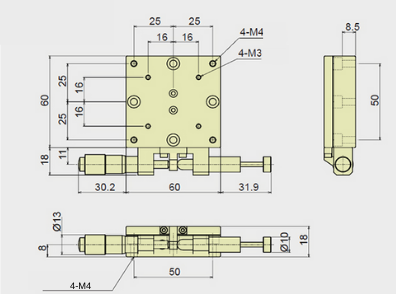

GNV605	±5	Top: M4, M3 Bottom: Counterbore holes for M4 Cap screws	60x60	29.4	Aluminium	55	Vertical

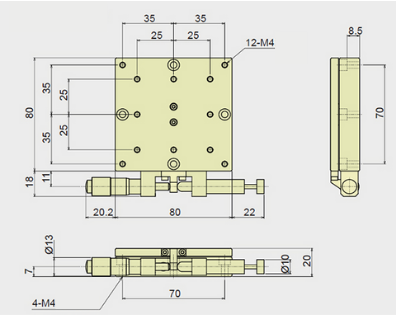

GNV805	±5	Top: M4 Bottom: Counterbore holes for M4 Cap screws	80x80	39.2	Aluminium	45	Vertical

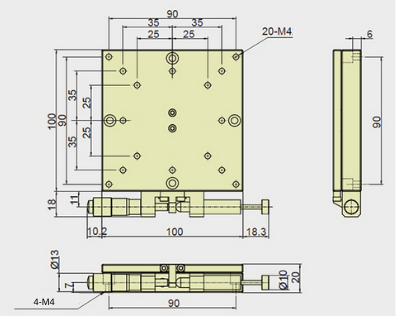

GNV1005	±5	Top: M4 Bottom: Counterbore holes for M4 Cap screws	100x100	39.2	Aluminium	45	Vertical

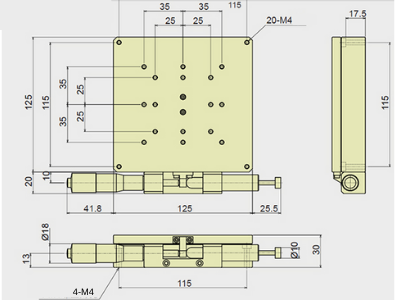

GNV1255	±5	Top: M4 Bottom: Counterbore holes for M4 Cap screws	125x125	49	Aluminium	32	Vertical
The information in the chart above is a general guide to choosing the suitable manual goniometric stages for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Goniometer, Horizontal Axis Of Rotation

Goniometer, Vertical Axis Of Rotation

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Platform dimensions (mm)	Travel (°)	Maximum Load (N)	Availability	Reference Price (USD)

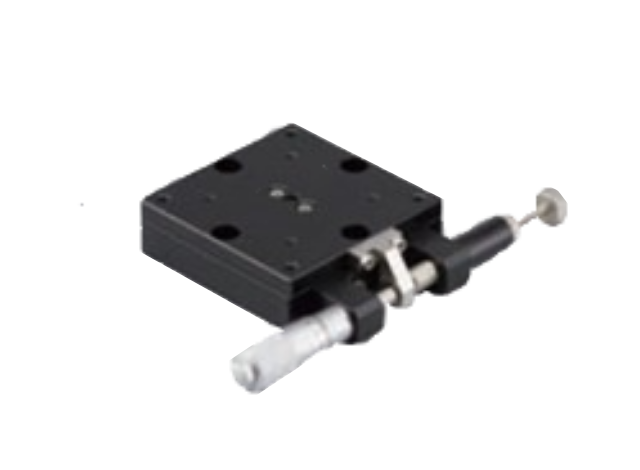

GNV605 Goniometer, Vertical Axis of Rotation, Platform dimensions=60x60mm, Minimum reading=55 arcsec	60x60	±5		4-6 Weeks	$116.09

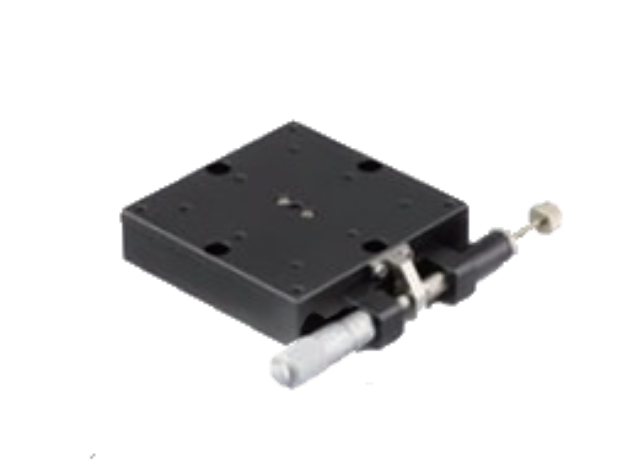

GNV805 Goniometer, Vertical Axis of Rotation, Platform dimensions=80x80mm, Minimum reading=45 arcsec	80x80	±5	39.2	4-6 Weeks	$142.29

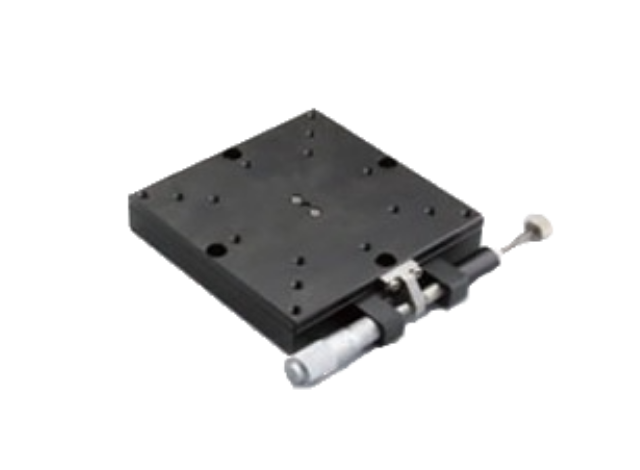

GNV1005 Goniometer, Vertical Axis of Rotation, Platform dimensions=100x100mm, Minimum reading=45 arcsec	100x100	±5	39.2	4-6 Weeks	$179.10

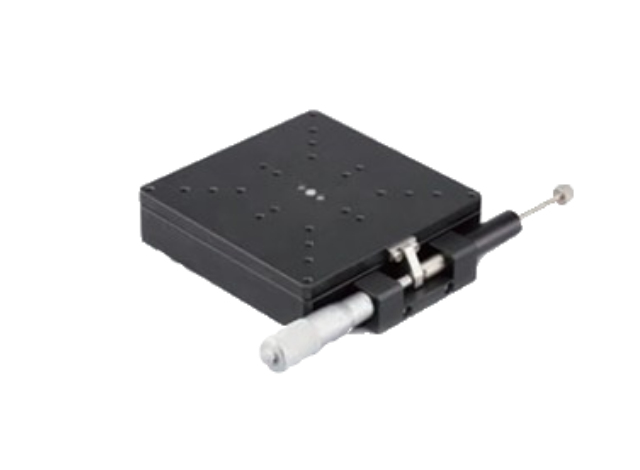

GNV1255 Goniometer, Vertical Axis of Rotation, Platform dimensions=125x125mm, Minimum reading=32 arcsec	125x125	±5	49	4-6 Weeks	$180.10

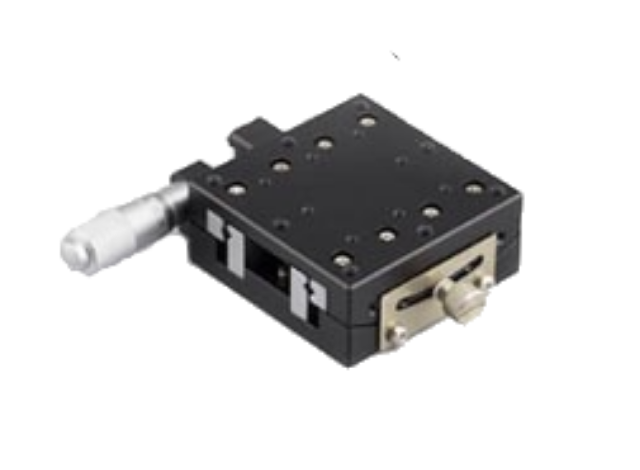

GNHL5045 Goniometer, Horizontal Axis of Rotation, 50mm Distance to Point of Rotation, ±4.5º, Left Side Drive	60x60	±4.5	49	4-6 Weeks	$175.62

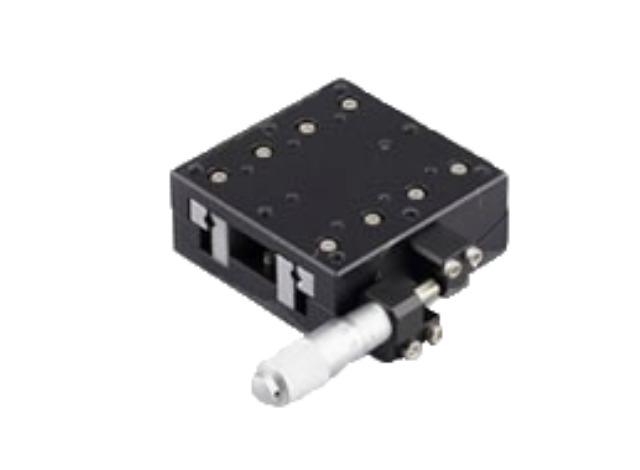

GNHR5045 Goniometer, Horizontal Axis of Rotation, 50mm Distance to Point of Rotation, ±4.5º, Right Side Drive	60x60	±4.5	49	4-6 Weeks	$175.62

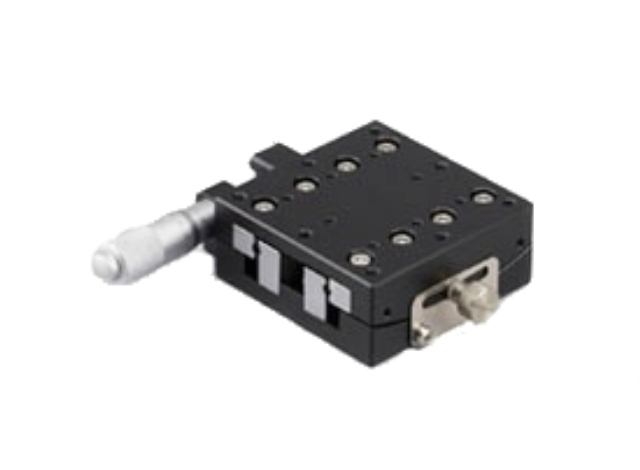

GNHL7545 Goniometer, Horizontal Axis of Rotation, 75mm Distance to Point of Rotation, ±4.5º, Left Side Drive	60x60	±4.5	49	4-6 Weeks	$175.62

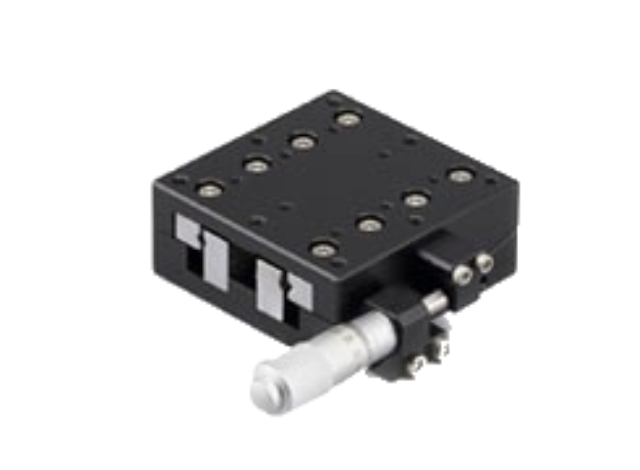

GNHR7545 Goniometer, Horizontal Axis of Rotation, 75mm Distance to Point of Rotation, ±4.5º, Right Side Drive	60x60	±4.5	49	4-6 Weeks	$175.62
