Infrared Cameras PYROVIEW 512N 600-3000°C

Overview Specifications & Model Guide Applications Related Products Order Now!

PYROVIEW 512N

Infrared camera for high-temperature measurement up to 3000 °C

Whether in quality control, process monitoring or process automation in metal industry – the infrared camera PYROVIEW 512N measures temperatures without contact exactly and reliably. To minimize physically caused temperature measurement errors resulting from emissivity inaccuracies the camera works at a short wavelength range from 0.8 µm to 1.1 µm. Also in very fast processes or at temperature changes the data acquisition happens in real-time. In stationary industrial continuous operation measurement data is recorded flexibly with high thermal and spatial resolution on fixed or moving measurement objects. In this way production processes are monitored and controlled efficiently. Therefore the Gigabit Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 60 images per second.

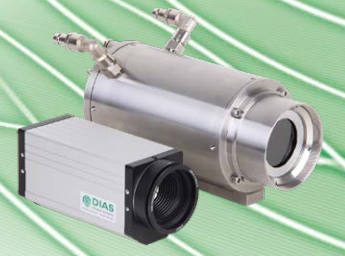

Numerous motor focus infrared lenses, including wide angle and telephoto lenses, provide a flexible adjustment to different measurement object sizes at different measurement distances. The infrared camera is either built in a small aluminium housing „compact+“ or in a stainless steel industry protection housing „protection“ that has a protection window, an air purge unit and an optional watercooling. The camera observes the production in stand-alone operation without any connected computer via two galvanically isolated digital inputs and outputs. All process parameters of the standalone version are programmed once on location via PC connection. The modular Windows software PYROSOFT of the camera can be adjusted and extended to process-related requirements. The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera.

Features:

- Precise non-contact temperature measurement with extremely wide temperature ranges: 600 °C to 1500 °C and 1400 °C to 3000 °C

- High-dynamic 2D-Si-CMOS array with 512 × 384 pixels

- Spectral range 0.8 µm to 1.1 µm

- Numerous optics with motor focus

- Gigabit Ethernet interface (1 GBit/s)

- Measurement frequency 60 frames per second

- Large dynamic range and 16-Bit analog digital converter

- Camera in small housing "compact+" (IP54) or industry protection housing "protection" (IP65)

- Integration in customized system solutions including hard- and software adjustment

Housing

Connectors

PYROSOFT

To complement the use of DIAS infrared cameras, the powerful online software PYROSOFT for Windows ® allows you to control the camera and record, view, manipulate and store the measured data.

Features:

· Real Time data recording

· Definition of zones and monitoring of alarm thresholds

· Analysis of trends

· Data export (Text, Bitmap, Video)

· Support of process interfaces (e.g profibus, analog and digital inputs and outputs)

For system integration the PYROSOFT DAQ software is available with a programming interface (Windows ®-DLL). The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera. For demanding applications, the versions PYROSOFT Professional and PYROSOFT Automation are available.

A breakdown of the features of each software is shown in the table below.

Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROVIEW 512N

Technical data
Device type	512N compact+		512N protection
Continuous measuring temperature ranges¹	600 °C to 1500 °C	1400 °C to 3000 °C	600 °C to 1500 °C	1400 °C to 3000 °C
NETD^2,3	< 1 K (600 °C, 60 Hz)⁴	≈ 2 K (1400 °C, 60 Hz)⁴	< 1 K (600 °C, 60 Hz)⁴	≈ 2 K (1400 °C, 60 Hz)⁴
Spectral range	0.8 µm to 1.1 µm
Aperature angle (HFOV × VFOV)	36° × 27°, optional: 51° × 40°, 26° × 19°, 19° × 14°, 13° × 9°, 9° × 7° (optics with motor focus)
Sensor	high-dynamic 2D-Si-CMOS array (512 × 384 pixels)
Measurement uncertainty³	1 % of measured value in °C	2 % of measured value in °C	1 % of measured value in °C	2 % of measured value in °C
Measurement frequency	internal 60 Hz, selectable: 60 Hz, 30 Hz, 15 Hz, …
Response time	internal 33 ms , selectable: 2 / measurement frequency
Interfaces	Gigabit-Ethernet (real-time, 60 Hz), galvanically isolated digital inputs (trigger) and digital outputs (alarm)
Connectors	round plug connector HR10A (12 pin, power supply, digital inputs and outputs), round plug connector M12A (Ethernet)		round plug connector M23 (16 pin, power supply, digital inputs and outputs), round plug connector M12A (Ethernet)
Power supply	12 V to 36 V DC, typical 10 VA
Weight	approx. 1.6 kg		approx. 4.2 kg
Housing	aluminium compact housing IP54, 65 mm (L) × 160 mm (W) × 79 mm (H), without lens and connectors, optional with weather protection housing with pan-tilt-unit		industry protection housing IP65, stainless steel, with protection window, air purge and optional water cooling, diameter 110 mm, length 280 mm (without mechanical mounting and connectors), 6 bar max. water pressure, 2 bar max. air pressure
Operating temperature of the camera	–10 °C to 50 °C		–10 °C to 50 °C (without water cooling), –25 °C to 150 °C (with water cooling)
Storage conditions	–20 °C to 70 °C, max. 95 % rel. humidity
Software	control and imaging software PYROSOFT for Windows ®, customized modifications on request
Scope of delivery	infrared camera PYROVIEW 512N, calibration certificate, manual, software PYROSOFT Compact
¹Others on request. ²Noise equivalent temperature difference. ³Specifications for black body radiator and ambient temperature 25 °C. ⁴... or 0.15 % of measured value in °C, 60 Hz.

Optics variants (optics with motor focus)

HFOV ... Horizontal Field Of View (horizontal aperature angle)

VFOV ... Vertical Field Of View (vertical aperature angle)

IFOV ... Instantaneous Field Of View (spatial resolution)

W ... Image width

H ... Image height

w ... Pixel width

D ... Measurement distance

h ... Pixel height

HFOV × VFOV	D [m]	W [m]	H [m]	w [mm]	h [mm]
IFOV	D [m]	W [m]	H [m]	w [mm]	h [mm]
36° × 27°	1	0.65	0.48	1.3	1.3
36° × 27°	3	1.95	1.44	3.8	3.8
1.2 mrad	10	6.50	4.80	12.7	12.7
51° × 40°	1	0.95	0.73	1.9	1.9
51° × 40°	3	2.86	2.18	5.6	5.6
1.7 mrad	10	9.54	7.28	18.6	18.6
26° × 19°	1	0.46	0.33	0.9	0.9
26° × 19°	3	1.39	1.00	2.7	2.7
0.9 mrad	10	4.62	3.35	9.0	9.0
19° × 14°	1	0.33	0.25	0.6	0.6
19° × 14°	3	1.00	0.37	2.0	2.0
0.6 mrad	10	3.35	2.46	6.5	6.5
13° × 9°	1	0.23	0.16	0.5	0.5
13° × 9°	3	0.68	0.47	1.3	1.3
0.4 mrad	10	2.28	1.57	4.5	4.5
9° × 7°	1	0.16	0.12	0.3	0.3
9° × 7°	3	0.47	0.37	0.9	0.9
0.3 mrad	10	1.57	1.22	3.1	3.1

Applications

The application areas of our infrared cameras are very manifold. Everywhere where temperatures in the process play an important role our cameras can be integrated. Due to different housings, optics and complete system solutions complex measurement tasks can be solved. Our infrared cameras PYROVIEW are used in the following application areas for example:

- Quality management in steel industry, glass industry or cement production

- Process automation and process control: production of semiconductors or wafers for solar

industry

- Research and Development projects : nondestructive testing of materials, studies of aspects

in veterinary medicine

- Early fire detection in storage buildings, forests and even in cities

- Traffic control in road tunnels

- Process control in metallurgy

- Inspection of electrical equipment

- Building thermography around thermal bridges and localization of weak points in wallings

Camera type	Pixels	Spectral range	Temperature range²
PYROVIEW 320L	320 × 240	8 µm to 14 µm	–20°C to 120°C, 50°C to 500°C
PYROVIEW 380L	384 × 288	8 µm to 14 µm	–20°C to 120°C, 50°C to 500°C
PYROVIEW 640L	640 × 480	8 µm to 14 µm	–20°C to 120°C, 50°C to 500°C
PYROVIEW 640M	640 × 480	3 µm to 5 µm	200°C to 500°C
PYROVIEW 640G	640 × 480	4.8 µm to 5.2 µm	300°C to 700°C
PYROVIEW 640F	640 × 480	3.9 µm	600°C to 1250°C
PYROVIEW 320N	320 × 256	1,4 µm to 1,6 µm	300°C to 750°C or 350°C to 1200°C
PYROVIEW 512N	512 × 384	0.8 µm to 1.1 µm	600°C to 1500°C or 1400°C to 3000°C
PYROVIEW 768N	768 × 576	0.8 µm to 1.1 µm	600°C to 1500°C or 1400°C to 3000°C
