PYROVIEW 380L

High-performace infrared cameras – powerful in industrial continuous operation


Whether in quality control, process measurement technology, research and development projects or fi re detection for instance – the PYROVIEW 380L measures temperatures without contact exactly and reliably. Also in very fast processes or at temperature changes the data acquisition happens in real-time. In stationary industrial continuous operation measurement data is recorded fl exibly with high thermal and spatial resolution on fixed or moving measurement objects. In this way production processes are monitored and controlled efficiently. Therefore the Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 50 images per second.

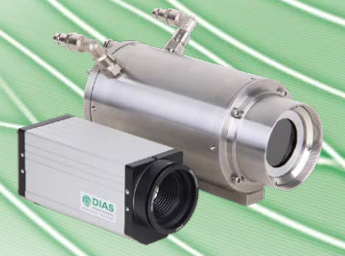

The maximum image frequency of 50 Hz is adjusted optimally to the thermal time constant of the infrared array. Numerous motor focus infrared lenses, including wide angle and telephoto lenses, provide a flexible adjustment to different measurement object sizes at different measurement distances. The infrared camera is either built in a small aluminium housing "compact+" or in a stainless steel industry protection housing "protection" that has a protection window, an air purge unit and an optional watercooling. The camera observes the production in stand-alone operation without any connected computer via two galvanically isolated digital inputs and outputs. All process parameters of the standalone version are programmed once on location via PC connection. The modular Windows software PYROSOFT of the camera can be adjusted and extended to process-related requirements. The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera.


































Features:

- Precise non-contact temperature measurement between –20 °C and 500 °C

- Uncooled microbolometer array with 384 × 288 pixels

- Spectral range 8 µm to 14 µm

- Numerous optics with motor focus

- Measurement frequency 50 frames per second

- Ethernet interface (real-time, 50 Hz)

- Large dynamic range and 16-Bit analog digital converter

- Camera in small housing „compact+“ (IP54) or industry protection housing „protection“ (IP65)

- Integration in customized system solutions including hard- and software adjustment











Housing

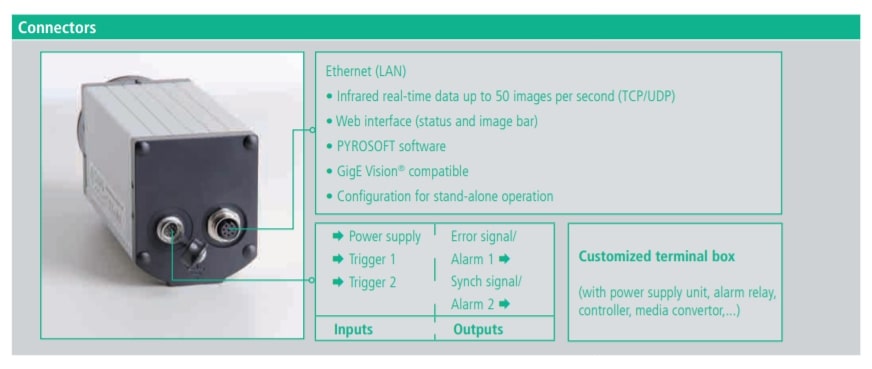

Connectors


PYROSOFT

To complement the use of DIAS infrared cameras, the powerful online software PYROSOFT for Windows ® allows you to control the camera and record, view, manipulate and store the measured data.

Features:

·         Real Time data recording

·         Definition of zones and monitoring of alarm thresholds

·         Analysis of trends

·         Data export (Text, Bitmap, Video)

·         Support of process interfaces (e.g profibus, analog and digital inputs and outputs)

For system integration the PYROSOFT DAQ software is available with a programming interface (Windows ®-DLL). The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera. For demanding applications, the versions PYROSOFT Professional and PYROSOFT Automation are available.



A breakdown of the features of each software is shown in the table below.




Please check the table below for individual specifications tied to individual products.

Product Brochure Link: PYROVIEW 380L

                                                                           Technical data
Device type380L compact+380L protection
Spectral range18 µm to 14 µm
Temperature ranges1range 1: –20 °C to 120 °C, range 2: 50 °C to 500 °C (display   range: 0 °C to 500 °C)
NETD2,3< 0,06 K (30 °C, 50 Hz, range 1)
Aperature angle4 (HFOV × VFOV)30° × 23°, optional: 90° × 66°, 60° × 47°, 44° × 34°, 22° ×   16°, 15° × 12°,8° ×  6°, macro 30   µm
    (optics with motor focus)
Sensoruncooled microbolometer array (384 × 288 pixels)
Measurement uncertainty32 K (object temperature < 100 °C) or 2 % of measured value   °C
Measurement frequency5internal 50 Hz, selectable: 50 Hz, 25 Hz, 12,5 Hz, …
Response timeinternal 40 ms , selectable: 2 / measurement frequency
InterfacesEthernet (real-time, 50 Hz), galvanically isolated digital   inputs (trigger) and digital outputs (alarm)
Connectorsround plug connector HR10A (12 pin, power supply, digital inputs and outputs),
    round plug connector M12A (Ethernet)
round plug connector M23 (16 pin, power supply, digital inputs and outputs),
    round plug connector M12A (Ethernet)
Power supply12 V to 36 V DC, typical 10 VA
Weightapprox. 1.6 kgapprox. 4.2 kg
Housingaluminium compact housing IP54,

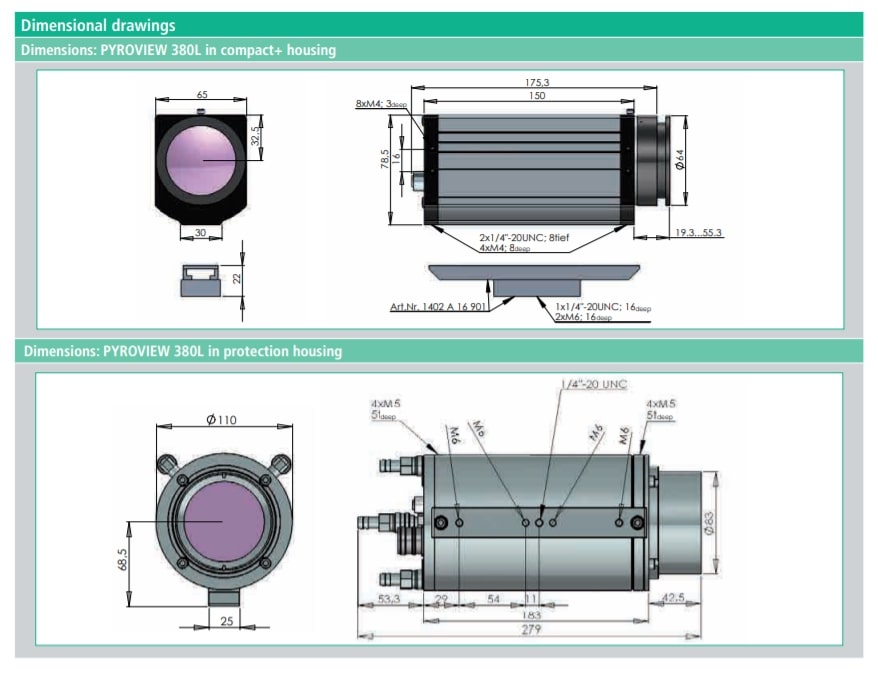

    65 mm (L) × 160 mm (W) × 79 mm (H), without lens   and connectors, optional with weather protection housing with pan-tilt-unit
industry protection housing IP65, stainless steel, with   protection window, air purge and optional water cooling, diameter 110 mm,   length 280 mm (without mechanical mounting and connectors),
    6 bar max. water pressure, 2 bar max. air   pressure
Operating temperature of the camera–10 °C to 50 °C–10 °C to 50 °C (without water cooling),
    –25 °C to 150 °C (with water cooling)
Storage conditions–20 °C to 70 °C, max. 95 % rel. humidity
Softwarecontrol and imaging software PYROSOFT for Windows ®, customized modifications on request
Scope of deliveryinfrared camera PYROVIEW 380L, calibration certificate, manual, software PYROSOFT Compact

1 Others on request.

2 Noise equivalent temperature difference.

3 Specifications for black body radiator and ambient temperature 25 °C.

4 Lens with motor focus.

5 Export version with < 9 Hz available.


Optics variants (optics with motor focus)

HFOV ... Horizontal Field Of View (horizontal aperature angle)

VFOV ... Vertical Field Of View (vertical aperature angle)

IFOV ... Instantaneous Field Of View (spatial resolution)

W ... Image width

H ... Image height

w ... Pixel width

D ... Measurement distance

h ... Pixel height


HFOV × VFOV IFOVD   [m]W   [m]H   [m]w   [mm]h   [mm]
30° × 23°
    1.36 mrad
10.550.411.41.4
31.641.234.34.3
105.454.0914.014.0
90° × 66°
    4.09 mrad
12.001.505.25.2
35.994.4915.615.6
1020.015.05252
60° × 47°
    2.73 mrad
11.160.873.03.0
33.492.629.19.1
1011.68.733030
44° × 34°
    1.99 mrad
10.820.612.12.1
32.451.846.46.4
108.186.132121
22° × 16°
    0.99 mrad
10.380.291.01.0
31.140.863.03.0
103.812.869.99.9
15° × 12°
    0.68 mrad
10.260.200.70.7
30.790.592.12.1
102.641.986.96.9
8° × 6°
    0.36 mrad
10.200.150.50.5
30.390.301.01.0
101.310.983.43.4
Macro 30 µm60.0450.01150.00860.030.03

6 Together with optics 15° × 12°



Applications

The application areas of our infrared cameras are very manifold. Everywhere where temperatures in the process play an important role our cameras can be integrated. Due to different housings, optics and complete system solutions complex measurement tasks can be solved. Our infrared cameras PYROVIEW are used in the following application areas for example:


- Quality management in steel industry, glass industry or cement production

- Process automation and process control: production of semiconductors or wafers for solar

  industry

- Research and Development projects : nondestructive testing of materials, studies of aspects

  in veterinary medicine

- Early fire detection in storage buildings, forests and even in cities

- Traffic control in road tunnels

- Process control in metallurgy

- Inspection of electrical equipment

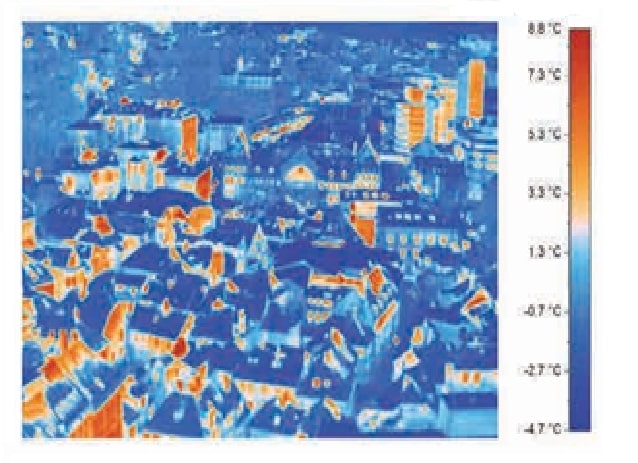

- Building thermography around thermal bridges and localization of weak points in wallings



















Camera typePixelsSpectral rangeTemperature range2
PYROVIEW 320L320 × 2408 µm to 14 µm–20°C to 120°C, 50°C to 500°C
PYROVIEW 380L384 × 2888 µm to 14 µm–20°C to 120°C, 50°C to 500°C
PYROVIEW 640L640 × 4808 µm to 14 µm–20°C to 120°C, 50°C to 500°C
PYROVIEW 640M640 × 4803 µm to 5 µm200°C to 500°C
PYROVIEW 640G640 × 4804.8 µm to 5.2 µm300°C to 700°C
PYROVIEW 640F640 × 4803.9 µm600°C to 1250°C
PYROVIEW 320N320 × 2561,4 µm to 1,6 µm300°C to 750°C or 350°C to 1200°C
PYROVIEW 512N512 × 3840.8 µm to 1.1 µm600°C to 1500°C or 1400°C to 3000°C
PYROVIEW 768N768 × 5760.8 µm to 1.1 µm600°C to 1500°C or 1400°C to 3000°C
