Halogen Light (360 - 2500nm) | SIMTRUM Photonics Store

Features

● With a life span of more than 10,000 hours, HL1000 adopts spectral-grade special halogen bulbs with better filament packaging, which ensures the life of

   each halogen bulb and effectively reduces the frequency of bulb replacement;

● The bulb power can be selected (standard 5 watts), and the SIMTRUM’s optical lens is used to couple to the SMA905 interface output ;

● The light intensity can be adjusted, and the adjustment range is 0~100%; in order to meet the needs of different samples in reflection and transmission spectrum

   measurement, HL1000 is designed to adjust the output light intensity;

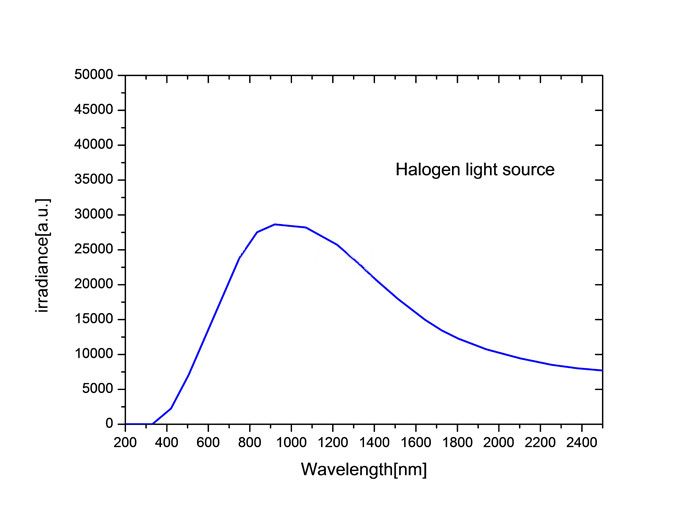

● The wavelength range is wide, 360~2500nm; it can output a smooth spectral curve, suitable for various optical detection.

● Use an 85~250V AC power supply.

● The stability is better than 2‰, HL1000 adopts a higher-level power supply to ensure that the optical power output does not drift more than 2‰ per hour;

● Filament positioning accuracy higher than ±0.127mm is used as a standard radiation source. Each HL1000 has extremely high filament positioning accuracy,

   ensuring batch consistency;

● The size of the light source is 150mm x 75mm x 50mm.

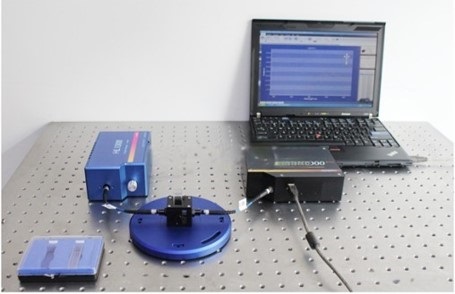

Applications

Reflection/Transmission Spectroscopy - The stability of the light intensity output of the light source affects the reliability of the results; in addition, the higher the

                                                                      color temperature, the better the short-wavelength signal-to-noise ratio.

Irradiance Calibration - In many applications, a standard radiation source is required; in general, the longer the life of the source, the more stable the light output,

                                         the better.

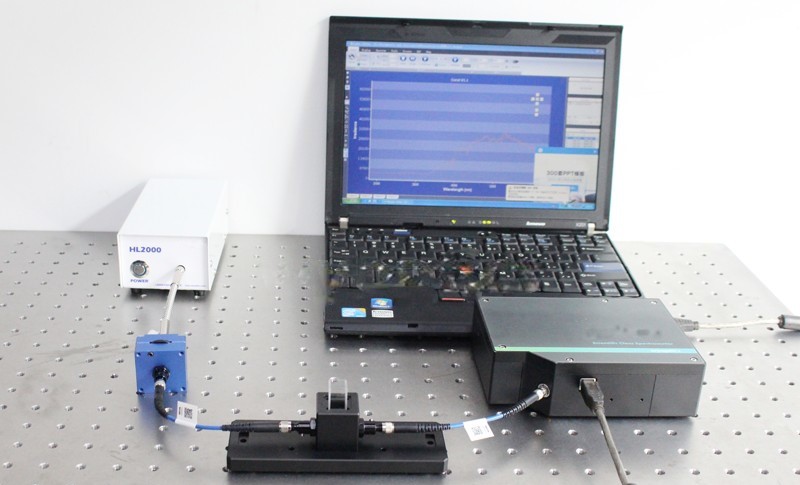

The cuvette holder in the picture, the optical fiber on the left is connected to the light source (HL2000 halogen light source or DH2000 deuterium-halogen two-in-one light source is optional), and the optical fiber on the right is the transmission and absorption measurement end, the left front fiber is the fluorescence/excitation light measurement end.

This measurement system is a spectroscopic measurement system designed for cuvettes with a path length of 1 cm, capable of measuring:

1. The transmittance and reflectivity of the liquid sample in the cuvette;

2. Absorption and fluorescence spectra of liquid samples in the cuvette.

Features

● Using SIMTRUM’s Optoelectronics high-quality bulbs, halogen bulbs with a lifespan of up to 6000 hours (standard);

● Wide wavelength range, 360~2000nm;

● Adopt air-cooled heat dissipation, do not block the air inlet and outlet during use;

● Use 85~250V AC power supply;

● The bulb power can be selected from 1.5 to 20 watts (standard 10 watts), which is coupled to the SMA905 interface output by the SIMTRUM's optical lens;

● The size of the light source is 160mm x 85mm x 60mm;

● The light source bulbs are consumables, please replace them before the service life is reached.

Ultra long-life halogen bulbs

Laboratory-grade halogen light bulb for spectrum, 6000 hours long life, 2915K high color temperature, bulb drift <0.15%/hr, to ensure the stability of the light source.

This product uses a 10-watt bulb with a quartz focusing lens, which greatly improves the coupling efficiency of the fiber.

In order to apply to measurement experiments with strong special absorption, our company can also provide customized large-size optical fibers and optical fiber bundles and various optical measurement systems for customers.

Applications

HL2000 is a product for wide-spectrum spectral measurement and irradiance calibration. It has the characteristics of a broader spectrum, more stable, higher power, and longer life It is suitable for fields that require high-power and high-stability spectral analysis, such as:

● Diffuse reflection integrating sphere measurement

● Thin film transmittance analysis

● Absorbance analysis

● Colorimetric analysis

● Solar cell reflectance analysis, etc.

Features

● This product has 3 different configuration models, divided into standard type, light intensity adjustable type-VL, with shutter type-TTL.

● Each model has different optical powers to choose from, including 5W, 10W, and 20W.

● Using imported high-quality light bulbs for instruments, halogen bulbs with long life;

● The light source adopts an advanced power control system, and its output spectrum is stable;

● Wide wavelength range, 360~2500nm;

● Air-cooled heat dissipation is adopted, and the fan is installed at the bottom of the fuselage;

● Use 12V DC power supply (with power adapter);

● The power of the bulb is 5~20 watts (standard 5 watts), which is coupled to the SMA905 interface output by the SIMTRUM optical lens;

● The size of the light source is 150mm x 55mm x 40mm;

● The light source bulbs are consumables, please replace them before the service life is reached.

Applications

Reflection/Transmission Spectrum - Whether the light intensity output of the light source is stable or not affects the reliability of the results; in addition, the higher the color temperature, the better the short-wave signal-to-noise ratio.

Irradiance Calibration - In many applications, a standard radiation source is required; in general, the longer the life of the source, the more stable the light output, the better.

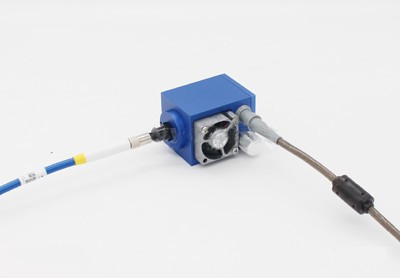

Features

● Using imported high-quality light bulbs for instruments, halogen bulbs with a lifespan of up to 10,000 hours (standard);

● The output intensity of the light source can be adjusted by adjusting the filament current through the potentiometer, which is convenient for various experimental applications;

● Small size, size: 40mm x 70mm x 55mm; weight: 170g; the specific structure can be inquired;

● The wavelength range is wide, 360~2500nm; it is coupled to the SMA905 interface output by the SIMTRUM optical lens;

● Adopt air-cooled heat dissipation, do not block the air inlet and outlet during use;

● Powered by 5V 2A DC, equipped with a power adapter;

● The light source bulbs are consumables, please replace them before the service life is reached.
