Products / Optomechanics /Heating & Cryo Stages for Microscopy /Adjustable Electrical Probe Station / CRYO600-190-OP4-VB /

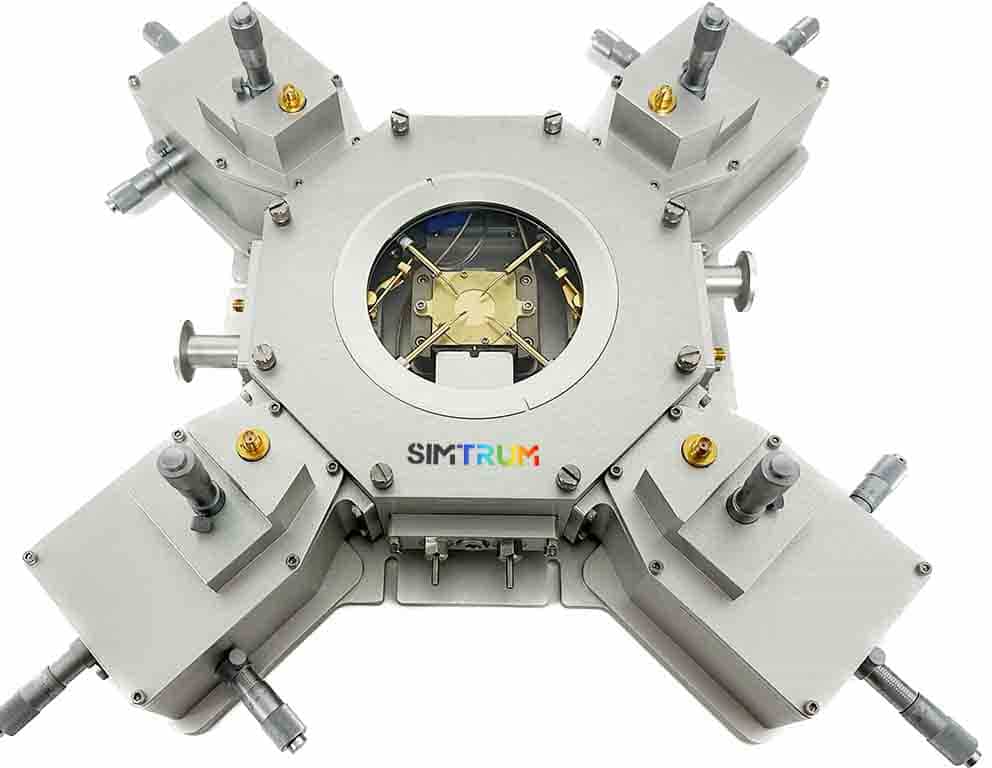

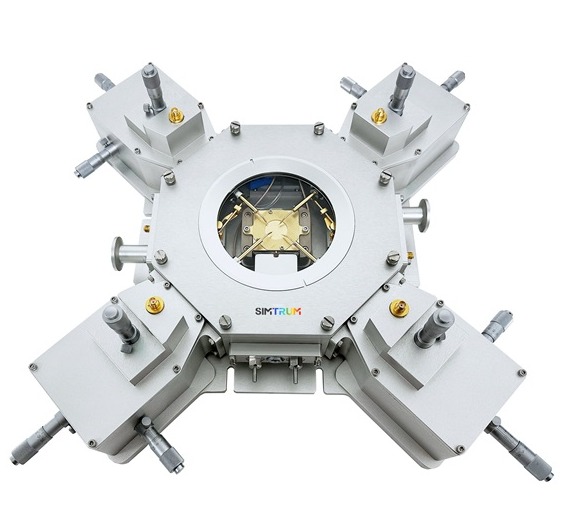

Manual adjustable probe station, Temp control range -190 to 600℃, Adjustable probe x 4, Price includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software.

MODEL:CRYO600-190-OP4-VB

$24997.00 6-10 Weeks Drawings

Compare

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price

Manual Adjustable Probe Pin Station
Optical Indicators	Manual Adjustable Probe Pin Station
Temperature Control
Cooling & Heating	Liquid nitrogen cooling, heating wire heating
Temperature Control Range*	-190 to 600 ℃
Temperature Control Accuracy	Stability ±0.1℃ , resolution 0.1 ℃
Temperature Control Speed	Max 60℃/min
Temperature Control Method	High precision PID control
Optical Properties
Optical Path*	Reflected optical path (can be upgraded to transmitted optical path)
Window Size	φ25mm (subject to actual size)
Lens Working Distance	16.5mm
Window Defrosting	Air blowing defrost at negative temperature
Electrical Characteristics

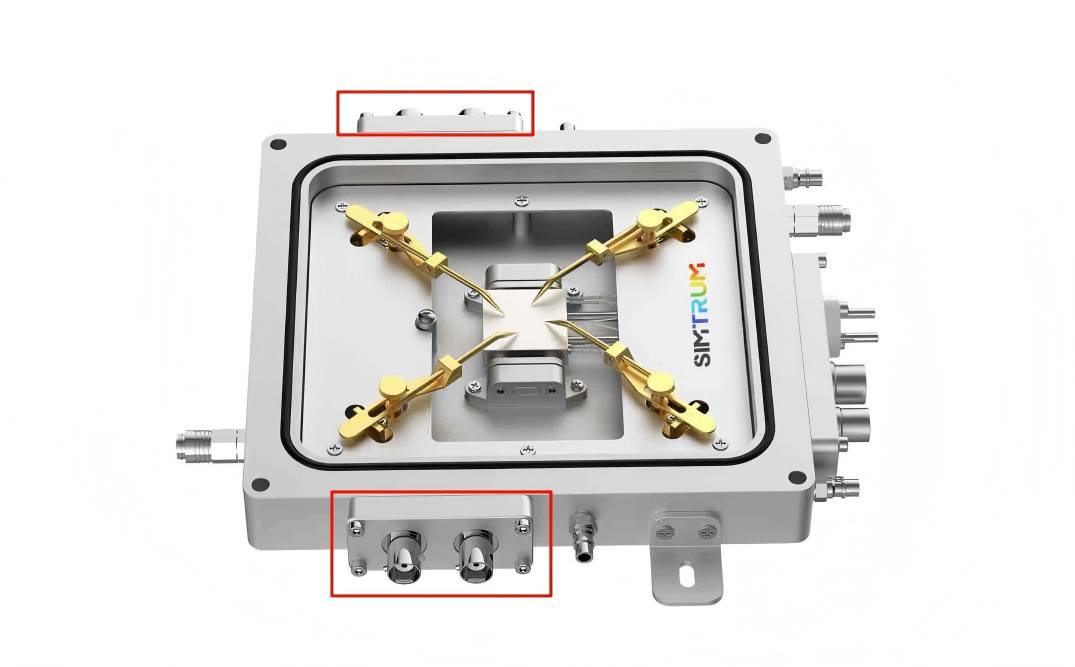

Probe*	Adjustable probe *4 (gold-plated tungsten steel)
Probe Interface*	BNC connector (optional triaxial interface)
Sample Table Potential*	Electrical floating (optional electrical grounding)
Structural Properties
Sample Carrier Material*	Copper (can be customizable Silver)
Sample Table Size	23x23mm (subject to actual size)
Dimensions	15015055mm (excluding adjustment table)
Sample Cavity Height	15mm (subject to actual size)
XYZ Displacement Stroke	±6mm
Probe Displacement Accuracy	5μm
Remark	Above are all default parameters, with * can be customizable

Temperature Range Choice

Low Temperature Stage: -190 to 600℃

Low temperature optional  -190℃  -180℃  -160℃  -120℃  -100℃  RT

High temperature optional  400℃  600℃

Transmission Stage Upgrade - Parameter

Vacuum Chamber Upgrade - Parameter

CRYO600-190-OP4-IP - Parameter

CRYO600-190-OP4-VB - Parameter

Transmission Stage Upgrade - Download

Vacuum Chamber Upgrade - Download

CRYO600-190-OP4-IP - Download

CRYO600-190-OP4-VB - Download

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens

	Availability	Reference Price
Transmission Stage Upgrade Upgrade stage from Reflection to Transmission, Standard hole size 2mm	6-10 Weeks	$500.00

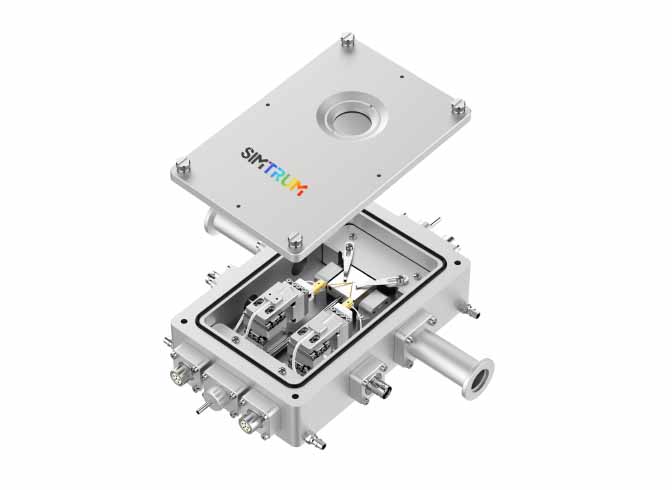

Vacuum Chamber Upgrade Upgraded vacuum chamber and interface (KF16), Temperature range -190 to 400℃.	6-10 Weeks	$1000.00

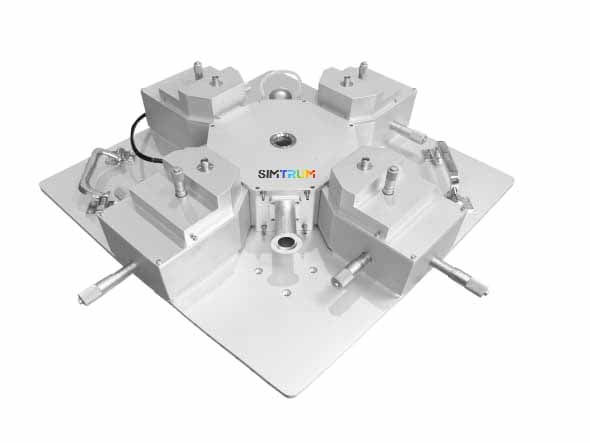

CRYO600-190-OP4-IP Electrical Probe Temperature Station, Manual adjustable probe station, Temp control range -190 to 600℃, Adjustable probe x 4 (Integrated Positioning), Price includes: Temperature Stage and Controller, Chiller, LN2 Tank, Pump for LN2, Software.	6-10 Weeks	$21032.72
