THz attenuated fully reflected optical circuit fast plug module TA-ATRSG40

Products / Light Analysis /Spectrometers /THz time domain spectrometer /Integrated THz time domain spectrometer / THz attenuated fully reflected optical circuit fast plug module TA-ATRSG40 /

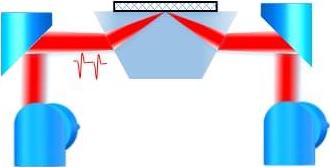

Measurement mode: Attenuated total reflection spectrum； Crystal material: high resistance silicon； Crystal structure size: Standard size: trapezoidal structure, bottom angle 60 °, surface length 365mm, surface width 15mm. Size can be customized. Crystal fixing method: magnetic attraction fixing, cylindrical pin positioning, crystal removable cleaning； Measurable sample range: The maximum refractive index of the measurable sample is 3.18 (terahertz band)

MODEL:THz attenuated fully reflected optical circuit fast plug module TA-ATRSG40

$4404.76 4~6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page


Related Products Detailed Introduction
Compare Model Drawings & Specs Availability Reference Price
LA-HT01-TDS-INT
Spectrum range: 0.1-5 THz； Spectral resolution: Better than 5 GHz； Scanning range: ≥500 ps； Dynamic range: better than 90 dB； Detection speed: ≥24 Hz@67 ps/≥18 Hz@134 ps/≥10 Hz@330 ps； Focus spot diameter: ≤1 mm (signal attenuation of 50%) 		4~6 weeks $65937.88

Compatible

Compare Model Drawings & Specs Availability Reference Price
THz reflected optical transceiver TA-RPSG40
Measurement modes: reflection spectrum, reflection imaging； Imaging range: ≥ 20mm * 20mm 		4~6 weeks $3603.89
THz transmission optical transceiver TA-TPSG40
Measurement mode: transmission spectrum, transmission imaging； Imaging range: ≥ 20 * 20mm 		4~6 weeks $4004.32

Product Specifications

Sample typeDielectric materials like solid, powder, liquid, etc. / non-metallic materials
major functionMeasurement patternIt has three measurement modes of transmission, reflection and attenuated total reflection (ATR), with the function of spectrum formation and imaging, and the function of spectrum integrated display.
Spectral line typeTime domain spectrum, frequency domain spectrum, absorption spectrum, refractive index spectrum, permittivity spectrum
Imaging modeTime-domain imaging, frequency domain imaging, absorption imaging, maximum / minimum time of flight imaging, maximum / minimum peak imaging, peak peak imaging
Spectral / image processing algorithmWe provide three-bit tomographic algorithm package that can be customized for classification, detection, and quantitative analysis algorithm package.
performance indexSpectrum range0.1-5 THz
Spectrum resolutionBetter than 5 GHz (measured water vapor absorption spectrum resolution)
Scanning scope≥500 ps
Dynamic rangeBetter than 90 dB
Detection speed≥24 Hz@67 ps、≥18 Hz@134 ps、≥10 Hz@330 ps
Focused spot diameter1 mm (signal decay 50%)
AppendixDehumidification module, probe module
NavarAI atlas analysis edge computer, Ubuntu system, Python SDK
Service environmentTemperature range: 10~30℃; relative humidity: 80%


THz attenuated fully reflected optical circuit fast plug module TA-ATRSG40 - Parameter

THz reflected optical transceiver TA-RPSG40 - Parameter

THz transmission optical transceiver TA-TPSG40 - Parameter

LA-HT01-TDS-INT - Parameter

THz attenuated fully reflected optical circuit fast plug module TA-ATRSG40 - Download

THz reflected optical transceiver TA-RPSG40 - Download

THz transmission optical transceiver TA-TPSG40 - Download

LA-HT01-TDS-INT - Download
