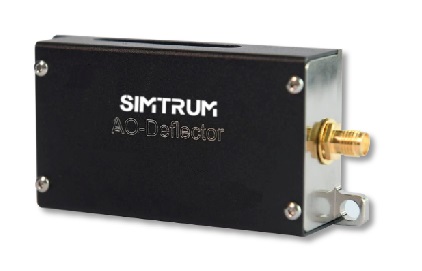

Acousto-Optic Deflector (AODF)
Overview Model Selection Specification Order Now!



Acousto-optic Deflector

A device for spatially controlling a scanning beam with high speed and precision





Acousto-optic Deflector (AODF) can realize laser beam scanning by changing the RF driving frequency. The scanning position can realize random position, continuous line scanning, and sequential point deflection, depending on the crystal, well as precise position control of the nRad. Optimal AODF efficiency usually beams, Bragg Angle mismatch occurs due to the fact that AODF can only perform optical alignment at one driving frequency. In general, this results in reduced efficiency.



SIMTRUM offers AODF that can be designed for one and two-dimensional scans, with a specially developed RF driver that can realize frequency sweep, chirp, and other control methods, convenient for customers to quickly realize a variety of functions.

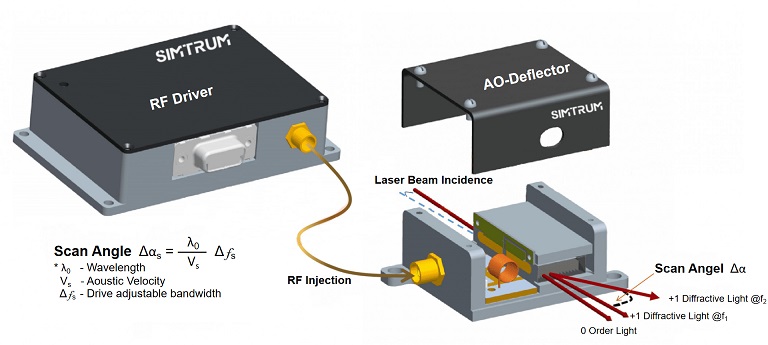

Principle of Operation

Applications

- Laser direct writing

- Precision circuit board drilling

- Semiconductor testing

- Laser roller manufacturing





- Laser printing

- Cell sorting

- Holographic imaging

- Fast zoom system










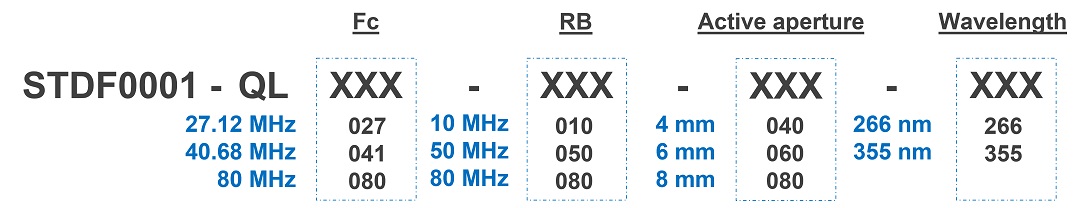

Find Your AOD Model

1. Select by Series

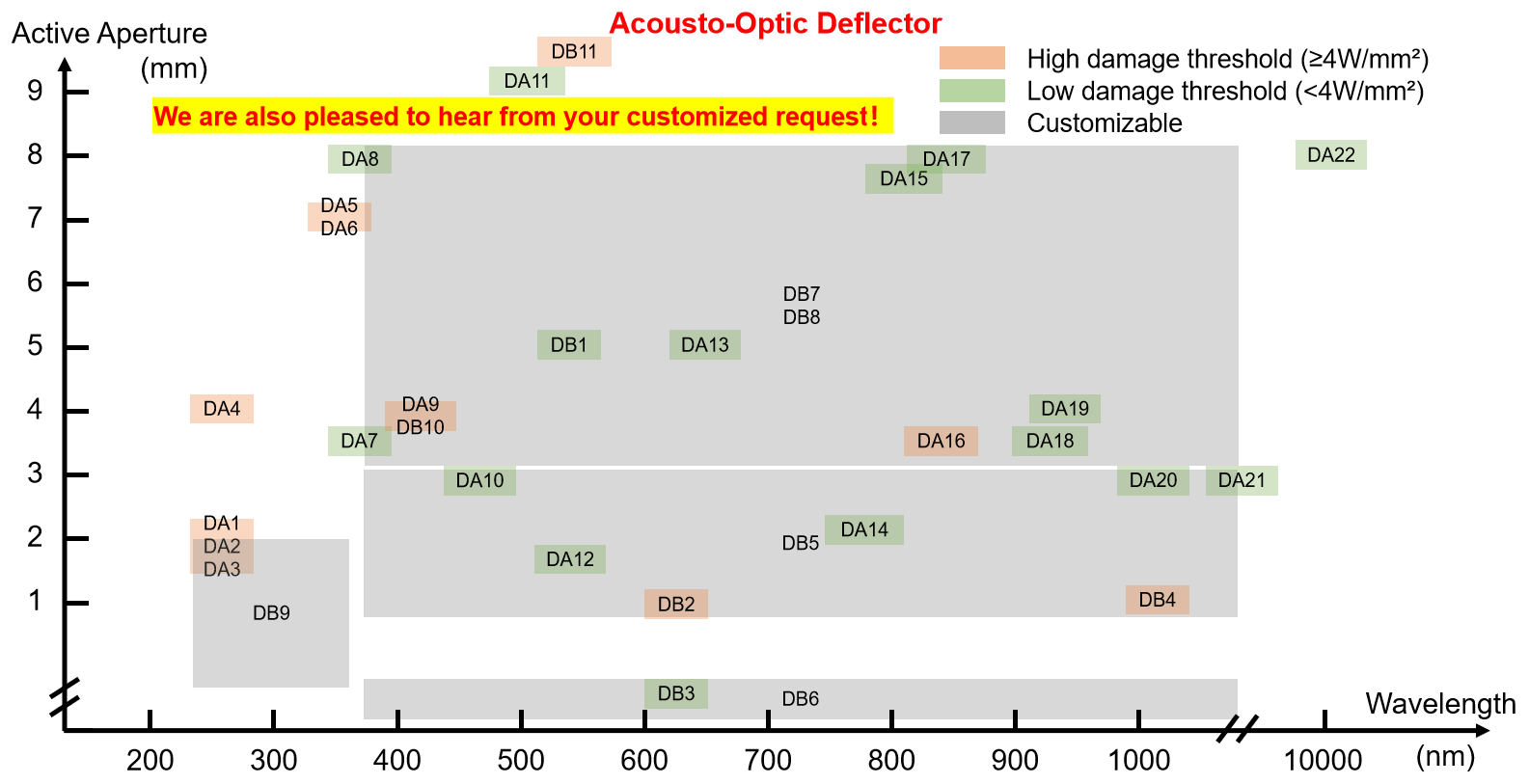

This chart organizes our product families by Wavelength and Aperture: Red: High damage threshold (≥4 W/mm²)  Green: Standard damage threshold (<4 W/mm²) Grey: Customizable

2. View Model Details
Click on any product in the table below to see full specifications and order.

Series-A DA1 DA2 DA3 DA4 DA5 DA6 DA7 DA8 DA9 DA10 DA11 DA12 DA13 DA14 DA15
DA16 DA17 DA18 DA19 DA20 DA21 DA22
Series-B DB1 DB2 DB3 DB4 DB5 DB6 DB7 DB8 DB9







Product specifications

General Specifications
Interaction Material Crystal Quartz / Tellurium Dioxide
Acoustic Mode Longitudinal / Shear ( AV 616 m/s)
Operating Wavelength 266 / 355 / 364 / 405 / 488 / 515 / 532 / 561 / 813 / 1064 / 1083 / 1550 / 10600 nm
Polarization Linear, perpendicular to base
Transmission > 90% ~ 99%
Active Aperture refer to the product info
Center Frequency (Fc) 75 ~ 1500 MHz
RF Bandwidth (RB) 10 ~ 1000 MHz
Diffraction Efficiency @RB > 20 ~ 80%
RF Power 3.5 ~ 22 W (Max)
Input Impedance 50Ω Nominal
VSWR @Fc < 2.1:1 / < 3:1
RF Connector SMA-F
Cooling Conduction Cooling / Water Cooling
Shell Material Aluminum alloy 6063



Model Number Wavelength (nm) Active Aperture (mm) Center Frequency (MHz) 3dB Bandwidth (MHz) Scan Angle Diffraction Efficiency Material Cooling Method
OE-AOD-DA1-266-200-QL230-110 266 2.0×26.5 230 110 5.1mrad ＞40% Crystalline Quartz Conduction Cooling
OE-AOD-DA2-266-200-QL230-110 266 2.0×2.0 230 110 5.1mrad ＞40% Crystalline Quartz Conduction Cooling
OE-AOD-DA3-266-200-QL200-100 266 2.0×26.5 200 100 4.6mrad ＞40% Crystalline Quartz Conduction Cooling
OE-AOD-DA4-266-400-QL200-100 266 4.0×4.0 200 100 4.6mrad ＞40% Crystalline Quartz Conduction Cooling
OE-AOD-DB9-266-020-QL200-100 266-355 0.2-2 200-400 100-200 / ＞60% / /
OE-AOD-DB6-350-007-QL300-100 350-1500 0.07-0.3 300-1500 100-1000 / 20-80% / /
OE-AOD-DA5-355-700-QL170-070 355 7 170 70 4.3mrad ＞80% Crystalline Quartz Water Cooling
OE-AOD-DA6-355-700-QL170-030 355 7 170 30 1.9mrad ＞80% Crystalline Quartz Water Cooling
OE-AOD-DA7-364-350-QL100-050 364 3.5 100 50 29.6mrad ＞60% Tellurium Dioxide Conduction Cooling
OE-AOD-DA8-364-800-QL100-050 364 8 100 50 29.6mrad ＞60% Tellurium Dioxide Conduction Cooling
OE-AOD-DB5-370-100-QL40-020 370-1550 1-3 40-200 20-80 / ＞70% / /
OE-AOD-DB7-370-200-QL40-020 370-1550 2-8 40-200 20-80 / ＞70% / /
OE-AOD-DB8-370-200-QL40-020 370-1550 2-8 40-200 20-80 / ＞70% / /
OE-AOD-DA9-405-400-QL100-030 405 4 100 30 2.1mrad ＞50% Crystalline Quartz Conduction Cooling
OE-AOD-DA10-488-300-QL100-050 488 3 100 50 37.4mrad ＞70% Tellurium Dioxide Conduction Cooling
OE-AOD-DA11-515-1000-QL088-044 515 10×10 88 44 34.9mrad ＞40% Tellurium Dioxide Conduction Cooling
OE-AOD-DA12-532-150-QL080-040 532 1.5 80 40 31.9mrad ＞50% Tellurium Dioxide Conduction Cooling
OE-AOD-DB1-532-500-QL100-050 532 5 100 50 / ＞75% / /
OE-AOD-DB2-633-100-QL85-040 633 1 85 40 / ＞75% / /
OE-AOD-DB3-633-010-QL1500-1000 633 0.1 1500 1000 / ＞20% / /
OE-AOD-DA13-650-500-QL070-006 650 5 70 6 5.9mrad ＞70% Tellurium Dioxide Conduction Cooling
OE-AOD-DA14-780-200-QL080-040 780 2 80 40 7.4mrad ＞80% Tellurium Dioxide Conduction Cooling
OE-AOD-DA15-813-750-QL100-042 813 7.5×7.5 100 42 52.5mrad ＞40% Tellurium Dioxide Conduction Cooling
OE-AOD-DA16-850-350-QL110-040 850 3.5 110 40 5.9mrad ＞50% Crystalline Quartz Water Cooling
OE-AOD-DA17-850-800-QL100-015 850 8 100 15 20mrad ＞70% Tellurium Dioxide Conduction Cooling
OE-AOD-DA18-919-350-QL052-020 919 3.5 52 20 28mrad ＞60% Tellurium Dioxide Conduction Cooling
OE-AOD-DA19-920-400-QL075-030 920 4 75 30 40.5mrad ＞80% Tellurium Dioxide Conduction Cooling
OE-AOD-DA20-1064-300-QL085-040 1064 3 85 40 10mrad ＞80% Tellurium Dioxide Water Cooling
OE-AOD-DB4-1064-100-QL45-030 1064 1 45 30 / ＞60% / /
OE-AOD-DA21-1550-700-QL040-020 1550 7 40 20 45mrad ＞70% Tellurium Dioxide Conduction Cooling
OE-AOD-DA22-10600-800-QL040-010 10600 8 40 10 19.3mrad ＞80% Germanium Water Cooling
