Double Magnification Bi-Telecentric Lens
Overview & Specifications Related Product Order Now!

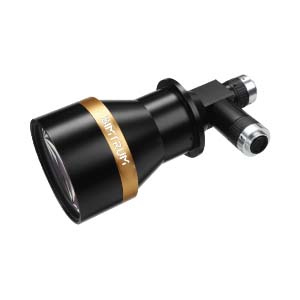

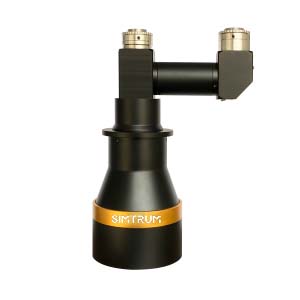

SIMTRUM's Double Magnification Bi-Telecentric Lens, 0.16X & 0.7X or 0.088X & 0.176X , Max. sensor size 1",1/1.8'',2/3''.WD 120mm,  F.No. 6&8, C-mount.



Support two camera working at the same time, two magnifications output to meet different measurement requirement, specially develped for measurement of large objects.









Feature

  • Double port, bi-telecentric, almost without deviation when used for measurement.
  • Big FOV and high resolution design, can achieve complete inspection at one time for large objects.
  • Low distortion and deep DOF design.



Application

  • Can be applied in high precision measurement oflarge objectsand machine vision industry.

Product specifications

Model STPMS-LDTC-016/07-120 STPMS-DTC-0088/0176-120
Magnification 0.16X 0.7X 0.088X 0.176X
FOV (MM X H X V) 1/3'' 30.0 x 22.5 6.9 x 5.1 54.5 x 40.9 27.3 x 20.5
FOV (MM X H X V) 1/2'' 40.0 x 30.0 9.1 x 6.9 72.7 x 54.5 36.4 x 27.3
FOV (MM X H X V) 1/1.8'' 44.7x33.5 10.2 x 7.7 81.2 x 60.9 40.6 x 30.5
FOV (MM X H X V) 2/3'' 55.0x41.3 12.6 x 9.4 Φ100 50.0x37.5
Working Distance (mm) 120 120
N.A. 0.013 0.044 0.011
F.No. 6.0 8 4.46 8.0
TV Distortion 0.02% 0.02% 0.05% 0.05%
DOF (mm) 19.23 1.30 16 7.2
Centre Mt@70lp/mm >60% >50% >76% >57%
Resolution (μm) 25.81 7.63 30.5 30.5
Max Sensor Size 1'' 1/1.8'' 2/3''
Object Side Telecentricity <0.02°(0.1°) <0.02°
Image Side Telecentricity <0.5° <0.3° ——
Mount C C
Working Temperature -10℃~+50℃ -10℃~+50℃

Model Magnification Working Distance (mm) Resolution (μm) Max Sensor Size Mount
 Standard Telecentric Lens 0.5 - 2.0X 9.4 - 230  1.1 - 22.37 1/4",1/3",1/2"1/1.8'',2/3'' C-Mount
High Resolution Telecentric Lens 0.2 - 2.0X 65 - 150 5.59 - 20.14 2/3",1/2",1",1.1" C-Mount
F Mount Big FOV Telecentric Lens 0.106 - 1X 127 - 468 10.82 - 34.95 35mm Film/4/3'' F-Mount
Macro Telecentric Lens 0.3X-1.0X 80 -185  6.71-13.98 2/3" C-Mount
Double Magnification Bi-Telecentric Lens 0.16X & 0.7X
0.088X & 0.176X		 120 25.81/7.63/30.5 1/1.8'',2/3'',1'' C-Mount




We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STPMS-LDTC-016/07-120
STPMS-LDTC-016/07-120,Double Magnification Bi-Telecentric Lens 0.16X & 0.7X, Max. sensor size 1''，Resolution 25.81/7.63 μm，Working Distance 120 mm 		4-6 weeks Request for quote
STPMS-DTC-0088/0176-120
STPMS-DTC-0088/0176-120,Double Magnification Bi-Telecentric Lens0.088X & 0.176X, Max. sensor size 1/1.8'' & 2/3''，Resolution 30.5 μm，Working Distance 120 mm 		4-6 weeks Request for quote

STPMS-DTC-0088/0176-120 - Parameter

STPMS-LDTC-016/07-120 - Parameter

STPMS-DTC-0088/0176-120 - Download

STPMS-LDTC-016/07-120 - Download
