Lab Jacks
Overview Related Products Selection Guide Technical Drawings Order Now!


• Scissor lifting mechanism, compact structure, strong load capacity

• Height adjustment driven by lead screw

• Defined by high cost performance



Manual Stages

 Rotation and Tilt Stages Optomechanics






Simtrum Part No.Vertical Travel (mm)Min Height(mm)Max Height(mm)Hole Type

Platform

dimensions

(mm)

Maximum Load(N)MaterialParallelism(µm)
LB256080255479

Top: M3, M4

 Bottom:

Counterbore for

 M4 Cap Screws

60x8058.8Aluminium200
LB65801206554119

Top: M3, M4

 Bottom:

M4, Counterbore for M4 Cap Screws

80x12073.5Aluminium200
LB65601206554119

Top:M3,M4

 Bottom:

Counterbore for

M4 Cap Screws

60x12063.7Aluminium200
LB4580100455499

Top: M3, M4

 Bottom:

M4, Counterbore for M4 Cap Screws

80x10068.6Aluminium200
The information in the chart above is a general guide to choosing the suitable lab jacks for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

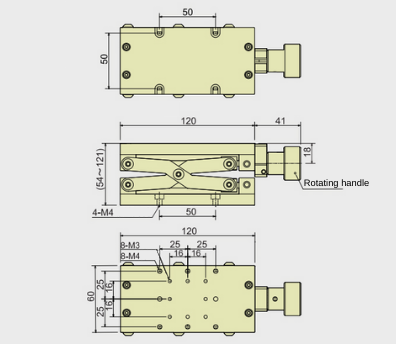

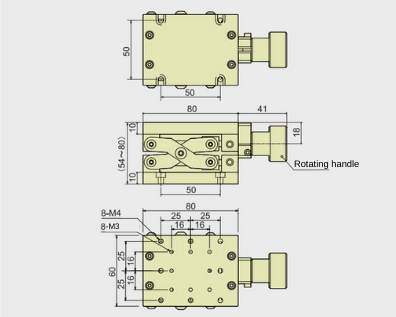

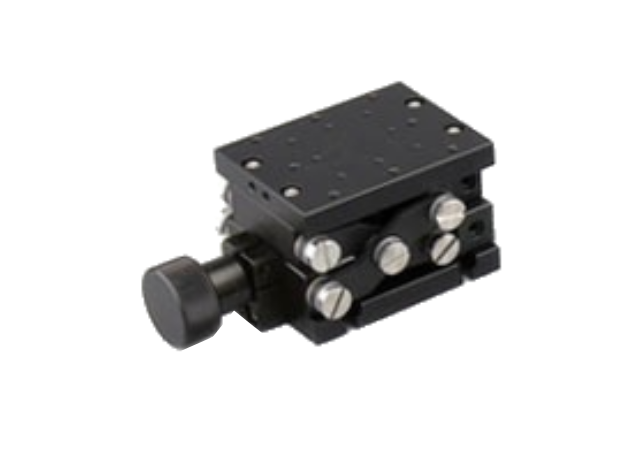

LB256080

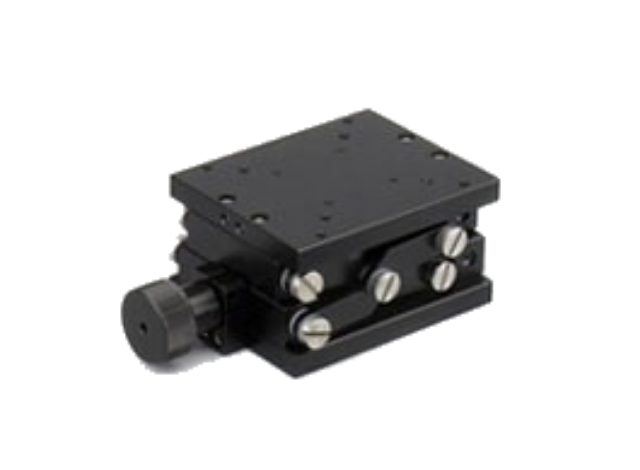

LB6580120

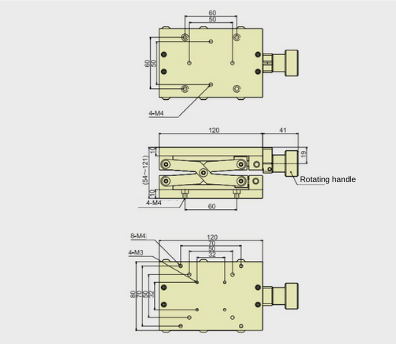

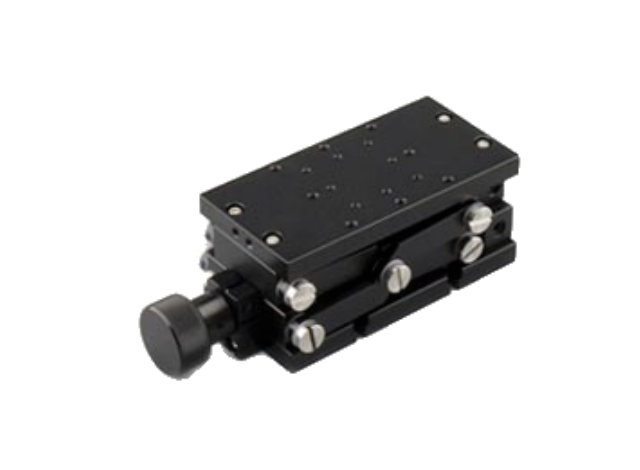

LB6560120

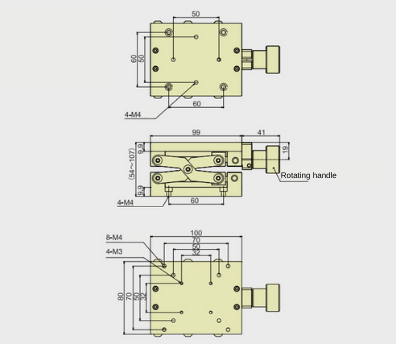

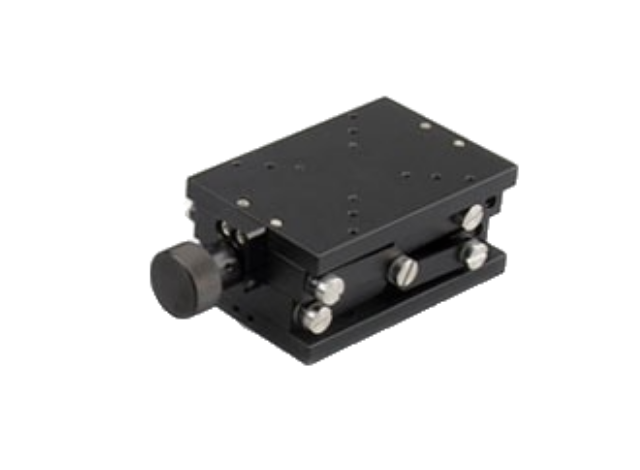

LB4580100



We are here for you!







Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Platform dimensions (mm) Hole Type Maximum Load (N) Vertical Travel (mm) Availability Reference Price
(USD)
LB256080
Lab Jack, Vertical Travel=25mm, Vertical Travel=25mm, Platform dimensions=60mmx80mm 		Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws25 4-6 Weeks $185.67
LB6580120
Lab Jack, Vertical Travel=65mm, Platform dimensions=80mmx120mm 		Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws65 4-6 Weeks $225.67
LB6560120
Lab Jack, Vertical Travel=65mm, Platform dimensions=60mmx120mm 		Top:M3,M4 Bottom: Counter Bore for Cap Screws65 4-6 Weeks $225.67
LB4580100
Lab Jack, Vertical Travel=45mm, Platform dimensions=80mmx100mm 		Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws68.645 4-6 Weeks $208.36

LB4580100 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)
68.6

Parallelism (μm)
200

Vertical Travel (mm)
45

Min Height (mm)
54

LB6560120 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top:M3,M4 Bottom: Counter Bore for Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
65

Min Height (mm)
54

LB6580120 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
65

Min Height (mm)
54

LB256080 - Parameter

Material
Aluminium, black anodized treatment

Platform dimensions (mm)

Hole Type
Top: M3, M4 Bottom: M4, Counter Bore for M4 Cap Screws

Maximum Load (N)

Parallelism (μm)
200

Vertical Travel (mm)
25

Min Height (mm)
54

LB4580100 - Download

LB6560120 - Download

LB6580120 - Download

LB256080 - Download
