High Precision Crossed Roller Bearing Z-Axis Vertical Stages

• Dual micrometers allow for coarse and fine adjustments

• Side micrometer enable high precision adjustments

• 13mm vertical travel distance for products currently available

Manual Stages

Rotation and Tilt Stages

Optomechanics

Simtrum Part No.	Bearing Type	Coarse Travel(mm)	Fine Travel(mm)	Hole Type	Maximum load(N)	Straight Line Accuracy(μm)	Drive Direction ( Fine)	Minimum reading (μm)
ZPR6060	Crossed Roller Guide	13	0.6	Platform: M3, M4 Base: Counter holes for M4 Cap Screws	19.6	2	Right	Coarse Travel: 10 Fine Travel: 0.5
ZPL6060	Crossed Roller Guide	13	0.6	Platform: M3, M4 Base: Counter holes for M4 Cap Screws	19.6	2	Left	Coarse Travel: 10 Fine Travel: 0.5
The information in the chart above is a general guide to choosing the suitable high precision crossed roller bearing z-axis vertical stages for your optomechanical setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

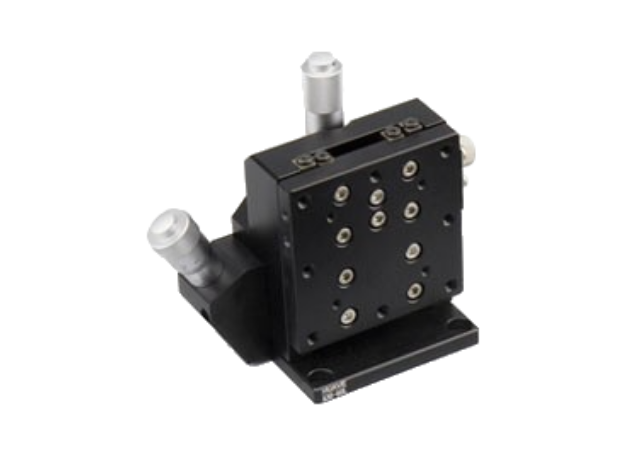

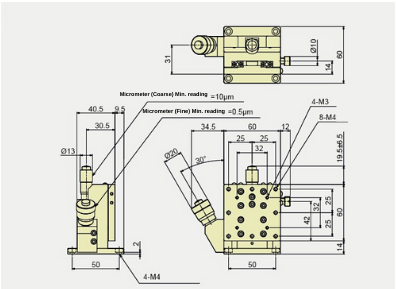

ZPR6060

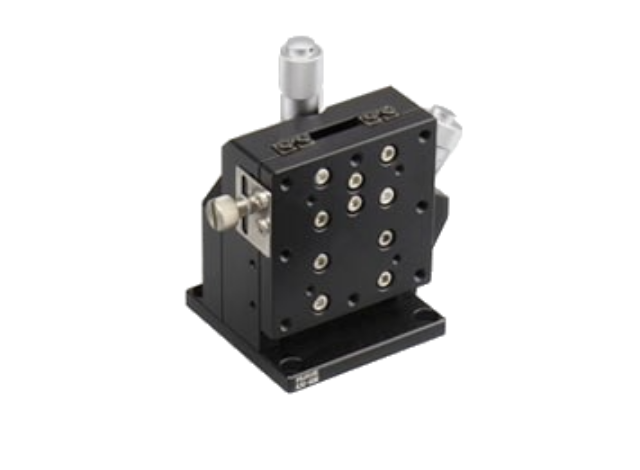

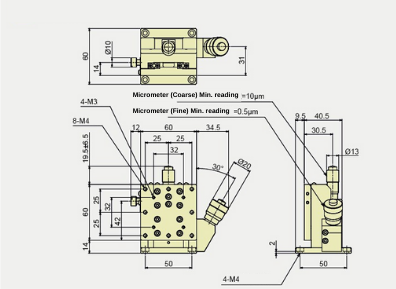

ZPL6060

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Bearing Type	Hole Type	Availability	Reference Price (USD)
		ZPR6060 High Precision Crossed Roller Guide Z-axis Vertical Stage,		Crossed Roller Guide	Platform: M3, M4 Base: Counter holes for M4 Cap Screws	4-6 Weeks	$287.31
		ZPL6060 High Precision Crossed Roller Guide Z-axis Vertical Stage,		Crossed Roller Guide	Platform: M3, M4 Base: Counter holes for M4 Cap Screws	4-6 Weeks	$287.31

ZPL6060 - Parameter

Material

Aluminium, black anodized treatment

Bearing Type

Crossed Roller Guide

Platform dimensions (mm)

60x60

Hole Type

Platform: M3, M4 Base: Counter holes for M4 Cap Screws

Straight Line Accuracy (μm)

Drive Direction

Left

Minimum reading (µm)

Maximum Load (N)

19.6

ZPR6060 - Parameter
