DPSS Pulsed Nanosecond Lasers
Overview 266/351/355 Model 527/532 Model 1064 Model 3.4um Model Request a Quotation

SIMTRUM design and manufacture 4 Models of diode pump solid state Nanosecond pulsed laser (DPSS ns laser), Covering the wavelength on 266nm, 351nm, 355nm, 527nm, 532nm, 1064nm and 3400nm. The specification of the laser is customizable


Ultraviolet Nanosecond Lasers  (Lancer Series 266nm, 351nm, 355nm)

It mantain a maximum output of 40W. The standard product has a pulse width of 12ns and a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of of high-intensity use.

Defining Features

• All solid state end pumped

• Intracavity frequency doubling

• Frequency laser system

• Unique optical cavity design to ensure high beam quality

Applications

• PCB/Camera chip/FPC module cutting

• Glass fiber cloth & Epoxy resin cutting

• Ferrite/carbon fiber/graphene cutting

• Tungsten sheet/aluminum film/coper film

  cutting/resistance cutting




Green Nanosecond Lasers (Galver Series 527nm, 532nm)

It mantain a maximum output of 50W. The standard product has a pulse width of 10ns to 20ns and a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of of high-intensity use.

Defining Features

• All solid state end pumped

• OPO laser system

• Light weight

• Compact optical design to ensure high stability



Applications

• Military detectors

• Medical fields

• Gas composition analysis




Infrared Nanosecond Lasers (Ladder Series 1064 NG:YAG or NG:YVO4)

It is developed to provide high power and high energy. The product has a 7-day power instability (2 x RMS) <= 1.4%, meeting 365*7*24 hours of high-intensity use.

Defining Features

• All solid state end pumped

• Stable cavity shape

• Long lifetime

• Compact optical design to make the product extremely stable

Applications

• Laser marking

• Laser scribing

• Laser welding




Mid-Infrared Nanosecond  Lasers（RIver Series 3.4um)

It was developed in line with the requirements of military customers. They are safe, stable and compact allowing for easy installation in small tactical platforms. The product meets 365*7*24 hours of high-intensity use.

Defining Features

• All solid state end pumped

• Intracavity frequency doubling

• Frequency laser system

• Unique optical cavity design to ensure high beam

quality



Applications

• Radar detection

• Glass cutting and punching

• Metal coil cutting



Product Brochure Industrial DPSS Laser

General Specifications

MODEL   NO.Lancer-266SPLancer-351SPLancer-355HPLancer-355SP
Parameter

Wavelength266nm351nm355nm355nm
Power≥1W1W@1kHz≥35W3-30W
Repeat frequency0-200kHz1-4kHz0-200kHz0-200kHz
Pulse energy50μJ（20kHz）125uJ（1kHz）＞1mJ@1kHz1000μJ (30-40kHz)75-1000μJ（30-40kHz）
Pulse width12ns<50ns@1kHz<40ns<20ns
Beam   characteristics


Spot   modeTEM00TEM00TEM00
M2 factor＜1.5＜1.2＜1.3＜1.3
Polarization stateElliptical   polarization optional＞100:1 Horizontal   polarization＞100:1 Horizontal   polarization
Beam divergence angle＜2 mrad＜2 mrad＜2 mrad
Pointing stability＜±25 μrad/℃＜±25 μrad/℃＜±25 μrad/℃
Power stability＜1.5% rms＜1% rms＜1% rms＜1% rms
Working   environment

Preheat   time＜10 min＜10 min＜10 min
Temperature range10-35℃10-35℃10-35℃
Humidity range5%-95%5%-95%5%-95%
Temperature setting22℃±0.1℃22℃±0.1℃22℃±0.1℃
Physical   parameter

Laser   head size (L×W×H）(435×279×102mm）       (632.5×210×141mm）(435×279×102mm）
Laser head weight12.5KG12.5KG15.5KG12KG
Controller size (L×W×H）(438×420×145mm）Can be integrated15W and below can be integrated with laser head

Technical Drawings

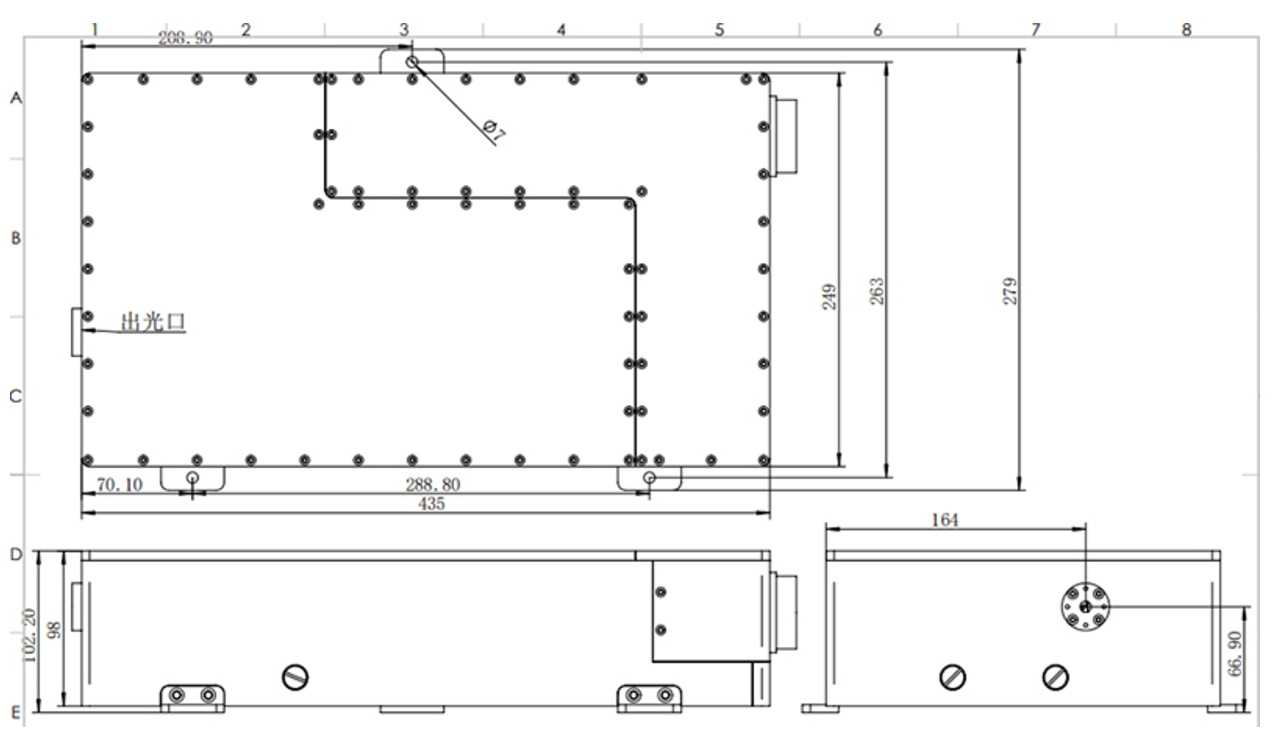

1-15W UV

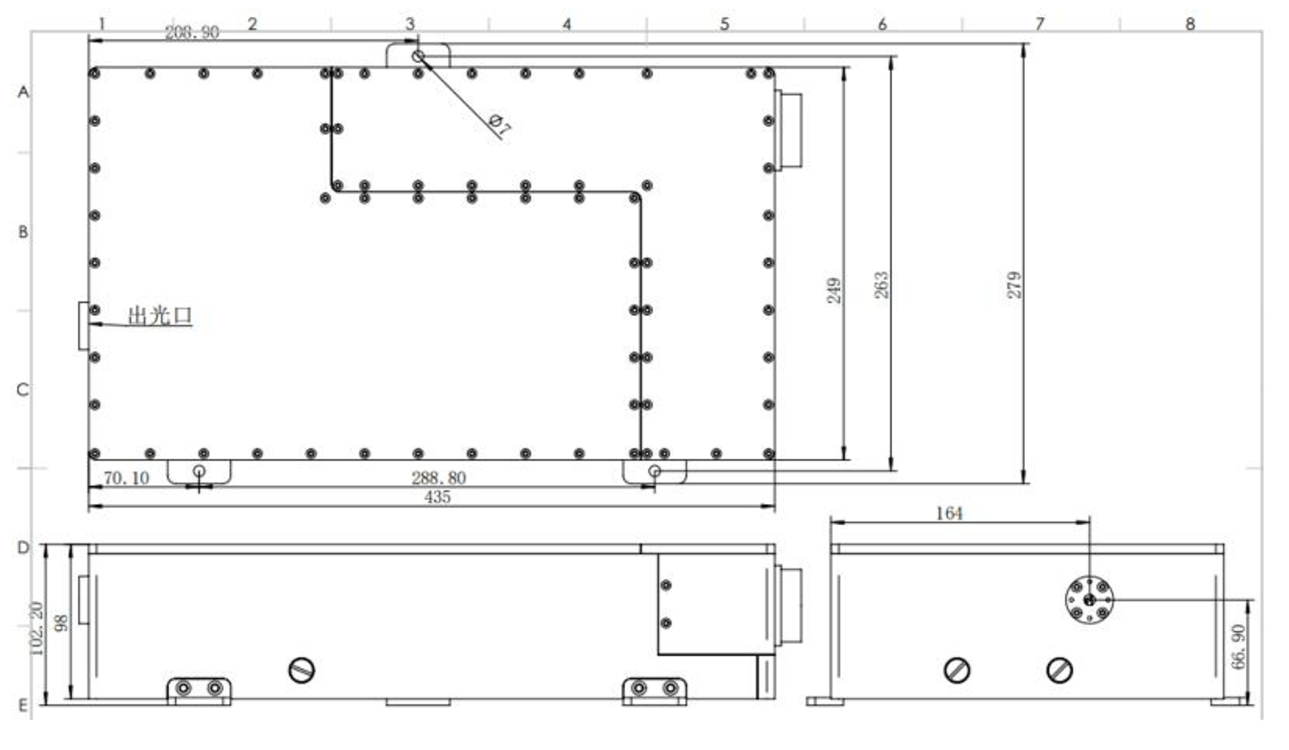

30W UV


Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.Galver-527Galver-532Galver-532SPGalver-532HP
Parameter
Wavelength527nm532nm532nm532nm
Power>3W@3kHz>8W@50kHz>3W@20kHz>50W@50kHz
Repeat   frequency1-10kHz0-200kHz0-200kHz20-200kHz
Pulse   energy>2000μJ @1kHz>160μJ@50kHz>150μJ（20kHz）1mJ@50kHz
Pulse   width60ns10ns5ns20ns
Beam   characteristics
Spot   modeTEM00TEM00
M2   factor＜1.2＜1.2＜1.3
Polarization   state＞100:1 Vertical   polarization＞100:1Vertical   polarization
Beam   divergence angle＜2 mrad＜2 mrad
Pointing   stability＜±25 μrad/℃＜±25 μrad/℃
Power   stability＜1% rms＜1% rms＜1.5% rms
Working   environment
Cooling   methodAir   cooling/water coolingAir   cooling/water coolingWater   cooling
Preheat   time＜10 min＜10 min＜10 min
Temperature   range10-35℃10-35℃10-35℃
Humidity   range5%-95%5%-95%5%-95%
Temperature   setting23℃±0.1℃23℃±0.1℃22℃±0.1℃
Physical   parameter
Laser   head size (L×W×H）(432×142×147mm）(372×180×127mm）/（432×112×147mm）(435×279×102mm）
Laser   head weight13KG12KG12KG20KG
Controller   size(438×420×145mm）Can be integrated with laser head



Product Brochure Industrial DPSS Laser

General Specifications

MODEL NO.10-106415-106420-106430-106440-106450-106460-1064
Parameter
Laser MediumNd:YVO4Nd:YVO4Nd:YVO4Nd:YVO4Nd:YVO4Nd:YVO4Nd:YVO4
Wavelength1064 nm1064 nm1064 nm1064 nm1064 nm1064 nm1064 nm
Nominal Power @40Khz10W15W20W30W40W50W60W
Repetition Rate10 - 150 KHz
Pulse Width<30 ns @ 40 kHz
Pulse Energy250uJ @ 40 kHz375uJ @ 40 kHz500uJ @ 40 kHz750uJ @ 40 kHz1000uJ @ 40 kHz1250uJ @ 40 kHz1500uJ @ 40 KHz
Peak Power>8.33kW @ 40 kHz>12.5kW @ 40 kHz>16.67kW @ 40 kHz>25kW @ 40 kHz>33.3kW @ 40 kHz>41.67kW @ 40 kHz>50kW @ 40 kHz
Beam Characteristic
Pulse - to - Pulse Stability<2% @ 40 kHz
Power Stability (rms, 8h)<2%
Spatial ModeM2 <1.3, TEM00
Nominal Beam Diameter (at waist)<1 mm
Nominal Waist Location (from output)<1 mm
Beam Divergence (full angle)≤2 mrad
Nominal Beam Diameter (at output)<1.1 mm
PolarizationHorizontal, >100:1
Circularity>90 %
Working environment
Warm - up Time<15 min
Operating Voltage OEM P / S (standard)24 VDC
Operating Voltage 19″ P / S (optional)AC 220 V or AC 110 V, 50 Hz / 60 Hz
Laser Power Consumption<350 W
CoolingAirWater
Ambient Temperature15 - 35 ℃
External TemperatureRS232
Physical parameter
Dimensions Laser Head (L × W × H)<440 × 120 × 95 mm<450   × 230 × 95 mm
Weight Laser Head<12 Kg<20Kg

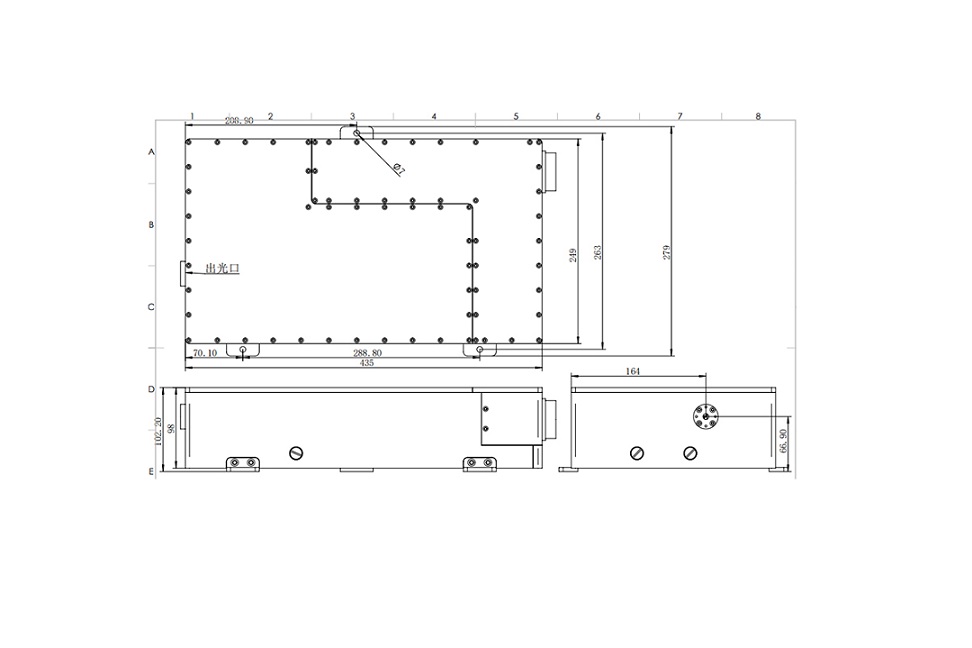

Technical Drawings


Product Brochure Industrial DPSS Laser

General Specifications

 MODEL NO.

River-3.4

 Parameter

 Wavelength

3.4μm

 Power

>1W@40kHz

 Repeat frequency

20-100kHz

 Pulse energy

>25μJ@40kHz

 Pulse width

10ns

 Beam characteristics

 Polarization state

＞100:1 Horizontal polarization

 Pointing stability

＜±25 μrad/℃

 Power stability

＜2% rms

 Working environment

 Cooling method

Wind cooling

 Preheat time

＜10 min

 Temperature range

10-35℃

 Humidity range

5%-95%

 Physical parameter

 Laser head size (L×W×H）

(380×110×120mm）

 Laser head weight

<5KG

 Controller size

customizable

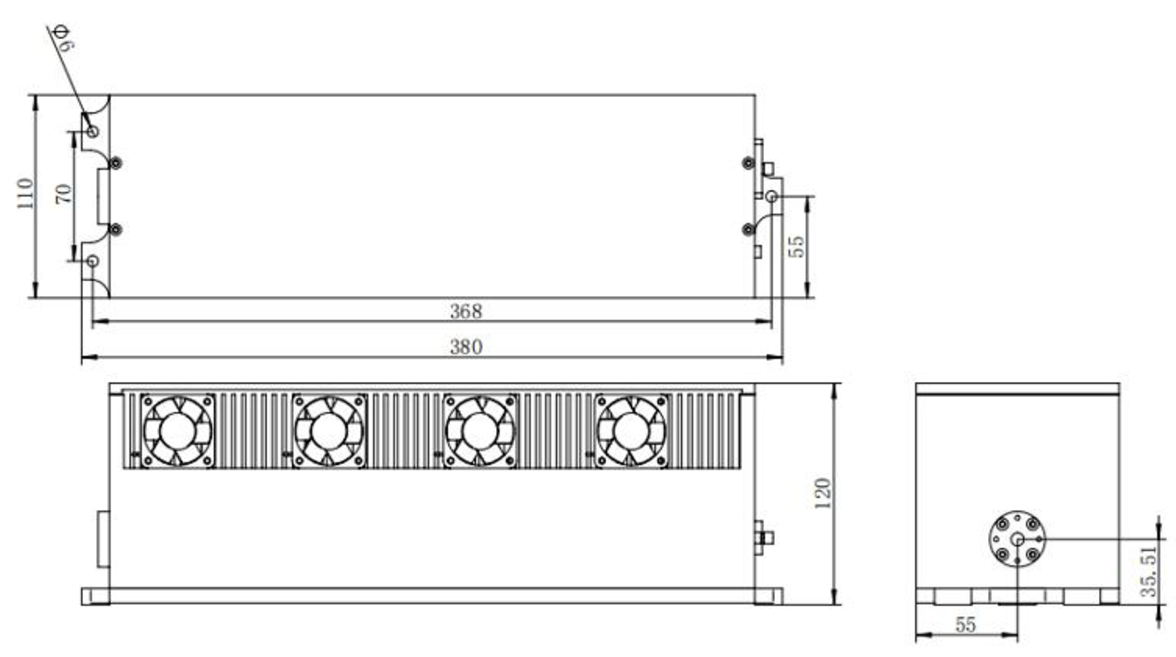

Technical Drawings


Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Email Quotations

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 1 working days.


Local Same Day Service

-Singapore Main office:  Call us at +65 6996 0391 Office Hours: 9am - 6pm (+8GMT)
-China Shanghai Main office：Call us at +86 1500085 3620. Office Hours: 9am - 6pm (+8GMT)
For Other Internation sales office  click here.


Spectroscopy & Microscopy Solution

Check our solution page Spectroscopy Solutions | Microscopy Solutions


Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Wavelength (nm) Power (W) Pulse Width (ns) Availability Reference Price
(USD)
Lancer-266SP
Ultraviolet Nanosecond Lasers 266nm 		266≥ 112 4-6 Weeks Request for quote
Lancer-351SP
Ultraviolet Nanosecond Lasers 351nm 		3511< 50 4-6 Weeks Request for quote
Lancer-355SP
Ultraviolet Nanosecond Lasers 355nm 		3553 to 30< 40 4-6 Weeks Request for quote
Lancer-355HP
Ultraviolet Nanosecond Lasers 355nm 		355≥ 35< 40 4-6 Weeks Request for quote
Galver-527
Green Nanosecond Lasers 527nm 		527≥ 360 4-6 Weeks Request for quote
Galver-532
Green Nanosecond Lasers 532nm 		532≥ 810 4-6 Weeks Request for quote
Galver-532SP
Green Nanosecond Lasers 532nm 		532≥ 35 4-6 Weeks Request for quote
Galver-532HP
Green Nanosecond Lasers 532nm 		532≥ 5020 4-6 Weeks Request for quote
Ladder-1064
Infrared Nanosecond Lasers 1064 NG:YAG or NG:YVO4 		1064> 70< 40 4-6 Weeks Request for quote
River-3.4
Mid-Infrared Nanosecond Lasers 3.4um 		3400> 110 4-6 Weeks Request for quote

River-3.4 - Parameter

Wavelength (nm)
3400

Power (W)
> 1

Pulse Width (ns)
10

Repeat Frequency (kHz)
20 to 100

Pulse energy(μJ )
< 25

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
< 2

Cooling method
Wind Cooling

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

Laser head size(mm)
380×110×120

Laser head weight(KG)
<5

Controller size
customizable

Galver-532HP - Parameter

Wavelength (nm)
532

M2 Factor
＜1.3

Power (W)
≥ 50

Pulse Width (ns)
20

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
20 to 200

Pulse energy(μJ )
1

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1.5

Cooling method
Water Cooling

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
22±0.1

Laser head size(mm)
435×279×102

Laser head weight(KG)
20

Controller size
Can be integrated with laser head

Ladder-1064 - Parameter

Wavelength (nm)
1064

Operating Temperature (°C)
10-35

M2 Factor
<1.2

Power (W)
> 70

Pulse Width (ns)
< 40

Beam Divergence Angle (mrad)
<5

Repeat Frequency (kHz)
40

Pulse energy(μJ )
> 0.7

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Cooling method
Water Cooling

Preheat time(min)
< 10

Humidity range(%)
5 to 95

temperature setting(℃)
23±0.1

Laser head size(mm)
435×279×102

Laser head weight(KG)
<30

Controller size
Can be integrated with laser head

Galver-532SP - Parameter

Wavelength (nm)
532

M2 Factor
＜1.3

Power (W)
≥ 3

Pulse Width (ns)
5

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
0 to 200

Pulse energy(μJ )
> 150

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1.5

Cooling method
Air cooling/water cooling

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
23±0.1

Laser head size(mm)
432×112×147

Laser head weight(KG)
12

Controller size
Can be integrated with laser head

Galver-532 - Parameter

Wavelength (nm)
532

M2 Factor
<1.2

Power (W)
≥ 8

Pulse Width (ns)
10

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
0 to 200

Pulse energy(μJ )
> 160

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Cooling method
Air cooling/water cooling

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
23±0.1

Laser head size(mm)
432×112×147

Laser head weight(KG)
12

Controller size
Can be integrated with laser head

Galver-527 - Parameter

Wavelength (nm)
527

M2 Factor
<1.2

Power (W)
≥ 3

Pulse Width (ns)
60

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
1 to 10

Pulse energy(μJ )
> 2000

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Cooling method
Air cooling/water cooling

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
23±0.1

Laser head size(mm)
432×142×147

Laser head weight(KG)
13

Controller size
(438×420×145mm)

Lancer-355HP - Parameter

Wavelength (nm)
355

M2 Factor
＜1.3

Power (W)
≥ 35

Pulse Width (ns)
< 40

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
0 to 200

Pulse energy(μJ )
1000

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
22±0.1

Laser head size(mm)
435×279×102

Laser head weight(KG)
15.5

Controller size
Can be integrated with laser head

Lancer-355SP - Parameter

Wavelength (nm)
355

M2 Factor
＜1.3

Power (W)
3 to 30

Pulse Width (ns)
< 40

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
0 to 200

Pulse energy(μJ )
1000

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
22±0.1

Laser head size(mm)
435×279×102

Laser head weight(KG)
12

Controller size
Can be integrated with laser head

Lancer-351SP - Parameter

Wavelength (nm)
351

Beam Divergence, Full Angle (mrad)
<2.0

M2 Factor
<1.2

Power (W)
1

Pulse Width (ns)
< 50

Repeat Frequency (kHz)
1 to 4

Pulse energy(μJ )
1

Spot Mode
TEM00

Polarization State
＞100:1 Horizontal polarization

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
22±0.1

Laser head size(mm)
632.5×210×141

Laser head weight(KG)
12.5

Controller size
Can be integrated with laser head

Lancer-266SP - Parameter

Wavelength (nm)
266

M2 Factor
<1.5

Power (W)
≥ 1

Pulse Width (ns)
12

Beam Divergence Angle (mrad)
＜2

Repeat Frequency (kHz)
0 to 200

Pulse energy(μJ )
125

Spot Mode
TEM00

Polarization State
Elliptical polarization optional

Pointing stability(μrad/℃)
＜±25

Power stability (% rms)
＜1.5

Preheat time(min)
< 10

temperature range(℃)
10 to 35

Humidity range(%)
5 to 95

temperature setting(℃)
22±0.1

Laser head size(mm)
35×279×102

Laser head weight(KG)
12.5

Controller size
(438×420×145mm)

River-3.4 - Download

Download

Galver-532HP - Download

Download

Ladder-1064 - Download

Download

Galver-532SP - Download

Download

Galver-532 - Download

Download

Galver-527 - Download

Download

Lancer-355HP - Download

Download

Lancer-355SP - Download

Download

Lancer-351SP - Download

Download

Lancer-266SP - Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
