Products / Imaging /Scientific CMOS Cameras /Intensified CMOS Camera (200-1100nm) /Time-Resolved iCMOS (200-1100nm) Camera /

Time-Resolved iCMOS (200-1100nm) Camera

Overview Specification Photocathodes & Phosphors Related Products Order Now!

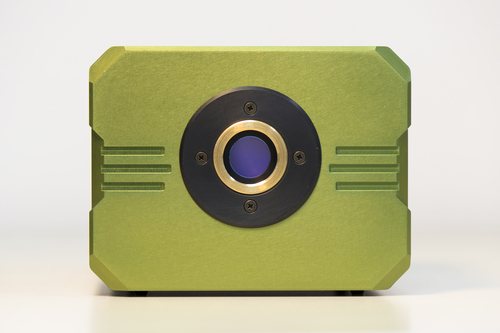

Time-Resolved iCMOS

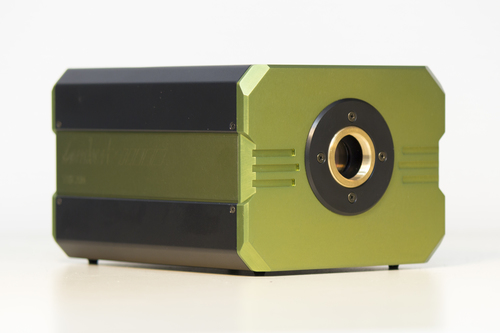

The TRiCAM is an intensified CMOS camera for scientific and industrial applications that require 1) low-light level imaging, 2) ultra-short exposures through fast gating, and/or 3) frequency domain imaging using lock-in detection. The TRiCAM features a fast CMOS sensor that is fiber-optically coupled to an image intensifier for optimal transmission efficiency. The high sensitivity of the TRiCAM, down to the single photon level, is supplemented with an acquisition speed up to 162 fps.

The TRiCAM (Time-Resolved intensified CAMera) is the best choice for ultra-fast imaging in the time domain and/or frequency domain.

For time-domain imaging the iCMOS is equipped with an integrated timing pulse generator and gate-unit (TRiCAM G). The TRiCAM G includes the LI-Capture software for control of gate width, gate frequency, delay, gain and binning. Two synchronised TTL output signals (output A and B) are provided for driving pulsed lasers or LEDs.

For frequency domain imaging the iCMOS supports gain modulation of 120 MHz (standard) and higher (external signal generator). This is the TRiCAM M model. Modulation is provided by a single-chip digital synthesizer to ensure a very low phase noise. The TRiCAM is the key component of the Lambert Instruments LIFA system for FLIM.

The TRiCAM is highly customizable and can be equipped with the image intensifier that best matches your application. Different camera models covering a range in spectral sensitivity, phosphor, spatial resolution, gain, linearity, minimum gate width and gating frequency are available.

Features

● High-resolution image intensifiers

Image intensifiers offering the world’s highest resolution and sensitivity in the

UV, Visible or Near Infrared

● Small gate widths

Down to less than 3 ns (FWHM) with minimal jitter

● Single-chip digital synthesizer for frequency-domain acquisition

For high dynamic range fluorescence lifetime imaging at the lowest possible

phase noise

● Compact camera design

For an easy fit to a microscope body or imaging spectroscope

● LI-Capture software

For complete camera control; the SDK enables integration with third-party

software

Applications

● Time-resolved imaging and spectroscopy

● Particle Image Velocimetry (PIV)

● Laser Induced Fluorescence (LIF)

● Time-gated luminescence

● Fluorescence Lifetime Imaging Microscopy (FLIM)

● Förster Resonance Energy Transfer (FRET)

● Oxygen imaging

● Viscosity imaging

● Single molecule imaging

● Bio- and Chemiluminescence Imaging

● Solar PV and LED characterization

● Combustion

● Time-gated Raman

● Plasma physics

● X-ray Imaging

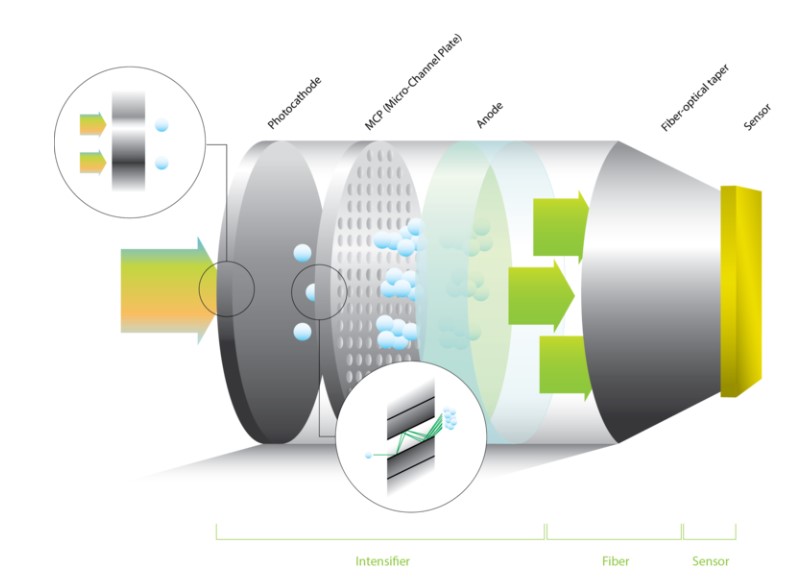

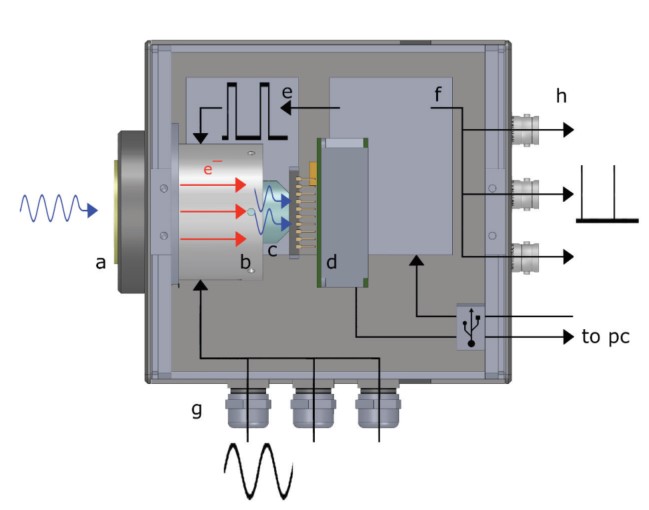

Intensified CMOS cmaera layout

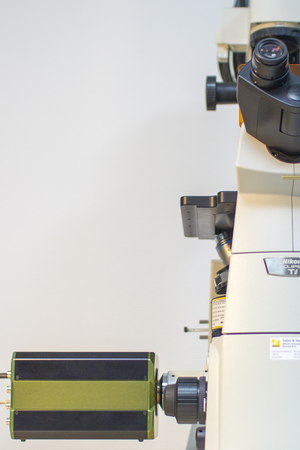

When the TRiCAM is mounted to a microscope or lens, the incoming light (a) is focused onto the entrance window of the image intensifier (b). The image intensifier converts the optical image to electrons, amplifies this electron image, and re-converts the electrons into photons. A fiber-optic taper (c) guides the amplified optical image to the CMOS module for registration and read-out (d).

For time-resolved imaging the image intensifier is used as an electro-optical shutter during the process of image acquisition. This uses either a signal generated by the gate unit and timing unit (e & f - the TRiCAM G model) or a high-frequency modulation signal (g - the TRiCAM M model) provided by a direct digital synthesizer. The camera provides multiple output signals (h) for accurate synchronization of external equipment such as a pulsed light source.

Figure caption: a) lens mount, b) image intensifier, c)fiber-optic taper, d) CMOS camera module, e) gate unit, f) timing unit, g) intensifier modulation input, h) output synchr. gate pulses.

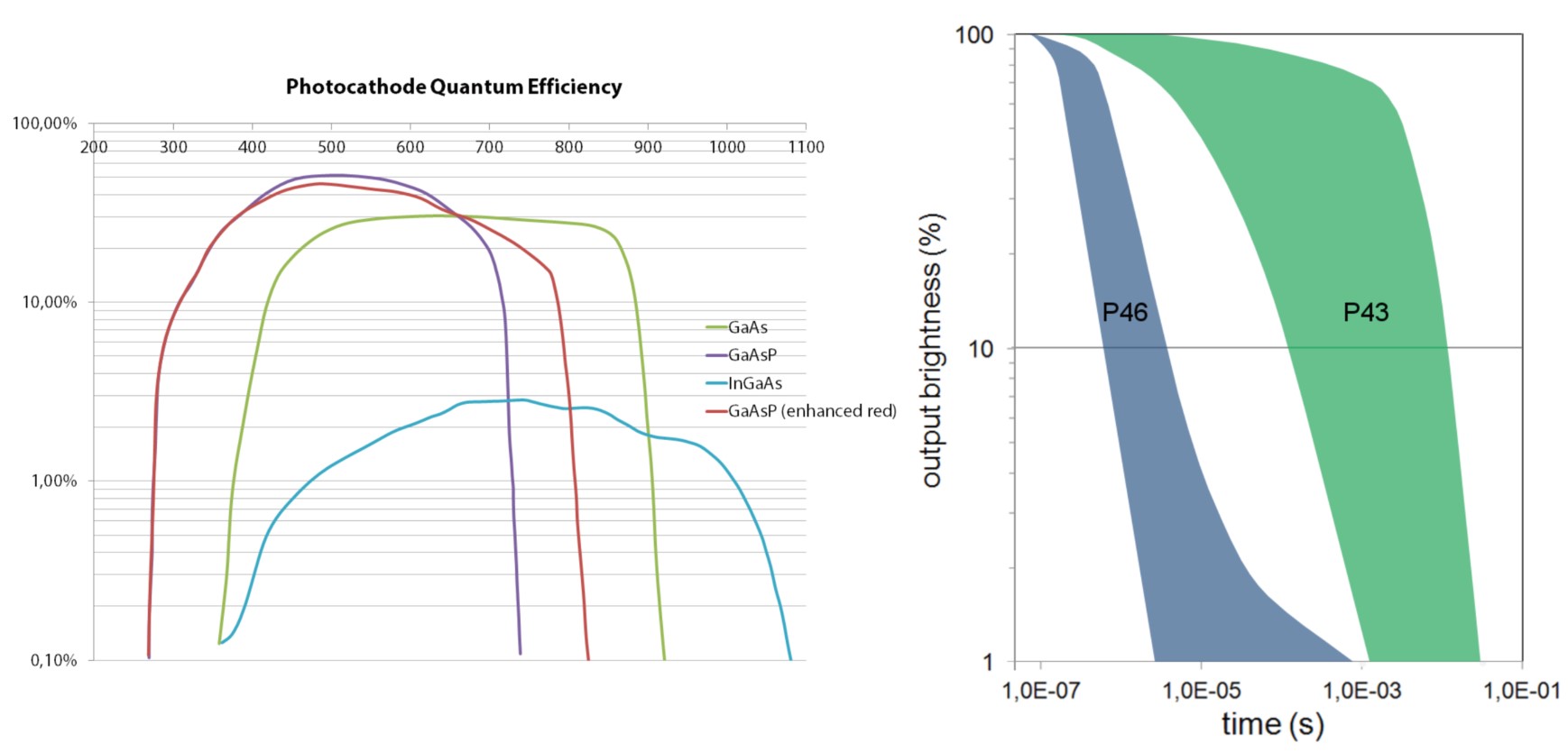

Spectral Response and Phosphor Decay Time

Phosphor	Efficiency	Decay time to 10%	Decay time to 1%
P43 (standard)	20 photons/e-/kV	1.5 ms	3 ms
P46 (optional)	6 photons/e-/kV	500 ns	2000 ns

Image Intensifier

Low-light imaging

The TRiCAM has a built-in image intensifier that boosts the incoming light. This way, you can capture detailed images in the most challenging light conditions.

Our experienced engineers will help you pick the right image intensifier for your application.

Image intensifiers.jpg

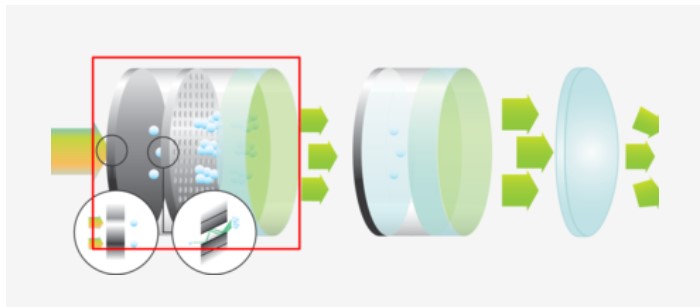

Image intensifiers

An image intensifier boosts the intensity of the incoming light.

By converting photons to electrons and back to photons, the

light intensity can be increased significantly. Another feature of

an image intensifier is that it can act as an ultra-fast shutter.

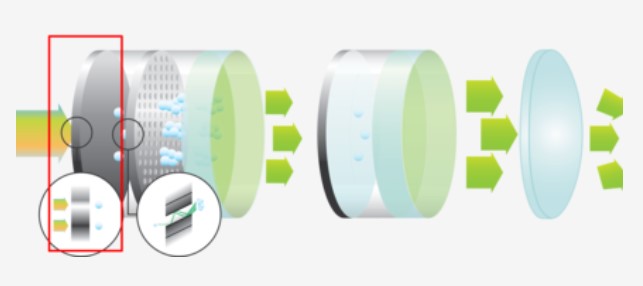

Photocathodes

The photocathode is the entrance of the image intensifier.

This is where the incoming photons are converted to electrons.

The quantum efficiency of the photocathode material specifies

how efficient this conversion is for each wavelength.

Models Guide

TRiCAM G

Gated Image Intensifier

TRiCAM M

Modulated Image Intensifier

TRiCAM GM

Gated and Modulated intensifier

The TRiCAM G is equipped with an integrated timing pulse generator and a gate-unit. The integrated gate unit generates gate pulses down to < 3 ns.

Modulation at up to 120 MHz is provided by a single-chip digital synthesizer to ensure very low phase noise.

This is a combination of the gated and modulated versions of the TRiCAM. This versatile camera is capable of both gated and modulated imaging.

Product specifications and Brochures

Product Brochure Link:

General Camera Specifications
Image sensor	1920 x 1200 pixels ; 5.86 µm square pixels
Dynamic range Max. frame rate at full resolution	72 dB 162 fps
Readout noise Integration time control	14 eˉ 0.005 ms – 3.2 s
Selectable Region of Interest	1920 x 1200 @ 128 fps (12 bit) or 162 fps (10 bit)
Digitization	10 or 12 bit (selectable)

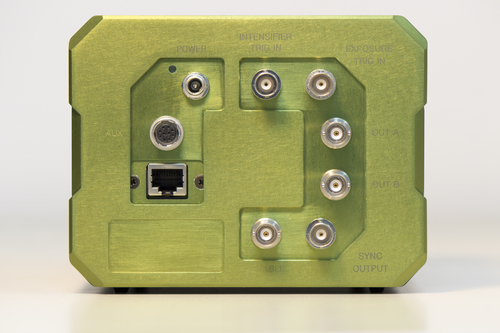

Triggering	External trigger input LVTTL ; Trigger output LVTTL
Lens mount	C-mount (F-mount upon request)
Intensifier models Input diameter	Single-stage MCP Gen II or Gen III (filmless) 18 mm
Sensitivity and spectral range	TRiCAM G: see graph on Overview
Phosphors	TRiCAM M: S20, S25, GaAs, GaAsP (blue curves graph Overview) TRiCAM G: P20,P24,P43,P46; TRiCAM M: P43
Sensor coupling	Tapered fiber optics 1.33:1
Photon gain (max)	S20: 40000, S25: 30000, GaAs: 30000, GaAsP: 50000
Equivalent Background Input	S20: 0.006 photo eˉ/pix/s, S25: 0.008 photo eˉ/pix/s, GaAs: 0.024 photo eˉ/pix/s, GaAsP: 0.006 photo eˉ/pix/s
Spatial resolution bare intensifier	Gen II: up to 69 lp/mm, Gen III: up to 64 lp/mm

Gating

The TRiCAM G can be used as an ultra-fast electro-optical shutter by gating the image intensifier and thereby reducing the effective exposure time. Time domain gating eliminates motion blur and significantly widens the range of light levels at which the camera can be used.

The user has full control of the camera gate pulse width, delay and gain through either the dedicated LI-Capture software or the software SDK. The software supports an array of gating modes, including synchronization of the internal oscillator to an external source. The standard camera has two additional output channels (output A and B) synchronised with the gate frequency. For both channels the user has control of the delay time as well as the pulse width and polarity.

For the TRiCAM M model the camera modulation signal at frequencies below 100 kHz can be produced using the optional gate unit and timing pulse generator. The pulse generator also generates the synchronisation signal for a modulated light source or acousto-optic modulator.

Gating Specification
Models	TRiCAM G 40n	TRiCAM G 2n
Min. gate width (FWHM)	40 ns	Gen II: < 3 ns Gen III: 5 ns
Max. repetition frequency	100 kHz	300 kHz
Gate pulse width control	40 ns – 5 s, 20 ns resolution	< 3 ns – 10 s, 10 ps resolution
Gate delay time control	0 – 5 s, 20 ns resolution	0 – 10 s, 10 ps resolution
Dead time after trailing edge	200 ns	100 ns
Pulse generator resolution; jitter	20 ns; 10 ns	10 ps; < 35 ps
Insertion delay	100 ns	65 ns
Trigger input	TTL	TTL
Output A/B pulse width control	0	5 ns – 10 s, 10 ps resolution
Output A/B delay control	n.a.	0 – 10 s, 10 ps resolution
Interface	USB 3.0	USB 3.0
Programmable gate trains	n.a.	Available

Modulation control unit specification

The TRiCAM M provides highly accurate frequency-domain imaging with high-resolution gain modulated Gen II and Gen III image intensifiers.

The TRiCAM M combines the ICMOS camera with a separate modulation control unit. The modulation control unit contains a single-chip dual channel DDS for generation and amplification of the RF modulation signals for the modulated lightsource and the image intensifier (100 kHz – 120 MHz standard). The control unit further supplies the required high-voltages to the image intensifier. A software SDK is provided for digital control of the gain, modulation and cathode bias voltages via an USB interface, emulating a standard RS232 serial communicationsport.

Modulation frequencies below 100 kHz are supported by the optional gate unit and time pulse generator. The pulse generator generates the synchronisation signal for an external modulated light source or acousto-optic modulator.

Modulation Specification
TRiCAM M
Frequency range	100 kHz – 120 MHz (standard), up to at least 250 MHz with an external signal generator
Frequency adjustment resolution	1 kHz
Frequency deviation	100 ppm max.
Phase adjustment range	0 – 360° in 1° steps, phase deviation < 0.01°
Harmonics suppression	Better than 25 dB
High light level protection	Integrated intensifier protection, switches off all DC and AC power
Output 1. TRiCAM
AC signal level	Adjustable from –30 to 0 dBm
AC signal after amplification	50 Vpp max.
Output 2. Lightsource
Programmable options:
a) Multi-LED
AC signal level (DC current adjust)	Adjustable in 250 steps (0 – 1000 mA, 12 bit)
b) Modulated laser diode
AC signal level (DC level adjust)	0.00 – 1.00 V peak-peak (0.00 – 1.00 V)
c) AOM for CW laser
AC signal level	0.00 – 1.00 V peak-peak
Frequency	Half the frequency of output 2
Modulation input	Input for external modulation signal, 250mV (peak-peak), 50Ω
External trigger input	LVTTL (high frequency mode only), 50Ω
Trigger input	Available upon request
Monitor Output	Output modulation signal monitor
Interface	USB 3
TRiCAM GM, as TRiCAM M plus:
Frequency Range	0 – 100 kHz
Min. gate width (FWHM)	40 ns
Gate pulse width control	40 ns – 10 s, 10 ps resolution
Gate delay time control	0 – 10 s, 10 ps resolution
Dead time after trailing edge	100 ns
Pulse generator resolution (jitter)	10 ps ( < 35 ps)
Insertion delay	45 ns
Trigger input	3.5 V – 5.0 V 50 Ω
Output A/B pulse width/delay control	Fully programmable, 50 Ω source imped

Photocathodes

The photocathode is the entrance of the image intensifier. This is where the incoming photons are converted to electrons. The quantum efficiency of the photocathode material specifies how efficient this conversion is for each wavelength.

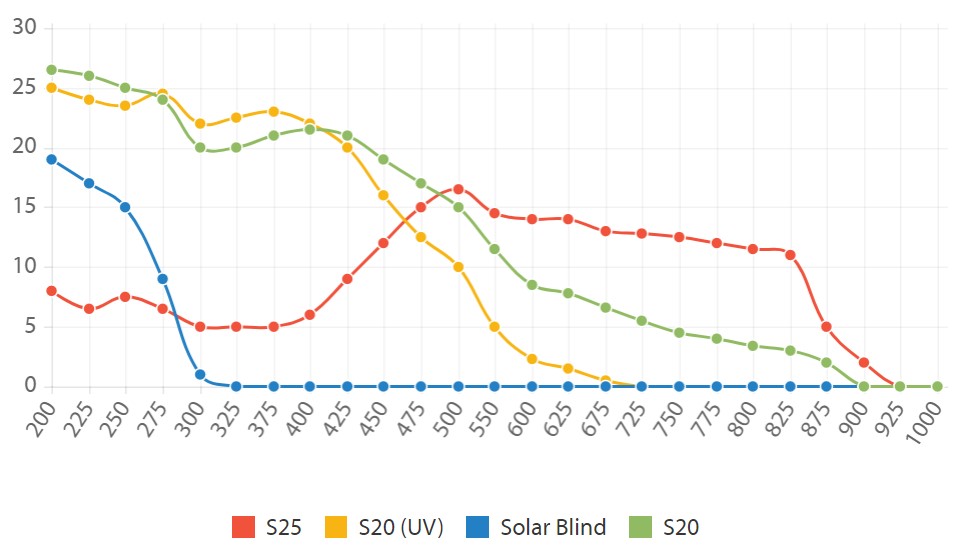

Second generation image intensifiers The photocathode of a second generation image intensifier can have a quantum efficiency of up to 25%. S25 photocathodes are only available in the 18 mm diameter image intensifiers.	Typical QE Typical quantum efficiency (%) of second generation image intensifiers as a function of wavelength (nm).

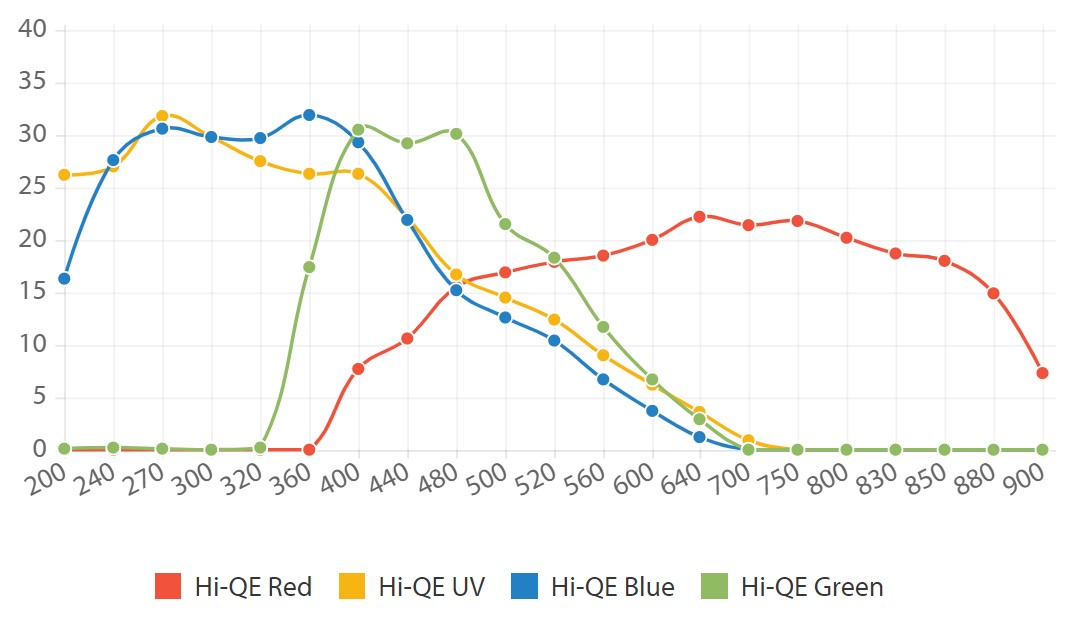

Second generation high QE image intensifiers The photocathode of a second generation high QE image intensifier can have a quantum efficiency of over 30%. Please note that these image intensifiers are only available with a diameter of 18 mm.	Typical QE, 200 ns gate width Typical quantum efficiency (%) of second generation high QE image intensifiers as a function of wavelength (nm).

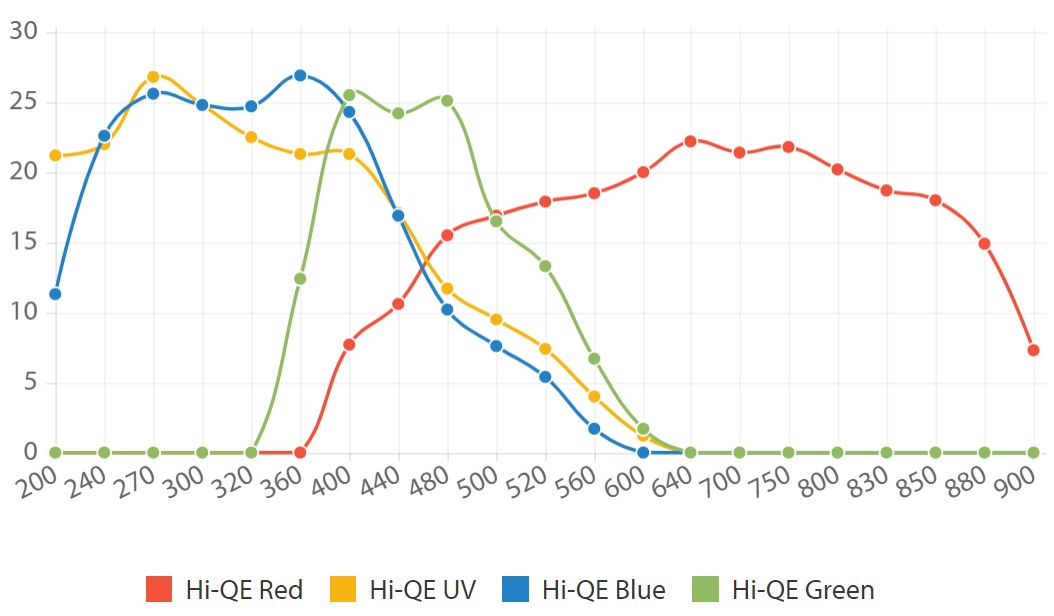

Second generation fast-gated high QE image intensifiers The photocathode of a second generation high QE image intensifier can have a quantum efficiency of over 25%. Please note that these image intensifiers are only available with a diameter of 18 mm.	Typical QE, 3 ns gate width Typical quantum efficiency (%) of second generation high QE image intensifiers as a function of wavelength (nm).

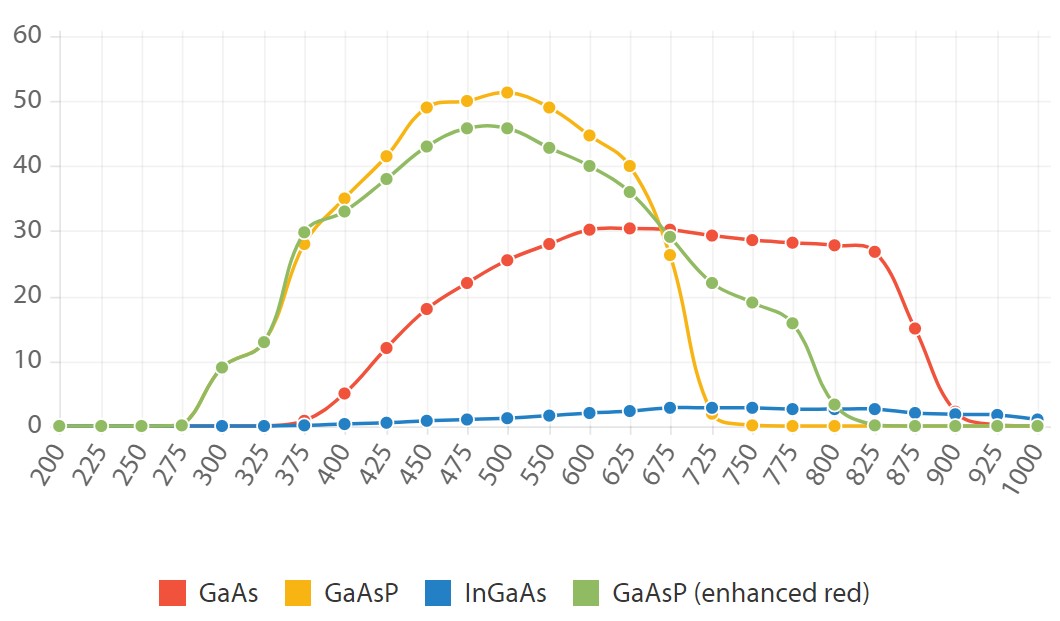

Third generation image intensifiers The photocathode of a third generation image intensifier can have a quantum efficiency of up to 50%.	Typical QE Typical quantum efficiency (%) of third generation image intensifiers as a function of wavelength (nm).

Phosphors

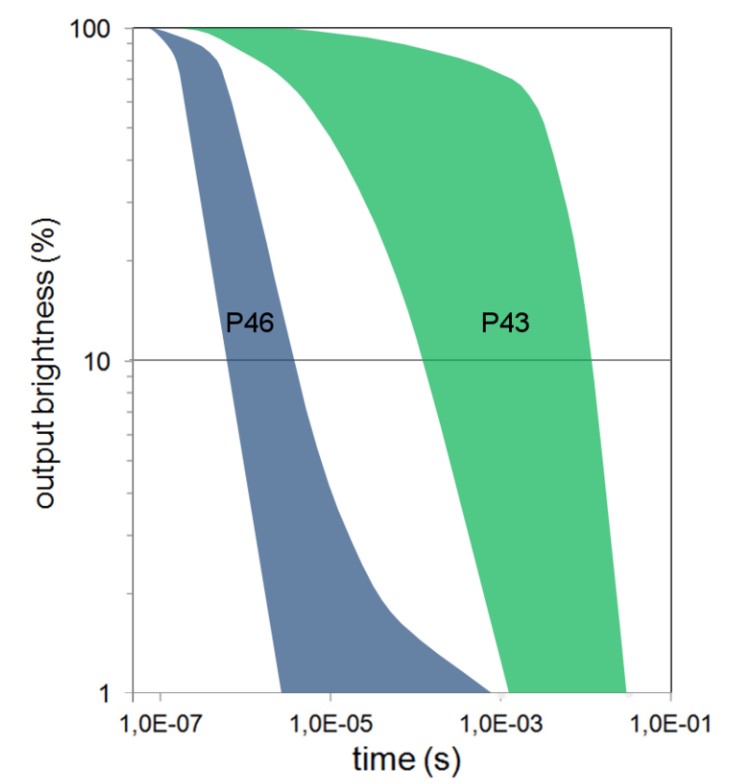

Phosphor Decay Time

The anode screen of the image intensifier contains a layer of phosphorescent material. Upon impact of an electron, the phosphor screen will emit light. Depending on the type of phosphor, the intensity of the emitted light will decrease faster. The more efficient the phosphor, the slower its light intensity decays after excitation.

Our time-resolved cameras and camera attachments use P43 phosphor. The high luminous efficiency of this phosphor increases the light levels at the output of the image intensifier. This increases the quality of the resulting image.

Our high-speed cameras and camera attachments use P46 phosphor. This phosphor has a short decay time, so the light signal of consecutive frames doesn't get mixed up.

P47 phosphor is available on request, when even faster decay times are required.

PHOSPHOR	EMISSION	EFFICIENCY (E/KV)	DECAY TO 10%	DECAY TO 1%

P43	545 nm	20	1.5 ms	3 ms
P46	530 nm	6	500 ns	2000 ns
P47	400 nm	4	100 ns	400 ns
