Microscope TE-Cooling USB3.0 CMOS Camera

Overview Model Guide Microscope Configuration Lens Choice Related Products Order Now!

Microscope TE-Cooling USB3.0 CMOS Camera - MTECMOS series adopts a SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

With the two-stage Peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal-to-noise ratio and decrease the image noise. A smart structure ensures heat radiation efficiency and avoids moisture problems. The electric fan is used to increase the heat radiation speed.

MTECMOS series comes with advanced video & image processing application, provides Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The MTECMOS series can be widely used in low light environments, microscope fluorescence image capture and analysis, and the astronomy deep sky application.

MTECMOS series - Cylinder Housing

Features

- Standard C-Mount camera with SONY Exmor or GSENSE CMOS sensors;

- Two-stage TE-cooling with controllable electric fan;

- Sensor chip cooling up to 42°C below ambient temperature;

- Working temperature can be regulated to a specified temperature in 5 minutes;

- Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

- IR-CUT/AR coated windows;

- Up to 1 hour long time exposure;

- USB3.0 5Gbit/second interface ensuring high-speed data transmission;

- Ultra-Fine color engine with perfect color reproduction capability;

- With advanced video & image processing application;

- Support both video and trigger modes;

- Providing Windows/Linux/Mac OS multiple platforms SDK;

- Native C/C++, C#/VB.NET, DirectShow, Twain control API.

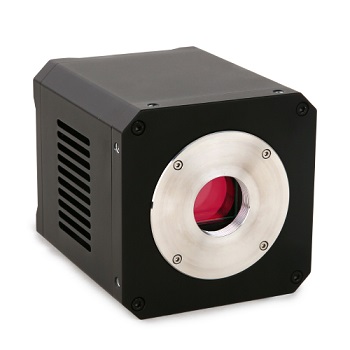

MTECMOS series - Square Housing

Product specifications and Brochures

Product Brochure Link:

Other Specifications for MTECMOS Series
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Two-stage TE-cooling System -45 °C below Camera Body Temperature
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V, 3A
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory:2GB or More
	USB Port:USB3.0 High-speed Port
	Display:17” or Larger
	CD-ROM

Sample Photos Captured with MTECMOS Series

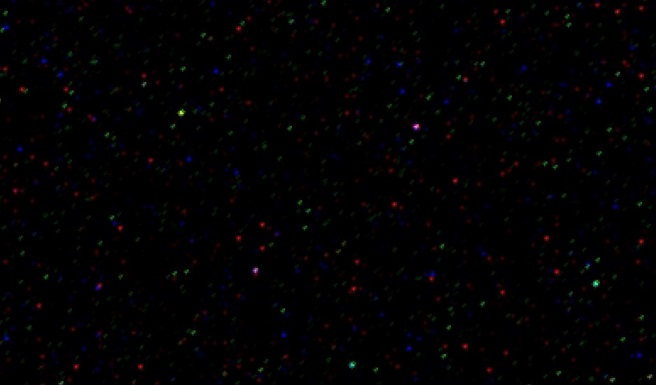

Hot noise for the MTECMOS at Gain 20,

600 second, 15 Centidegree

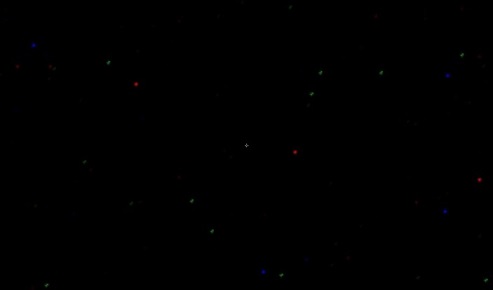

Hot noise for the MTECMOS at Gain 20,

600 second, minus 15 Centidegree

Dimension

The MTECMOS series body, made from tough, alloy with CNC technique, ensures a heavy-duty, workhorse solution. The camera is designed with a high-quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to a low level to eliminate the vibration caused by imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

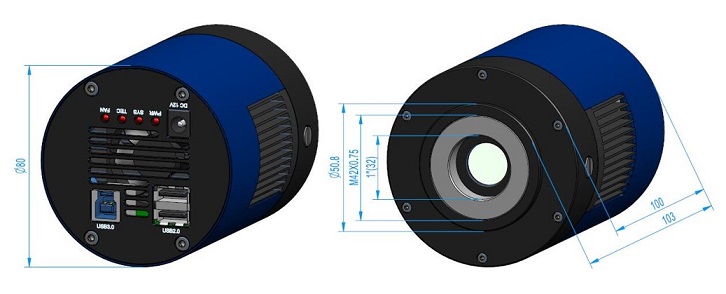

MTECMOS series - Cylinder Housing

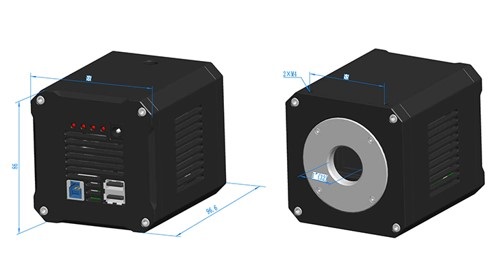

MTECMOS series - Square Housing

Ordering Information

Model Guide

Order Code	Sensor & Size(mm)*	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
MTECMOS45000KMA MTRM145000A	45M/IMX492(M) 4/3”(19.11x13.00)	2.315 x2.315	351mv with 1/30s 0.12mv with 1/30s	8@8256x5616 31@4128x2808	1x1 2x2	0.1ms~3600s
MTECMOS26000KPA MTRP126000A	26M/IMX571(C) 1.8”(23.48x15.67) APS-C	3.76 x3.76	485mv with 1/30s 0.07mv with 1/30s	6.8@6224x4168(16bit） 14@6224x4168 37@3104x2084 110@2064x1386	1x1 1x1 2x2 3x3	0.1ms~3600s
MTECMOS26000KMA MTRM126000A	26M/IMX571(M) 1.8"(23.48x15.67) APS-C	3.76 x3.76	871mv with 1/30s 0.07mv with 1/30s	6.8@6224x4168(16bit) 14@6224x4168 37@3104x2084 110@2064x1386	1x1 1x1 2x2 3x3	0.1ms~3600s
MTECMOS21000KPA MTRP121000A	21M/IMX269(C) 4/3”(17.4x13.1)	3.3 x3.3	400mv with 1/30s 0.1mv with 1/30s	5@5280x3956 6@3952x3952 15@2640x1978 50@1760x1318 100@584x440	1x1 1x1 2x2 3x3 9x9	0.1ms~3600s
MTECMOS20000KPA MTRP120000A	20M/IMX183(C) 1 “(13.056x8.755)	2.4 x2.4	462mv with 1/30s 0.21mv with 1/30s	5@5440x3648 10@4096x2160 15@2736x1824 30@1824x1216	1x1 1x1 2x2 3x3	0.1ms~3600s
MTECMOS20000KMA MTRM120000A	20M/IMX183(M) 1 “(13.056x8.755)	2.4 x2.4	388mv with 1/30s 0.21mv with 1/30s (F8.0)	17.8@5440x3648 41@4096x2160 51@2736x1824 64@1824x1216	1x1 1x1 2x2 3x3	0.1ms~3600s
MTECMOS16000KPA MTRP116000A	16M/MN34230PLJ(C) 4/3“ (17.6x13.3)	3.8x3.8	2413LSB 89.1LSB (Gain = 0dB)	6@4640x3506 20@2304x1750 48.0@1536x1160	1x1 2x2 3x3	0.15ms~3600s
MTECMOS16000KMA MTRM116000A	16M/MN34230ALJ(M) 4/3“ (17.6x13.3)	3.8x3.8	2650LSB 89.1LSB (Gain = 0dB)	22.5@4648x3506 43.0@2304x1750 48.0@1536x1168	1x1 2x2 3x3	0.15ms~3600s
MTECMOS10300KPA MTRP110300A	10.3M/IMX294(C) 4/3 “(19.11x13.0)	4.63 x4.63	419mv with 1/30s 0.12mv with 1/30s	30.2@4128x2808 38.5 @4096x2160 69.5@2048x1080 96.1@1360x720	1x1 1x1 2x2 3x3	0.15ms~3600s
MTECMOS10300KMA MTRM110300A	10.3M/IMX492(M) 4/3 “(19.11x13.0)	4.63 x4.63	701mv with 1/30s 0.12mv with 1/30s	33.3@41282808 8.0@ 81845616 69.5@20481080 96.2@1360720	1x1 Quad* 2x2 3x3	0.15ms~3600s

* C: Color; M: Monochrome

Packing Information


Cylinder Housin		Square Housing

Standard Package
A	Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo （TBD)
B	3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm (TBD)
C	One MTECMOS series camera(C-mount)
D	Drying tube and desiccant
E	Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A
F	High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m
G	CD (Drive & utilities software, Ø12cm)
Optional Accessory
H	Adjustable lens adapter	C-mount to Dia. 23.2mm eyepiece tube
		C-mount to Dia. 31.75mm eyepiece tube
I	Fixed lens adapter	C-mount to Dia. 23.2mm eyepiece tube
		C-mount to Dia. 31.75mm eyepiece tube
J	108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
K	108016(Dia.23.2mm to 30.5mm ring)/Adapter rings for 30.5mm eyepiece tube
L	Calibration kit	106011/TS-M1 (X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Note: For H and I optional items, please specify your camera type (C-mount, microscope camera, or telescope camera),

SIMTRUM will help you to determine the right microscope or telescope camera adapter for your application.

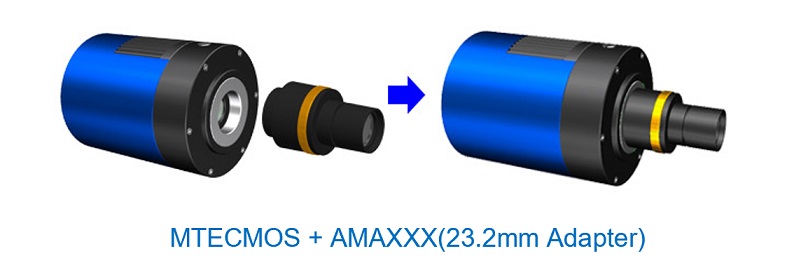

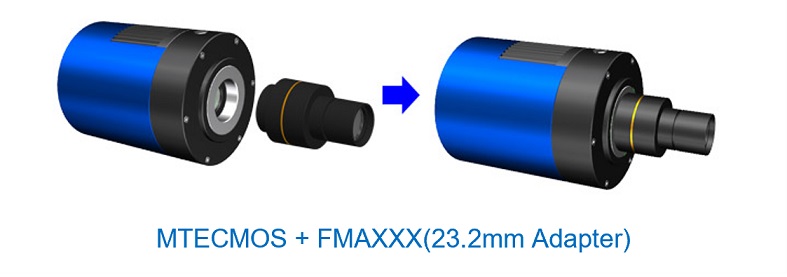

Extension of MTECMOS Series with Microscope or Telescope Adapter

Trinocular Digital Microscope

Step 1 Attach the C-Mount Camera and Adapter to the straight photo tube

Step 2 Attach the C-Mount Camera and Adapter to the 3^rd ocular tube or the other 2 eyepiece tubes

Binocular Digital Microscope

Step 1 Remove the eyepiece from the ocular tube or the eyepiece tube

Step 2 Attach (Screw) the camera adapter to the C-Mount Camera

Step 3 Attach (Insert) the eyepiece camera into the ocular tube or eyepiece tube

Binocular Digital Microscope

1, Standard C-Mount: Dia. 1 inch (25.4mm) female thread

2, Standard C-Mount: Dia. 1 inch (25.4mm) male thrad

3, Camera Adapter connector: size varies between microscope brands

4, Straight photo tube: size varies between microscope brands

5, Relay lens: standard eyepiece connector size, Dia. 23.2mm (male)

6, 3rd ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)

7, Ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)

1/2” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0420MM	4	F2.0-F16	-2.80%	90°	77.4°	61.8°	0.1m-∞	--	C
TPL-0614MM	6	F1.4-F16	-1.00%	68°	56.6°	43.8°	0.1m-∞	M30.5x0.5	C
TPL-0814MM	8	F1.4-F16	-0.70%	54°	43.8°	33.6°	0.1m-∞	M30.5x0.5	C
2/3” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1214MM	12	F1.4-F16	-1.00%	48.86°	39.94°	30.44°	0.1m-∞	M30.5x0.5	C
TPL-1614MM	16	F1.4-F16	-1.00%	36°	29.12°	22.02°	0.2m-∞	M30.5x0.5	C
TPL-2514MM	25	F1.4-F32	-1.00%	24.18°	19.42°	14.6°	0.3m-∞	M30.5x0.5	C
TPL-3514MM	35	F1.4-F32	-1.00%	17.9°	14.4°	10.8°	0.5m-∞	M30.5x0.5	C
TPL-5020MM	50	F2.0-F16	0.40%	12.7°	10.2°	7.7°	1m-∞	M30.5x0.5	C
TPL-7524MM	75	F2.4-F22	0.65%	8.32°	6.7°	5.02°	1m-∞	M34x0.5	C
TPL-7525MM	75	F2.5	0.20%	5.31°	4.23°	3.15°	0.18X-0.38X	M30.5x0.5	C
1” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0614MLM	6	F1.4-F32	-19.00%	112°	88.66°	72.89°	0.15m-∞	M43x0.75	C
2/3” 3MP 120lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0814M3M	8	F1.4-F16	0.70%	64.26°	53.76°	41.66°	0.1m-∞	M37x0.5	C
TPL-0918M3M	9	F1.8-F16	-0.50%	61.85°	51.22°	39.54°	0.1m-∞	M27x0.5	C
TPL-1218M3M	12	F1.8-F16	-0.30%	47.7°	39°	29.8°	0.1m-∞	M27x0.5	C
TPL-1618M3M	16	F1.8-F16	-0.35%	36.8°	29.8°	22.5°	0.1m-∞	M27x0.5	C
TPL-2518M3M	25	F1.8-F16	-0.10%	23.3°	18.8°	14.2°	0.15m-∞	M27x0.5	C
TPL-3518M3M	35	F1.8-F16	-0.10%	16.04°	12.8°	9.6°	0.25m-∞	M27x0.5	C
TPL-5018M3M	50	F1.8-F16	-0.10%	11.52°	9.14°	6.86°	0.5m-∞	M27x0.5	C
TPL-1618M3M-A (Ultra-Short TTL)	16	F1.8-F16	-1.98%	38.09°	30.69°	23.13°	0.3m-∞	M25.5x0.5	C
1/2” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0414M5M	4	F1.4-F32	-1.50%	85°	75.12°	58.76°	0.1m-∞	M52x0.75	C
TPL-0614M5M	6	F1.8-F16	-1.00%	64.48°	53.8°	41.6°	0.1m-∞	M35.5x0.5	C
2/3” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0814M5M	8	F1.4-F16	-1.00%	66.2°	55.24°	42.78°	0.1m-∞	M35.5x0.5	C
TPL-1214M5M	12	F1.4-F22	-0.30%	47.1°	39.58°	29.44°	0.1m-∞	M35.5x0.5	C
TPL-1614M5M	16	F1.4-F22	-0.30%	36.6°	29.78°	22.6°	0.1m-∞	M35.5x0.5	C
TPL-2514M5M	25	F1.4-F16	-0.10%	23.6°	19.04°	14.32°	0.2m-∞	M35.5x0.5	C
TPL-3514M5M	35	F1.4-F16	-0.05%	17.4°	14°	10.6°	0.15m-∞	M35.5x0.5	C
TPL-5020M5M	50	F2.0-F32	-0.10%	12.36°	9.92°	7.45°	0.4m-∞	M35.5x0.5	C
TPL-7520M5M	75	F2.0-F32	-0.10%	8.36°	6.72°	5.04°	0.8m-∞	M40.5x0.5	C
1” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-06520ML5M	6.5	F2.0	-10.50%	106.4°	94°	76°	0.1m-∞	M52x0.75	C
TPL-1218ML5M	12	F1.8-F32	-1.10%	64.4°	53.6°	41.6°	0.2m-∞	M77x0.75	C
TPL-1620ML5M	16	F2.0-F22	0.50%	51.5°	41.84°	32.4°	0.5m-∞	M34x0.5	C
TPL-2020ML5M	20	F2.0-F22	-0.80%	43.2°	34.9°	26.6°	0.3m-∞	M37.5x0.5	C
TPL-2520ML5M	25	F2.0-F32	-0.20%	34.8°	27.94°	21.14°	0.3m-∞	M43x0.75	C
4/3” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1224MX5M	12	F2.4-F22	-4.00%	86.06°	71.03°	55.9°	0.3m-∞	M77x0.75	C
TPL-1620MX5M	16	F2.0-F32	-2.50%	67.39°	56.33°	43.5°	0.1m-∞	M72x0.75	C
TPL-2520MX5M	25	F2.0-F32	-1.40%	48.2°	37.4°	28.6°	0.15m-∞	M35.5x0.5	C
TPL-3520MX5M	35	F2.0-F22	-1.10%	36°	27.76°	20.98°	0.2m-∞	M37.5x0.5	C
2/3” 6MP 170lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0820M6M	8	F2.0-F16	0.45%	69°	57.62°	44.83°	0.1m-∞	M58x0.75	C
TPL-1220M6M	12	F2.0-F16	1.00%	48.22°	39.4°	29.92°	0.1m-∞	M37.5x0.5	C
TPL-1620M6M	16	F2.0-F16	0.60%	36.7°	29.6°	22.3°	0.1m-∞	M30.5x0.5	C
TPL-2520M6M	25	F2.0-F16	-0.25%	22.6°	18°	13.6°	0.2m-∞	M30.5x0.5	C
TPL-3520M6M	35	F2.0-F16	-0.35%	17°	13.3°	10°	0.2m-∞	M30.5x0.5	C
TPL-5020M6M	50	F2.0-F16	-0.05%	10.14°	8.16°	6.14°	0.2m-∞	M37.5x0.5	C
TPL-7538M6M	75	F3.8	0.30%	--	5.39°	4.05°	--	M30.5x0.5	C
2/3” 10MP 200lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0518M10M	5	F1.8-F11	-4.20%	96.54°	84°	67.6°	0.1m-∞	M62x0.75	C
TPL-0818M10M	8	F1.8-F22	-1.00%	65.64°	55.06°	42.7°	0.1m-∞	M37.5x0.5	C
TPL-1218M10M	12	F1.8-F32	-0.42%	48.9°	40.1°	30.6°	0.1m-∞	M30.5x0.5	C
TPL-1618M10M	16	F1.8-F22	-0.20%	37.74°	30.6°	23.2°	0.2m-∞	M30.5x0.5	C
TPL-2518M10M	25	F1.8-F32	-0.13%	24.5°	19.7°	14.84°	0.2m-∞	M30.5x0.5	C
TPL-3518M10M	35	F1.8-F16	-0.10%	12.58°	10.07°	7.56°	0.3m-∞	M34x0.5	C
TPL-5018M10M	50	F1.8-F22	-0.10%	11.67°	9.36°	6.89°	0.5m-∞	M40.5x0.5	C
TPL-2525CM10M	25	2.5/4/5.6/8/11	0.50%	24.67°	19.95°	15.09°	0.1m-0.5m	--	C
TPL-3528CM10M	35	2.5/4/5.6/8/11	-0.50%	17.93°	14.37°	10.79°	0.3m-∞	--	C
TPL-5040CM10M	50	4/5.6/8/11	-0.25%	12.58°	10.07°	7.56°	0.5m-∞	--	C
1.1” 12MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1228ML12M	12	F2.8	0.51%	69.35°	57.95°	45.54°	0.1m-∞	M46x0.75	C
TPL-1623ML12M	16	F2.3	0.40%	54.39°	44.56°	34.45°	0.1m-∞	M43x0.75	C
TPL-2520ML12M	25	F2.0	0.25%	35.3°	28.68°	21.75°	0.1m-∞	M37.5x0.5	C
TPL-3530ML12M	35	F2.0	0.15%	25.27°	20.4°	15°	0.2m-∞	M37.5x0.5	C
TPL-5022ML12M	50	F2.2	0.10%	16.18°	13°	9.77°	0.25m-∞	M37.5x0.5	C
TPL-7526ML12M	75	F2.6	-0.35%	7.53°	6.05°	4.65°	0.3m-∞	M34x0.5	C
TPL-0625ML12M	6	F2.5	0.23%	107.35°	86.02°	64.58°	0.15m-∞	M62x0.75	C
TPL-0828ML12M	8	F2.8	-0.47%	93.85°	80.89°	65.21°	0.12m-∞	M55x0.75	C
1” 12MP L50lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0725FL12M	7	F2.55(Fixed)	-61.00%	143°	109.2°	80°	0.5m-∞	--	C/CS
1.1” 24MP 200lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1228SF	12	F2.8	0.26%	67.92°	56.86°	44.26°	0.12m-1m	M49x0.75	C
TPL-1624SF	16	F2.4	0.60%	49.64°	40.79°	31.18°	0.12m-∞	M40.5x0.5	C
TPL-2520SF	25	F2.0	-0.33%	34.68°	28.11°	21.24°	0.12m-∞	M40.5x0.5	C
TPL-3526SF	35	F2.6	0.10%	22.06°	17.87°	13.49°	0.12m-∞	M46x0.75	C
TPL-5020SF	50	F2.0	0.08%	13.68°	11.3°	8.47°	0.2m-∞	M52x0.75	C
4/3” 25MP 180lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1825XF	18	F2.5	0.84%	62.63°	52.44°	40.65°	0.12m-∞	M46x0.75	C
TPL-2524XF	25	F2.4	-0.36%	43.70°	35.64°	27.09°	0.15m-∞	M46x0.75	C
TPL-3524XF	35	F2.4	-0.25%	33.37°	26.98°	20.35°	0.23m-∞	M46x0.75	C
TPL-5025XF	50	F2.5	0.08%	22.38°	18°	13.55°	0.25m-∞	M46x0.75	C

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
MTECMOS45000KMA-MTRM145000A TE-Cooling USB3.0 CMOS Camera, Sensor 45Mega Pixel, color mode Monochromatic, FPS 8@8256x5616, Exposure 0.1ms~3600s	4-6 Weeks	Request for quote
MTECMOS26000KMA-MTRM126000A TE-Cooling USB3.0 CMOS Camera, Sensor 26Mega Pixel, color mode Monochromatic, FPS 6.8@6224x4168, Exposure 0.1ms~3600s	4-6 Weeks	Request for quote
MTECMOS21000KPA-MTRM121000A TE-Cooling USB3.0 CMOS Camera, Sensor 21Mega Pixel, color mode Polychromatic, FPS 5@5280x3956, Exposure 0.1ms~3600s	4-6 Weeks	Request for quote
MTECMOS20000KPA-MTRM120000A TE-Cooling USB3.0 CMOS Camera, Sensor 20Mega Pixel, color mode Polychromatic, FPS 5@5440x3648, Exposure 0.1ms~3600s	4-6 Weeks	Request for quote
MTECMOS16000KMA-MTRM116000A TE-Cooling USB3.0 CMOS Camera, Sensor 16Mega Pixel, color mode Monochromatic, FPS 22.5@4648x3506, Exposure 0.15ms~3600s	4-6 Weeks	Request for quote
MTECMOS10300KPA-MTRM110300A TE-Cooling USB3.0 CMOS Camera, Sensor 10.3Mega Pixel, color mode Polychromatic, FPS 30.2@4128x2808, Exposure 0.15ms~3600s	4-6 Weeks	Request for quote

MTECMOS10300KPA-MTRM110300A - Parameter

MTECMOS16000KMA-MTRM116000A - Parameter

MTECMOS20000KPA-MTRM120000A - Parameter

MTECMOS21000KPA-MTRM121000A - Parameter

MTECMOS26000KMA-MTRM126000A - Parameter

MTECMOS45000KMA-MTRM145000A - Parameter

MTECMOS10300KPA-MTRM110300A - Download

MTECMOS16000KMA-MTRM116000A - Download

MTECMOS20000KPA-MTRM120000A - Download

MTECMOS21000KPA-MTRM121000A - Download

MTECMOS26000KMA-MTRM126000A - Download

MTECMOS45000KMA-MTRM145000A - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens
