Uncooled LWIR Thermography Camera

Thermography Camera Thermal Imaging Camera Software Related Products Order Now!

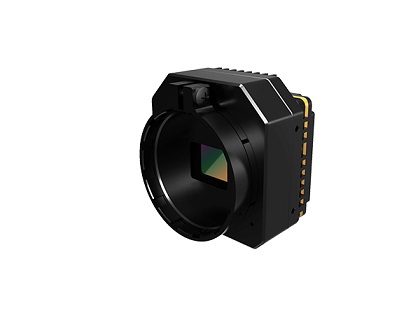

Uncooled Thermography Cameras The STPLUG-R series come with additional temperature measurement function based on the STPLUG series imaging modules.It provides radiometric temperature data for each pixel,which ensures the accurate temperature measurement and professional thermographic inspections. With the powerful SDK database, you can design your own thermographic IR camera just with a housing for the STPLUG-R series		Product Brochure Link:
Feature Plug and Play for Easy Integration -Standard 50pin interface, multiple expansion board options -Standard optical interface ; a full set of infrared lenses -Perfect SDK database, ongoing update and optimization For Industrial Inspection & Thermography -Support high thermal sensitivity, NETD＜30mK -With optional temperature measurement function and customizable temperature range Various Expansion Components -USB3.0/VPC/Cameralink/HDMI/Gig-E network port		Product Brochure Link:
Applications

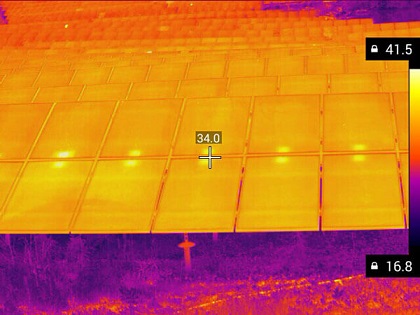

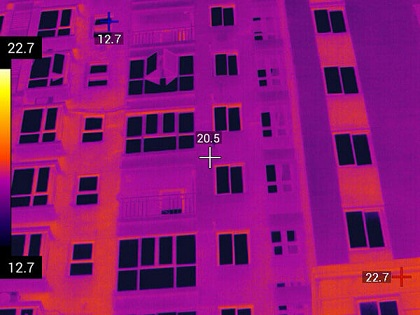

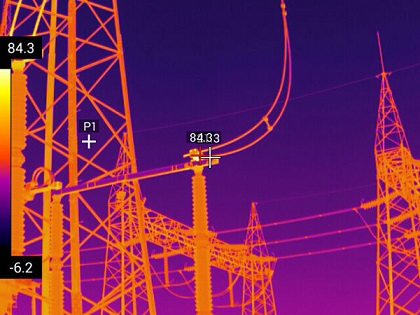

Predictive Maintenance	New Energy	Building Inspection

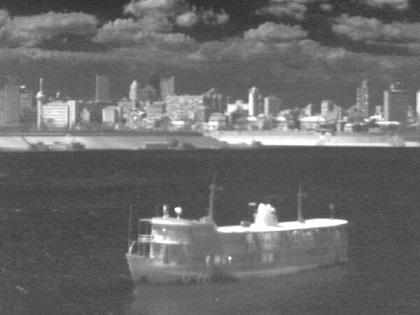

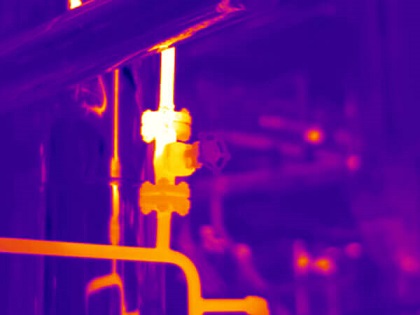

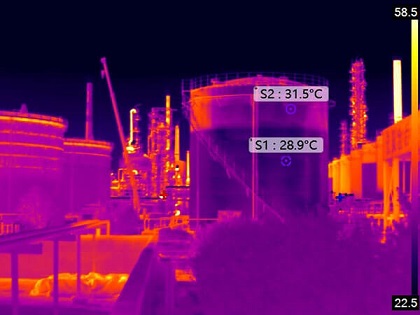

Metallurgical Petrochemical	Machine Vision	Rail Traffic

Product Specification

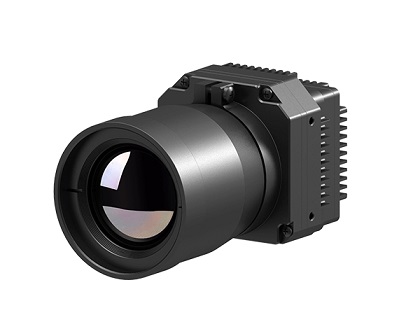

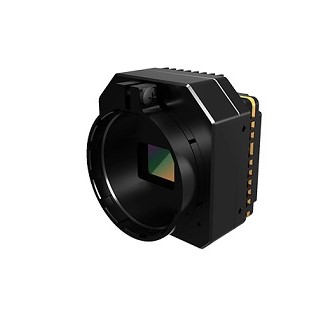

Model	STPLUG1212R	STPLUG617R	STPLUG417R
IR Detector Performance
Resolution	1280x1024	640x512	384×288
Pixel Pitch	12µm	17µm	17µm
Spectral Range	8~14µm
NETD	＜50mK	<30mK
Image Processing
Frame Rate	25Hz	25Hz/30Hz	25Hz/30Hz/50Hz/60Hz
Start-up Time	25s	15s
Analog Video	/	PAL/NTSC
Digital Video	RAW/YUV/BT1120	RAW/YUV/BT656/LVDS
Extension Component	USB 3.0/Cameralink/HDMI	USB/VPC/Cameralink/Gig-E
Dimming	Linear/Histogram/Mixed three modes
Digital Zoom	1~8X continual Zoom,Step size 1/8
Image Display	Black hot/White hot/Pseudo color
Image Direction	Horizontally/Vertically/Diagonally Flip
Image Algorithm	Non-uniformity Correction (NUC) ,Auto Gain Control (AGC) ,Image Detail Enhancement (IDE)
Electrical Specification
Standard External Interface	50pin_HRS interface
Communication Mode	RS232-TTL, 115200bps
Supply Voltage	5V±0.3V	4~6V	4.5~6V
Typical Power Consumption	2W/5V@23±5℃	1.5W	2W
Temperature Measurement
Operating temperature range	-10ºC ~50ºC
Temperature range	-20℃~150℃,0℃~550℃
Temperature Accuracy	Greater of ±3℃ or ±3%	Greater of ±2℃ or ±2%	Greater of ±2℃ or ±2%
SDK	Support ARM/Windows/Linux SDK, Achieve Full Screen Thermography
Physical Characteristic
Dimension(mm)	56×56×44	44.5×45.95×36.6	44.5×44.5×36.6
Weight	220g±5g	90g±3g	77g±3g
Environmental Adaptation
Operation Temperature	-40ºC ~+70ºC
Storage Temperature	-45ºC ~+85ºC
Humidity	5%~95%, non-condensing
Vibration	Random Vibration 5.35grms, 3 axis
Shock	Half-sine wave,40g/11ms,3 axis 6 direction
Optics
Optional lens	Fixed Focus Athermal: 14mm/25mm	Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm	Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm

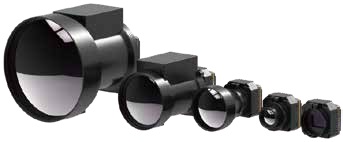

Uncooled Thermal Imaging Camera The STPLUG Series Uncooled thermal modules integrate GST metal package infrared detector, unique image processing algorithm and professional hardware platform. With high performance IR detector, the thermal module can provide superior performance, clear images, edge sharpening and enhanced details at any harsh environments.		Product Brochure Link:
Feature Play and Play for Easy Integration - DVP/LVDS multiple image output interfaces. - Standard optical interface with complete lens options Clear Images & Rich Details - High thermal sensitivity, NETD＜30mK - IDE/AGC intelligent algorithm Good Stability - Adapt to varous harsh environments Various Expansion Components - USB3.0/VPC/Cameralink/HDMI/Gig-E network port

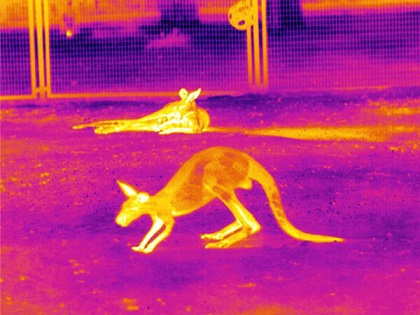

Applications The STPLUG series thermal modules are equipped with various common industrial interfaces and optical lenses, which cater for all specific integration requirements.

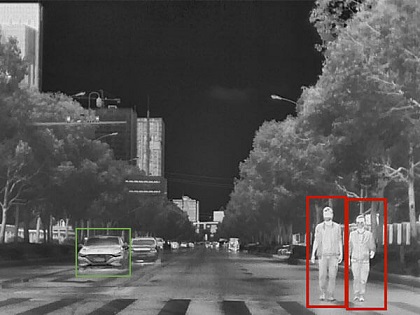

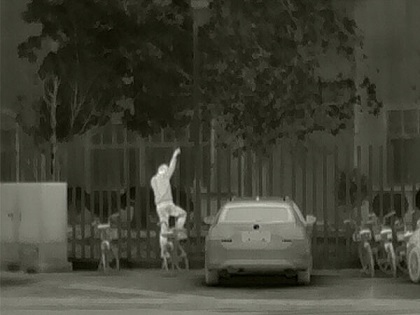

ADAS	Outdoors	Security Monitoring

Product Specifications

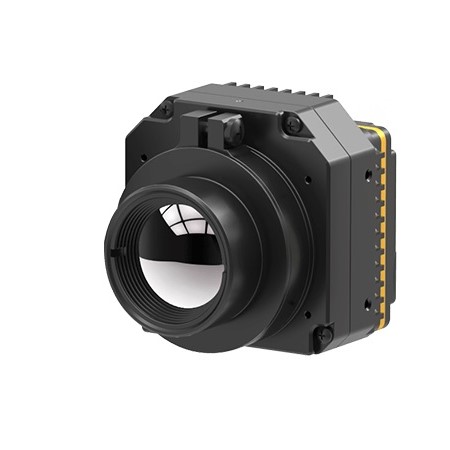

Model	STPLUG1212	STPLUG612	STPLUG617	STPLUG417
IR Detector Performance
Resolution	1280×1024	640×512	640×512	384×288
Pixel Pitch	12μm		17μm
Spectral Range	8~14μm
NETD	<50mK	<40mK	<30mK
Image Processing
Frame Rate	25Hz	9Hz/25Hz/30Hz/50Hz	9Hz/25Hz/30Hz/50Hz	9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time	25s	10s
Analog Video	/	PAL/NTSC
Digital Video	RAW/YUV/BT1120	RAW/YUV/BT656/LVDS
Extension Component	USB/Camerlink/HDMI	USB/VPC/Cameralink/Gig-E
Dimming Mode	Linear/Histogram/Mixed
Digital Zoom	1~8X Continual Zoom,Step Size1/8
Image Display	Black Hot/White Hot/Pseudo Color
Image Direction	Horizontally/Vertically/Diagonally Flip
Image Algorithm	Non-uniformity Correction (NUC), Auto Gain Control (AGC),Image Detail Enhancement (IDE)
Electrical Specification
Standard External Interface	50pin_HRS
Communication Mode	RS232-TTL,115200bps
Supply Voltage	5±0.3V (Fixed Focus) 12V±1V (Continuous Zoom)	4~6V	4~6V	4.5~6V
Typical Power Consumption	2W/5V@23±5℃ (Fixed Focus) 4.2W/12V@23±5℃ (Continuous Zoom)	1.4W	1.4W	1.4W
Physical Characteristic
Dimension (mm)	56×56×44	44.5×44.5×36.6	44.5×45.95×37.3	44.5×44.5×36.6
Weight	220g±5g	85g±3g	90g±3g	85g±3g
Environmental Adaptation
Operation Temperature	-40ºC ~+70ºC
Storage Temperature	-45ºC ~+85ºC
Humidity	5%~95%,Non-condensing
Vibration	Random Vibration 5.35grms, 3-axis
Shock	Half-sine Wave, 40g/11ms,3-axis 6-direction
Optics
Optional lens	Fixed Focus Athermal: 14mm/19mm/25mm Continuous Zoom: 30-90mm, 30-180mm	Fixed Focus Athermal: 19mm/24mm	Fixed Focus Athermal: 7.5mm/13mm/19mm /25mm/35mm/50mm /60mm/100mm Motorized Lens: 75mm /100mm/150mm Continuous Zoom: 30-150mm	Fixed Focus Athermal: 7.5mm/13mm/19mm/ 25mm/35mm/50mm/ 60mm/100mm

Below are the Driver & Software, or you can Click Here to drop us a message for technical assistance.

Control

SDK

Driver

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone
