STIMO Series Miniature Thermal Modules

The wafer-level package infrared module integrates wafer-level optical lens, wafer-level package detector, and basic imaging processing circuit to achieve accurate temperature data and sharp images for each pixel in the full frame, enabling easy integration into mobile terminals or smart devices, especially innovative products with strict requirements on cost, size and weight.

Feature

Low cost, fast integration

- Minimum WLP infrared module, dimension at 8.5 x 8.5 x 9.16mm.

- DVP interface, compatible with various embedded platforms.

- Visible camera module equivalent, direct integration.

- Complete SDK development kit.

Extend longer operating time

- Low-power design, lowest to 9mW.

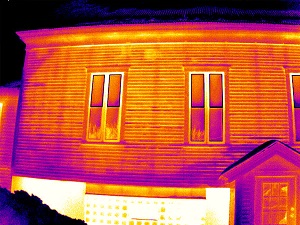

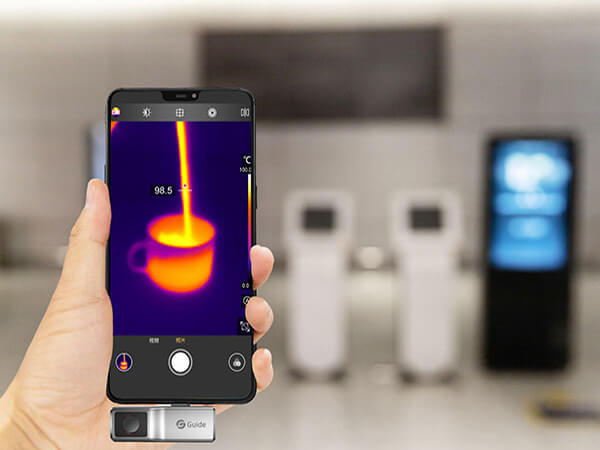

Applications

STIMO series thermal imaging cores have been widely used in the consumer electronics market. It’s easier for STIMO infrared thermal imaging core to be integrated into more terminal products and greatly reduces the cost of customers.

Model Guide

Model	STIMO-120	STIMO-256
Resolution	120x90	256x192
Pixel Pitch	17µm	12μm
Spectral Range	8~14μm
NETD	≤60mk	≤45mk
Lens Type	WLO
Focus	Fixed Zoom
Field of View	90º /50º	53º ±1º
Depth of Field	10cm to infinity

STIMO120 - STIMO Series 120x90 VOx Uncooled Thermal Module

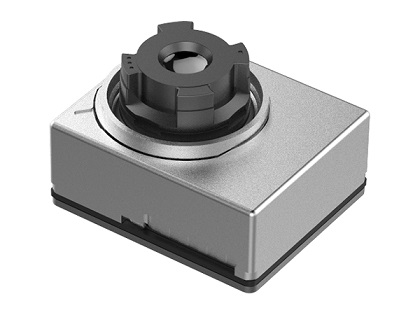

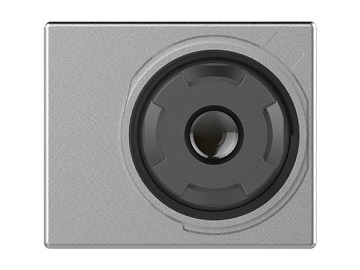

STIMO120 is one of the STIMO series miniature infrared modules offered by SIMTRUM. It integrates an optical lens, 256x192@12μm wafer level package (WLP) long wave infrared detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.

STIMO256 infrared camera module is oriented for small size, lightweight & low price (SWaP) infrared thermal imaging applications but still requires better image quality. Its super miniature structure and ultralow power consumption are convenient to be integrated into various inspection tools, security monitoring cameras or handheld infrared thermal imagers with strict requirements on cost, size and weight.

Features

- DVP Interface, compatible with various embedded platforms;

- Visible camera module equivalent, directly integration;

- Complete SDK development kit;

- Low power design for extend longer operating time;

- Low cost for many kinds of intelligent applications.

Product specifications and Brochures

Product Brochure Link:

Model	STIMO-120
IR Detector Performance
Resolution	120x90
Pixel Pitch	17µm
Spectral Range	8~14μm
NETD	≤60mk
Lens Type	WLO
Focus	Fixed Zoom
Field of View	90º /50º
Depth of Field	10cm to infinity
Output Image Frame Rate & Resolution	1~30Hz
Temperature Measurement
Temperature Range	-20ºC ~ +120º
Temperature Accuracy	Customizable
Interface Control
AVDD	3.6V±0.05V
VSK/VDET	4.7V±0.05V
DVDD	1.8V±0.05V
Interface	Digital Interface
Power Consumption	45mW(Typical Mode); 9mW(low power mode)
Physical Characteristics
Dimension(mm)	12x10x5.48(HFOV=90 degrees) 8.5x8.5x9.16(HFOV= 50 degrees) (The specification shall prevail)
Operation temperature	-20ºC ~ +60º
Storage temperature	-40ºC ~ +85º

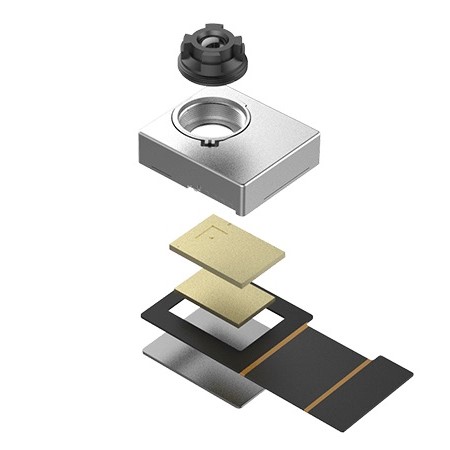

STIMO256 - STIMO Series 256x192 VOx Uncooled Thermal Module

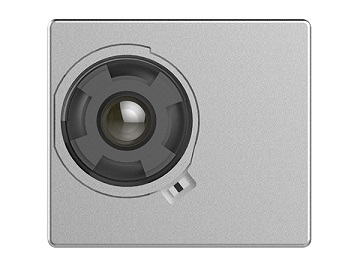

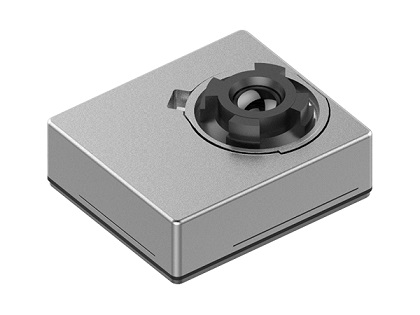

STIMO256 is one of the STIMO series miniature infrared modules offered by SIMTRUM. It integrates 256×192 wafer-level-packaging infrared detector, wafer-level optical lens, micro solenoid valve shutter and supports 25°/50° field of view.

Features

- Equipped with high-precision PM motor and the thinnest solenoid valve shutter;

- Realize the function of near-far focal adjustment and autofocus temperature measurement;

- High accuracy, customizable temperature measurement range;

- Special software development kit, support cross-platform and rich features.

Product specifications and Brochures

Product Brochure Link:

Model	STIMO-256
IR Detector Performance
Resolution	256x192
Pixel Pitch	12μm
Spectral Range	8~14μm
NETD	≤45mk
Lens Type	WLO
Focus	Fixed Zoom
Field of View	53º ±1º
Depth of Field	10cm to infinity
Output Image Frame Rate & Resolution	1~30Hz
Temperature Measurement
Temperature Range	-20ºC ~ +120º
Temperature Accuracy	Customizable
Interface Control
AVDD	3.6V±0.05V
VSK/VDET	5V±0.05V
DVDD	1.8V±0.05V
Interface	Digital Interface
Power Consumption	70mW
Physical Characteristics
Dimension(mm)	15x13x6.83
Operation temperature	-20ºC ~ +60º
Storage temperature	-40ºC ~ +85º

Below are the Driver & Software, or you can Click Here to drop us a message for technical assistance.
