Microscope USB3.0 CMOS Camera

Overview Model Guide Microscope Configuration Lens Choice Related Products Order Now!

Microscope USB3.0 CMOS Camera – MCMOS Series is a Compact & high-performance USB3.0 CMOS series camera, it adopts Sony or OnSemi CMOS sensor as the image-picking device, and USB3.0 is used as the data transfer interface.

MCMOS series hardware resolutions range from 3.5M to 10M and come with compact CNC aluminum alloy housing.

Features

- Standard C-Mount camera with Sony or OnSemi CMOS sensor;

- With hardware resolution among 3.5M to 10M;

- Compact CNC aluminum alloy housing;

- USB3.0 5 Gbps interface ensuring high frame rate;

- Ultra-Fine color engine with perfect color reproduction capability;

- With advanced video & image processing application;

- Providing Windows/Linux/Mac OS multiple platforms SDK;

- Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Product specifications and Brochures

Product Brochure Link:

Other Specifications for MTECMOS Series
Spectral Range	380-650nm (with IR-cut Filter)
White Balance	ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor
Color Technique	Ultra-Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System	Still Picture and Movie
Cooling System*	Natural
Operating Environment
Operating Temperature(in Centidegree)	-10~ 50
Storage Temperature(in Centidegree)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
Software Environment
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB Port: USB3.0 High-speed Port
	Display: 17” or Larger
	CD-ROM

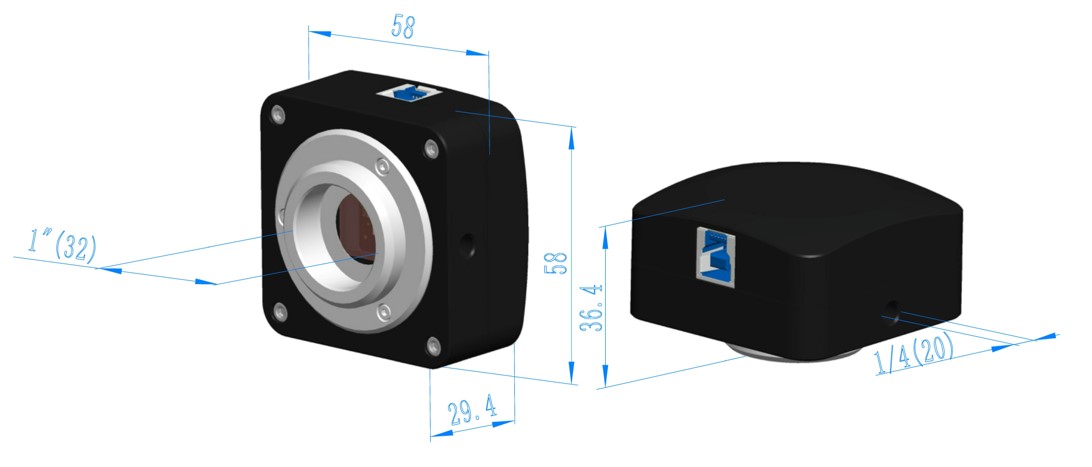

Dimension

The MCMOS body, made from tough, aluminum alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Extension for MCMOS Series with Microscope or Telescope Adapter

Extension	Picture
C-mount Camera		Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging;
Microscope Camera
Telescope Camera

Ordering Information

Model Guide

Hardware Resolutions Range from 3.5M to 10M

Order Code	Sensor & Size*	Pixel(μm)	G Responsivity Dynamic range SNRmax	FPS/Resolution	Binning	Exposure
MCMOS12000KPA CP112000A	12M/IMX577(C) 1/2.1“ (5.95x4.71)	1.55x1.55	250mv with 1/30s 0.25mv with 1/30s	7.5@3840x3040 43@1920x1516 122@960x758	1x1 2x2 4x4	0.1ms~2000ms
MCMOS10000KPA CP110001A	10M/IMX577(C) 1/2.3“ (5.68x4.26)	1.55x1.55	250mv with 1/30s 0.25mv with 1/30s	8.5@3664x2748 49@1832x1374 137@912x686	1x1 2x2 4x4	0.1ms~2000ms
MCMOS05100KPA CP105100A	5.1M/AR0521(C) 1/2.5“ (5.70x4.28)	2.2x2.2	18.8ke-/lux 73dB 40dB	15.5@2592x1944 49.5@1296x972 97.5@648x486	1x1 2x2 4x4	0.1ms~2000ms
MCMOS05100KPB CP105100B	5.1M/IMX335(C) 1/2.8“ (5.18x3.89)	2.0x2.0	505mV 70dB 43dB	25@2592x1944 40@1296x972	1x1 2x2	0.1ms~2000ms
MCMOS03500KPA CP103500A	3.5M/SC4236(C) 1/2.6“ (5.76x3.84)	2.5x2.5	3.0v/lux-sec 72dB 37dB	30@2304x1536 30@1152x768	1x1	0.1ms~2000ms

* C: Color; M: Monochrome; Default shutter: Rolling Shutter

Hardware Resolutions Range from 0.4M to 20M

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
MCMOS45000KMA EM145000A	45M/IMX492(M) 4/3”(19.11x13.00)	2.315x2.315	176mv with 1/30s 0.03mv with 1/30s	8.1@8176x5616 30.0@4080x2808 8.1@7408x5556 33.0@3696x2778 10.4@8176x4320 34.7@4096x2160 62.5@2048x1080 86.5@1360x720	1x1(3:2) 2x2(3:2) 1x1(4:3) 2x2(4:3) 1x1(17:9) 2x2(17:9) 3x3(17:9) 4x4(17:9)	0.1ms~15s
MCMOS20000KMA EM120000A(New)	20M/IMX183(M) 1”(13.06x8.76)	2.4 x2.4	776mv with 1/30s 0.21mv with 1/30s	17.5@5440x3648 40@4080x2160 48@2736x1824 60@1824x1216	1x1 1x1 2x2 3x3	0.1ms~60s
MCMOS20000KPB EP120000B(New)	20M/IMX147(C) 1/2.1“(6.24x4.67)	1.2 x1.2	130mv with 1/30s 0.1mv with 1/30s	5.2@5200x3888 15@2592x1944 30@1728x1296	1x1 2x2 3x3	0.1ms~15s
MCMOS12300KMA EM112300A(New)	12.3M/IMX304(M) 1.1”(14.13x10.35)	3.45 x3.45	1146mv with 1/30s 0.1mv with 1/30s	23.4@4096x3000 46.3@2048x1500	1x1 1x1	0.244ms~15s
MCMOS12000KPA EP112000A	12M/IMX226(C) 1/1.7”(7.40x5.55)	1.85x1.85	280mv with 1/30s 0.1mv with 1/30s	7.1@4000x3000 30@2048x1080	1x1 2x2	0.244ms~2000ms
MCMOS06300KPA EP106300A	6.3M/IMX178(C) 1/1.8" (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	15@3072 x2048 26@1536x 1024	1x1 2x2	0.244ms~2000ms
MCMOS06300KMA EM106300A	6.3M/IMX178(M) 1/1.8" (7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	30@3072 x2048 50@1536x 1024	1x1 2x2	0.244ms~2000ms
MCMOS05000KMA EM105000A	5.0M/IMX264(M, GS) 2/3” (8.45x7.07)	3.45x3.45	1830mv with 1/30s 0.15mv with 1/30s	35@2448x2048 60@1224x1024	1x1 2x2	0.1ms~60s
MCMOS03100KPB EP103100B	3.1M/IMX123(C) 1/2.8" (5.12x3.84)	2.5x2.5	600mv with 1/30s 0.15mv with 1/30s	25@2048x1536 30@1920x1080	1x1	0.244ms~2000ms
MCMOS03100KMC EM103100C	3.1M/IMX265(M, GS) 1/1.8"(7.07x5.30)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	53@2048x1536 85@1024x768	1x1	0.1ms~15s
MCMOS02300KPA EP102300A	2.3M/IMX185© 1/1.9" (7.20x4.50)	3.75x3.75	1120mv with 1/30s 0.15mv with 1/30s	38@1920x1200 66@960x600	1x1 2x2	0.244ms ~2000ms
MCMOS02300KPB EP102300B	2.3M/IMX249(C, GS ) 1/1.2" (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	30@1920x1200	1x1	0.244ms~2000ms
MCMOS02300KMC EM102300C	2.3M/IMX174(M, GS) 1/1.2" (11.25x7.03)	5.86x5.86	1016mv with 1/30s 0.15mv with 1/30s	120@1920x1200	1x1	0.244ms~2000ms
MCMOS01500KMA EM101500A	1.5M/IMX273(M, GS) 1/2.9"(4.968x3.726)	3.45x3.45	915mv with1/30s(F8.0) 0.15mv with 1/30s	228@1440x1080 530@720x540	1x1 2x2	0.1ms~60s
MCMOS01200KPA EP101200A	1.2M/IMX224(C) 1/3"(4.80x3.60)	3.75 x3.75	2040mv with 1/30s 0.15mv with 1/30s	60@1280x960 120@640x480	1x1 2x2	0.105ms~15s
MCMOS00400KPA EP100400A	0.4M/IMX287(C, GS) 1/2.9”(4.97x3.73)	6.9x6.9	4584mv with 1/30s 0.15mv with 1/30s	520@720x540	1x1	0.244ms~15s
MCMOS00400KMA EM100400A	0.4M/IMX287(M, GS) 1/2.9”(4.97x3.73)	6.9x6.9	7469mv with 1/30s 0.15mv with 1/30s	520@720x540	1x1	0.244ms~15s

* C: Color; M: Monochrome; GS: Global Shutter; Default shutter: Rolling Shutter

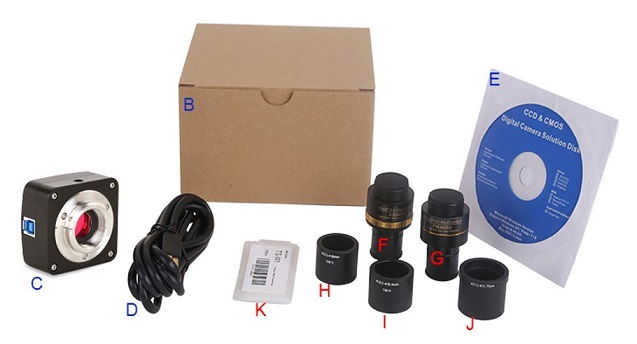

Packing Information

Standard Package
A	Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo
B	Gift box L:15cm W:15cm H:10cm (0.67~0.7Kg/ box)
C	One MCMOS series camera
D	High-Speed USB3.0 A male to B male gold-plated connectors cable /2.0m
E	CD (Driver & utilities software, Ø12cm)

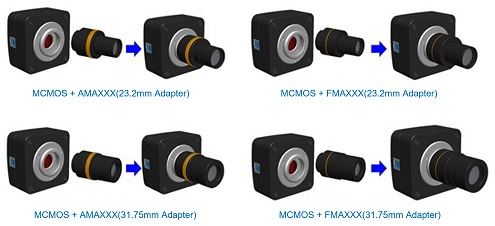

Optional Accessory
F	Adjustable lens adapter	C-mount to Dia. 23.2mm eyepiece tube
		C-mount to Dia. 31.75mm eyepiece tube
G	Fixed lens adapter	C-mount to Dia. 23.2mm eyepiece tube
		C-mount to Dia. 31.75mm eyepiece tube
H	108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm ring)/Adapter rings for 30.5mm eyepiece tube
J	108016(Dia.23.2mm to 30.5mm ring)/Adapter rings for 30.5mm eyepiece tube
K	Calibration kit	106011/TS-M1 (X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Note: For F and G optional items, please specify your camera type (C-mount, microscope camera, or telescope camera), SIMTRUM will help you to determine the right microscope or telescope camera adapter for your application.

Trinocular Digital Microscope

Step 1 Attach the C-Mount Camera and Adapter to the straight photo tube

Step 2 Attach the C-Mount Camera and Adapter to the 3^rd ocular tube or the other 2 eyepiece tubes

Binocular Digital Microscope

Step 1 Remove the eyepiece from the ocular tube or the eyepiece tube

Step 2 Attach (Screw) the camera adapter to the C-Mount Camera

Step 3 Attach (Insert) the eyepiece camera into the ocular tube or eyepiece tube

Binocular Digital Microscope

1, Standard C-Mount: Dia. 1 inch (25.4mm) female thread

2, Standard C-Mount: Dia. 1 inch (25.4mm) male thrad

3, Camera Adapter connector: size varies between microscope brands

4, Straight photo tube: size varies between microscope brands

5, Relay lens: standard eyepiece connector size, Dia. 23.2mm (male)

6, 3rd ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)

7, Ocular tube: standard eyepiece connector size, Dia. 23.2mm (female)

1/2” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0420MM	4	F2.0-F16	-2.80%	90°	77.4°	61.8°	0.1m-∞	--	C
TPL-0614MM	6	F1.4-F16	-1.00%	68°	56.6°	43.8°	0.1m-∞	M30.5x0.5	C
TPL-0814MM	8	F1.4-F16	-0.70%	54°	43.8°	33.6°	0.1m-∞	M30.5x0.5	C
2/3” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1214MM	12	F1.4-F16	-1.00%	48.86°	39.94°	30.44°	0.1m-∞	M30.5x0.5	C
TPL-1614MM	16	F1.4-F16	-1.00%	36°	29.12°	22.02°	0.2m-∞	M30.5x0.5	C
TPL-2514MM	25	F1.4-F32	-1.00%	24.18°	19.42°	14.6°	0.3m-∞	M30.5x0.5	C
TPL-3514MM	35	F1.4-F32	-1.00%	17.9°	14.4°	10.8°	0.5m-∞	M30.5x0.5	C
TPL-5020MM	50	F2.0-F16	0.40%	12.7°	10.2°	7.7°	1m-∞	M30.5x0.5	C
TPL-7524MM	75	F2.4-F22	0.65%	8.32°	6.7°	5.02°	1m-∞	M34x0.5	C
TPL-7525MM	75	F2.5	0.20%	5.31°	4.23°	3.15°	0.18X-0.38X	M30.5x0.5	C
1” 2MP 100lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0614MLM	6	F1.4-F32	-19.00%	112°	88.66°	72.89°	0.15m-∞	M43x0.75	C
2/3” 3MP 120lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0814M3M	8	F1.4-F16	0.70%	64.26°	53.76°	41.66°	0.1m-∞	M37x0.5	C
TPL-0918M3M	9	F1.8-F16	-0.50%	61.85°	51.22°	39.54°	0.1m-∞	M27x0.5	C
TPL-1218M3M	12	F1.8-F16	-0.30%	47.7°	39°	29.8°	0.1m-∞	M27x0.5	C
TPL-1618M3M	16	F1.8-F16	-0.35%	36.8°	29.8°	22.5°	0.1m-∞	M27x0.5	C
TPL-2518M3M	25	F1.8-F16	-0.10%	23.3°	18.8°	14.2°	0.15m-∞	M27x0.5	C
TPL-3518M3M	35	F1.8-F16	-0.10%	16.04°	12.8°	9.6°	0.25m-∞	M27x0.5	C
TPL-5018M3M	50	F1.8-F16	-0.10%	11.52°	9.14°	6.86°	0.5m-∞	M27x0.5	C
TPL-1618M3M-A (Ultra-Short TTL)	16	F1.8-F16	-1.98%	38.09°	30.69°	23.13°	0.3m-∞	M25.5x0.5	C
1/2” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0414M5M	4	F1.4-F32	-1.50%	85°	75.12°	58.76°	0.1m-∞	M52x0.75	C
TPL-0614M5M	6	F1.8-F16	-1.00%	64.48°	53.8°	41.6°	0.1m-∞	M35.5x0.5	C
2/3” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0814M5M	8	F1.4-F16	-1.00%	66.2°	55.24°	42.78°	0.1m-∞	M35.5x0.5	C
TPL-1214M5M	12	F1.4-F22	-0.30%	47.1°	39.58°	29.44°	0.1m-∞	M35.5x0.5	C
TPL-1614M5M	16	F1.4-F22	-0.30%	36.6°	29.78°	22.6°	0.1m-∞	M35.5x0.5	C
TPL-2514M5M	25	F1.4-F16	-0.10%	23.6°	19.04°	14.32°	0.2m-∞	M35.5x0.5	C
TPL-3514M5M	35	F1.4-F16	-0.05%	17.4°	14°	10.6°	0.15m-∞	M35.5x0.5	C
TPL-5020M5M	50	F2.0-F32	-0.10%	12.36°	9.92°	7.45°	0.4m-∞	M35.5x0.5	C
TPL-7520M5M	75	F2.0-F32	-0.10%	8.36°	6.72°	5.04°	0.8m-∞	M40.5x0.5	C
1” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-06520ML5M	6.5	F2.0	-10.50%	106.4°	94°	76°	0.1m-∞	M52x0.75	C
TPL-1218ML5M	12	F1.8-F32	-1.10%	64.4°	53.6°	41.6°	0.2m-∞	M77x0.75	C
TPL-1620ML5M	16	F2.0-F22	0.50%	51.5°	41.84°	32.4°	0.5m-∞	M34x0.5	C
TPL-2020ML5M	20	F2.0-F22	-0.80%	43.2°	34.9°	26.6°	0.3m-∞	M37.5x0.5	C
TPL-2520ML5M	25	F2.0-F32	-0.20%	34.8°	27.94°	21.14°	0.3m-∞	M43x0.75	C
4/3” 5MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1224MX5M	12	F2.4-F22	-4.00%	86.06°	71.03°	55.9°	0.3m-∞	M77x0.75	C
TPL-1620MX5M	16	F2.0-F32	-2.50%	67.39°	56.33°	43.5°	0.1m-∞	M72x0.75	C
TPL-2520MX5M	25	F2.0-F32	-1.40%	48.2°	37.4°	28.6°	0.15m-∞	M35.5x0.5	C
TPL-3520MX5M	35	F2.0-F22	-1.10%	36°	27.76°	20.98°	0.2m-∞	M37.5x0.5	C
2/3” 6MP 170lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0820M6M	8	F2.0-F16	0.45%	69°	57.62°	44.83°	0.1m-∞	M58x0.75	C
TPL-1220M6M	12	F2.0-F16	1.00%	48.22°	39.4°	29.92°	0.1m-∞	M37.5x0.5	C
TPL-1620M6M	16	F2.0-F16	0.60%	36.7°	29.6°	22.3°	0.1m-∞	M30.5x0.5	C
TPL-2520M6M	25	F2.0-F16	-0.25%	22.6°	18°	13.6°	0.2m-∞	M30.5x0.5	C
TPL-3520M6M	35	F2.0-F16	-0.35%	17°	13.3°	10°	0.2m-∞	M30.5x0.5	C
TPL-5020M6M	50	F2.0-F16	-0.05%	10.14°	8.16°	6.14°	0.2m-∞	M37.5x0.5	C
TPL-7538M6M	75	F3.8	0.30%	--	5.39°	4.05°	--	M30.5x0.5	C
2/3” 10MP 200lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0518M10M	5	F1.8-F11	-4.20%	96.54°	84°	67.6°	0.1m-∞	M62x0.75	C
TPL-0818M10M	8	F1.8-F22	-1.00%	65.64°	55.06°	42.7°	0.1m-∞	M37.5x0.5	C
TPL-1218M10M	12	F1.8-F32	-0.42%	48.9°	40.1°	30.6°	0.1m-∞	M30.5x0.5	C
TPL-1618M10M	16	F1.8-F22	-0.20%	37.74°	30.6°	23.2°	0.2m-∞	M30.5x0.5	C
TPL-2518M10M	25	F1.8-F32	-0.13%	24.5°	19.7°	14.84°	0.2m-∞	M30.5x0.5	C
TPL-3518M10M	35	F1.8-F16	-0.10%	12.58°	10.07°	7.56°	0.3m-∞	M34x0.5	C
TPL-5018M10M	50	F1.8-F22	-0.10%	11.67°	9.36°	6.89°	0.5m-∞	M40.5x0.5	C
TPL-2525CM10M	25	2.5/4/5.6/8/11	0.50%	24.67°	19.95°	15.09°	0.1m-0.5m	--	C
TPL-3528CM10M	35	2.5/4/5.6/8/11	-0.50%	17.93°	14.37°	10.79°	0.3m-∞	--	C
TPL-5040CM10M	50	4/5.6/8/11	-0.25%	12.58°	10.07°	7.56°	0.5m-∞	--	C
1.1” 12MP 150lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1228ML12M	12	F2.8	0.51%	69.35°	57.95°	45.54°	0.1m-∞	M46x0.75	C
TPL-1623ML12M	16	F2.3	0.40%	54.39°	44.56°	34.45°	0.1m-∞	M43x0.75	C
TPL-2520ML12M	25	F2.0	0.25%	35.3°	28.68°	21.75°	0.1m-∞	M37.5x0.5	C
TPL-3530ML12M	35	F2.0	0.15%	25.27°	20.4°	15°	0.2m-∞	M37.5x0.5	C
TPL-5022ML12M	50	F2.2	0.10%	16.18°	13°	9.77°	0.25m-∞	M37.5x0.5	C
TPL-7526ML12M	75	F2.6	-0.35%	7.53°	6.05°	4.65°	0.3m-∞	M34x0.5	C
TPL-0625ML12M	6	F2.5	0.23%	107.35°	86.02°	64.58°	0.15m-∞	M62x0.75	C
TPL-0828ML12M	8	F2.8	-0.47%	93.85°	80.89°	65.21°	0.12m-∞	M55x0.75	C
1” 12MP L50lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-0725FL12M	7	F2.55(Fixed)	-61.00%	143°	109.2°	80°	0.5m-∞	--	C/CS
1.1” 24MP 200lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1228SF	12	F2.8	0.26%	67.92°	56.86°	44.26°	0.12m-1m	M49x0.75	C
TPL-1624SF	16	F2.4	0.60%	49.64°	40.79°	31.18°	0.12m-∞	M40.5x0.5	C
TPL-2520SF	25	F2.0	-0.33%	34.68°	28.11°	21.24°	0.12m-∞	M40.5x0.5	C
TPL-3526SF	35	F2.6	0.10%	22.06°	17.87°	13.49°	0.12m-∞	M46x0.75	C
TPL-5020SF	50	F2.0	0.08%	13.68°	11.3°	8.47°	0.2m-∞	M52x0.75	C
4/3” 25MP 180lp/mm
Model Number	EFL(mm)	F/#	Optical Distortion	Field Angle			Working Distance (m)	Filter Thread	Mount
Model Number	EFL(mm)	F/#	Optical Distortion	D	H	V	Working Distance (m)	Filter Thread	Mount
TPL-1825XF	18	F2.5	0.84%	62.63°	52.44°	40.65°	0.12m-∞	M46x0.75	C
TPL-2524XF	25	F2.4	-0.36%	43.70°	35.64°	27.09°	0.15m-∞	M46x0.75	C
TPL-3524XF	35	F2.4	-0.25%	33.37°	26.98°	20.35°	0.23m-∞	M46x0.75	C
TPL-5025XF	50	F2.5	0.08%	22.38°	18°	13.55°	0.25m-∞	M46x0.75	C

Microscop Cameras

Camera Category	Resolution	Pixel Size	FPS	Wavelength	Note
Microscope TE-Cooling USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CCD Camera	1.5MP to 12MP	6.45um to 3.1um	~30FPS	380nm - 650nm	IR Cut filter
Large Format TC-Cooling USB3.0 CMOS Camera	24MP and 61MP	5.94um and 3.76um	up to 190FPS	380nm -650nm	UV extended available
TE-Cooling USB3.0 CMOS Camera	10MP to 45MP	4.63um to 2.31um	up to 96FPS	380nm - 650nm	IR Cut filter
TE-Cooling USB3.0 CMOS Camera with External Trigger	0.5MP / 0.5MP	6.9um / 9um	20FPS	380nm - 650nm	External Trigger
Microscope USB3.0 CMOS Camera	0.5MP to 45MP	6.9um to 1.55um	upto 520FPS	380nm - 650nm	IR Cut filter
Microscope USB3.0 CMOS Camera UV Enhanced	1.3MP to 10MP	9.7um to 4.6um	upto 86FPS	200nm -1100nm
Microscope USB3.0 CMOS Camera wish ISP	1.5MP to 45MP	3.4um to 1.2um	upto 165FPS	380nm - 650nm	IR Cut filter / ISP
Eyepiece USB3.0 CMOS Camera	5MP	2um	30FPS	380nm - 650nm	IR Cut filter
HDMI Color CMOS Camera	2MP to 8MP		60FPS	380 - 1100nm
UV & NIR Enhanced CMOS Camera	4.2/8MP, 2.1/4.1MP		upto 200FPS	200-1100nm	UV or NIR Enhance

Scientific Cameras

Type	Model	Wavelength	Sensor Type	Resolution	Pixel size	Frame Rate	QE
X-RAY sCMOS Camera	XF95	80-1000eV	BSI sCMOS	2048 x 2048	22.5um or 13.3um	48	~100% full range
XUV/VUV Camera	maxCam	1-300nm	BSI/FSI CCD	1024 x 255	26um		Refer to brochures
High Speed sCMOS Camera	Dhyana 2100	200-1100nm	FSI CMOS / Mono	5220(H) x 4096(V)	4.5um x 4.5um	450fps@8bit	63%@520nm
High Speed sCMOS Camera	Dhyana 9KTDI	200-1100nm	BSI sCMOS TDI/Mono	9072	5um x 5um	510kHZ@8bit	82%@550nm,
Cooled High Sensitivity sCMOS Camera	95V2	200-1100nm	BSI sCMOS/Mono	2048(H) x 2048(V)	11μm x 11μm	48fps@12bit STD	95%@560nm
	400BSI V2	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	74fps@CL, 40fps@USB3.0	95%@600nm
	400BSI V3	200-1100nm	BSI sCMOS	2048(H) x 2048(V)	6.5μm x 6.5μm	100fps@CL, 40fps@USB3.0	95%@600nm
	400D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2040(V)	6.5μm x 6.5μm	35fps@16bit	72%@595nm
	400DC	200-1100nm	FSI sCMOS/Color	2048(H) x 2044(V)	6.5μm x 6.5μm	22fps@8bit, 16fps@16bit
Large Sensor sCMOS cameras	6060BSI	200-1100nm	BSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	26.4fps@12-bit STD	95%@580nm
	4040BSI	200-1100nm	BSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	90%@550nm
	6060FSI	200-1100nm	FSI sCMOS/Mono	6144(H) x 6144(V)	10μm x 10μm	44fps@12-bit STD	72%@550nm
	4040FSI	200-1100nm	FSI sCMOS/Mono	4096(H) x 4096(V)	9μm x 9μm	16.5fps@CL, 9.7fps@USB3.0	74%@600nm
Compact Industry sCMOS Camera	401D	200-1100nm	FSI sCMOS/Mono	2048(H) x 2048(V)	6.5μm x 6.5μm	40fps@16bit, 45fps@8bit	72%@595nm
	401A-G	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	401A-U	200-1100nm		2048(H) x 2048(V)	11μm x 11μm		58%@600nm
	201D	200-1100nm		2048(H) x 1152(V)	6.5μm x 6.5μm	70fps@16bit, 80fps@8bit	72%@595nm

Intensified CMOS Cameras

Type	Time-Resolved iCMOS	High-speed Gated iCMOS Camera		High-speed Fluorescence iCMOS Camera
Type	Time-Resolved iCMOS	540M/S	1000M/S	FLUO (1000 FPS)	FLUO (2000 FPS)
Product Image
Framerate	162 fps	540 fps	1000 fps	1000 fps - 7500 fps	2000 fps - 6400 fps
Sensor Resolution	1920 x 1200 pixels	1696 x 1710 pixels	1280 x 1024 pixels	1280 x 1024 pixels	1920 x 1080 pixels*
Pixel size	5.86 x 5.86 µm	8 x 8 µm	6.6 x 6.6 µm	6.6 x 6.6 µm	10 x 10 µm
Photon gain (max.)	50000 lm/m^2/lx	11000 lm/m^2/lx	11000 lm/m^2/lx	36000 lm/m^2/lx	36000 lm/m^2/lx
Gating repetition rate	100 or 300Khz	100khz	100khz	100khz	100khz
Intensifier	18mm intensifier	Dual-stage intensifier	Dual-stage intensifier	Single-stage intensifier	Single-stage intensifier
Bit Depth	10 bit and 12 bit	8 bit	8 and 12 bit	8 and 12 bit	8 bit
Minimum exposure time	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)	40 ns (3 ns optional)

Imaging Intensified Tube

Type	Time-Resolved Image Intensifier		High-speed Image Intensifier
Type	Model 18	Model 25	Model 18	Model 25
Product Image
Input diameter	18mm	25mm	18mm	25mm
Effective area	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm	Gen II: ø 17.5 mm, Gen III: 13.5x10 mm	Gen II: ø 24.5 mm, Gen III: 16x16 mm
Max. Repetition	100 kHz, 300 kHz or 1 MHz	100 kHz, 300 kHz or 1 MHz	100khz Or 300khz , 2.5 MHz burst mode	100khz Or 300khz, 2.5 MHz burst mode
Min. gate width	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)	< 3ns - 40ns (FWHM)
Frame Rate	Up to 500 fps	Up to 500 fps	up to 1,000,000 fps	up to 1,000,000 fps
Photon Gain	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 14800, S25:30000 GaAs: 40000, GaAsp: 20000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000	S20 : 40000, S25:30000 GaAs: 30000, GaAsp: 50000

Short-wave, Mid-wave, Long-wave Infrared Cameras

Product		Spectral Range	Rsolution	Cooling	Feature
SWIR Camera		400-1700nm	1.3MP, 0.3MP	uncooled
MIR Camera	Mid Infrared Detector	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Mid Infrared Camera	3.7um to 4.8um	0.08MP, 0.3MP,1.5MP	Cooled
	Duel Band Detector	3.7 to 4.8um\|7.7 to 9.5um	320*256px	Cooled
LWIR Camera	Cooled LWIR Detector	7.7um to 9.4um	0.08MP, 0.3MP	Cooled
	Cooled LWIR Camera	7.7um to 9.4um	0.3MP	Cooled
	LWIR Thermography Camera	8 to 14um	0.08MP, 0.3MP,1.5MP	Uncooled	Broad Temperature Range
	Thermography Camera for Skin Screening	8 to 14um	320*256px	Uncooled	Body Temperature
	Thermal Imaging Cameras for Phone	8 to 14um	256*192px	Uncooled	For Smart Phone
	Compact Thermal Imaging Camera	8 to 14um	0.08MP, 0.3MP	Uncooled	For CCTV , Drone

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
MCMOS1200KPA-CP112000A Microscope USB3.0 CMOS Camera, Sensor 12Mega pixel, Color mode Polychromatic, FPS 7.5@3840x3040, Exposure 0.1ms~2000ms	4-6 Weeks	Request for quote
MCMOS10000KPA-CP110001A Microscope USB3.0 CMOS Camera, Sensor 10Mega pixel, Color mode Polychromatic, FPS 8.5@3664x2748, Exposure 0.1ms~2000ms	4-6 Weeks	Request for quote
MCMOS05100KPA-CP105100A Microscope USB3.0 CMOS Camera, Sensor 5.1Mega pixel, Color mode Polychromatic, FPS 15.5@2592x1944, Exposure 0.1ms~2000ms	4-6 Weeks	Request for quote
MCMOS03500KPA-CP103500A Microscope USB3.0 CMOS Camera, Sensor 3.5Mega pixel, Color mode Polychromatic, FPS 30@2304x1536, Exposure 0.1ms~2000ms	4-6 Weeks	Request for quote

MCMOS03500KPA-CP103500A - Parameter

MCMOS05100KPA-CP105100A - Parameter

MCMOS10000KPA-CP110001A - Parameter

MCMOS1200KPA-CP112000A - Parameter

MCMOS03500KPA-CP103500A - Download

MCMOS05100KPA-CP105100A - Download

MCMOS10000KPA-CP110001A - Download

MCMOS1200KPA-CP112000A - Download

Accessories

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)

Company
About us Contact us Worldwide Location
Light Analysis
Spectrometers Hyperspectral Camera Power meters Beam Profiler
Microscope
Confocal Microscope Raman Microscope Microscopy Stages TCSPC Solution
Light Sources
Fiber lasers Fiber Amplifier Diode Lasers Incoherent Light
Imaging
sCMOS Camera SW/MW/LW IR Cameras Infrared Pyrometer Microscope Cameras
Optics
Nonlinear Crystals Thz Components Waveplate Objective Lens
