SOA Devices (1060-1650 nm)

Single Polarization Low Polarization Order Now!

Single-Polarization Semiconductor OPtical Amplifiers: SP-SOAD

Single Polarization Semiconductor Optical Amplifier Devices(SP-SOAD) at 1060/1310/1450/1550/1600 /1650nm are designed by using high-quality angled SOA chips and dual lenses coupling to different SM/PM fibers to achieve different output powers. A closed loop TEC/thermistor temperature control ensures a stable amplified output for a large dynamic input signal. The SOA devices are available in standard, 14-pin or 8-PIN butterfly packages. The SOA devices have high optical gain, high saturation output power, low or single polarization, low noise figure and a broad wavelength range. We have options of optical isolators on the input and output side as well as output fibers of SM/PM fibers and other special fibers per customer requirements. The products arc Telcordia GR-468 qualified, and in compliance with RoHS requirements.

Applications

- Loss compensation for fiberoptic connection and switch

- WDM fiberoptic networks

- 100G fiberoptic data center

Features

- Wide wavelength range

- MQW design

- High saturation output power

- Select of low/single polarization

- Low gain ripple and NF

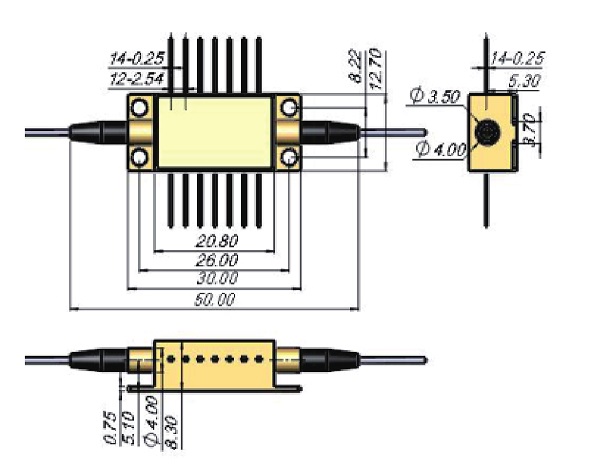

Mechanical Dimensions

Product specifications and Brochures

Product Brochure Link:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Center Wavelength (1060nm)	λ_c	1040	1060	1080	nm
Center Wavelength (1310nm)	λ_c	1290	1310	1330	nm
Center Wavelength (1450nm)	λ_c	1430	1450	1470	nm
Center Wavelength (1550nm)	λ_c	1525	1545	1565	nm
Center Wavelength (1600nm)	λ_c	1580	1600	1620	nm
Center Wavelength (1650nm)	λ_c	1620	1640	1660	nm
Small Signal Gain at @-25dBm Signal	G_max	15	20	-	dB
Saturation Output Power(@0dBm input Power)	P_sat	10	12	-	dBm
Operating Current	I_F	-	450	650	mA
3dB Gain Bandwidth	Δλ_c3dB	45	60	-	nm
Gain Ripple (p-p) @lop, λc	ΔG	-	0.5	1	dB
Polarization Extinction Ratio	PER	20	-	-	dB
Noise Figure	NF	-	8	9	dB
Reverse Voltage	V_R	-	-	2.5	V
TEC Current	I_TEC	-	1	1.5	A
TEC Voltage	V_TEC	-	2.8	3.7	V
Thermistor Resistance@25 °C	R_TH	9.5	10	10.5	kΩ
Optical Isolation	ISO	30	-	-	dB
Operating temperature	Top	-5	-	70	°C
Storage Temperature	T_S	-40	-	85	°C

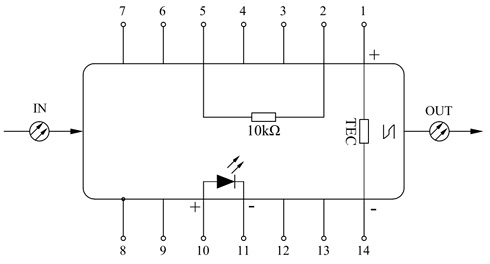

PIN Dentifition		PIN Identification
	1	Thermoelectric Cooler (+)
	2	Thermistor
	3	NC
	4	NC
	5	Thermistor
	6	NC
	7	NC
	8	Case Ground
	9	NC
	10	SLED Anode (+)
	11	SLED Cathode (-)
	12	NC
	13	NC
	14	Thermoelectric Cooler (-)

Ordering Information

SOAD-	□	□	□	□	□	□	□	□	□
SOAD-	Wavelength	Polarization Type	Package	Output Power	Input Fiber Type	Output Fiber Type	Pigtail Type	Pigtail length	Connector
	06: 1060nm	1:Polarization insensitive	1: 14-PIN	0: 6dBm	0: SMF-28e	0: SMF-28e	0:250μm bare fiber	1:50cm	0:None
	31: 1310nm	2:Single polarization	2: 8-PIN	1: 8dBm	1: PMF-1310	1: PMF-1310	1:900μm loose tube	2:100cm	1 :FC/UPC
	45: 1450nm			2: 10dBm	2: PMF-1550	2: PMF-1550	2:900μm tight tube	3:150cm	2:FC/APC
	55: 1550nm			3: 13dBm	8: PM980	8: PM980	C: Customized	4:200cm	3:SC/UPC
	60: 1600nm			C: Customized	9: Flexcol060	9: Flexcol060		C:Customized	4:SC/APC
	65: 1650nm				C: Customized	C: Customized			5:LC/UPC
									6:LC/APC
									C:Customized
Example of Ordering Form: SOAD-5521122122-01
SOAD-	55	2	1	1	2	2	1	2	2
	1550nm	Single polarization	14-PIN	8dBm	PMF-1550	PMF-1550	900μm loose tube	100cm	FC/APC

Low - Polarization Semiconductor OPtical Amplifiers: LP-SOAD

The Low Polarization(LP) Semiconductor Optical Amplifiers at 1310/1550/1600nm are designed by using high-quality angled SOA chips and dual lenses coupling to different SM/PM fibers to achieve different output powers. A closed loop TEC/thermistor temperature control ensures a stable amplified output for a large dynamic input signal. The SOA devices are available in standard, 14-pin or 8-PIN butterfly packages. The SOA devices have high optical gain, high saturation output power, low or single polarization, low noise figure and a broad wavelength range. We have options of optical isolators on the input and output side as well as output fibers of SM/PM fibers and other special fibers per customer requirements. The products arc Telcordia GR-468 qualified, and in compliance with RoHS requirements.

Applications

- Loss compensation for fiberoptic connection and switch

- WDM fiberoptic networks

- 100G fiberoptic data center

Features

- Wide wavelength range

- High saturation output power

- Low polarization sensitivity

- Low gain ripple and NF

- MQW design

Mechanical Dimensions

Product specifications and Brochures

Product Brochure Link:

Parameter	Symbol	Min.	Typ.	Max.	Unit
Center Wavelength (1310nm)	λ_c	1270	1310	1330	nm
Center Wavelength (1550nm)	λ_c	1525	1545	1565	nm
Center Wavelength (1600nm)	λ_c	1580	1600	1620	nm
Small Signal Gain at @-25dBm Signal	G_max	15	20	-	dB
Saturation Output Power(1310nm® -3 dB)	P_sat	10	12	-	dBm
Saturation Output Power (1550nm® -3 dB)	P_sat	8	10	-	dBm
Saturation Output Power (1600nm® -3 dB)	P_sat	8	10	-	dBm
Operating Current	I_F	-	450	650	mA
3dB Gain Bandwidth	Δλ_c3dB	45	60	-	nm
Gain Ripple (p-p) @ lop, λ_c	ΔG	-	0.5	1	dB
Polarization Dependent Gain	PDG	-	0.5	1	dB
Noise Figure	NF	-	8	9	dB
Reverse Voltage	V_R	-	-	2.5	V
TEC Current	I_TEC	-	1	1.5	A
TEC Voltage	V_TEC	-	2.8	3.7	V
Thermistor Resistance@25 °C	R_TH	9.5	10	10.5	kΩ
Optical Isolation	ISO	30	-	-	dB
Operating temperature	Top	-5	-	70	°C
Storage Temperature	T_S	-40	-	85	°C

PIN Dentifition		PIN Identification
	1	Thermoelectric Cooler (+)
	2	Thermistor
	3	NC
	4	NC
	5	Thermistor
	6	NC
	7	NC
	8	Case Ground
	9	NC
	10	SLED Anode (+)
	11	SLED Cathode (-)
	12	NC
	13	NC
	14	Thermoelectric Cooler (-)

Ordering Information

SOAD-	□ □	□	□	□	□	□	□	□	□
SOAD-	Wavelength	Polarization Type	Package	Ouput Power	Input Fiber Type	Output Fiber Type	Pigtail Type	Pigtail length	Connector
	10: 1064nm	1 Polarization insensitive	1: 14-PIN	0: 6dBm	0: SMF-28e	0: SMF-28e	0:250um bare fiber	1:50cm	0:None
	31: 1310nm	2:Single polarization	2: 8-PIN	1: 8dBm	1:PMF-1310	1:PMF-1310	1:900um loose tube	2:100cm	1 :FC/UPC
	45: 1450nm			2: 10dBm	2:PMF-1550	2:PMF-1550	2:900um tight tube	3:150cm	2:FC/APC
	55: 1550nm			3: 13dBm	C: Customized	C: Customized	C: Customized	4:200cm	3:SC/UPC
	65: 1650nm			C: Customized				C:Customized	4:SC/APC
									5:LC/UPC
									6:LC/APC
									C:Customized
Example of Ordering Form: SOAD-5511100222-01
SOAD-	55	1	1	1	0	0	2	2	2
	1550nm	Polarization insensitive	14-PIN	8dBm	SMF-28e	SMF-28e	900um tight tube	100cm	FC/APC
