EDFA Gain Flatten Filter Devices

Overview & Specification Order Now!

EDFA Gain Flatten Filter Devices: GFFD

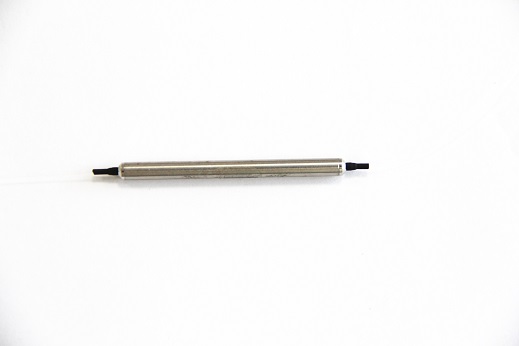

Gain Flatten Filter (GFF) is a filter-based device that features ultra-low insertion loss, super thermal stability and excellent reliability. The product uses lead -free packaging platform without epoxy on the optical path. The GFFs provide inline compensation of the spectral gain profile of EDFAs and can be used for high-power applications in DWDM systems. The products are Telcordia GR-1209/1221-UNC qualified and in compliance with RoHS directives.

Applications

- EDFA

- Raman amplifier

Features

- Accurate gain profile matching

- Low error function

- Excellent stability and reliability

- Epoxy free optical path

Mechanical Dimensions

Product specifications and Brochures

Product Brochure Link:

Parameter	Value	Unit
Operating Wavelength Range	As filter Spec C/Lband	nm
Peak Insertion Loss	≤0.5	dB
Peak to Peak in Error Function Range	≤0.5	dB
Optical Return Loss (Input & Output)	≥50	dB
Polarization Dependent Loss	≤0.1	dB
Wavelength Thermal Drift	≤0.003	nm/°C
Polarization Mode Dispersion	≤0.05	ps
Temperature Dependent Loss	≤0.15	dB
Power Handling	≤500	dB
Operating Temperature	0 ~ 70	°C
Storage Temperature	-40 ~ 85	°C
Humidity	5 ~ 95%	-
Package Size	Φ05.5xL34	mm
Fiber Type	SMF-28e/Customized	-

Ordering Information

GFFD-	□ □	□	□	□	□	□	□	□	□
GFFD-	Port Configuration	Wavelength Range	Package	Fiber Type	Input Pigtail Type	Input Pigtail length	Output Pigtail Type	Output Pigtail length	Connector
	11: 1 x 1	C:C Band	0: Φ5.5x34	0: SMF-28e	0: 250μm bare fiber	1:50cm	0: 250μm bare fiber	1:50cm	0:None
	CC: Customize	L: LBand	1: Φ5.5x40	1: G.657.A1	1:900μm loose tube	2:100cm	1:900μm loose tube	2:100cm	1 :FC/UPC
			2: Φ3.0x25	2: G.657.A2	2:2.0mm loose tube	3:150cm	2:2.0mm loose tube	3:150cm	2:FC/APC
			C: Customized	C: Customized	3:3.0mm loose tube	4:200cm	3:3.0mm loose tube	4:200cm	3:SC/UPC
					C: Customized	C Customized	C: Customized	C: Customized	4:SC/APC
									5:LC/UPC
									6:LC/APC
									C: Customized

GFFD-	11	C	0	0	0	2	0	2	0
	1 x 1	C Band	Φ5.5x34	SMF-28e	250μm bare fiber	100cm	250μm bare fiber	100cm	None
