CW Triplex Fiber Coupled Laser Diode (RGB) | SIMTRUM

Products / Lasers/Light /DPSS / Diode Lasers /CW Multi Wavelength Laser /CW Triplex Fiber Coupled Laser Diode (RGB) /
CW Triplex Fiber Coupled Laser Diode (RGB)
Laser Module Laser Source Selection Guide Order Now!

Triplex (RGB) Fiber Coupled White Light Laser Module



SIMTRUM offers the Triplex (RGB) Fiber Coupled White Light Laser Module. We couple the Red  (635nm), Green (520nm) and Blue (445nm) Laser into one piece of fiber to get the white Color Laser. The Fiber Type can be  Single mode Fiber (SMF), Multimode Fiber (MMF) and Polarization Maintaining Fiber (PMF). The fiber core can be 3um, 9um, 105um, etc. The output power can be up to 200mW. By controlling the ratio of RGB Lasers, we can get a perfect white laser. Meanwhile, by adjusting the ratio, various colors of the laser also can be obtained.



SIMTRUM also offers Customized solutions for Triplex Laser Modules, such as Customized Wavelength, Customized Power and Customized Fiber Core to meet the special needs of customers.



SIMTRUM uses laser welding technology to guarantee the long-term reliability of the laser structure. To ensure long-term reliability, each laser diode will undergo rigorous testing and aging in the factory. Meanwhile, high-low storage temperature circulation is also necessary for each laser diode. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles, which will ensure the long-term reliability of the coupling structure.













Product Brochure Link:

Features                                                                                   Applications

- RGB (635nm+520nm+445nm) Solution                                             - Endoscopy

- SMF/MMF/PMF Optional                                                                    - Aiming Beam

- White Color Laser Output                                                                   - Bioscience

- Built-in TE Cooler Optional                                                                 - Illumination

- Long Lifetime

- High Stability





Packaging Information

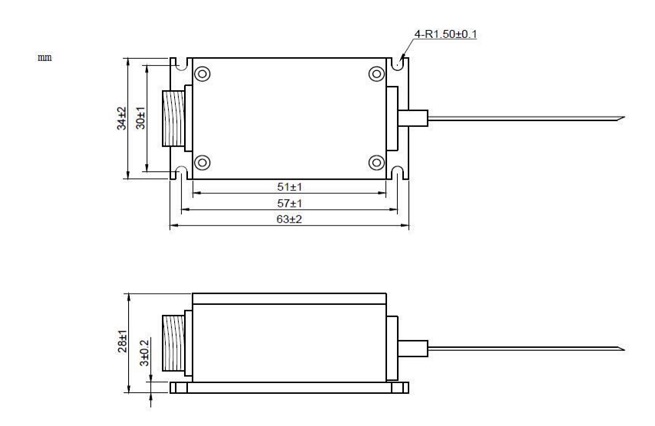

Triplex HHL-01 Package View




Triplex (RGB) Fiber Coupled White Light Laser Source

SIMTRUM offers the Triplex (RGB) Fiber Coupled White Light Laser Source. The Triplex Laser Source contains the Fiber Coupled Laser Module, LD Driver and Temperature Control System. With an Input of 90V~240V AC input, the Laser Source can easily get to work. Meanwhile, the 635nm, 520nm and 445nm Laser are controlled Independently.

We couple the Red (635nm), Green (520nm) and Blue (445nm) Laser into one piece of fiber to get the white color laser.


The Fiber Type can be Single mode Fiber (SMF), Multimode Fiber (MMF) and Polarization Maintaining Fiber (PMF). The fiber core can be 4um, 9um, 105um, etc. By controlling the ratio of RGB Laser, we can get the perfect white color laser. Meanwhile, by adjusting the ratio, various colors of the laser also can be obtained.


To ensure long-time reliability and power stability, each Laser Source will undergo rigorous testing and aging in the factory.


SIMTRUM also offers Customized solutions for Triplex Laser Source, such as Customized Wavelength, Customized Power and Customized Fiber Core to meet the special needs of customers.








Product Brochure Link:

Features

- RGB (635nm+520nm+445nm) Turnkey Laser System

- SMF/MMF/PMF Optional

- White Color Laser Output

- Each Wavelength Independent Control

- Built-in Driver and TE Cooler

- 90V ~ 240V AC Input

- TTL/Analog Modulation

- Customized Wavelength/ Power/Fiber Type



Packaging Information

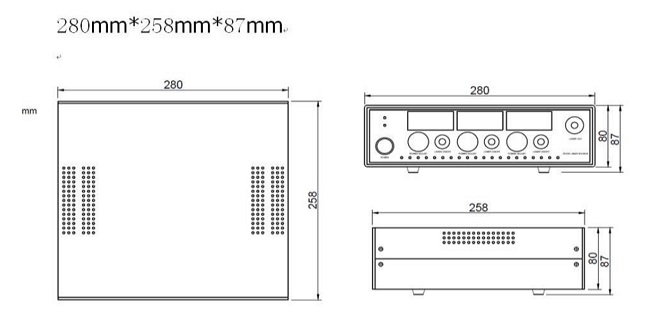

Triplex Laser System Packing View (A200)




Triplex (RGB) Fiber Coupled Laser Moudle Selection Guide

Fiber
Type

Part Number

Port-1

Port-2

Port-3

Package

Fiber
Core

Electrical Specifications

TEC

Connector

Threshold Current

Operating Current (Typ.)

Operating Voltage

SMF

Triplex-STLX-RGB-010m-4-H-T

638nm/10mW

520nm/10mW

445nm/10mW

HHL-01

3um

Port 1 - 50mA
Port 2 - 40mA
Port 3 - 30mA

Port 1 - 160mA
Port 2 - 180mA
Port 3 - 120mA

Port 1 - 2.7V
Port 2 - 7.0V
Port 3 - 6.0V

V

FC/SMA905

Triplex-STLX-RGB-015m-4-H-T

638nm/15mW

520nm/15mW

445nm/15mW

HHL-01

3um

Port 1 - 50mA
Port 2 - 45mA
Port 3 - 30mA

Port 1 - 180mA
Port 2 - 200mA
Port 3 - 120mA

Port 1 - 2.7V
Port 2 - 7.0V
Port 3 - 6.0V

V

FC/SMA905

Triplex-STLX-RGB-020m-4-H-T

638nm/20mW

520nm/20mW

445nm/20mW

HHL-01

3um

Port 1 - 60mA
Port 2 - 60mA
Port 3 - 25mA

Port 1 - 200mA
Port 2 - 240mA
Port 3 - 140mA

Port 1 - 3.0V
Port 2 - 7.5V
Port 3 - 6.5V

V

FC/SMA905

SMF-28

Triplex-STLX-RGB-030m-9-H-T

638nm/30mW

520nm/30mW

445nm/30mW

HHL-01

9um

Port 1 - 50mA
Port 2 - 40mA
Port 3 - 30mA

Port 1 - 160mA
Port 2 - 180mA
Port 3 - 120mA

Port 1 - 2.7V
Port 2 - 7.5V
Port 3 - 6.0V

V

FC/SMA905

Triplex-STLX-RGB-050m-9-H-T

638nm/50mW

520nm/50mW

445nm/50mW

HHL-01

9um

Port 1 - 65mA
Port 2 - 65mA
Port 3 - 25mA

Port 1 - 220mA
Port 2 - 270mA
Port 3 - 140mA

Port 1 - 3.0V
Port 2 - 7.5V
Port 3 - 6.5V

V

FC/SMA905

MMF

Triplex-STLX-RGB-030m-M-H-T

638nm/30mW

520nm/30mW

445nm/30mW

HHL-01

105um

Port 1 - 50mA
Port 2 - 40mA
Port 3 - 30mA

Port 1 - 150mA
Port 2 - 180mA
Port 3 - 100mA

Port 1 - 2.7V
Port 2 - 7.0V
Port 3 - 6.0V

V

FC/SMA905

Triplex-STLX-RGB-050m-M-H-T

638nm/50mW

520nm/50mW

445nm/50mW

HHL-01

105um

Port 1 - 50mA
Port 2 - 40mA
Port 3 - 30mA

Port 1 - 160mA
Port 2 - 200mA
Port 3 - 120mA

Port 1 - 2.7V
Port 2 - 7.0V
Port 3 - 6.0V

V

FC/SMA905

Triplex-STLX-RGB-080m-M-H-T

638nm/80mW

520nm/80mW

445nm/80mW

HHL-01

105um

Port 1 - 65mA
Port 2 - 65mA
Port 3 - 25mA

Port 1 - 220mA
Port 2 - 270mA
Port 3 - 140mA

Port 1 - 3.0V
Port 2 - 7.5V
Port 3 - 6.5V

V

FC/SMA905

Triplex-STLX-RGB-100m-M-H-T

638nm/100mW

520nm/100mW

445nm/100mW

HHL-01

105um

Port 1 - 70mA
Port 2 - 70mA
Port 3 - 30mA

Port 1 - 230mA
Port 2 - 280mA
Port 3 - 150mA

Port 1 - 3.0V
Port 2 - 7.5V
Port 3 - 6.5V

V

FC/SMA905

Triplex-STLX-RGB-001-M-H-T

638nm/1W

520nm/1W

445nm/1W

HHL-03

105um

Port 1 - 30mA
Port 2 - 30mA
Port 3 - 30mA

Port 1 - 160mA
Port 2 - 210mA
Port 3 - 130mA

Port 1 - 2.5V
Port 2 - 5.0V
Port 3 - 6.0V

V

FC/SMA905

Analog Modulation Optional | TTL Modulation Optional | Case Model: A-200 / A-300



Triplex (RGB) Fiber Coupled Laser Source Selection Guide

Fiber
Type		 Part Number Wevelength-1 Wevelength-2 Wevelength-3 Fiber
Core		 Connector Power Supply TE Cooling Case Model No.
SMF Triplex-STLS-RG B-010m-4 638nm/10mW 520nm/10mW 445nm/10mW 3um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-015m-4 638nm/15mW 520nm/15mW 445nm/15mW 3um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-020m-4 638nm/20mW 520nm/20mW 445nm/20mW 3um FC/SMA905 90V—240VAC V A-200
SMF-28 Triplex-STLS-RG B-030m-9 638nm/30mW 520nm/30mW 445nm/30mW 9um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-050m-9 638nm/50mW 520nm/50mW 445nm/50mW 9um FC/SMA905 90V—240VAC V A-200
MMF Triplex-STLS-RGB-030m-M 638nm/30mW 520nm/30mW 445nm/30mW 105um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-050m-M 638nm/50mW 520nm/50mW 445nm/50mW 105um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-080m-M 638nm/80mW 520nm/80mW 445nm/80mW 105um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RG B-100m-M 638nm/100mW 520nm/100mW 445nm/100mW 105um FC/SMA905 90V—240VAC V A-200
Triplex-STLS-RGB-001-M 638nm/1W 520nm/1W 445nm/1W 105um FC/SMA905 90V—240VAC V A-300
Analog   Modulation Optional | TTL Modulation Optional | Case Model: A-200 / A-300



Note:  V - Yes,   X - No,   O - Optional



Various Wavelength Optional   Various Wavelength Optional
Port-1  405nm | 445nm   SMF    3um
Port-2  488nm | 505nm | 520nm | 525nm   PMF    3um
Port-3  638nm | 658nm | 670nm | 685nm | 785nm   MMF   9um | 50um | 105um | 200um

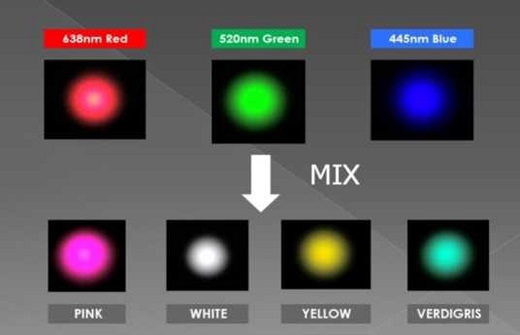

Laser Beam with SMF
