16K Multi-line Scan Camera

5μm x 5μm 3.5μm x 3.5μm Specifications Order Now!

16K Multi-Line Scan Camera With 5μm x 5μm Pixel Size

These 16K multi-line scan cameras feature 16K resolution and 5μm x 5μm pixel size. Our products have been applied to printed circuit board inspection,flat panel display inspection, lithium battery and solar panel inspection, semiconductor inspection and food and medicine inspection.

Feature

STR16KCL-51KT / STR16KCL-51KT4	STR16KCXP10-40KC / STR16KCXP10-70KC
-Global shutter CMOS -High sensitivity and low noise -Camera link interface -Rich exposure control modes (external trigger, free-run) -Binning/LUT/FFC/automatic white balance -Spatial correction/parallax correction -Scanning direction configurable -Real-time temperature monitoring	-Global shutter CMOS -High sensitivity and low noise -CoaXPress10 interface -Rich exposure control modes (external trigger, free-run) -Binning/LUT/FFC/automatic white balance -Spatial correction/parallax correction -Scanning direction configurable -Real-time temperature monitoring

Application

STR16KCL-51KT / STR16KCL-51KT4

-Printed circuit board inspection

-Flat panel display inspection

-Lithium battery/solar panel inspection

-Semiconductor inspection

-Food and medicine inspection

STR16KCXP10-40KC / STR16KCXP10-70KC

-Printed circuit board inspection

-Semiconductor inspection

-Print and package inspection

-Food and medicine inspection

-Plate and web inspection

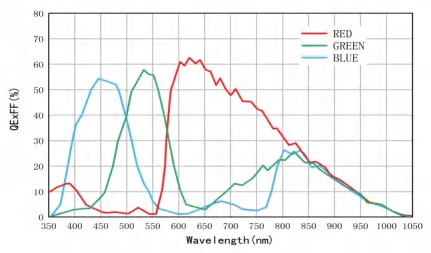

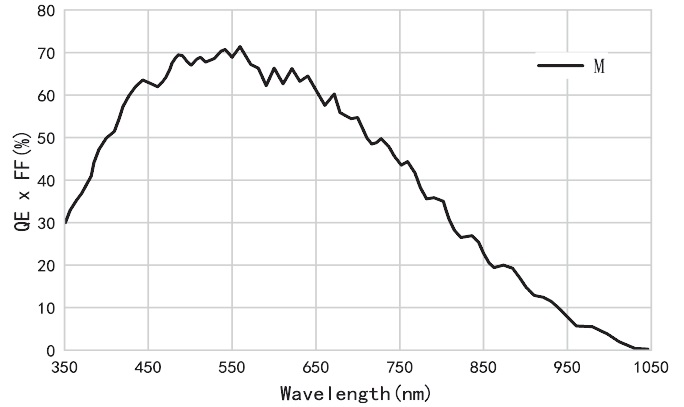

Spectral response

STR16KCL-51KT / STR16KCL-51KT4

STR16KCXP10-40KC / STR16KCXP10-70KC

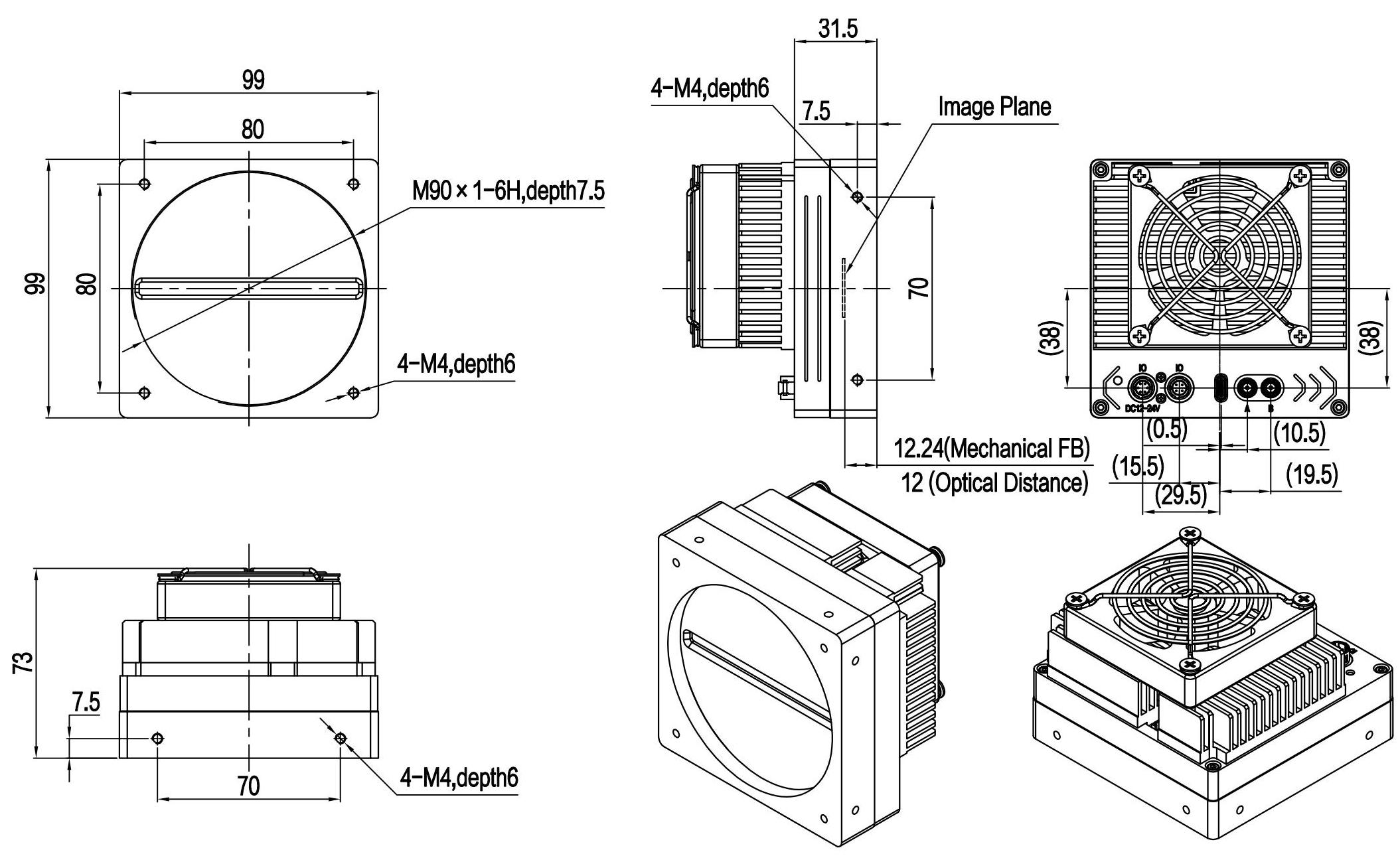

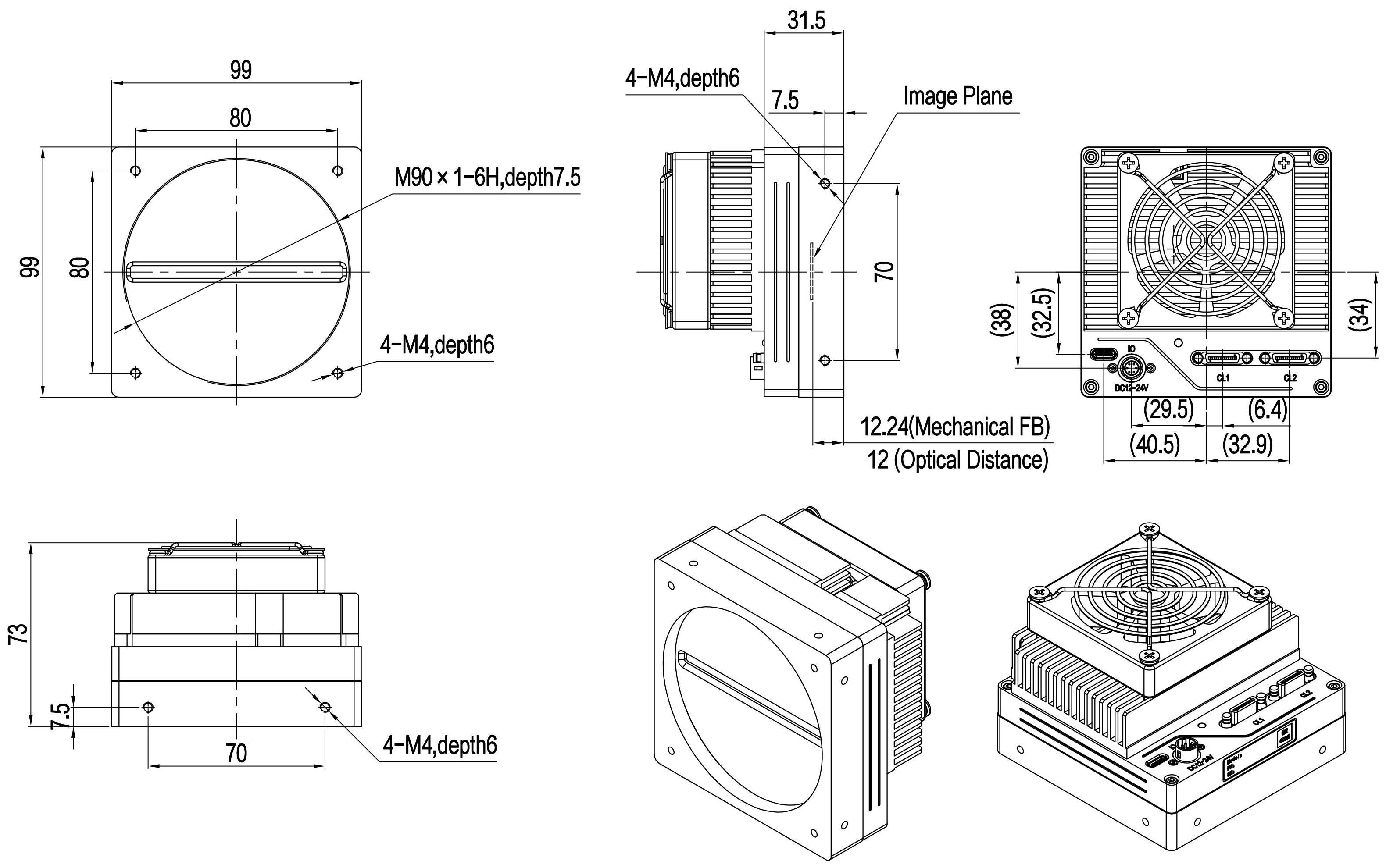

Drawings

STR16KCL-51KT / STR16KCL-51KT4

STR16KCXP10-40KC / STR16KCXP10-70KC

16K Multi-Line Scan Camera With 3.5μm x 3.5μm Pixel Size

These 16K multi-line scan cameras feature 16K resolution and 3.5μm x 3.5μm pixel size. Our products have been applied to plate and web inspection,railway and traffic application, lithium battery and solar panel inspection,food and medicine inspection and other sorting and appearance inspections.

Feature

-Global shutter CMOS

-High sensitivity and lownoise

-Spatial correction/rparallax correction

-Scanning direction configurable

-Real-time temperature monitoring

-Rich exposure control modes(external trigger, free-run)

-Binning/LUT/FFC/automatic white balance

-CoaXPress10 interface

f7a8bd21b8b75a2bb7aec3cfa277b0ca_STU16KCXP10_100KT02.jpg 542a5576a87a82a84faf966f78f9e4c8_STU16KCXP10_100KT01.jpg

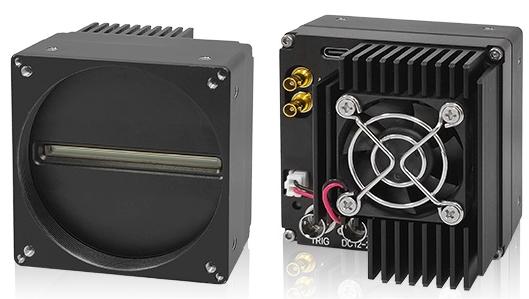

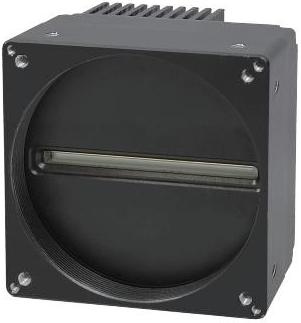

STU16KCXP10-100KT

Application

-Plate and web inspection

-Railway and traffic application

-Lithium battery/solar panel inspection

-Food and medicine inspection

-Other sorting and appearance inspections

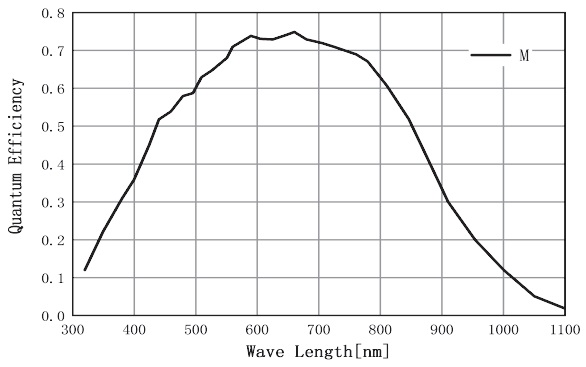

Spectral response

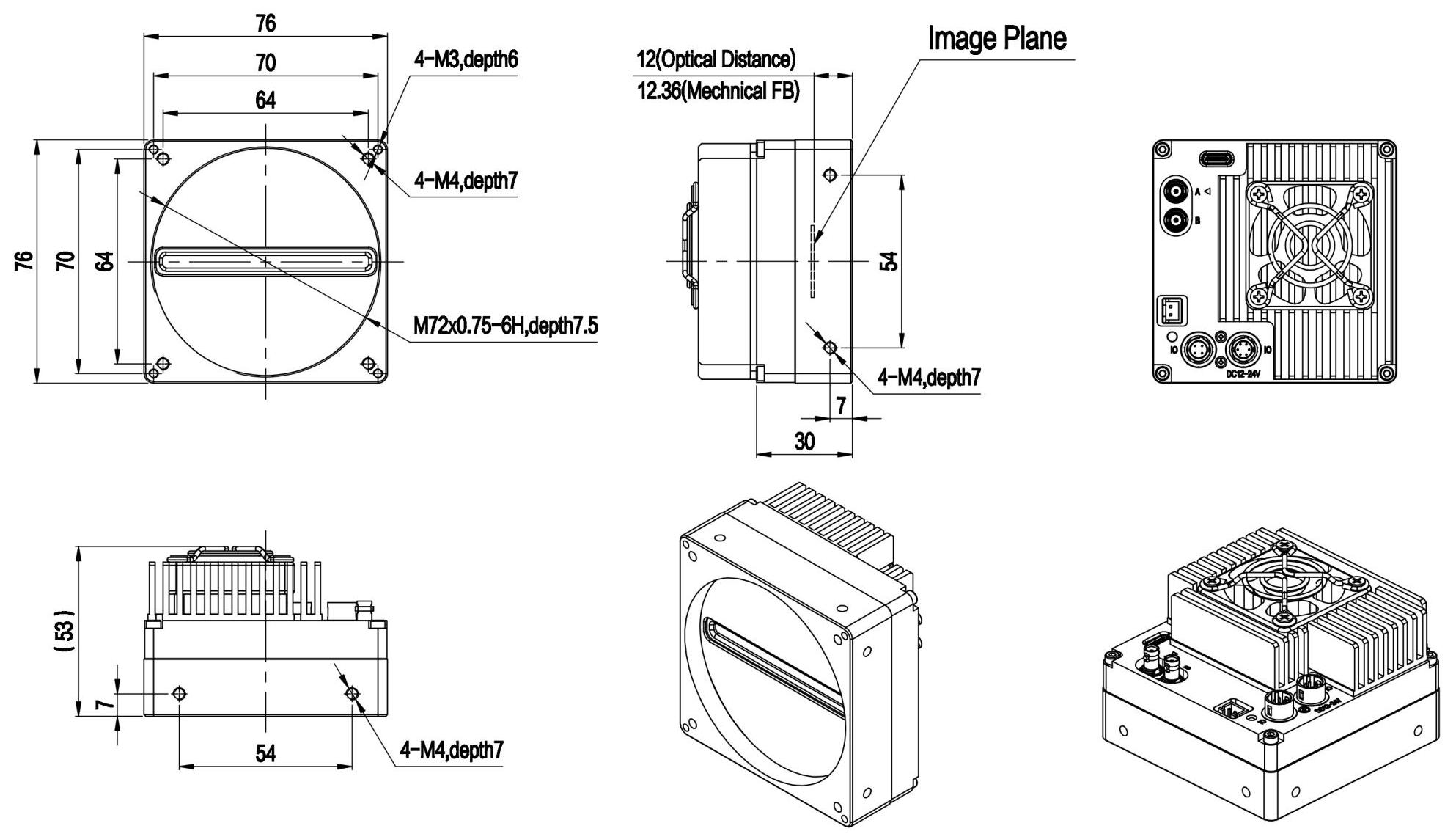

Drawings


Product specifications and Brochures

Product Brochure Link:

Model	STR16KCL-51KT	STU16KCXP10-100KT	STR16KCXP10-70KC	STR16KCL-51KT4	STR16KCXP10-40KC
Sensor	Global Shutter CMOS
Image Mode	Mono	Mono	Color	Mono	Color
Optical Size	81.92 mm	57.34 mm	81.92 mm	81.92 mm	81.92 mm
Resolution	16384*2	16384*2	16384*3	16384* 4	16384*6
Pixel Size	5μm * 5μm	3.5μm * 3.5μm	5μm*5μm	5μm * 5μm	5μm * 5μm
Max Line Rate	51.0kHz@8bit ,40.8kHz@10bit	100kHz@8bit，95.7kHz@10bit， 79.7kHz@12bit	ROI OFF:39.9kHz@8bit, 31.9kHz@10bit, ROI ON:68.4kHz@8/10bit	51.0kHz@8bit ,40.8kHz@10bit	39.8kHz@8bit, 31.9kHz@10bit
Bit Depth	8/10bit	8/10/12 bit	RGB/BGR@8/10bit	8/10bit	RGB/BGR@8/10bit
Dynamic Range	≥64.8 dB	Single line mode:63.0dB, Double line average mode:65.3dB	≥62.8 dB	≥64.8 dB	≥64.8 dB
Data Rate	830 MB/s	1959 MB/s	1900 MB/s	830 MB/s	1900 MB/s
Trigger Mode	Free-run/external pulse/external PWM	Line trigger/frame frigger		Free-run/external pulse/external PWM	Line trigger/frame frigger
Exposure Control	External PWM/Program
ExposureTime	3μs-63997μs(Step:0.0125μs)	3.013μs-63997μs(Step:0.012μs)	3μs-63997μs(Step:0.0125μs)	3μs-63997μs(Step:0.0125μs)	3μs-63997us(Step:0.0125μs)
Analog Gain	1/2x	/	1/2x	1/2x	1/2/4/8x
Digital Gain	0.01-8.00x	0.1-8.00x	0.1-8x	0.01-8.00x	0.01-8.00x
Data Interface	Camera Link	CoaXPress10	CoaXPress10	Camera Link	CoaXPress10
Lens Interface	M90 * 1	M72 * 0.75	M90 * 1	M90 * 1	M90* 1
Power Interface	Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V±10% 2A	DC12-24V(±10%)2A	DC12-24V(±10%) 2.0A	DC12-24V±10% 2A	DC12-24V(±10%)2A
Power Dissipation	12.0 W	15.0 W	14.6 W	12.7 W	16.0 W
Dimensions (WHD)(mm)	99.0x 99.0 x 73.0	76.0x 76.0 x 53.0	99.0x 99.0 x 73.0	99.0x 99.0 x 73.0	990x99.0x73.0
Operating Temperature	0-55℃	0-65℃	0-55℃	0-55℃	0-55℃
Storage Temperature	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
STR16KCL-51KT 16K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 81.92MM, Resolution 163842, Pixel Size 5μm 5μm, Max Line Rate, 51.0kHz@8Bit, 40.8kHz@10Bit, Bit Depth 8/10Bit, Dynamic Range ≥64.8 dB, Data Rate 830 MB/s	6-8 weeks	Request for quote
STU16KCXP10-100KT 16K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 57.34MM, Resolution 163842, Pixel Size 3.5μm 3.5μm, Max Line Rate 100kHz@8Bit，95.7kHz@10Bit，79.7kHz@12Bit, Bit Depth 8/10/12 Bit, Dynamic Range Single Line Mode 63.0dB, Double Line Average Mode 65.3dB	6-8 weeks	Request for quote
STR16KCXP10-70KC Sensor Global Shutter CMOS, Image Mode Color, Optical Size 81.92MM, Resolution 163843, Pixel Size 5μm5μm, Max Line Rate ROI OFF 39.9kHz@8Bit, 31.9kHz@10Bit, ROI ON 68.4kHz@8/10Bit, Bit Depth RGB/BGR@8/10Bit, Dynamic Range ≥62.8 dB, Data Rate 1900 MB/s	6-8 weeks	Request for quote
STR16KCL-51KT4 16K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Mono, Optical Size 81.92MM, Resolution 16384* 4, Pixel Size 5μm * 5μm, Max Line Rate 51.0kHz@8Bit, 40.8kHz@10Bit, Bit Depth 8/10Bit, Dynamic Range ≥64.8 dB, Data Rate 830 MB/s	6-8 weeks	Request for quote
STR16KCXP10-40KC 16K Multi-Line Scan Camera, Sensor Global Shutter CMOS, Image Mode Color, Optical Size 81.92MM, Resolution 163846, Pixel Size 5μm 5μm, Max Line Rate 39.8kHz@8Bit, 31.9kHz@10Bit, Bit Depth RGB/BGR@8/10bit, Dynamic Range ≥64.8 dB, Data Rate 1900 MB/s	6-8 weeks	Request for quote
