256 Multi-Line Scan Camera

Overview Specifications Order Now!

256 Line Scan Camera With 5μm x 5μm Pixel Size

Our 256 line scan camera series features 256 lines back iIluminated CCD and 5μm x 5μm pixel size.Our products have been applied to inspections of flat pane display,semiconductor,printed circuit board and other industrial inspections.

Feature

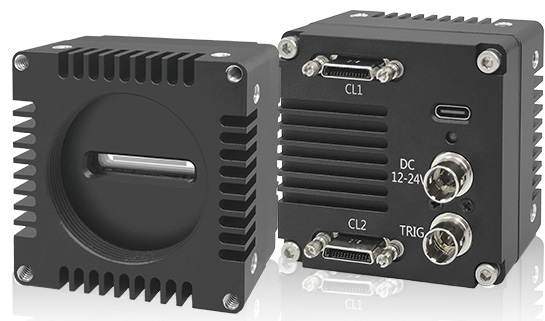

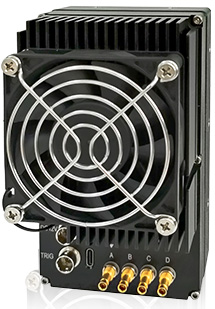

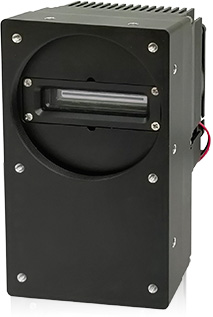

STTH16KCXP12-250KT STTH8KCXP-250KT	STH4KCL-200KT
-Back iIIuminated CCD -ROI/FFC -Analog gain/digital gain) -Realtime temperature monitoring -High sensitivity and low noise -Ofset control(STTH16KCXP12-250KT only) -Electronic refrigeration:20℃ below environment temperature Note: We also provide the unclooing version STH16KCXP12-250KT for STTH16KCXP12-250KT ,please go to the specification area for more information.	-Back iIluminated CCD -FFC/ROI -High sensitivity and low noise -Analog gain/digital gain/offset control -Scanning direction configurable -Support multiple camera link output modes -Real time temperature monitoring -Camera link interface

Application

STTH8KCXP-250KT / STTH16KCXP12-250KT

-Flat panel display inspection

-Semiconductor inspection

-Printed circuit board inspection

-Gene Sequencing

-Digital Pathology

STH4KCL-200KT

-Flat panel display inspection

-Semiconductor inspection

-Film and web inspection

-Gene Sequencing

-Digital Pathology

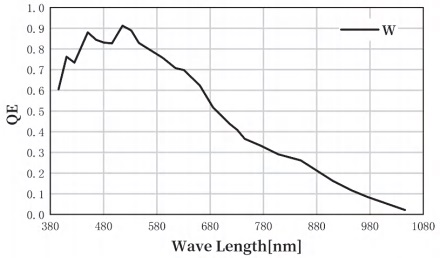

Spectral response

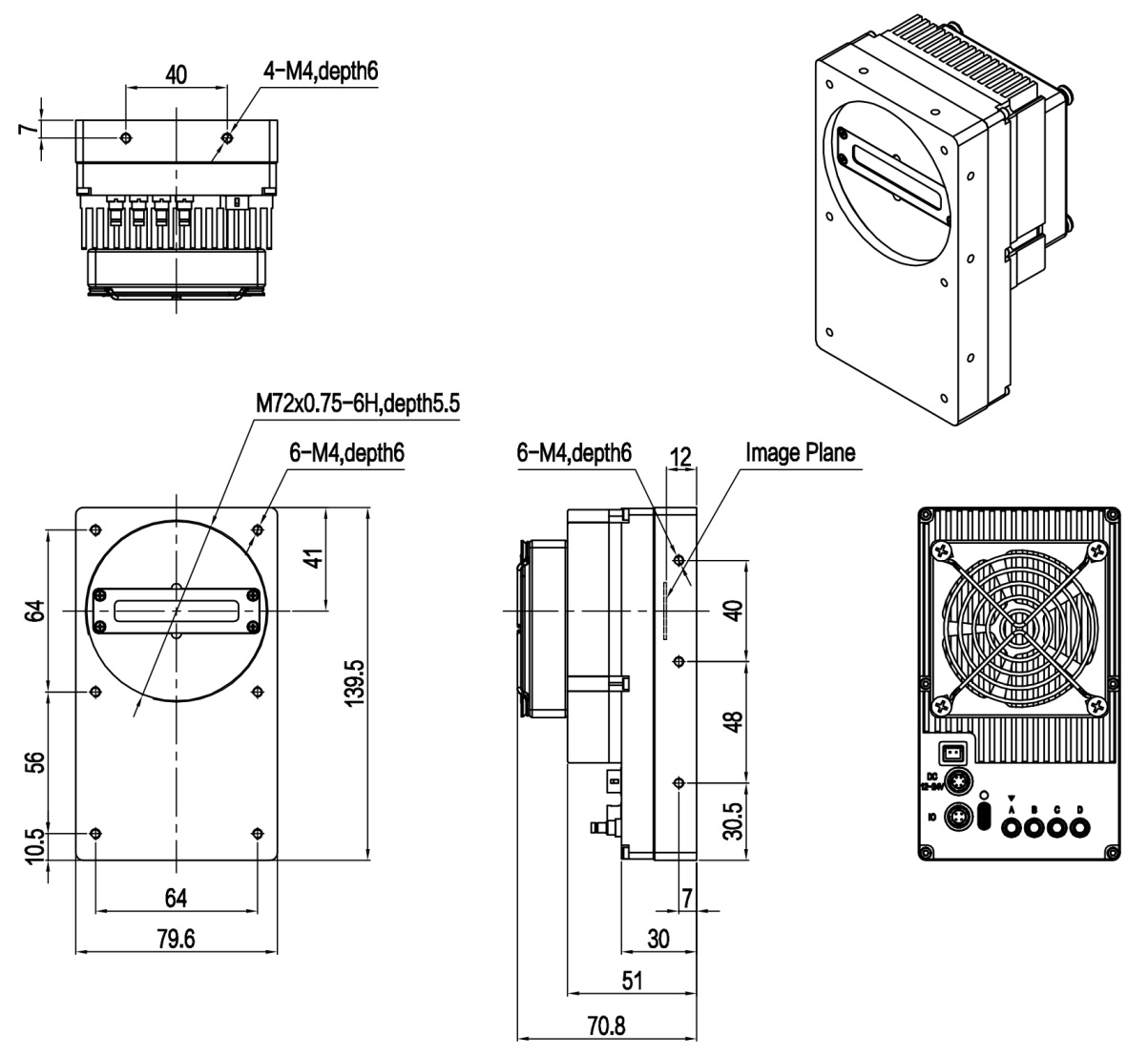

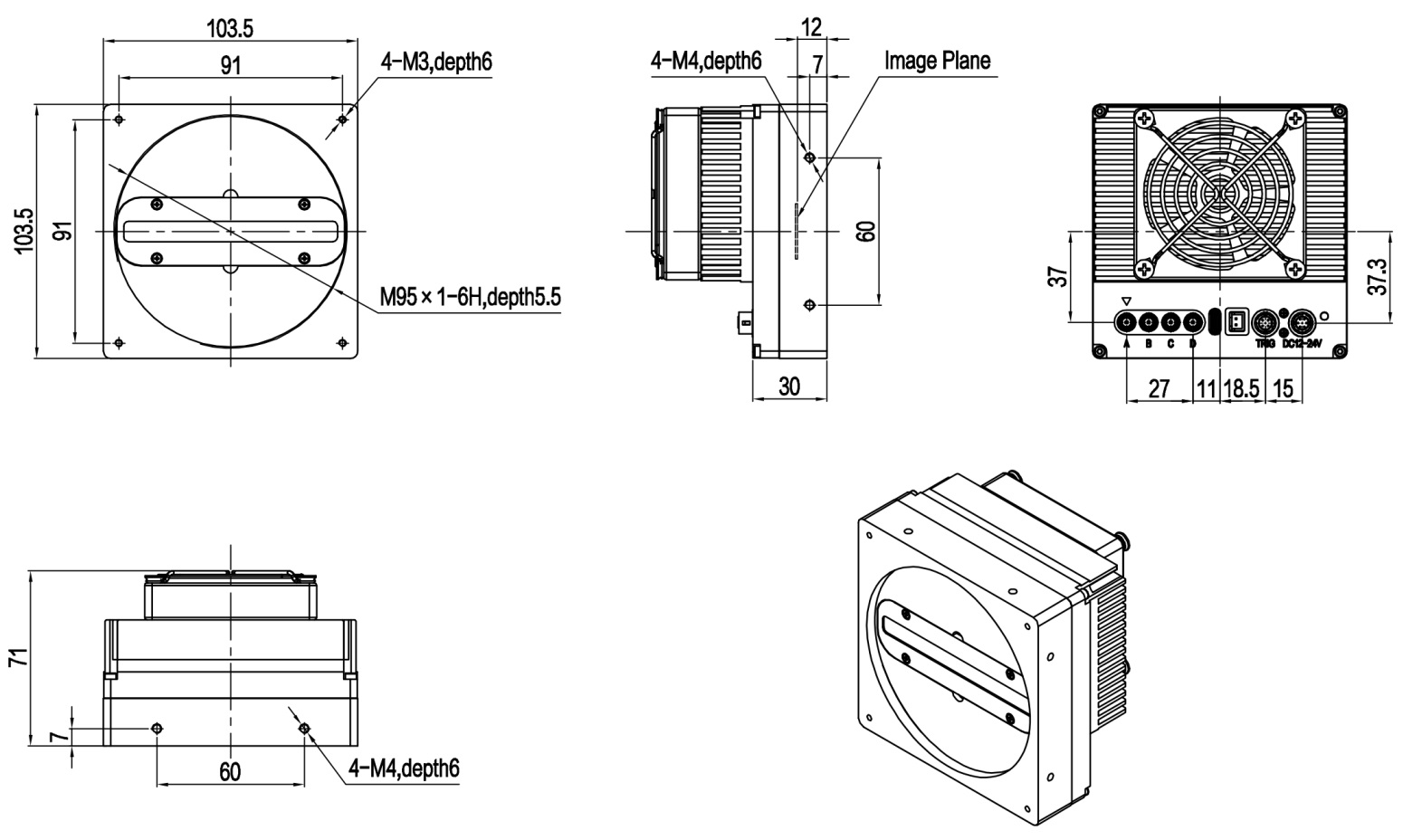

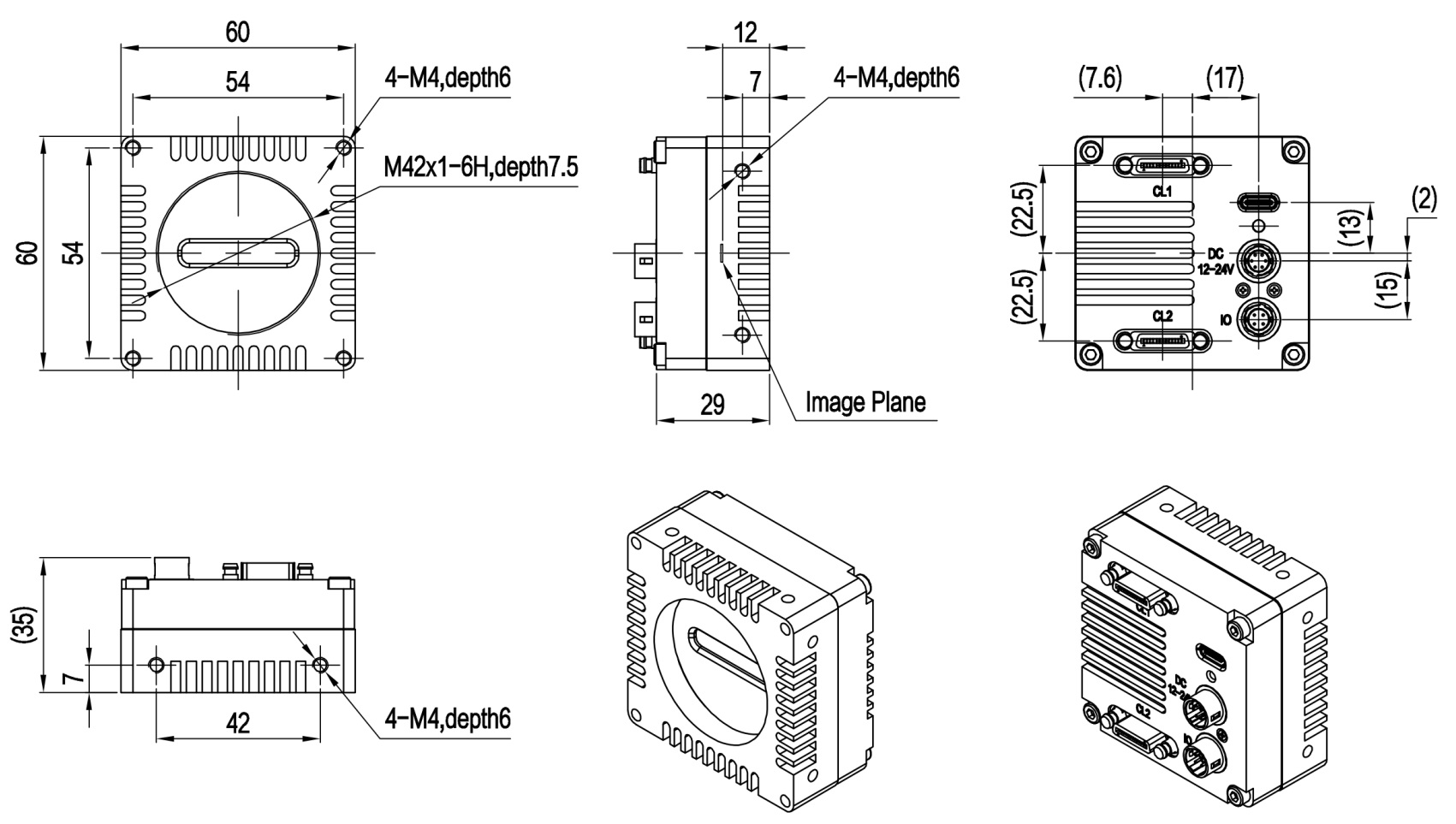

Drawings

STH4KCL-200KT	STTH16KCXP12-250KT

STTH8KCXP-250KT

Product specifications and Brochures

Product Brochure Link:

Model	STH4KCL-200KT	STTH8KCXP-250KT	STTH16KCXP12-250KT	STH16KCXP12-250KT
Sensor	Back illuminated CCD
Image Mode	Mono
Optical Size	20.48 mm	40.96 mm	81.92 mm	81.92 mm
Resolution	4096 * 256	8192* 256	16384 * 256	16384 * 256
Pixel Size	5μm *5μm	5μm *5μm	5μm * 5μm	5μm * 5μm
Max Line Rate	200 kHz	250kHz@8bit， 200kHz@10bit， 182kHz@12bit	250kHz@8bit， 200kHz@10bit， 167kHz@12bit	250kHz@8bit， 200kHz@10bit, 167kHz@12bit
Bit Depth	8/10/12 bit	8/10/12 bit	8/10/12 bit	8/10/12 bit
Dynamic Range	≥66.7 dB	≥66.7 dB	≥61.54 dB	≥61.5 dB
Data Rate	819.2 MB/s	2048 MB/s	4096 MB/s	4096 MB/s
Trigger Mode	Free run/external trigger
Exposure Control	Controlled by line rate
ExposureTime	5μs - 10ms（Step：0.01μs）	4μs-1s(Step:0.01μs)	4μs - 1s（Step：0.01μs）	4μs - 1s（Step：0.01μs）
Analog Gain	1/2/4x	low：1.51-4x，high：1-4x	low：1.51-4x，high：1-4x	1-4x
Digital Gain	0.004-8.000x	0.004-8.000x	0.004-8.000x	0.004-8.000x
Data Interface	Camera Link	CoaXPress	CoaXPress12	CoaXPress12
Lens Interface	M42*1	M72 * 0.75	M95 * 1	M95 * 1
Power Interface	Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V(±10%)2A	DC12-24V(±10%) 3.5A	DC12-24V(±10%) 2A	DC12-24V(±10%) 2A
Power Dissipation	4.6 W	11.0W(TEC Off);27.0W(TEC On)	15.0 W	15.0 W
Cooling Mode	/	Electronic refrigeration(20℃ below,environment temperature)/ fan cooling		/
Dimensions(WHD)(mm)	60.0x60.0x 33.0	79.6x 139.5x70.8	99.0 x 99.0 x 71.0	99.0 x 99.0 x 71.0
Operating Temperature	0-65℃
Storage Temperature	-20-75℃

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Availability	Reference Price (USD)
STH4KCL-200KT Single Line Scan Camera, Sensor Back illuminated CCD, Image Mode Mono, Optical Size 20.48MM, Resolution 4096 * 256, Pixel Size 5μm *5μm, Max Line Rate 200 kHz, Bit Depth 8/10/12 Bit, Dynamic Range ≥66.7 dB, Data Rate 819.2 MB/s	6-8 weeks	Request for quote
STTH8KCXP-250KT 256 Multi-Line Scan Camera, Sensor Back illuminated CCD, Image Mode Mono, Optical Size 40.96MM, Resolution 8192* 256, Pixel Size 5μm *5μm, Max Line Rate 250kHz@8bit, 200kHz@10bit, 182kHz@12bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥66.7 dB, Data Rate 2048 MB/s	6-8 weeks	Request for quote
STTH16KCXP12-250KT 256 Multi-Line Scan Camera, Sensor Back illuminated CCD, Image Mode Mono, Optical Size 81.92MM, Resolution 16384 * 256, Pixel Size 5μm * 5μm, Max Line Rate 250kHz@8bit, 200kHz@10bit., 167kHz@12bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥61.54 dB, Data Rate 4096 MB/s	6-8 weeks	Request for quote
STH16KCXP12-250KT 256 Multi-Line Scan Camera, Sensor Back illuminated CCD, Image Mode Mono, Optical Size 81.92MM, Resolution 16384 * 256, Pixel Size 5μm * 5μm, Max Line Rate 250kHz@8bit, 200kHz@10bit, 167kHz@12bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥61.5 dB, Data Rate 4096 MB/s	6-8 weeks	Request for quote

STH16KCXP12-250KT - Parameter

STTH16KCXP12-250KT - Parameter

STTH8KCXP-250KT - Parameter

STH4KCL-200KT - Parameter

STH16KCXP12-250KT - Download

STTH16KCXP12-250KT - Download

STTH8KCXP-250KT - Download

STH4KCL-200KT - Download
