Industry High Resolution Cooled Camera | SIMTRUM Photonics Store

Products / Imaging /Industrial Machine Vision Camera /Large Format Camera /Industry High Resolution Cooled Camera /
Industry High Resolution Cooled Camera
Resolution8-9K Resolution10-11K Resolution13-14K Resolution 40K Order Now!

Industry High Resolution Cooled Camera With Resolution Between 8-9K

These industry high resolution cooled camera feature resolution between 8-9K and and pixel size up to 3.76μm x 3.76μm .Our products have been applied to high precision machinery measurements,flat panel display inspection,semiconductor inspection, scientific experiment and other industrial inspection.


Feature



820fb7c5c0131daac7f78f7abfaa8ac2_STTS46MGV_5M.jpg8526072792a5a462c557414ce0d68b27_STTS65MU30_5MC.jpge2eb749b803671120e741d5bf72d9e83_STTS61M2CL_13MC.jpg

        STTS46MGV-5M

         STTS65MU30-5M/C

              STTS61M2CL-13M/C

-Rolling shutter CMOS

-High sensitivity and low noise

-Rich exposure control modes(extemal trigger/free-run)

-Defect pixel correction /FFC/ROI

-Analog gain/digital gain/offset control

-Compatible with gige vision1.1 protocol

-Electronic refrigeration(20℃ below

 environment temperature)

-Global shutter CMOS

-High sensitivity and low noise

-Defect pixel correction /FFC

-Analog gain / digital gain / offset control

-Manual /automatic white balance

-Support macOS 10.14.6 or later

-Electronic refrigeration(20℃ below

 environment temperature)

-LUT

-Strobe output

-Rolling shutter CMOS

-Defect pixel correction

-High sensitivity and low noise

-Analog gain/digital gain/offset control

-Real-time temperature monitoring

-Electronic refrigeration(20℃ below

 environment temperature)


Application

-High precision machinery measurements

-Flat panel display inspection

-Semiconductor inspection

-Electronic inspection

-Astronomical observation

-Scientific experiment

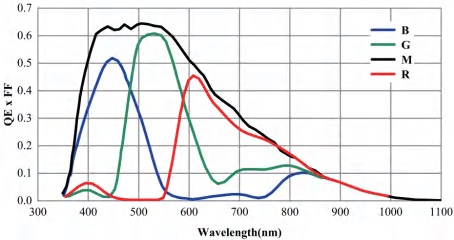

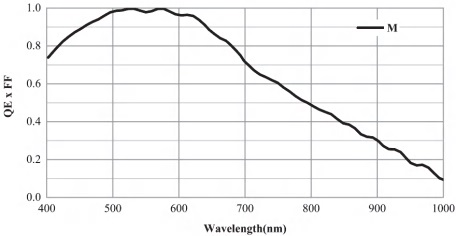

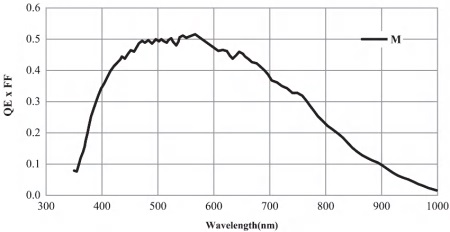

Spectral response





STTS46MGV-5M

 STTS65MU30-5M/C

STTS61M2CL-13M/C







Product specifications and Brochures

Product Brochure Link:

ModelSTTS46MGV-5MSTTS65MU30-5M/CSTTS61M2CL-13M/C
SensorRolling shutter CMOS
Image ModeMonoColor/MonoColor/Mono
Optical Size22.91 mm37.36 mm43.24 mm
Resolution8192*55569344 * 70009568 *6380
Pixel Size2.315μm*2.315μm3.2μm * 3.2μm3.76μm * 3.76μm
Max Frame Rate2.3fps(5fps with SAccel™)5 fps13.06 fps
Bit Depth8 bit8/12 bit8/10/12 bit
Dynamic Range≥53.5 dB≥66 dB≥75.8 dB
Data Rate110 MB/s350 MB/s830 MB/s
Trigger ModeFree run/external trigger
Trigger SourceExternal IOSoftware trigger/external IOCamera link CC/external IO
Exposure ControlProgram /pulse Width
Exposure Time1406μs-10s22μs - 10s（Step：1μs）120μs-60s
(Step:4tap/60μs,8tap/30s,10tap/23.75μs)
Analog Gain0-12dB0-12dB0-18dB
Digital Gain0.01-8.00x0.01-8.00x0.01-8.00x
Lens InterfaceF mount/EF mountM58 / F mountF mount
Data InterfaceGigE VisionUSB3.0Camera Link
Power InterfaceHirose HR10A-7R-6PB(Male)
Power SupplyDC12V±10% 3ADC12V±10% 5ADC12V±10% 5A
Power ConsumptionTEC on:27.1W;TEC off:10.9W50.0 W50.0 W
Cooling ModeElectronic refrigeration(20℃ below environment temperature)/fan refrigeration
Dimensions
(W*H*D)(mm)		111x111x90.5111x111 x124111x111x103
Operating Temperature0-50℃
Storage Temperature-20-75℃




Drawings





STTS46MGV-5M

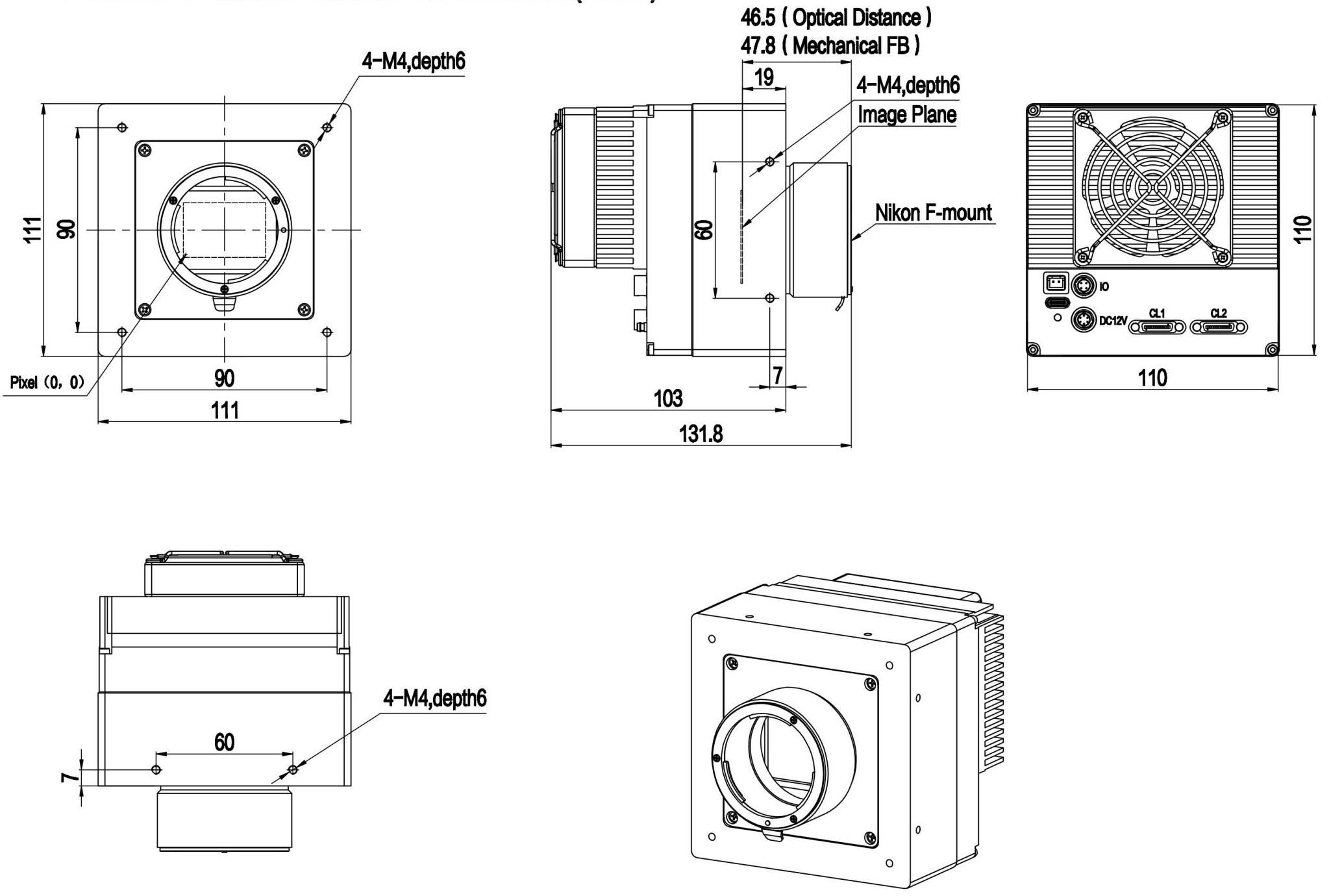

STTS61M2CL-13M/C

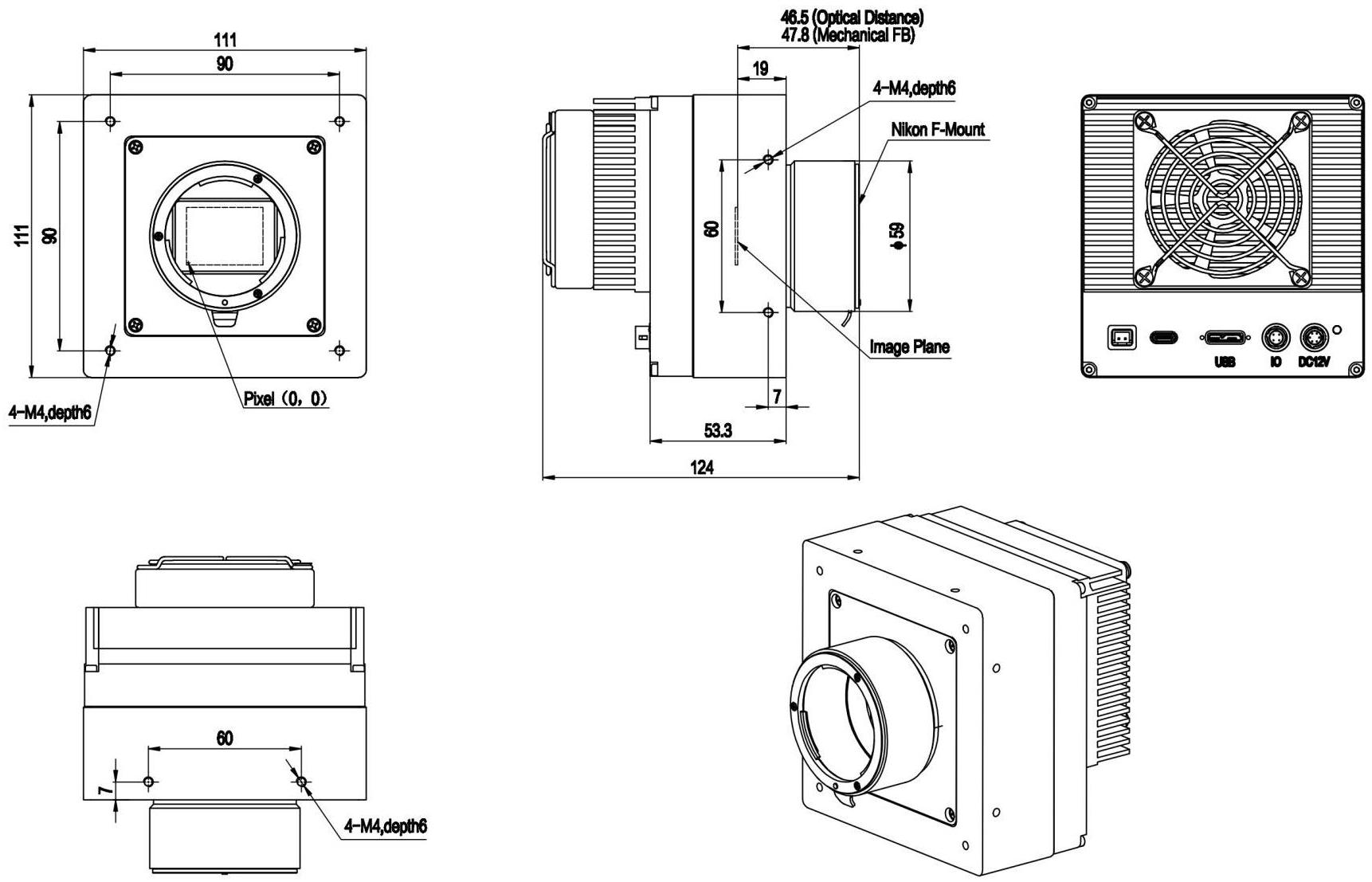

STTS65MU30-5M/C





Industry High Resolution Cooled Camera With Resolution Between 10-11K

These industry high resolution cooled cameras feature resolution between 10-11K  and pixel size up to 3.76pm x 3.76μm.Our products have been applied to high precision machinery measurements,flat panel display inspection,semiconductor inspection, scientific experiment and other industrial inspection.


Feature

82e2bc9ac5c67268ff7a236cf6ffa71a_STTS71MCL_4M.jpgd56fe70ee8e8c3785d49838a88a59157_STTS101M2CL_8MC01.jpg16616d38a7042ca65c1a643caa71d20c_STTS101M2CXP_8MC.jpg
           STTS71MCL-4M         STTS101M2CL-8M/C

          STTS101M2CXP-8M/C

-Strobe output

-LUT

-Gain/offset control

-Rolling shutter CMOS

-Dark image correcton

-High sensitivity and low noise

-Electronic refrigeration(25℃ below

 environment temperature)

-LUT

-Camera link interface

-Gain/offset control

-Rolling shutter CMOS

-Dark image correction

-High sensitivity and low noise

-Electronic refrigeration(20℃ below

  environment temperature)

-Rolling shutter CMOS

-ROI/auto white balance

-High sensitivity and low noise

-Rich exposure control modes

- Defect pixel correction/FFC

-Analog gain/digital gain/offset control

-Electronic refrigeration(20℃ below

 environment temperature)





Application


-High precision machinery measurements

-Flat panel display inspection

-Semiconductor inspection

-Electronic inspection

-Astronomical observation

-Scientific experiment

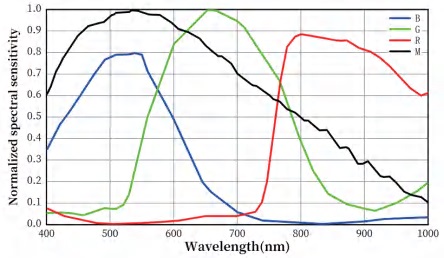

Spectral response




       STTS71MCL-4M

         STTS101M2CL-8M/C /  STTS101M2CXP-8M/C



Product specifications and Brochures

Product Brochure Link:

ModelSTTS71MCL-4MSTTS101M2CXP-8M/CSTTS101M2CL-8M/C
SensorRolling shutter CMOS
Image ModeMonoColor/MonoColor/Mono
Optical Size38.01 mm54.78 mm54.78 mm
Resolution10000*709611648 *874211656*8742
Pixel Size3.1μm*3.1μm3.76μm* 3.76μm3.76μm* 3.76μm
Max Frame Rate4.2 fps8.5fps@8/10bit,
7.83fps@12bit		7.86 fps
Bit Depth8/10/12 bit8/10/12 bit8/10/12 bit
Dynamic Range≥57.4 dB≥76 dB≥76 dB
Data Rate447 MB/s (8bit)1190 MB/s800 MB/s
Trigger ModeFree run/external trigger
Trigger SourceCamera link CC/external IOCXP trigger/external IOCamera link CC/external IO
Exposure ControlProgram /pulse Width
Exposure Time95μs-8.34s(Step:lμs)8/10bit:54ps-60s(Step:27us),12bit:29μs-6s(Step:29μs)73μs-60s(Step:4tap:72us,8tap:36μs,10tap:29μs)
Analog Gain0-12dB0-18dB0-18dB
Digital Gain0.01-8.00x0.01-8.00x0.01-8.00x
Lens InterfaceF mountM72 * 0.75M72*0.75
Data InterfaceCamera LinkCoaXPressCamera Link
Power InterfaceHirose HR10A-7R-6PB(Male)
Power SupplyDC12V±10% 4ADC12V±10% 5ADC12V±10% 5A
Power Consumption33.0 W50.0 W50.0 W
Cooling ModeElectronic refrigeration(STTS71MCL-4M :25℃  below environment temperature,Others:20℃ below environment temperature)/fan refrigeration
Dimensions(W*H*D)(mm)105×105x81(without adapter)111x111x103.2111x111x104.9
Operating Temperature0-50℃
Storage Temperature-20-75℃





Drawings

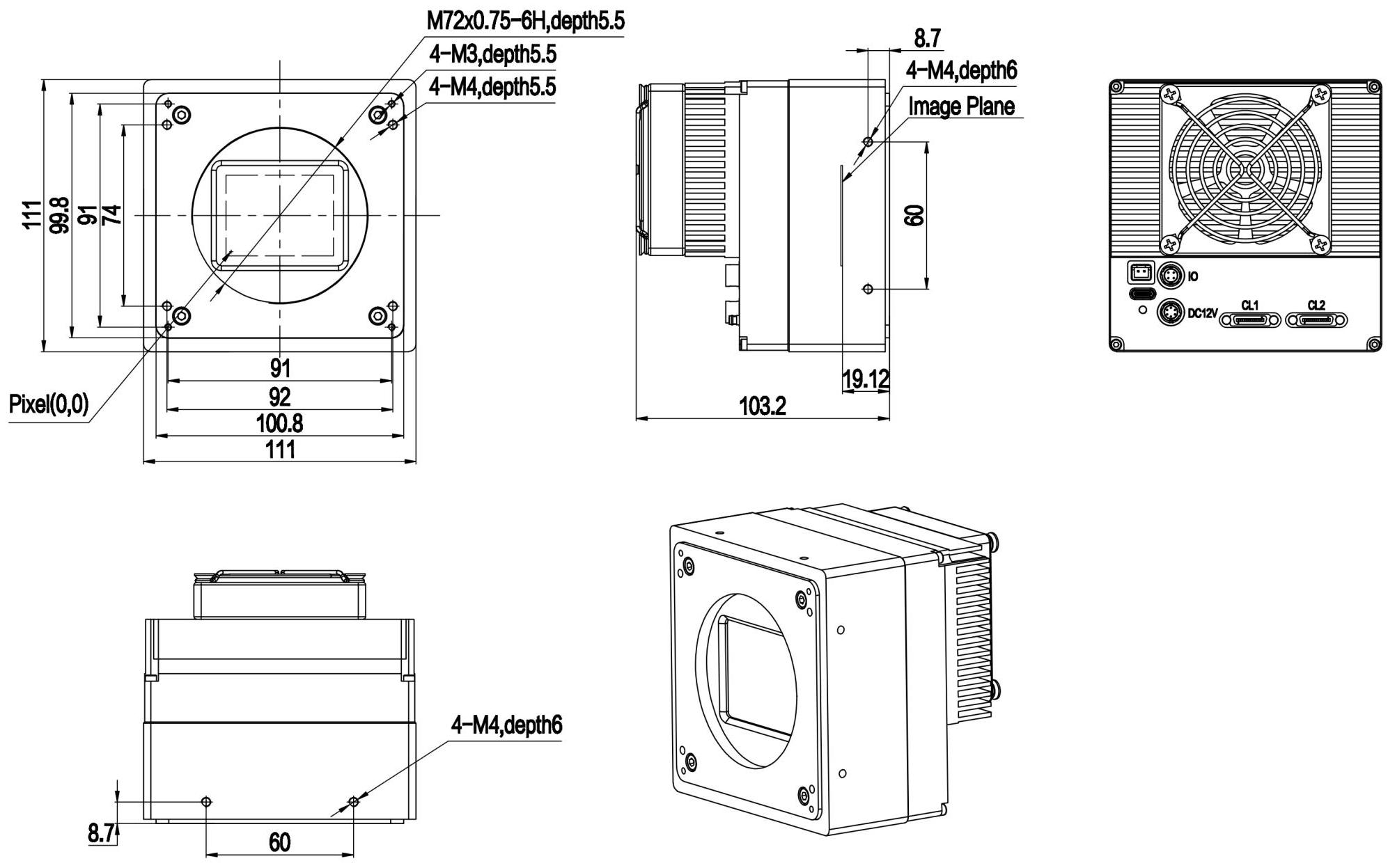

STTS101M2CL-8M/C

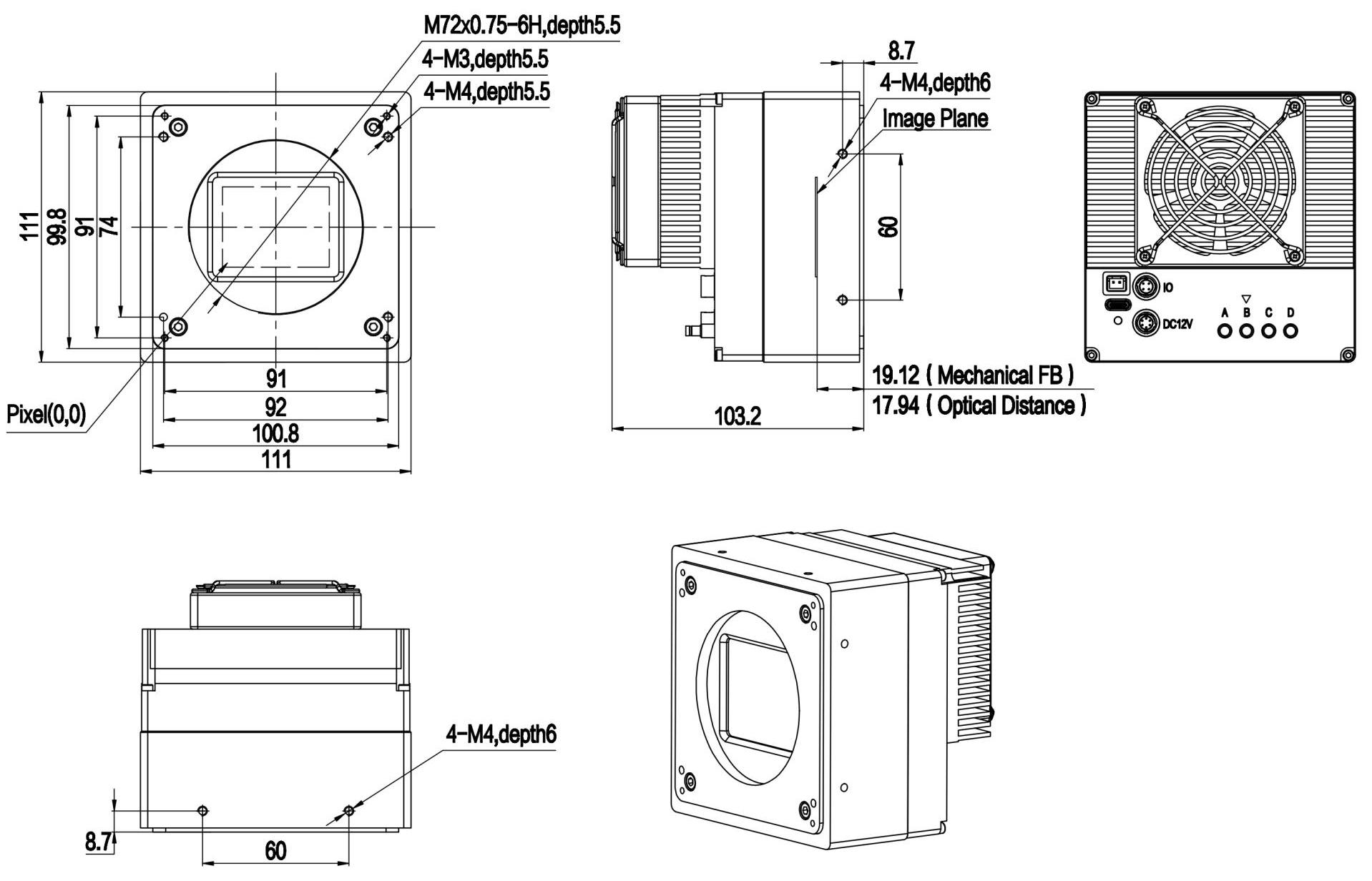

STTS101M2CXP-8M/C




Industry High Resolution Cooled Camera With Resolution Between 13-14K

These industry high resolution cooled cameras feature resolution between 13-14K  and pixel size up to 3.76um x 3.76um.Our products have been applied to high precision machinery measurements,flat panel display inspection,semiconductor inspection, scientific experiment and other industrial inspection.


Feature



cb2a36a08671891c4bbe2a1cec184b2e_STTS127MSCXP10_22MC.jpg68c5fba513397b4348f293d48b3753aa_STTS151M2CXP_6MC.jpg7029655c50846f229426fe4b77c47330_STTS151M2CL_5MC.jpg
      STTS127MSCXP10-22M/C       STTS151M2CXP-6M/C         STTS151M2CL-5M/C

-Rolling shutter CMOS

-ROI/auto white balance

-High sensitivity and low noise

-Defect pixel correction/FFC

-Analog gain/digital gain/offset control

-Compatible with CoaXPress 2.0

-Electronic refrigeration(:12℃ below

 environment temperature)

-Rolling shutter CMOS

-ROI/auto white balance

-Defect pixel correction/FFC

-Rich exposure control modes

-High sensitivity and low noise

-Compatible coaxpress .1.1 protocol

-Electronic refrigeration(20℃ below

 environment temperature)

-Analog gain/digital gain/offset control

-LUT/FFC

-Rolling shutter CMOS

-Strobe signal output

-Gain/offset control

-Temperature monitor

-Dark image correction

-Electronic refrigeration(20℃ below

 environment temperature)





Application

-High precision machinery measurements

-Flat panel display inspection

-Semiconductor inspection

-Electronic inspection

-Astronomical observation

-Scientific experiment

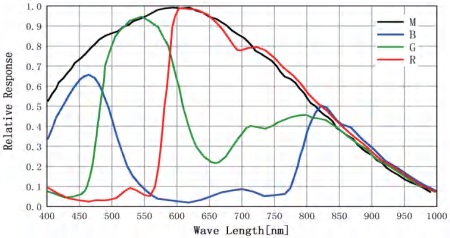

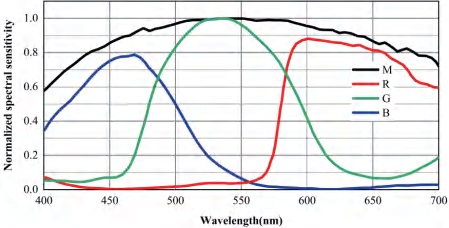

Spectral response




STTS127MSCXP10-22M/C

STTS151M2CXP-6M/C  /  STTS151M2CL-5M/C


Product specifications and Brochures

Product Brochure Link:

ModelSTTS127MSCXP10-22M/CSTTS151M2CL-5M/CSTTS151M2CXP-6M/C
SensorRolling shutter CMOS
Image ModeColor/MonoColor/MonoColor/Mono
Optical Size56.85 mm66.69 mm66.69 mm
Resolution13440 * 953614192*106408bit:14192*10640,10/12bit:14144*10640
Pixel Size3.45μm*3.45μm3.76μm*3.76μm3.76μm * 3.76μm
Max Frame Rate22.14fps@8bit,19.82fps@10bit,12.98fps@12bit5.28 fps6.02fps@8/10bit,5.20fps@12bit
Bit Depth8/10/12 bit8/10/12 bit8/10/12 bit
Dynamic Range≥71 dB≥78 dB≥76 dB
Data Rate2837 MB/s(8 bit)797 MB/s1170 MB/s
Trigger ModeFree run/external trigger
Trigger SourceCXP trigger/  external IOCamera link CC/external IOCXP trigger/external IO
Exposure ControlProgram /pulse Width
Exposure Time8bit:225.163µs-60s(Step：4.453µs),
10bit：250.643µs-60s (Step：4.973µs),
12bit：350.150µs-60s（Step：7.627µs）		88μs-60s(Step:4tap/88μs,8tap/44μs,10tap/36μs)8/10bit:93μs-300s(Step:31μs);12bit:72μs-300s(Step:36μs)
Analog Gain0-36dB0-18dB0-18dB
Digital Gain0.004-8.000x0.01-8.00x0.01-8.00x
Lens InterfaceM72* 0.75M72 * 0.75M72* 0.75
Data InterfaceCoaXPress10Camera LinkCoaXPress
Power InterfaceHirose HR10A-7R-6PB(Male)
Power SupplyDC12V±10% 5ADC12V±10% 5ADC12V±10% 5A
Power ConsumptionTEC on:48.0W;TEC off:23.0W50.0 W50.0 W
Cooling ModeElectronic refrigeration(STTS127MSCXP10-22M/C:12℃  below environment temperature,Others:20℃ below environment temperature)/fan refrigeration
Dimensions(W*H*D)(mm)111x111x91.6111x111x103.2111x111x103.2
Operating Temperature0-50℃
Storage Temperature-20-75℃






Drawings

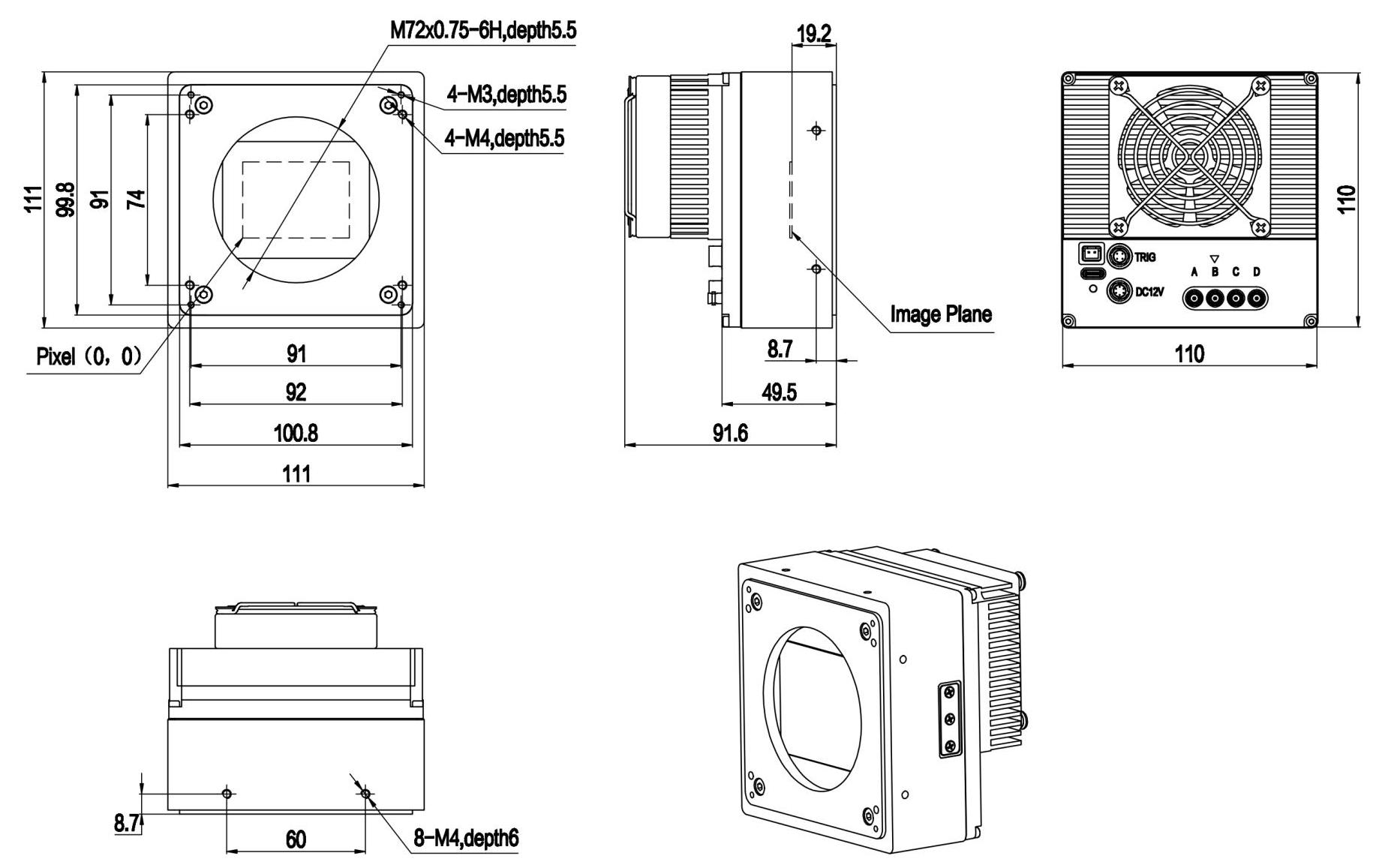

STTS127MSCXP10-22M/C

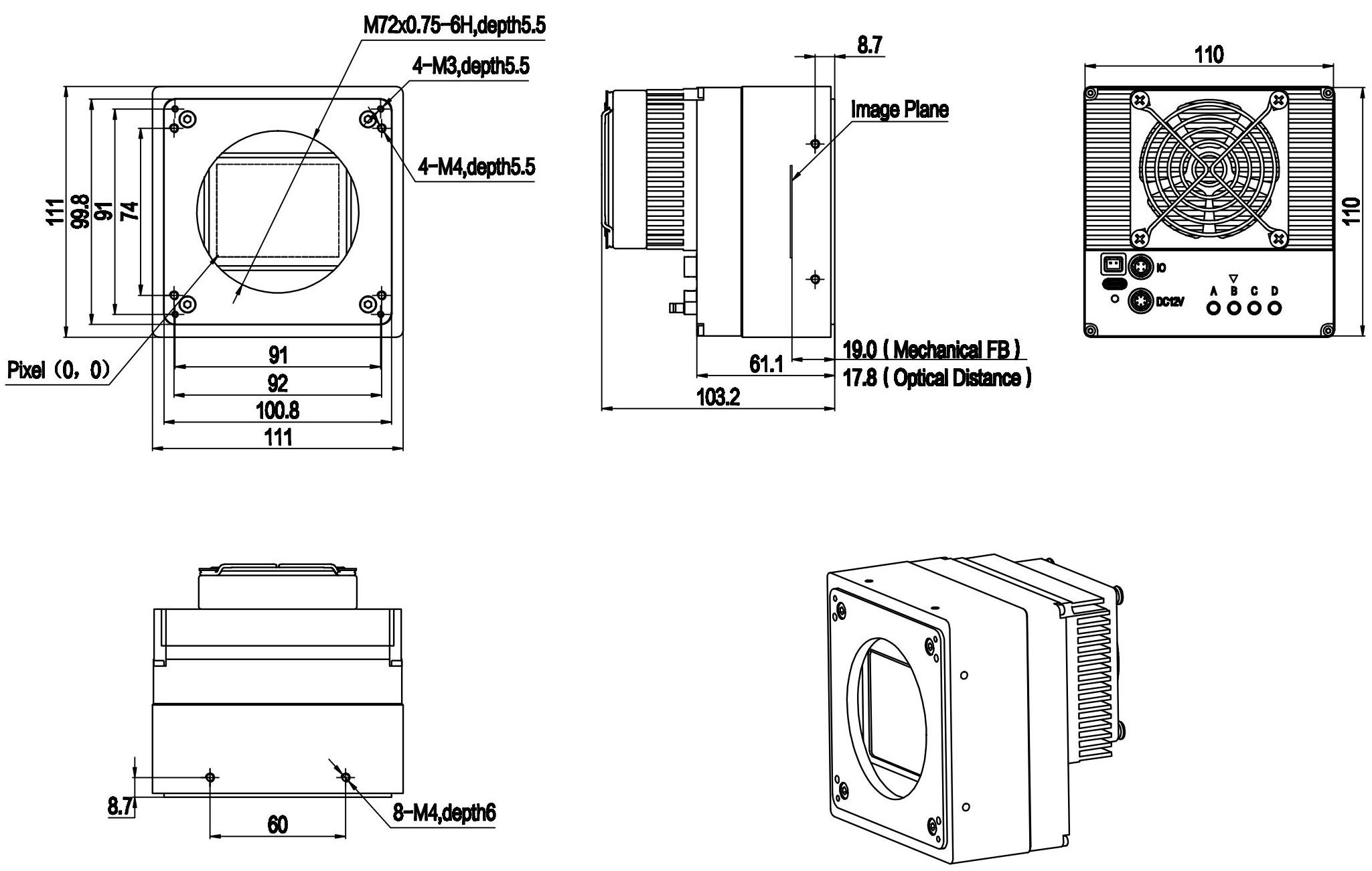

STTS151M2CXP-6M/C

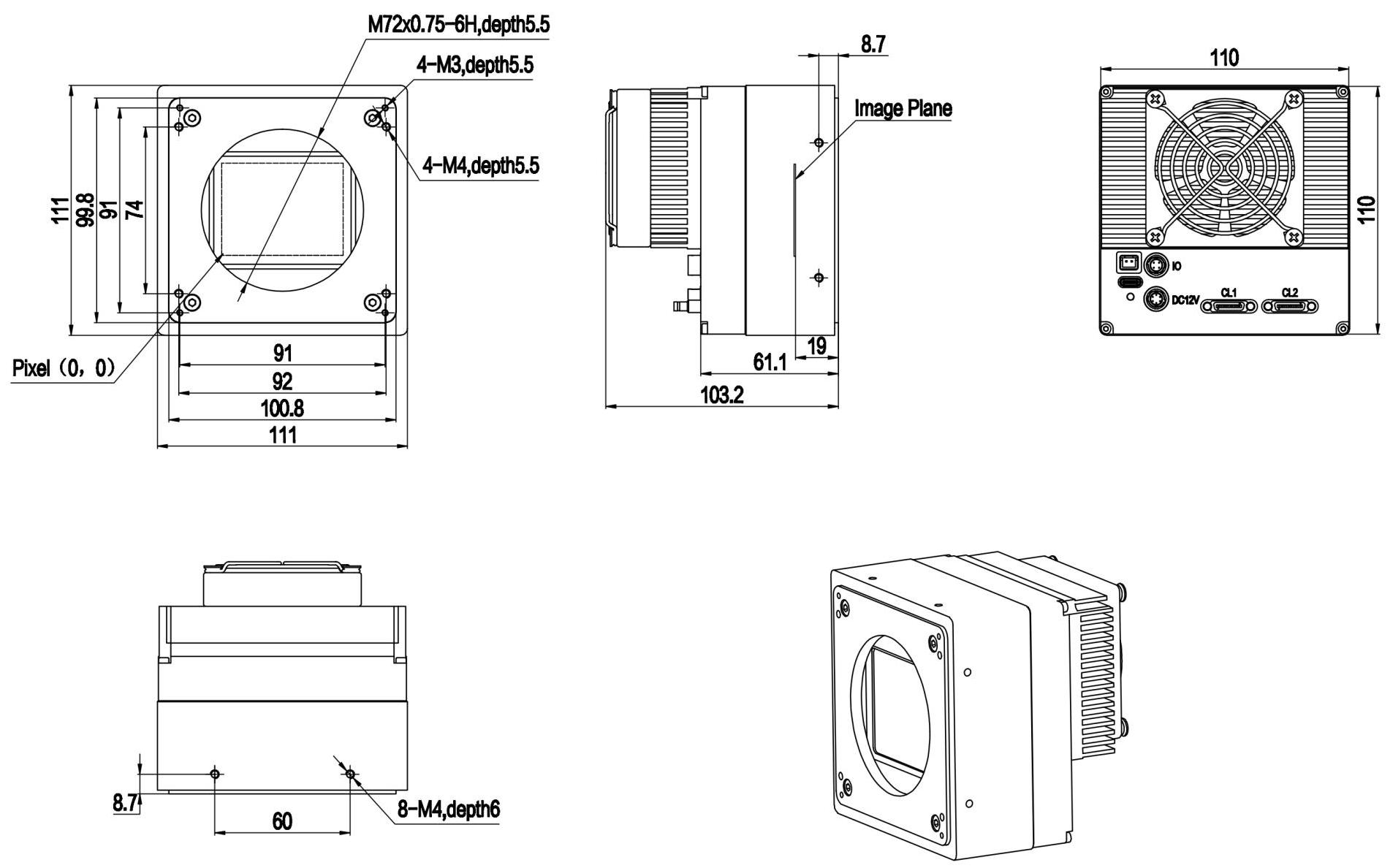

STTS151M2CL-5M/C




Industry High Resolution Cooled Camera With 40K Resolution

This industry high resolution cooled camera features 40K resolution and pixel size 3.76μm x 3.76μm.Our products have been applied to high precision machinery measurements,flat panel display inspection,semiconductor inspection, scientific experiment and other industrial inspection.


Feature
Application
-Rolling shutter CMOS

-ROI/auto white balance

-Defect pixel correction/FFC

-High sensitivity and low noise

-Compatible coaxpress .1.1 protocol

-Electronic refrigeration(20℃ below

 environment temperature)

-Analog gain/digital gain/offset control

 -Pixel shift available: distance and direct

  setting




        STTS604MCXP-6M/C

-High precision machinery measurements

-Flat panel display inspection

-Semiconductor inspection

-Electronic inspection

-Astronomical observation

-Scientific experiment




Spectral response





Product specifications and Brochures

Product Brochure Link:

ModelSTTS604MCXP-6M/CExposure ControlProgram /pulse Width
SensorRolling shutter CMOSExposure Time

8/10bit:93μs-60s(Step:31μs);

12bit:72μs-60s(Step:36μs)

Image ModeColor/MonoAnalog Gain0-18dB
Super Resolution Mode4x/9x/real colorDigital Gain0.01-8.00x
Optical Size66.69 mmLens InterfaceM72* 0.75
Resolution42576 * 31920
(1359M,maximum resolution)		Data InterfaceCoaXPress
Pixel Size3.76μm*3.76μmPower InterfaceHirose HR10A-7R-6PB(Male)
Max Frame Rate1.5fps@4x resolutionPower SupplyDC12V±10% 5A
Bit Depth8/10/12 bitPower ConsumptionTEC on:50.0W;TEC off:17.0W
Dynamic Range≥76 dBCooling ModeElectronic refrigeration(:20℃ below environment temperature)/fan refrigeration
Data Rate1120 MB/sDimensions(W*H*D)(mm)111x111x127.3
Trigger ModeFree run/external triggerOperating Temperature0-50℃
Trigger SourceCXP trigger/external IOStorage Temperature-20-75℃

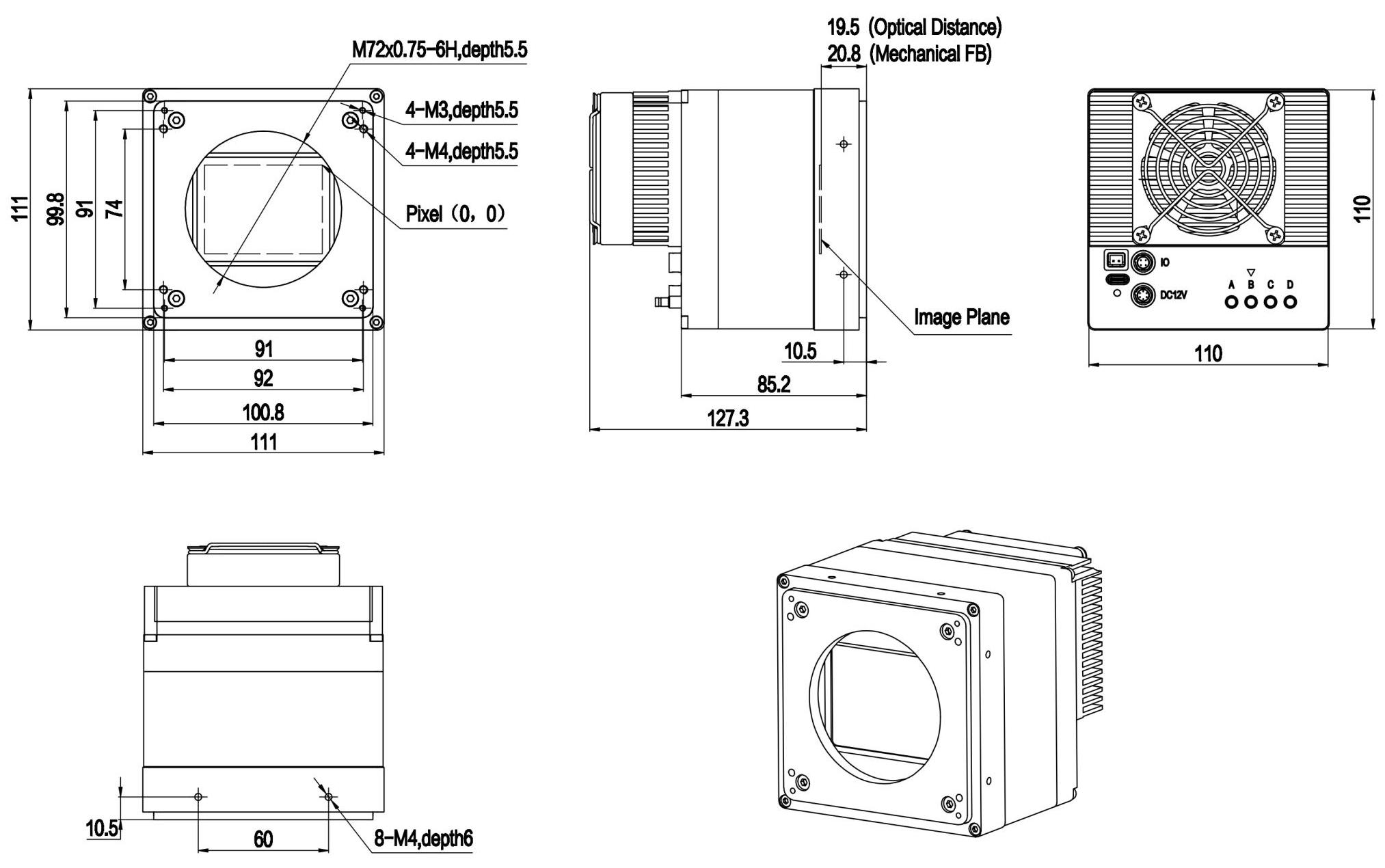

Drawings






We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Resolution


Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
STTS46MGV-5M
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Mono, Optical Size 22.91MM, Resolution 8192*5556, Pixel Size 2.315*2.315μm, Max Frame Rate 2.3fps(5fps with SAccel™), Bit Depth 8 Bit, Dynamic Range ≥53.5 dB, Data Rate 110 MB/s 		6-8 weeks Request for quote
STTS65MU30-5M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 37.36 MM, Resolution 9344 * 7000, Pixel Size 3.2 * 3.2μm, Max Frame Rate 5fps, Bit Depth 8/12 Bit, Dynamic Range ≥66 dB, Data Rate 350 MB/s 		6-8 weeks Request for quote
STTS61M2CL-13M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 43.24MM, Resolution 9568 *6380, Pixel Size 3.76 * 3.76μm, Max Frame Rate 13.06fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥75.8 dB, Data Rate 830 MB/s 		6-8 weeks Request for quote
STTS71MCL-4M
Industry High Resolution Cooled Camera，Sensor Rolling Shutter CMOS, Image Mode Mono, Optical Size 38.01MM, Resolution 10000*7096, Pixel Size 3.1*3.1μm, Max Frame Rate 4.2fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥57.4 dB, Data Rate 447 MB/s (8Bit) 		6-8 weeks Request for quote
STTS101M2CXP-8M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 54.78MM, Resolution 11648 *8742, Pixel Size 3.76 * 3.76μm, Max Frame Rate 8.5fps@8/10Bit, 7.83fps@12Bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥76 dB, Data Rate, 1190 MB/s 		6-8 weeks Request for quote
STTS101M2CL-8M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 54.78MM, Resolution 11656*8742, Pixel Size 3.76 *3.76um, Max Frame Rate 7.86 fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥76 dB, Data Rate 800 MB/s 		6-8 weeks Request for quote
STTS127MSCXP10-22M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 56.85 MM, Resolution 13440 * 9536, Pixel Size 3.45 *3.45μm, Max Frame Rate 22.14fps@8Bit, 19.82fps@10Bit, 12.98fps@12Bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥71dB, Data Rate 2837 MB/s(8Bit) 		6-8 weeks Request for quote
STTS151M2CL-5M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 66.69MM, Resolution 14192*10640, Pixel Size 3.76 *3.76um, Max Frame Rate 5.28 fps, Bit Depth 8/10/12 Bit, Dynamic Range ≥78 dB, Data Rate 797 MB/s 		6-8 weeks Request for quote
STTS151M2CXP-6M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Optical Size 66.69MM, Resolution 8bit 14192*10640, 10/12Bit 14144*10640, Pixel Size 3.7 * 3.76μm, Max Frame Rate 6.02fps@8/10Bit, 5.20fps@12Bit, Bit Depth 8/10/12 Bit, Dynamic Range ≥76 dB, Data Rate 1170 MB/s 		6-8 weeks Request for quote
STTS604MCXP-6M/C
Industry High Resolution Cooled Camera, Sensor Rolling Shutter CMOS, Image Mode Color/Mono, Super Resolution Mode 4x/9x/real color, Optical Size 66.69MM, Resolution 42576 * 31920(1359M,Maximum Resolution), Pixel Size 3.76 *3.76μm, Max Frame Rate 1.5fps@4x Resolution, Bit Depth 8/10/12 Bit, Dynamic Range ≥76 dB, Data Rate 1120 MB/s 		6-8 weeks Request for quote

STTS604MCXP-6M/C - Parameter

Resolution
40K

STTS151M2CXP-6M/C - Parameter

Resolution
13-14K

STTS151M2CL-5M/C - Parameter

Resolution
13-14K

STTS127MSCXP10-22M/C - Parameter

Resolution
13-14K

STTS101M2CL-8M/C - Parameter

Resolution
10-11K

STTS101M2CXP-8M/C - Parameter

Resolution
10-11K

STTS71MCL-4M - Parameter

Resolution
10-11K

STTS61M2CL-13M/C - Parameter

Resolution
8-9K

STTS65MU30-5M/C - Parameter

Resolution
8-9K

STTS46MGV-5M - Parameter

Resolution
8-9K

STTS604MCXP-6M/C - Download

STTS151M2CXP-6M/C - Download

STTS151M2CL-5M/C - Download

STTS127MSCXP10-22M/C - Download

STTS101M2CL-8M/C - Download

STTS101M2CXP-8M/C - Download

STTS71MCL-4M - Download

STTS61M2CL-13M/C - Download

STTS65MU30-5M/C - Download

STTS46MGV-5M - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
