Products / Imaging /Industrial Machine Vision Camera /Large Format Camera /Standard Industry Camera /

Standard Industry Camera

Resolution1-2K Resolution4-5K Order Now!

Standard Industry Camera With Resolution Between 1-2K

These standard industry cameras feature resolution between 1-2K and pixel size up to 5.86μm x 5.86μm.Our products have been applied to semiconductor inspection,food and medicine inspection and factory automatic inspection.

Feature		Application
-Global shutter CMOS -High sensitivity and low noise -ROI/binning/LUT/automatic white balance -Analog gain/digital gain/offset control -Defect pixel correction/FFC -Scanning direction configurable -Temperature monitor -GigE Vision interface ,support long-distance transmission -Support GigEVision2.0 and GenICam standard	STS1M5SGV-107M/C / STS3M2SGV-56M/C STS5MSGV-36M/C / STS2M3GV-42M/C	-Semiconductor inspection -Food and medicine inspection -Factory automatic inspection

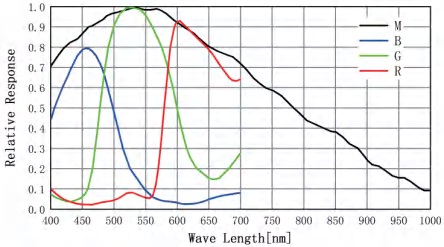

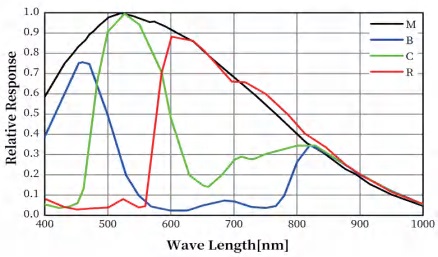

Spectral response

STS1M5SGV-107M/C / STS3M2SGV-56M/C / STS5MSGV-36M/C

STS2M3GV-42M/C

Product specifications and Brochures

Product Brochure Link:

Model	STS1M5SGV-107M/C	STS2M3GV-42M/C	STS3M2SGV-56M/C	STS5MSGV-36MC
Sensor	Global shutter CMOS
Image Mode	Color/Mono
Optical Size	6.21 mm	13.40 mm	8.83 mm	11.01 mm
Resolution	1440 * 1080	1920* 1200	2048*1536	2448 * 2048
Pixel Size	3.45μm *3.45μm	5.86μm*5.86μm	3.45μm*3.45μm	3.45μm*3.45μm
Max Frame Rate	79fps(107fps with SAccelTM)	42 fps	39fps(56fps with SAccelTM)	25fps(36fps with SAccelTM)
Pixel Format	Monochrome camera: Mono8/10/10p/12/12p, Color camera: Bayer8/10/10p/12/12p/RGB8/YUV422_8	Monochrome camera: Mono8/10/10p Color camera: Bayer8/10/10p/RGB8/YUV422_8	Monochrome camera :Mono8/10/10p/12/12p Color camera: Bayer8/10/10p/12/12p/RGB8/YUV422_8	Monochrome camera: Mono8/1010p/12/12p, Color camera: Bayer8/10/10p/12/12p/RGB8/YUV422_8
Dynamic Range	≥71 dB	≥66.7 dB	≥71 dB	≥71 dB
Data Rate	123 MB/s	123 MB/s	123 MB/s	123 MB/s
Trigger Mode	Free run/externa trigger
Trigger Source	Software trigger/external IO
Exposure Control	Program/pulse width
ExposureTime	lμs-10s(Step:lμs)	lμs-10s(Step:lμs)	lμs-10s(Step:lμs)	lμs-10s(Step:lμs)
Analog Gain	0-24dB	0-24dB	0-24dB	0-24dB
Digital Gain	0.004-8.000x	0.004-8.000x	0.004-8.000x	0.004-8.000x
Lens Interface	C Mount	C Mount	C Mount	C Mount
Data Interface	GigE Vision	GigE Vision	GigE Vision	GigE Vision
Power Interface	Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V(±10%)1A
Power Consumption	3.0 W	3.0 W	3.0 W	3.2 W
Dimensions(WHD)(mm)	29.0x29.0x43.59(Without adapter)
Operating Temperature	0-65℃
Storage Temperature	-20-75℃

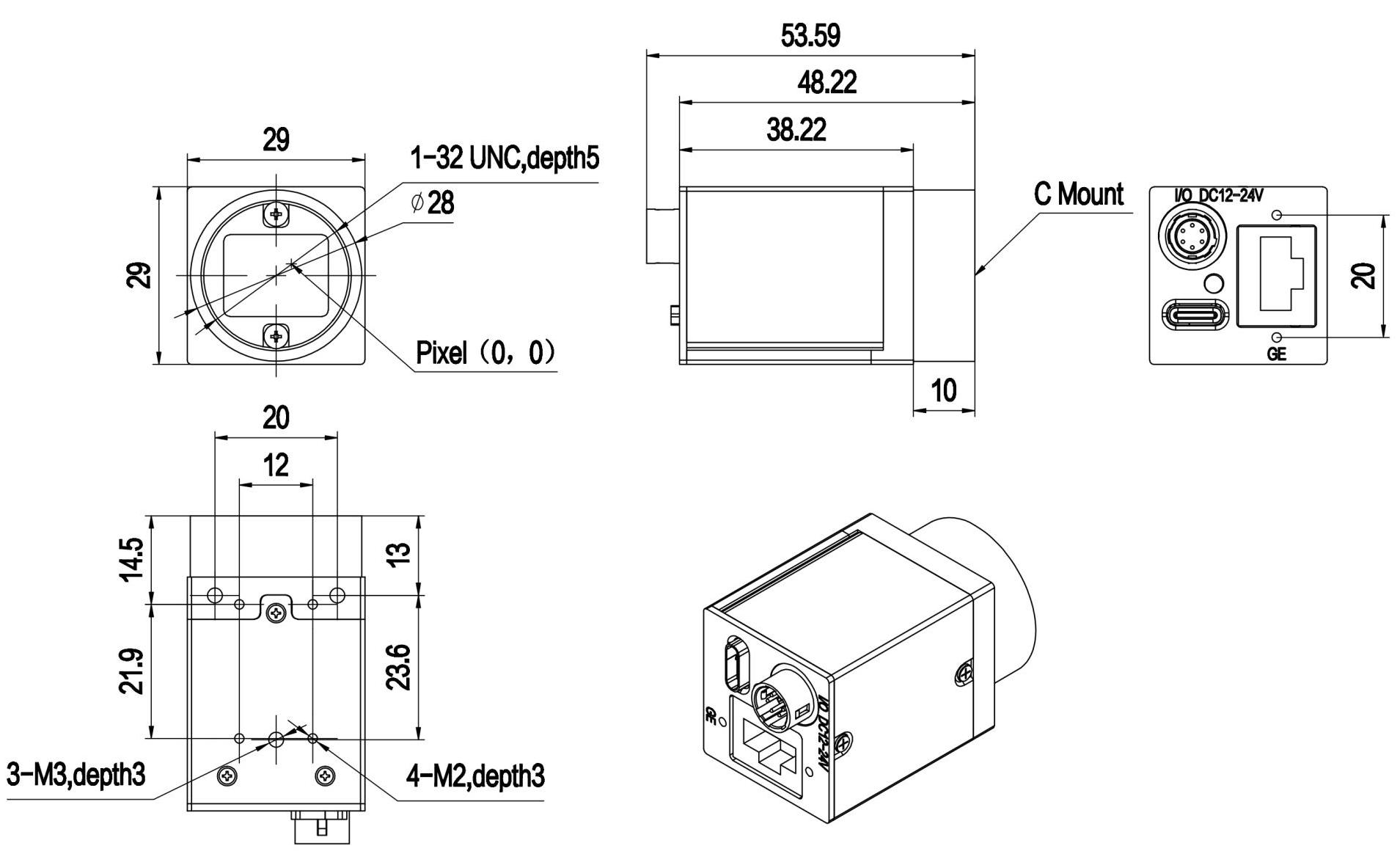

Drawings

Standard Industry Camera With Resolution between 4-5K

These standard industry cameras features resolution between 4-5K and pixel size up to 3.45μm x 3.45μm.Our products have been applied to semiconductor inspection,food and medicine inspection and factory automatic inspection.

Feature

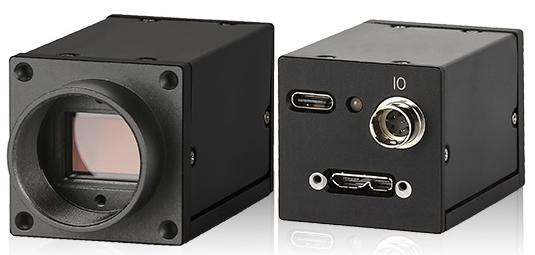

STS8M9SGV-21M/C / STS12MSGV-15M/C / STS20MSGV-9M/C	STS12MSU30-23M/C
-Global shutter CMOS -High sensitivity and low noise -ROI/binning/LUT/automatic white balance -Analog gain/digital gain/offset control -Defect pixel correction/FFC -Scanning direction configurable -Temperature monitor -GigE Vision interface ,support long-distance transmission -Support GigEVision2.0 and GenICam standard	-Global shutter CMOS -High sensitivity and low noise -Auto defect pixel correction/FFC -Analog gain/digital gain/offset control -Auto white balance -Temperature monitor -Support MacOS 10.9 or later

Application

-Semiconductor inspection

-Food and medicine inspection

-Factory automatic inspection

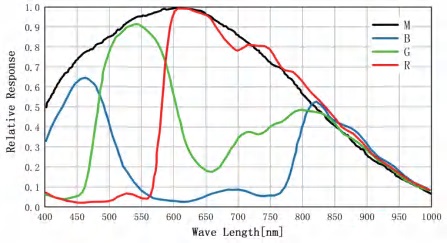

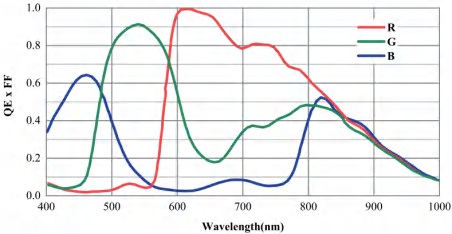

Spectral response

STS20MSGV-9M/C	STS8M9SGV-21M/C / STS12MSGV-15M/C	STS12MSU30-23M/C

Product specifications and Brochures

Product Brochure Link:

Model	STS8M9SGV-21M/C	STS12MSGV-15M/C	STS12MSU30-23M/C	STS20MSGV-9M/C
Sensor	Global shutter CMOS
Image Mode	Color/Mono
Optical Size	15.99 mm	17.52 mm	17.52mm	15.98 mm
Resolution	4096*2168	4096 * 3000	4096* 3000	5544* 3688
Pixel Size	3.45μm*3.45μm	3.45μm*3.45μm	3.45μm* 3.45μm	2.4μm*2.4μm
Max Frame Rate	14fps(21fps with SAccelTM)	10fps(15fps with SAccelTM)	23.06fps@8bit， 11.84fps@12bit	6fps(9fps with SAccelTM)
Pixel Format	Monochrome camera: Mono8/10/10p/12/12p, Color camera: Bayer8/10/10p/12/12p/RGB8/YUV422_8	Monochrome camera: Mono8/10/10p/12/12p Color camera: Bayer8/10/10p/12/12p/RGB8/YUV422_8	8/12 bit	Monochrome camera: Mono8/10/10p/12/12p, Color camera: Bayer8/10/10p/12/12p
Dynamic Range	≥71.4 dB	≥71 dB	≥71 dB	≥71 dB
Data Rate	123 MB/s	123 MB/s	350 MB/s	123 MB/s
Trigger Mode	Free run/externa trigger
Trigger Source	Software trigger/external IO
Exposure Control	Program/pulse width
ExposureTime	lμs-10s(Step:lus)	lμs-10s(Step:lμs)	29μs-10s(Step:29μs)	lμs-10s(Step:lμs)
Analog Gain	0-24dB	0-24dB	0-20dB	0-24dB
Digital Gain	0.004-8.000x	0.004-8.000x	0.1-8.00x	0.004-8.000X
Lens Interface	C Mount	C Mount	C Mount	C Mount
Data Interface	GigE Vision	GigE Vision	USB3.0	GigE Vision
Power Interface	Hirose HR10A-7R-6PB(Male)	Hirose HR10A-7R-6PB(Male)	USB powered	Hirose HR10A-7R-6PB(Male)
Power Supply	DC12-24V(±10%)1A
Power Consumption	3.4 W	3.6 W	4.0 W	3.0 W
Dimensions(WHD)(mm)	29.0x29.0x43.59(Without adapter)	29.0x29.0x43.59(Without adapter)	35.0x35.0x61.7(Without adapter)	29.0x29.0x43.59(Without adapter)
Operating Temperature	0-65℃	0-50℃	0-45℃	0-50°℃
Storage Temperature	-20-75℃

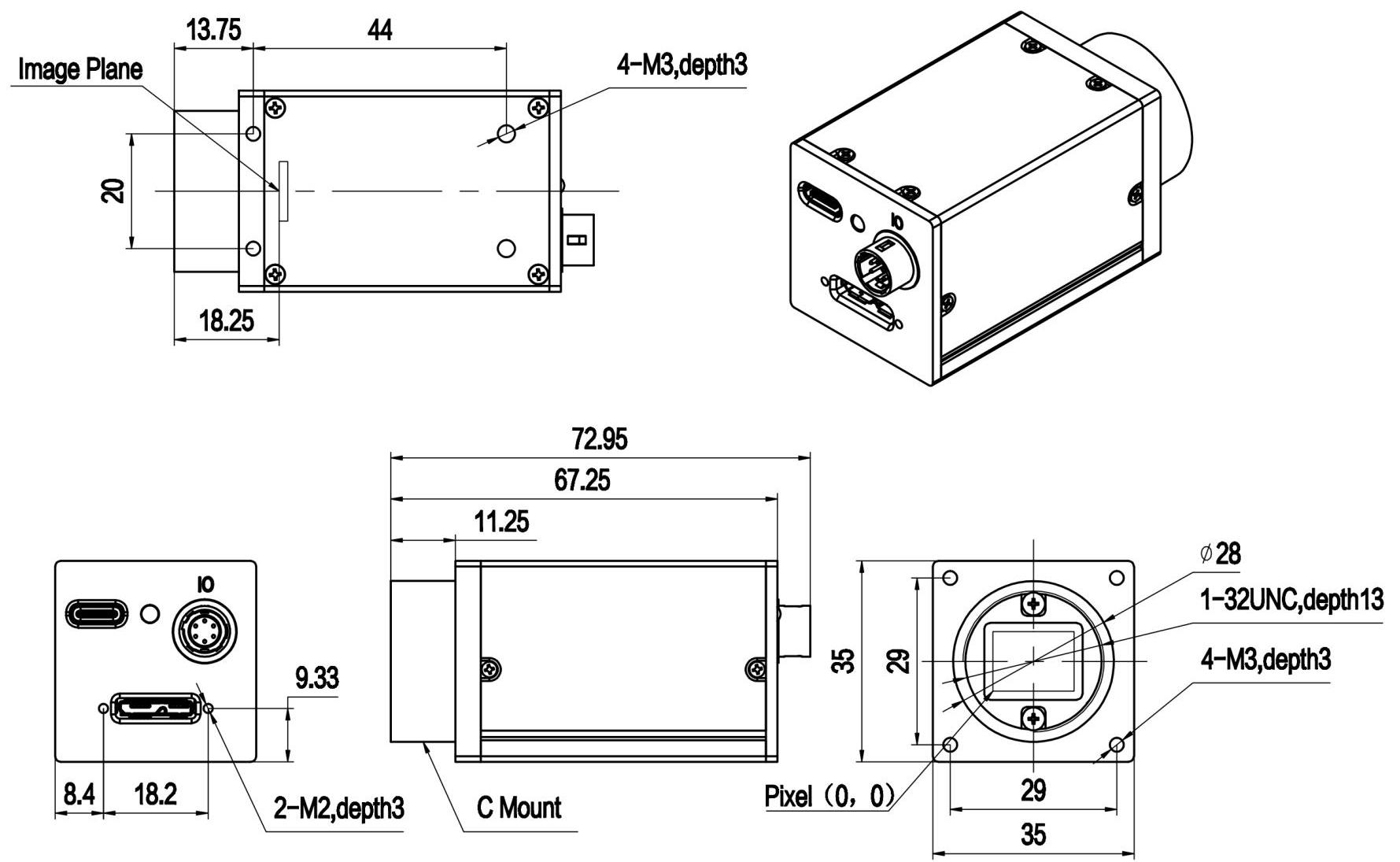

Drawings

STS8M9SGV-21M/C / STS12MSGV-15M/C / STS20MSGV-9M/C	STS12MSU30-23M/C

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Resolution

Search Reset

	Availability	Reference Price (USD)
STS1M5SGV-107M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 6.21MM, Resolution 1440 * 1080, Pixel Size, 3.45μm*3.45μm, Max Frame Rate 79fps(107fps With SAccelTM), Pixel Format Monochrome Camera Mono8/10/10p/12/12p, Color Camera Bayer8/10/10p/12/12p/RGB8/YUV422_8, Dynamic Range ≥71 dB Data Rate 123 MB/s	6-8 weeks	Request for quote
STS2M3GV-42M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 13.40MM, Resolution 1920* 1200, Pixel Size 5.86*5.86μm, Pixel Format Monochrome Camera Mono8/10/10p, Color Camera Bayer8/10/10p/RGB8/YUV422_8, Dynamic Range ≥66.7 dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STS3M2SGV-56M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 8.83MM, Resolution 20481536, Pixel Size 3.453.45μm, Max Frame Rate 39fps(56fps With SAccelTM), Pixel Format Monochrome Camera Mono8/10/10p/12/12p, Color Camera Bayer8/10/10p/12/12p/RGB8/YUV422_8, Dynamic Range ≥71 dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STS5MSGV-36MC Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 11.01MM, Resolution 2448 * 2048,Pixel Size 3.45 *3.45μm, Max Frame Rate 25fps(36fps With SAccelTM), Pixel Format Monochrome Camera Mono 8/1010p/12/12p, Color camera Bayer8/10/10p/12/12p/RGB8/YUV422_8, Dynamic Range ≥71 dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STS8M9SGV-21M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 15.99MM, Resolution 40962168, Pixel Size 3.453.45μm, Max Frame Rate 14fps(21fps With SAccelTM), Pixel Format Monochrome Camera Mono8/10/10p/12/12p, Color Camera Bayer8/10/10p/12/12p/RGB8/YUV422_8, Dynamic Range ≥71.4 dB,Data Rate 123 MB/s	6-8 weeks	Request for quote
STS12MSGV-15M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 17.52 MM, Resolution 4096 * 3000, Pixel Size 3.45*3.45μm, Max Frame Rate 10fps(15fps With SAccelTM), Pixel Format Monochrome Camera Mono8/10/10p/12/12p, Color Camera Bayer8/10/10p/12/12p/RGB8/YUV422_8, Dynamic Range ≥71 dB, Data Rate 123 MB/s	6-8 weeks	Request for quote
STS12MSU30-23M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 17.52MM, Resolution 4096* 3000,Pixel Size 3.45 * 3.45μm, Max Frame Rate 23.06fps@8Bit, 11.84fps@12Bit, Pixel Format 8/12 Bit Dynamic Range ≥71 dB Data Rate 350 MB/s	6-8 weeks	Request for quote
STS20MSGV-9M/C Standard Industry Camera, Sensor Global Shutter CMOS, Image Mode Color/Mono, Optical Size 15.98MM, Resolution 5544* 3688, Pixel Size 2.4μm*2.4μm, Max Frame Rate 6fps(9fps With SAccelTM), Pixel Format Monochrome Camera Mono8/10/10p/12/12p, Color Camera Bayer8/10/10p/12/12p, Dynamic Range ≥71 dB, Data Rate 123 MB/s	6-8 weeks	Request for quote

STS20MSGV-9M/C - Parameter

Resolution

4-5K

STS12MSU30-23M/C - Parameter

Resolution

4-5K

STS12MSGV-15M/C - Parameter

Resolution

4-5K

STS8M9SGV-21M/C - Parameter

Resolution

4-5K

STS5MSGV-36MC - Parameter

Resolution

1-2K

STS3M2SGV-56M/C - Parameter

Resolution

1-2K

STS2M3GV-42M/C - Parameter

Resolution

1-2K

STS1M5SGV-107M/C - Parameter

Resolution

1-2K

STS20MSGV-9M/C - Download

STS12MSU30-23M/C - Download

STS12MSGV-15M/C - Download

STS8M9SGV-21M/C - Download

STS5MSGV-36MC - Download

STS3M2SGV-56M/C - Download

STS2M3GV-42M/C - Download

STS1M5SGV-107M/C - Download
