Photomultiplier Tube Accessories
STD317-11 STD701A-14 STD454 Related Products Order Now!

High Voltage Tube Socket for Side Window - STD317-11

The high voltage tube socket uses ±15V voltage input, 50kΩ potentiometer or 0-5V voltage control, easy to use and convenient. The main feature is that the built-in voltage divider adopts active voltage divider design, which can make the photomultiplier tube have high DC output linearity.





This product is suitable for side-on photomultiplier tube, which has the advantages of high linear DC output, wide output voltage range, fast response speed, low ripple noise and so on.







Product Specifications and Brochures

Product Brochure Link:

Paramater Description Unit
 Suitable Photomultiplier Tube Side-on PMT /
 Input Voltage +15±1 V
 Input Current(1) 80(Max) mA
 Output Voltage 0~-1250 V
 Voltage Control Mode 0~+5V or 50KΩ Potentiometers /
 Reference Voltage 5.33 V
 The PMT Outputs A Linear
 Current Value(1)（-1000V）		 180(Typ) µA
 Input Regulation 0.01(Typ) %
 On-off Transient Response Rise Time(2) 80(Typ) ms
 Temperature Coefficient 0.03(Typ) %/℃
 Anodic Output Ripple (Peak-to-Peak)(3) 2 mV
 Operating Temperature 0~+40 ℃
 Operating Humidity ≤70% /

Note:(1)Linear current variation is less than 2%.  (2)High voltage change 0~99%.  (3)Test bandwidth 20MHz, load resistance 1MΩ

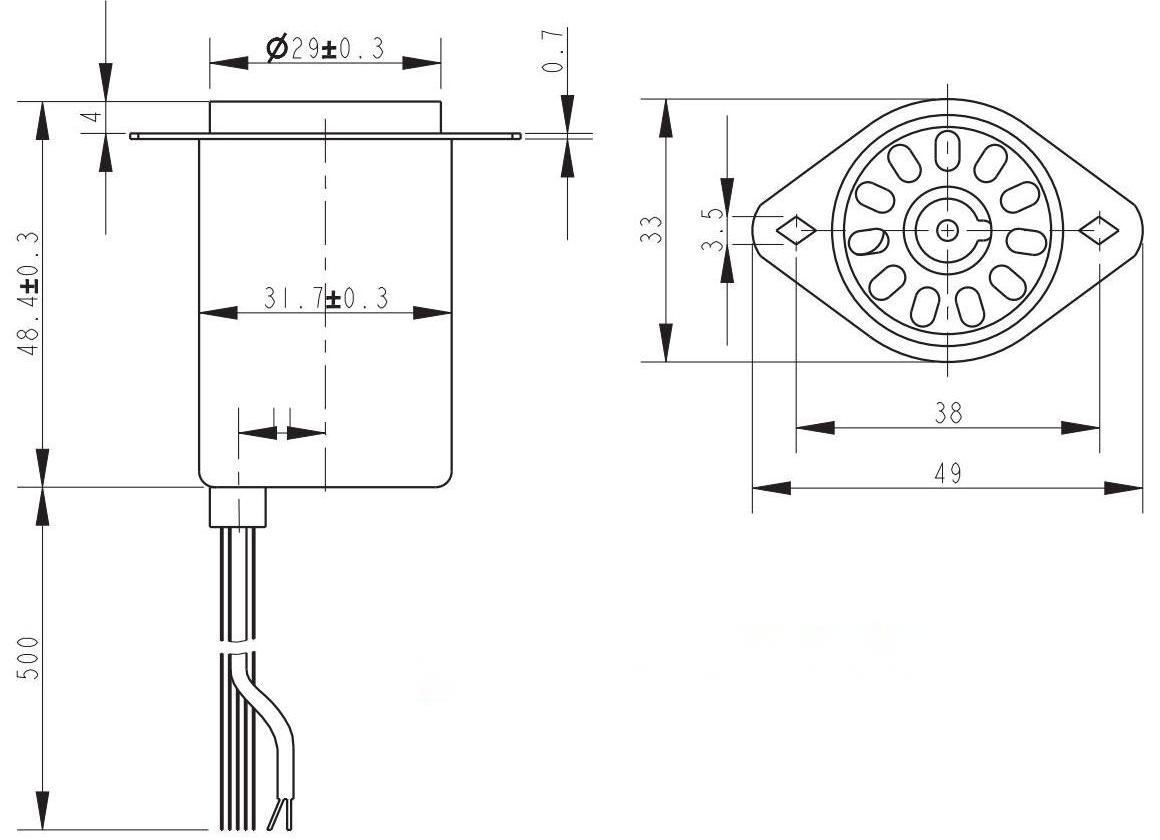

Dimension


(unit: mm, line length can be customized)





Wiring

Cable Voltage Control Resistance Control
Red Line +15V Input +15V input
Yellow Line 0~5V Control Voltage Potentiometer Center Tap
White Line Vacant Potentiometer End
Black Line Ground Ground
Black Line Ground Ground
Shielded Wire Signal Output




High Voltage Tube Socket - STD701A-14

The STD701A-14 high voltage tube socket uses ±15V voltage input, 50kΩ potentiometer or 0-6V voltage control, easy to use and convenient.



The main feature is that the built-in voltage divider adopts active voltage divider design, which can make the photomultiplier tube have high DC output linearity. This product is suitable for N2013 photomultiplier tube, which has the advantages of high linear DC output, wide output voltage range, fast response speed, low ripple noise and so on.







Product Specifications and Brochures

Product Brochure Link:

Paramater Description Unit
 Suitable Photomultiplier Tube Φ28mm End Window Type /
 Input Voltage ±15 V
 Input Current(1) Max. VCC：85，VEE：20 mA
Amplifier  -3dBbandwidth Typ. 8 MHz
 Gain Typ. 0.3（Load Impedance1 MΩ) V/μA
 Output Signal Bias Typ. 10 mV
 Output Signal Noise/Ripple Max. 10 mV
 Output Pulse Polarity Positive Polarity /
High-voltage  Power Supply  Output Voltage Range 0~-1500 V
 Oouput Voltage Referenced 5.33 V
 Output Relation Vo=-250×Vadj /
       Note：(1) Without PMT

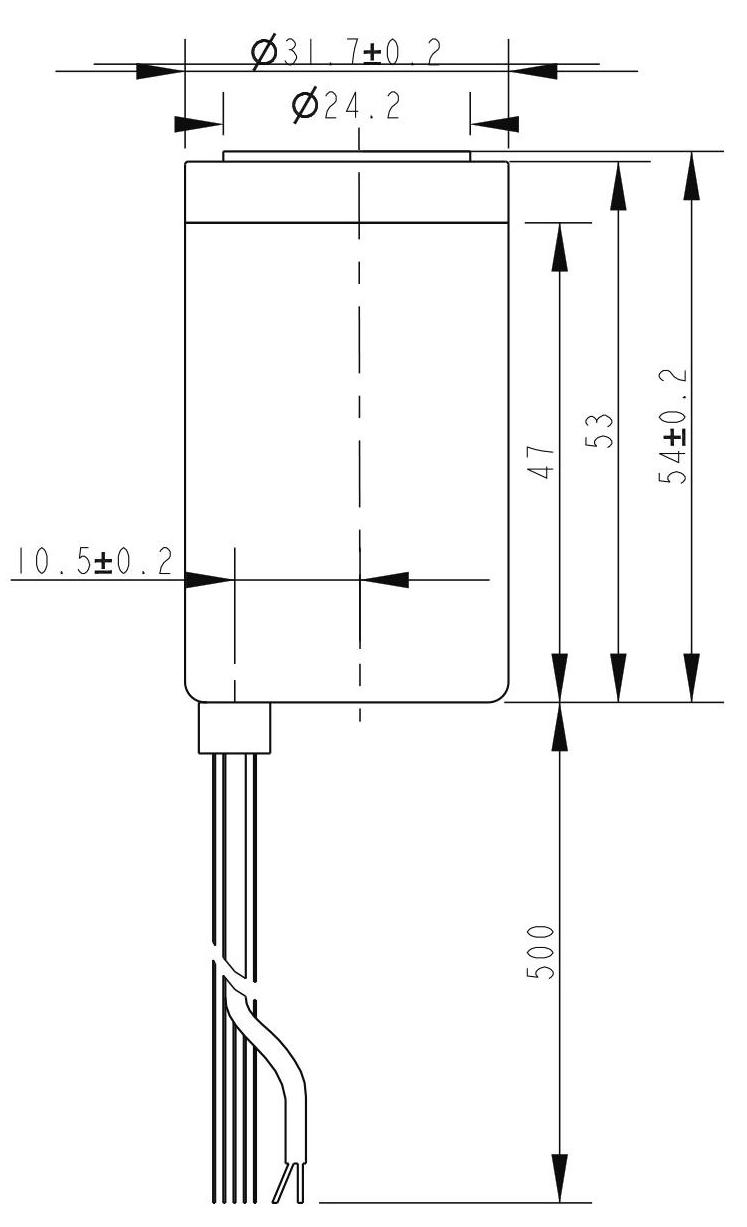

Dimension



(unit: mm, line length can be customized)

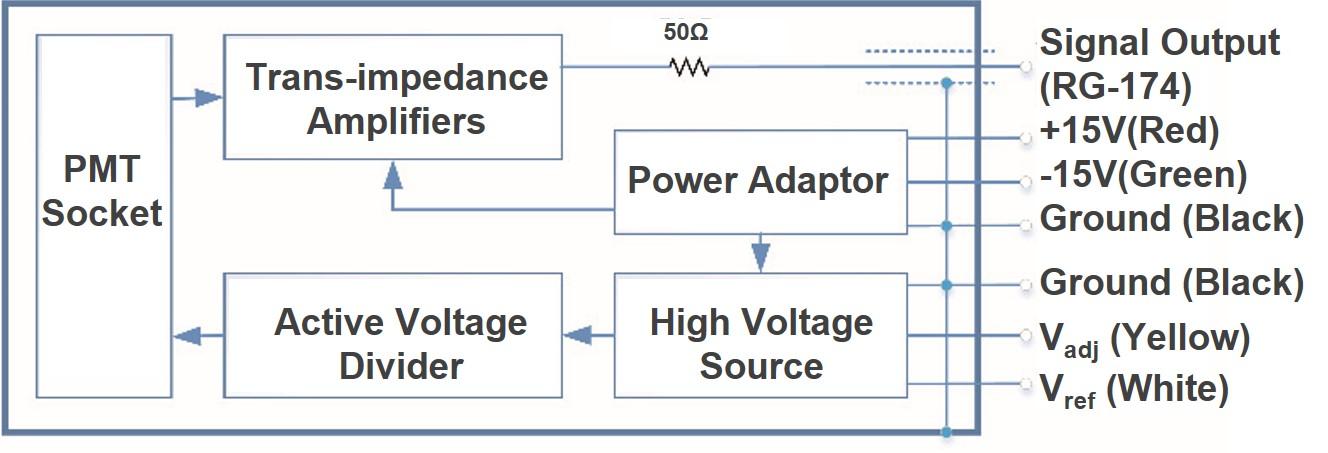

Wiring





Cable Voltage Control Resistance Control
Red Line +15V Input +15V Input
Green Line -15V Input -15V Input
Yellow Line 0~6V Control Voltage Potentiometer Center Tap
White Line Vacant Potentiometer End
Black Line Ground Ground
Black Line Ground Ground
Shielded Wire Signal Output

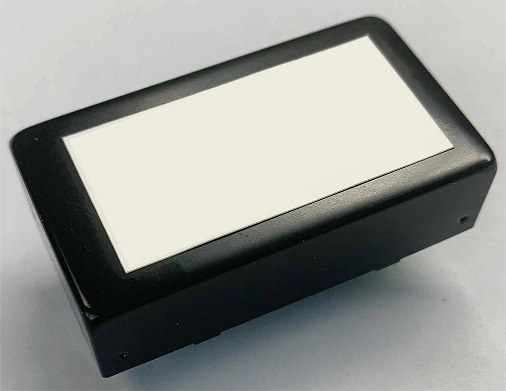

Voltage Power Supply – STD454

STD454 high voltage power supply is a small and compact high voltage module.It is specially designed for photomultiplier tubes, with stable performance and strong self-protection function.









Product Specifications and Brochures

Product Brochure Link:

Model STD454-01 STD454-02 Unit
 Input Voltage Range +11.5~+12.5 +11.5~12.5 VDC
 Input Current (1) No-load 16 16 mA(Typ)
 Output Voltage Range 0~-1250 0~+1250 VDC
 Ensure Output Voltage Range -200~-1250 200~+1250 VDC
 Current Output (2) 0.5 mA(Max)
 Input Regulation(2) 0.01 %(Max)
 Load Regulation(1) 0.01 %(Typ)
 Ripple (Peak-To-Peak)(1) 30 mV(Typ)
 Output Stability (8 Hours) 0.01 %(Typ)
 Output Voltage Control Mode Applied Control Voltage（0~+5V） /
Applied Control Resistor（50kΩ±2.5kΩ)
 Control Terminal Input Impedance 80 kΩ
 Reference Voltage +5.15 (When a 50kΩ potentiometer is applied） V（Typ）
 Output Voltage Calculation （Control Voltage×250）±0.5% V(Typ)
 On-Off Transient Response Rise Time2) 250 ms(Max)
 Temperature Coefficient (2) 0.01 %/℃（Typ）
 Operating Temperature (2) 0~+40 ℃
 Operating Humidity(2) ≤85% /
 Storage Temperature -20~+70 ℃
 Size Dimension 45.6×25×12.3 mm
 Weight 33±1 g
 Protect Function Protection is generated when the input voltage or control voltage is reversed,overloaded, and the output is short-circuited /

       Note:(1)At the maximum output voltage. (2)At the maximum output voltage and the maximum output current. (3)Test conditions: Load resistance is greater than 2.5MΩ, it should be avoided to use in strong magnetic field and acid-base environment

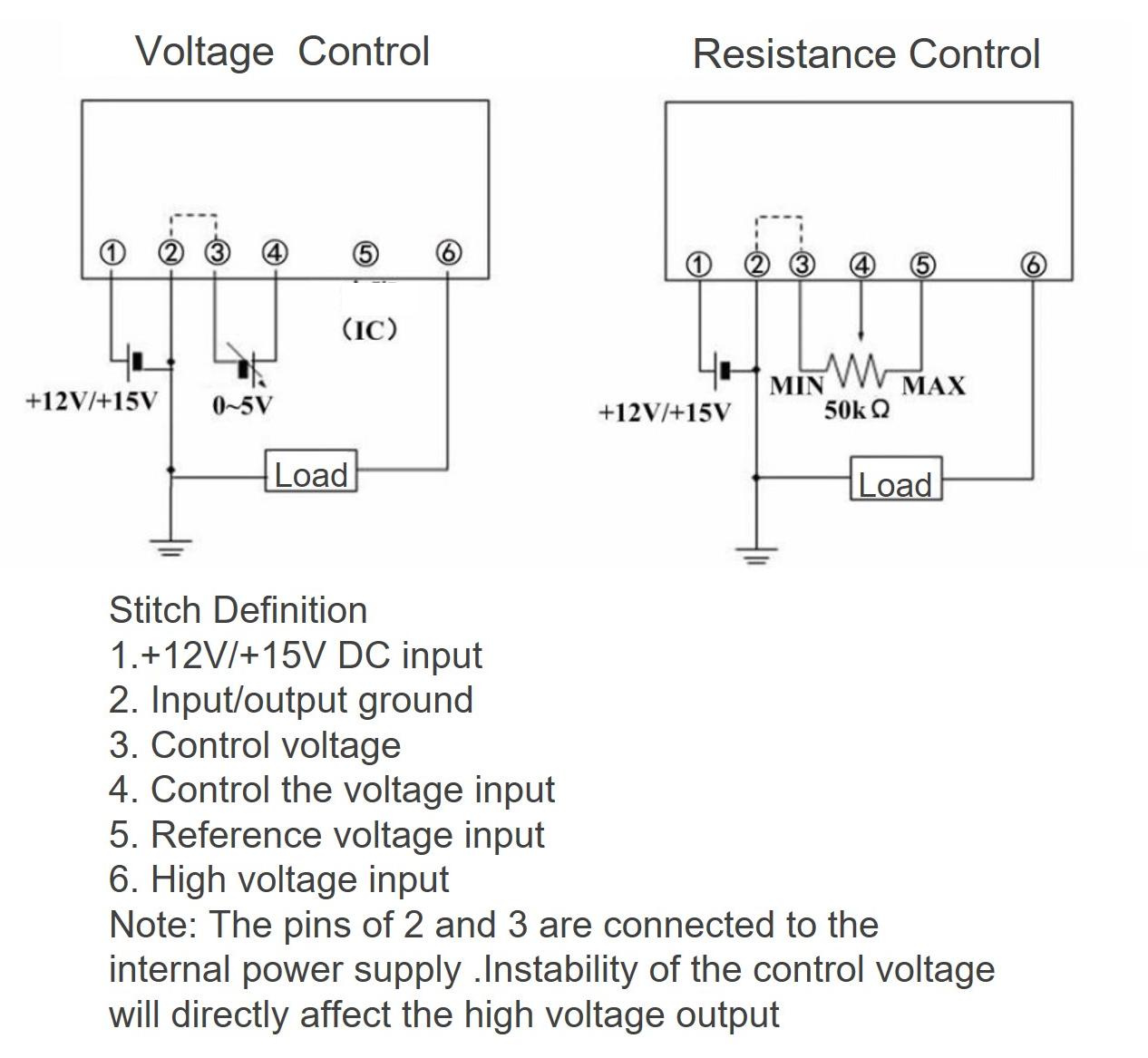

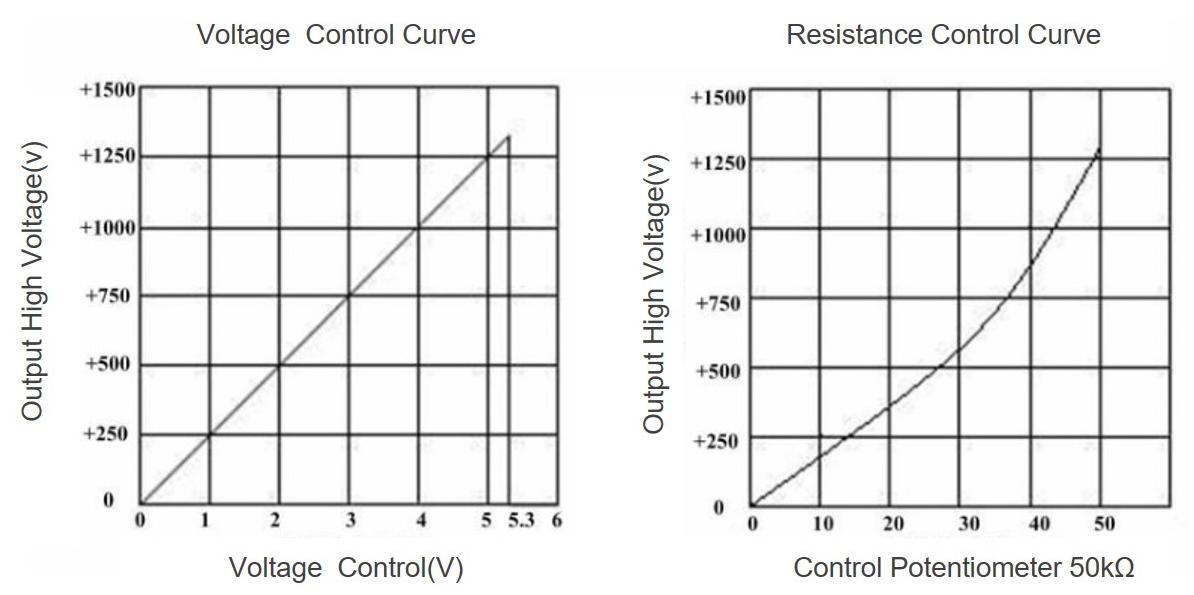

Output Voltage Control Chart



 Note: The above control curves are taken as examples of positive high pressure(the negative high pressure curve is the same as the positive high pressure curve)

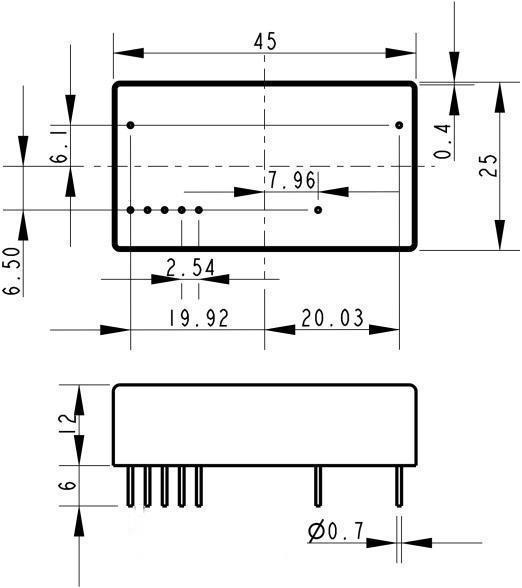

Dimension



(unit: mm, line length can be customized)














Photomultipliers Tube (PMT)

Model Spectral Response Range Peak Wavelength QE Typ. Effective Area(mm) Cathode Luminous Sensitivity Typ. Anode Sensitivity Typ.
 Photomultipliers Tube Head-On (Tube Only) 290 - 650nm 380 - 500nm 12% -,28% Φ10 - Φ58 40 - 100μA/lm 30 - 2000A/lm
 Photomultipliers Tube Side On(Tube Only) 160 - 900nm / / 8×24 40 - 250μA/lm 400 - 2500A/lm
 Photomultipliers Tube (Module) 160 - 900nm 400nm, 420nm / Φ22 - Φ25 | 8×24 60 - 250μA/lm /
 Microchannel Plate - Photomultiplier (MCP-PMT) 115 - 650nm 250nm, 380nm 30%@410nm, 15%@250nm / 70μA/lm 900A/lm
 Scintillator Probe / / / Φ25×25 - Φ75×75 / /
 β Detector / / / Φ10, Φ25 / /





Assemblies and Counting Unit



High Voltage Tube Socket High Voltage Tube Socket for Side Window Voltage Power Supply Counting Unit
