Since multiphoton systems use very high-energy pulsed lasers, they require an OD8+ cut-off depth in the laser band range (typically 680 - 1064 nm) and dichroic mirrors with high reflectivity in this band range and high transmittance in the visible region. In order to avoid laser damage to the detector, it is recommended to permanently place an OD8+ short-pass filter in the detection path of the multi-photon system, and then place the corresponding band-pass filter (with OD6+ cut-off depth in the laser band) in front of the detector according to specific requirements.

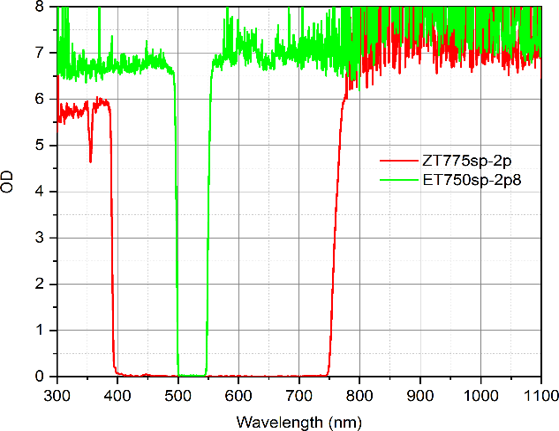

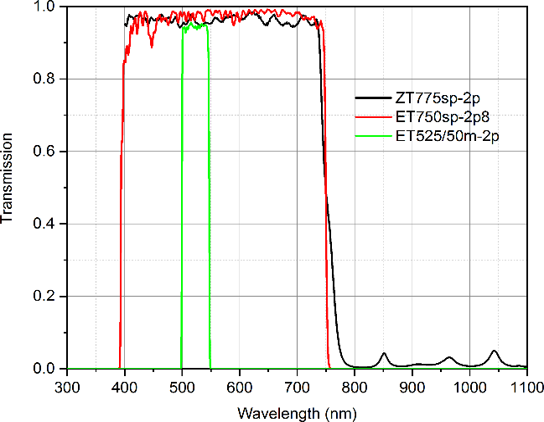

Filter configuration for GFP two-photon imaging: ZT775sp-2p is a dichroic mirror to reflect 2p laser light and transmit fluorescence, ET750sp-2p8 is a short-pass emitter available in The 2p laser band provides a cut-off depth of OD8+, and the ET525/50m-2p is a bandpass emitter that receives GFP fluorescence while providing a cut-off depth of OD6+ in the 2p laser band.

ET Series - Multiphoton Bandpass Filters

Spectral Transmission Curves

Filters	Center wavelength(nm)	Transmittance	Cut-off depth（nm)
ET460/50m	460/50	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET480/40m	480/40	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET510/80m	510/80	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET520/40m	520/40	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET525/50m	525/50	Tpeak >/= 88%	OD >/= 6 @ 690 – 1100
ET535/50m	535/50	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET550/50m	550/50	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET560/80m	560/80	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET575/50m	575/50	Tpeak >/= 90%	OD >/= 8 @ 730 - 1050
ET595/50m	595/50	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100
ET610/75m	610/75	Tpeak >/= 90%	OD >/= 6 @ 690 - 1100

ET Series - Multiphoton Shortpass Filters

Spectral Transmission Curves

Filters	Transmittance(nm)	Cut-off depth（nm)
ET680sp-2p8	>/= 95% avg @ 400 - 670	OD >/= 7 @ 705 - 1080
ET850sp-2p	>/= 95% avg @ 400 - 840	OD >/= 8 avg @ 890 - 1490

*Note Prices do not include any shipping, tax or customs clearance charges

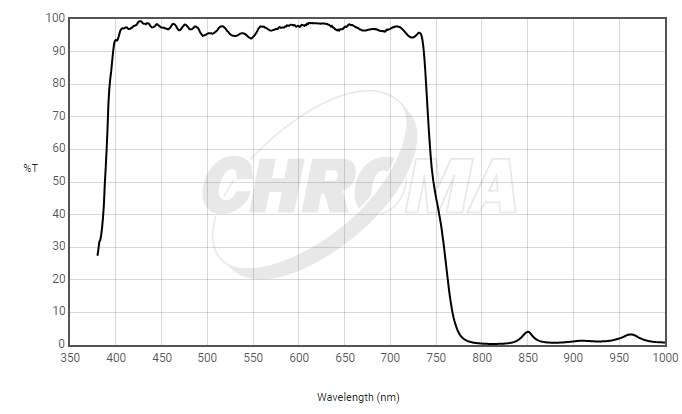

Multiphoton short-pass dichroic mirrors

Filters	Transmittance(nm)	Cut-off depth（nm)	Flatness	Thickness(mm）
ZT775sp-2p	>/= 95% avg @ 400 - 740	>/= 98% avg @ 775 - 1200	</= 2 waves/inch P-V	1

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Availability	Reference Price (USD)
ET460/50m Filter ET460/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 460/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET480/40m Filter ET480/40m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 480/40 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET510/80m Filter ET510/80m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 510/80 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET520/40m Filter ET520/40m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 520/40 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET525/50m Filter ET525/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 525/50 nm,Transmittance Tpeak >/= 88%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET550/50m Filter ET550/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 550/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET535/50m Filter ET535/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 535/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET560/80m Filter ET560/80m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 560/80 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET575/50m Filter ET575/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 575/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET595/50m Filter ET595/50m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 595/50 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET610/75m Filter ET610/75m ET Series Multiphoton Bandpass Filter,Center wavelength / bandwidth 610/75 nm,Transmittance Tpeak >/= 90%,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$365.00
ET680sp-2p8 Filter ET680sp-2p8 ET Series Multiphoton Shortpass Filters,Transmittance >/= 95% avg @ 400 - 670 nm,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$725.00
ET850sp-2p Filter ET850sp-2p ET Series Multiphoton Shortpass Filters,Transmittance >/= 95% avg @ 400 - 840 nm,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$775.00
ZT775sp-2p Filter ZT775sp-2p Multiphoton short-pass dichroic mirrors,,Transmittance >/= 95% avg @ 400 - 740 nm,Prices do not include any shipping, tax or customs clearance charges	4-6 Weeks	$475.00
