VIS/NIR Supercontinuum Fiber Lasers (450-1000 nm)
Overview Specifications Related Products Order Now!
SIMTRUM provides the visible/near-infrared (VIS/NIR) supercontinuum lasers that, unlike conventional supercontinuum lasers, are pumped by highly stable mode-locked fiber lasers for 24/7 operation.

Based on an all-fiber architecture, it has been developed specifically for emerging nano- and quantum-materials spectroscopy, allowing a flexible default repetition rate tuning range of pulse intervals (50 kHz-2 MHz), ensuring excellent stability, mode quality, and price/performance ratio.

Features

  • High Pulse Energy
  • Excellent Beam Quality
  • High Power Stability
  • Adjustable Repetition Rate
  • Turn-key System

Applications

  • Biomedical Analysis
  • Gas Sensing
  • Spectroscopy Analysis
  • Silicon Photonics
  • Device Test and Measurement

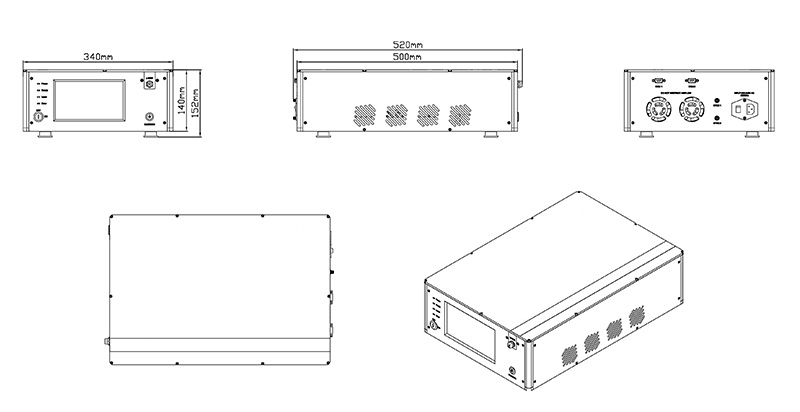

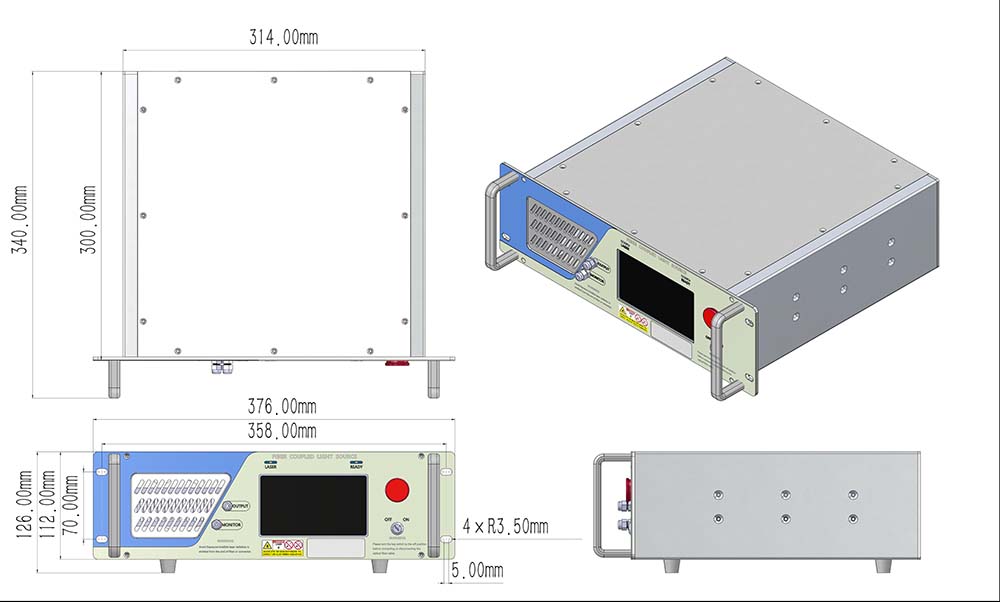

Dimensions

Product Specifications

Product Number LL-NP01-SCFL-10-450-1000-500
Working Wavelength 450-1000 nm
Pulse Width ＜10 ps
Repetition Rate 50 kHz-2 MHz
Average Output Power ＞500 mW
Average Power Stability（%） ≤1.5% RMS (12 hours@25℃）
Polarization Random
Beam Quality TEM00, M2＜1.2
Output Type Fiber FC/APC; Free-space (with Line-Select option)
Supply Voltage 100-240 VAC
Operational Temperature 15-35℃
Operational Humidity 20~80% (non-condensing)
Dimensions 520×340×152 mm
Cooling Air cooling

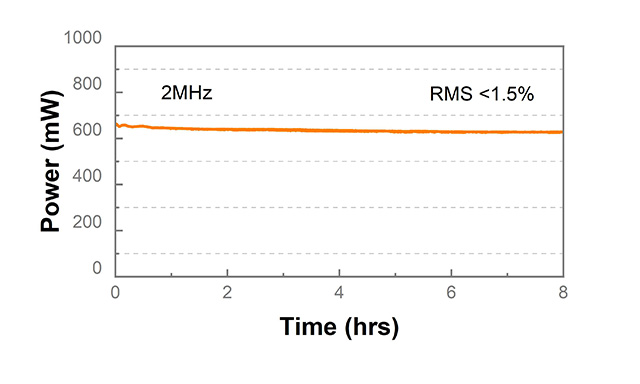

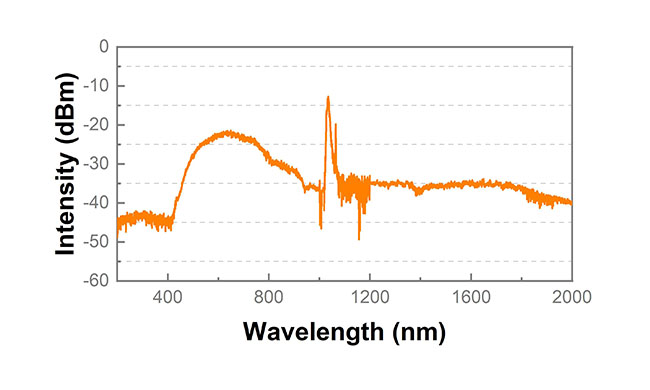

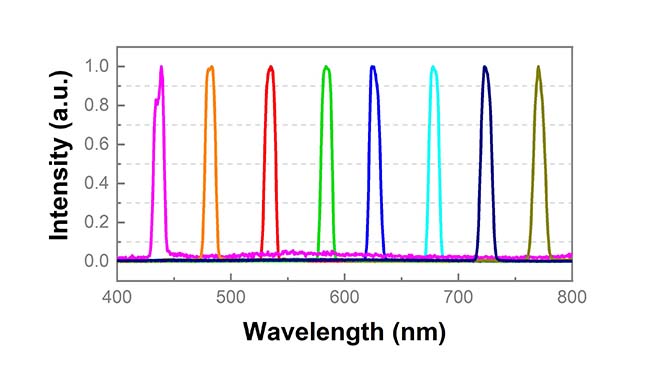

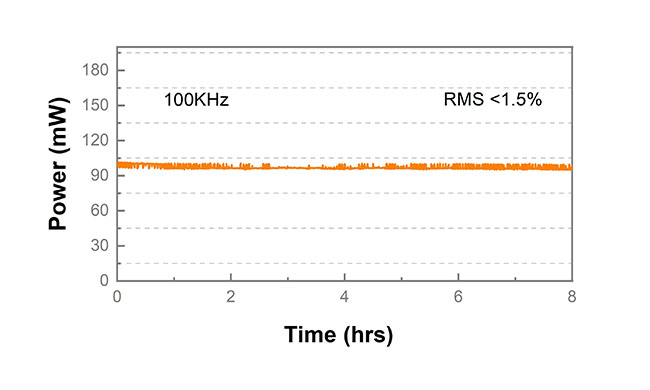

Testing Data

Type Wavelength Power Repetition Rate

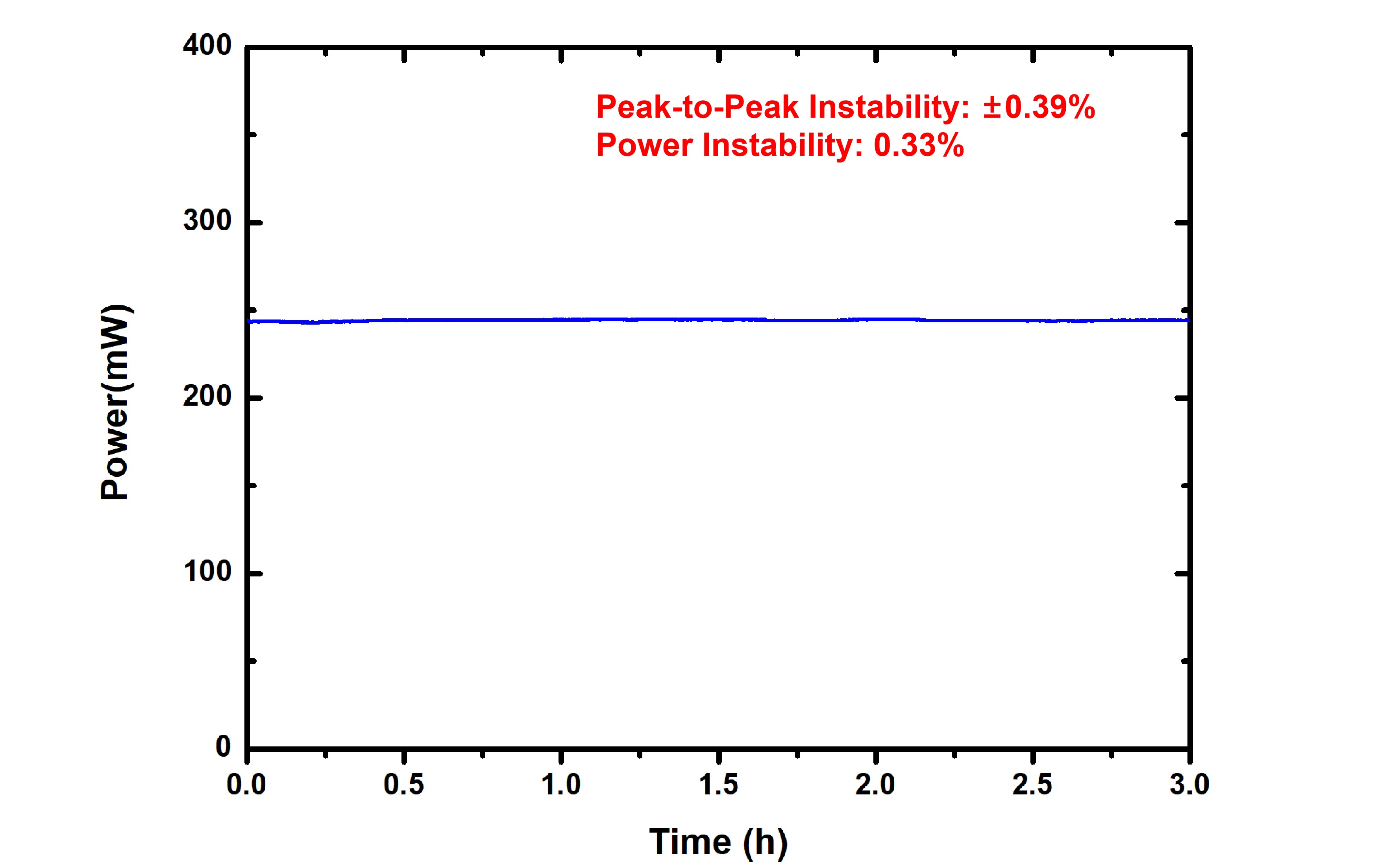

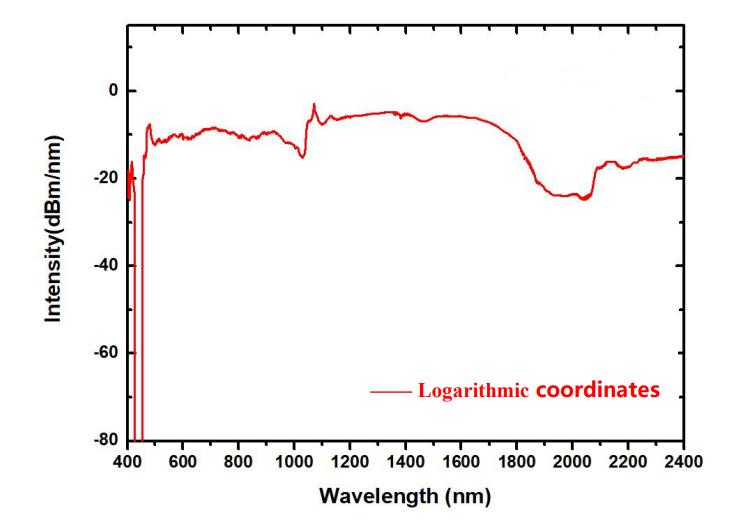

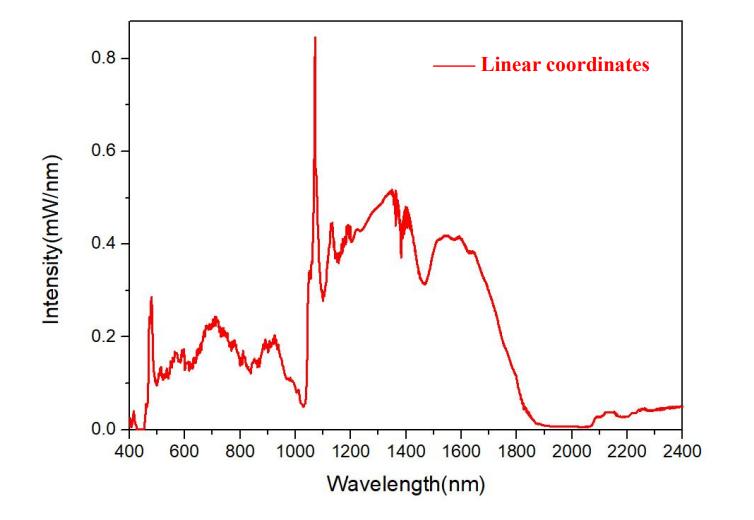

Ultra-flat Spectrum Supercontinuum
Fiber Lasers (450 - 2300 nm)		 450-2300 nm,
free of spurious spectral peaks		 Average power > 3 W;
Average power in visible range ≥ 250 mW		 80 MHz
Frequency-Tunable Supercontinuum
Fiber Lasers (450 - 2300 nm)		 450-2300 nm Average power >1.5 W Tunable Repetition Rate:
1/2.5/5/10/20/40 MHz
VIS/NIR Supercontinuum
Fiber Lasers (450-1000 nm)		 450-1000 nm Average power >500 mW 50 kHz-2 MHz

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Working Wavelength   nm
Linewidth   nm
Output Power   mW
Power Stability   %
Pulse Width   fs
Repetition Rate   MHz
Beam Quality (M2)   /
Output Type   / Free Space/ Fiber Output

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.

Items Detail Unit Remark
Application
Spectral Range   nm
Average Power   W Customizable
Visible Range Average Power   W
Power Stability   %
Pulse Duration   ps Customizable
Pulse Repetition Rate   MHz Customizable
Output Mode   / Free Space/ Fiber Output



We are here for you!





Drop us an email at info@simtrum.com to get the Best Price today.   Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.



Want to stay closer to the Market Dynamics and Technological

Developments? Just take 5 seconds to Sign In as a member of

SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).





Search Reset
Compare Model Drawings & Specs Availability Reference Price
(USD)
LL-NP01-SCFL-10-450-1000-500
Working Wavelength: 450-1000 nm, Average Output Power: ＞500mW ,Pulse Width: ＜10ps ,Repetition Rate: 50kHz-2MHz, Power Stability: ≤1.5% RMS (12 hours@25℃), Output Type: Fiber FC/APC; Free-space (with Line-Select Option) ,Cooling: Air-cooled 		4-6 Weeks $45000.00

LL-NP01-SCFL-10-450-1000-500 - Parameter

LL-NP01-SCFL-10-450-1000-500 - Download
