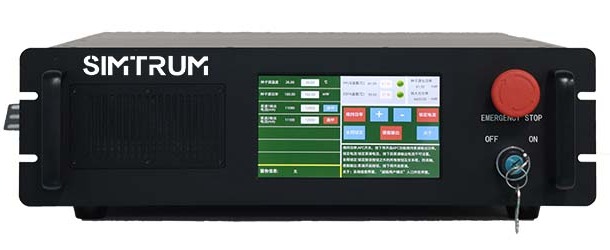

780 nm Single-Frequency Narrow Linewidth Fiber Lasers

Overview Specifications Related Products Order Now!

SIMTRUM provides the 780 nm single-frequency narrow linewidth fiber lasers with an all-fiber scheme that is insensitive to ambient temperature and vibration for applications in atomic laser cooling, entanglement source generation, rubidium atom detection and atomic quantum modulation. It achieves high output power greater than 2 W with 24-hour frequency drift of less than 100 MHz by means of a low-noise seed source, low-noise fiber amplification and high-efficiency frequency doubling conversion.

Features

Single Frequency Without Mode Hopping
High Power Stability
Low Frequency Drift
Excellent Beam Quality

Applications

Entanglement Source Generation
Gravimeters/Gyroscopes/Gravity Gradiometers
Atomic Clocks
Rubidium Detection
Atomic Quantum Regulation
Magnetometers
Atomic Laser Cooling

Product Specifications

Technical Parameters	Minimum Value	Typical Value	Maximum Value
Product Number	LL-SF-7XX-Module/ LL-SF-7XX-3U
Output Laser Type	CW, Single Frequency Single Longitudinal Mode
Center Wavelength	765-765 nm（Customizable）
Center Wavelength Drift@24 hours		＜100 MHz	150 MHz
Output Power		＞500 mW/＞1 W	1W/ 2W
Output Power Stability		1%	3%
Seed Source Linewidth@50km delay line		1.5 kHz	2 kHz
Output Beam Quality（M2）		1.05	1.1
Output Polarization Type	Linear Polarization
Output Polarization Extinction Ratio		20 dB	23 dB
PZT Modulation Frequency	DC	10 kHz
PZT Modulation Wavelength Range		＞8 GHz
Spectral Signal-to-noise Ratio	55 dB	60 dB
Operating Temperature	15-35℃
Storage Temperature	-40~85℃
Operating Voltage	220V
Communication Control Interface	USB
Output Fiber Type	Panda PM1550/ Free Space
Output Fiber Length	＞1.5m
Output Fiber Connector	FC/APC
Size	OEM Module（25419085 mm）/Standard 3U
Weight	OEM Module＜5 kg, Standard 3U＜15 kg

Test Data

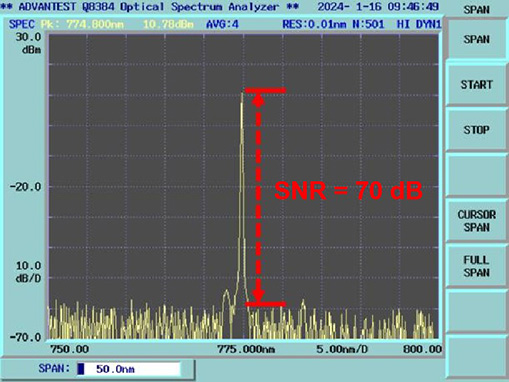

Typical Spectrum

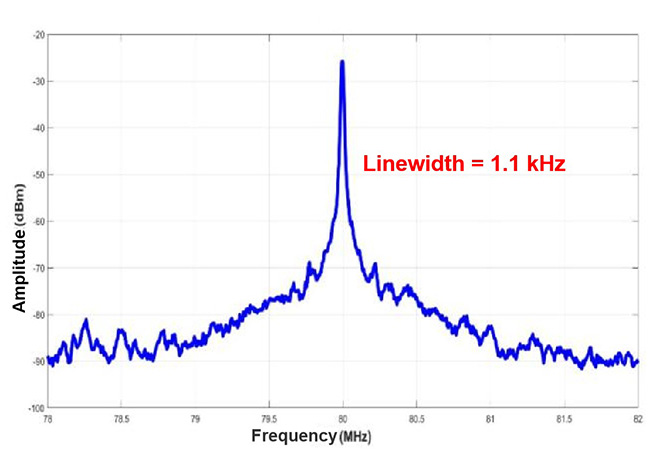

Seed Source Linewidth＜2 kHz

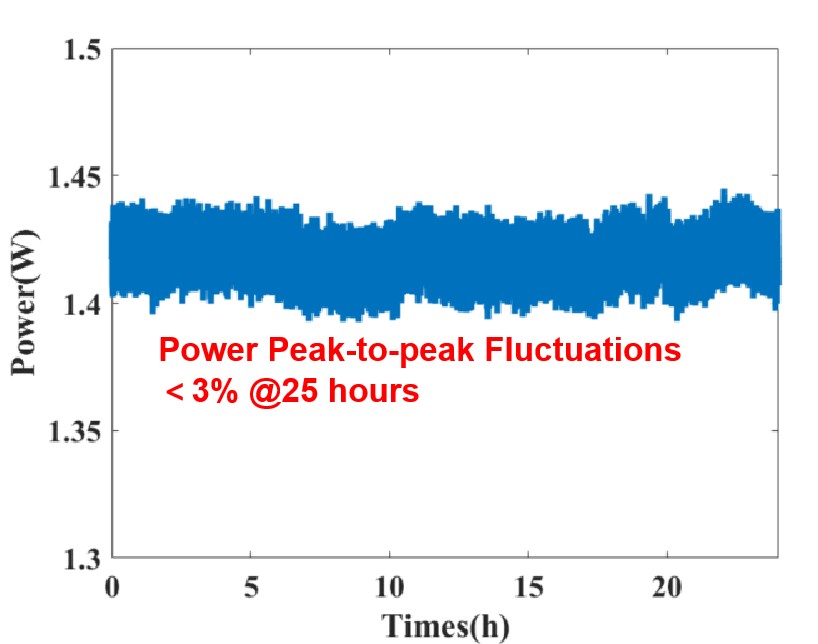

Power Stability

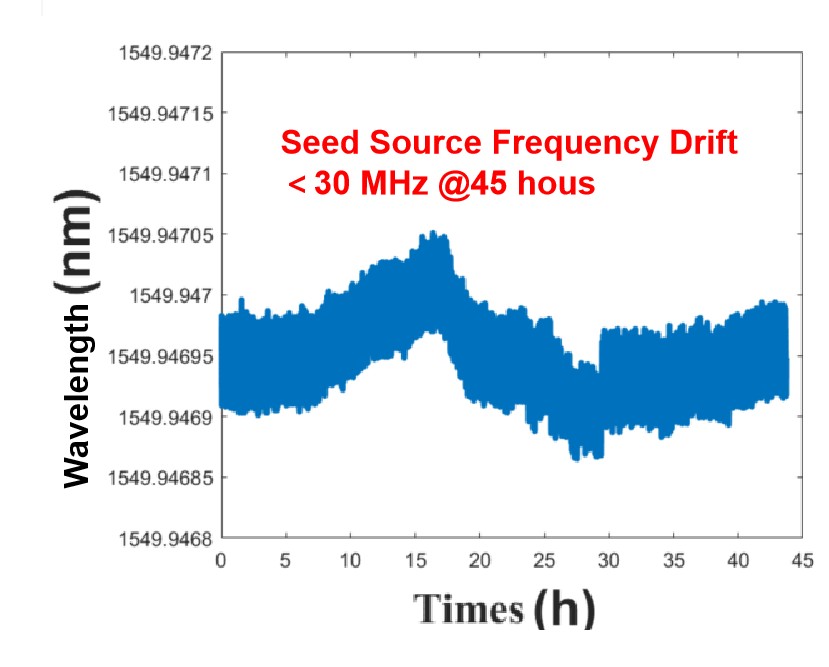

Frequency Stability

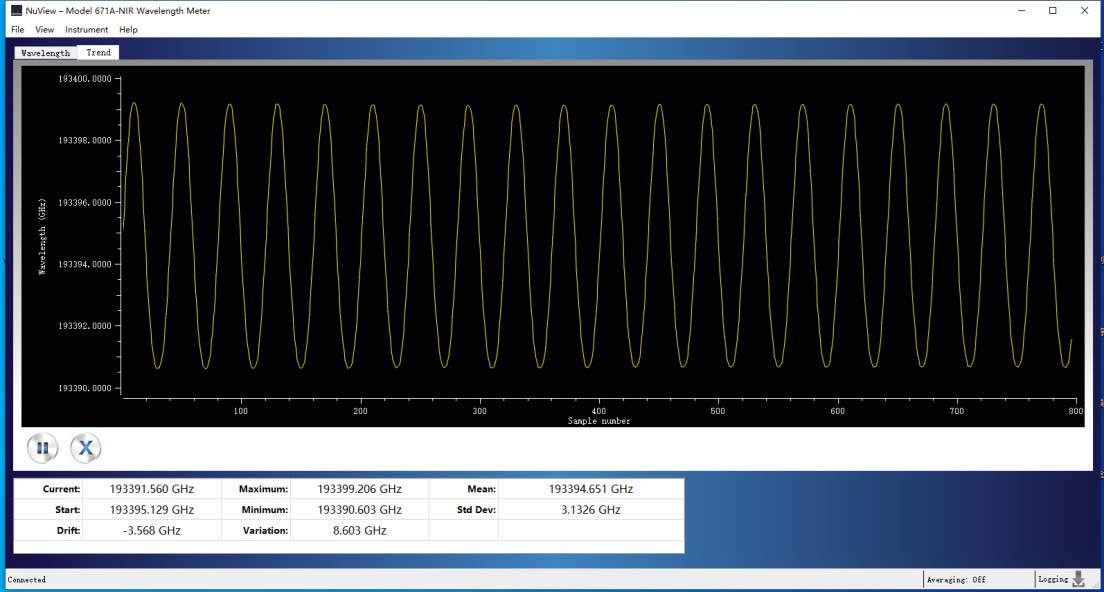

Seed Source Wavelength Fast Tuning: 8.6 GHz@ 0-120V

Type	Wavelength	Linewidth	Output Power
780 nm Single-Frequency Narrow Linewidth Fiber Lasers	765-795 nm optional	1.5 kHz	500 mW-2 W
1/1.5 μm High Power Narrow Linewidth Fiber Lasers	1020-1080 nm/ 1530-1570 nm optional	2 kHz	4-10 W
1/1.5 μm Single-Frequency Ultra-Narrow Linewidth Fiber Lasers	1020-1080 nm optional	8 kHz	100 mW
1064/2000 nm Narrow Linewidth Fiber Laser	1064/ 2000 nm	2 MHz	100 mW/ 1W
1.5 μm Single-Frequency Narrow Linewidth Fiber Lasers	1550 nm	≤3 kHz/ ≤100 kHz	20/50/100/200/500 mW
CW Narrow Linewidth Diode Lasers (532-1064 nm)	532-1064 nm	＜0.1~＜0.3 nm	100-900 mW

Sale Guide

If you need our technical team for guidance on product selection or customization,please help to provide below technical information, it helps to speed up the process.

Items	Detail	Unit	Remark
Application
Center Wavelength		nm
Linewidth		kHz
Output Power		mW
Power Stability		%
Beam Quality (M2)		/
Polarization Extinction Ratio (PER)		dB

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		LL-HM01-SF-7XX-Module Center Wavelength: 765-795 nm (Customizable), Output Power: ＞500 mW (＞1W optional) ,Output Laser Type: CW, Single Frequency, Single Longitudinal Mode Seed Source Linewidth@50km delay line: 1.5-2 kHz ,Power Stability: 1%-3% ,Output Fiber Type: Panda PM1550/ Free Space ,Size: 25419085 mm ,Weight: ＜5kg		4-6 Weeks	Request for quote
		LL-HM01-SF-7XX-3U Center Wavelength: 765-795 nm (Customizable)，Output Power: ＞1 W (2W optional), Output Laser Type: CW, Single Frequency, Single Longitudinal Mode Seed Source Linewidth@50km delay line: 1.5-2 kHz ，Power Stability: 1%-3% ,Output Fiber Type: Panda PM1550/ ,Free Space,Size: Standard 3U, Weight: ＜15kg		4-6 Weeks	Request for quote
