Super Achromatic Waveplates
Overview Specifications and Graphs Order Now!

PRODUCTS AVAILABLE. PRODUCTS In this category have specification sheets and brochures attached. Please do feel free to explore and drop us an email if we can be of assistance. Alternatively, visit the Request a quotation tab for ordering information.



General Specifications

Type

Cemented Super Achromatic Quarter Waveplate

Material

Crystal Quartz+MgF2+Sapphire

Retardation

<λ/4

Retardation Tolerance

<λ/100

Dimensional Tolerance(mm)

+0/-0.2

Thickness Tolerance(mm)

±0.2

Parallelism(arcsec)

<10

Clear Aperture

>18mm

Surface Quality

40/20

Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset

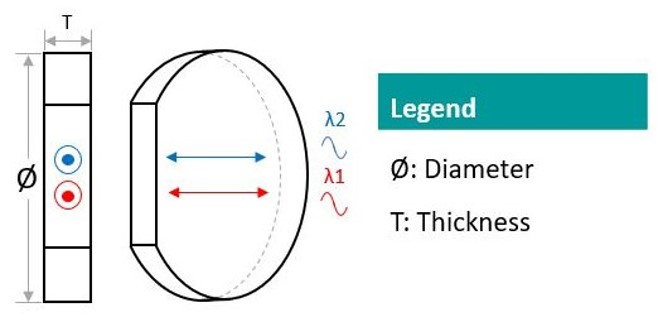

Compare Model Drawings & Specs Design Wavelength (nm) Retardation Diameter (mm) Mount Diameter (mm) Availability Reference Price
(USD)
QMS-SAWP-R4-20-380-1100-M
Crystal Quartz+MgF2+Sapphire, Cemented Super Achromatic Quarter Waveplate, Retardation: <λ/4, Ø= 20mm, Design Wavelength=380-1100nm 		380-1100λ/42025.4 2-3 Weeks Request for quote
QMS-SAWP-R4-20-600-2000-M
Crystal Quartz+MgF2+Sapphire, Cemented Super Achromatic Quarter Waveplate, Retardation: <λ/4, Ø= 20mm, Design Wavelength=600-2000nm 		600-2000λ/42025.4 2-3 Weeks Request for quote

QMS-SAWP-R4-20-600-2000-M - Parameter

Type

Material

Coating
Uncoated

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
600-2000

Surface Quality
40/20

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Transmitted Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QMS-SAWP-R4-20-380-1100-M - Parameter

Type

Material

Coating
Uncoated

Diameter (mm)
20

Thickness Tolerance (mm)
±0.2

Design Wavelength (nm)
380-1100

Surface Quality
40/20

Clear Aperture
>18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Thickness (mm)

Transmitted Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QMS-SAWP-R4-20-600-2000-M - Download

QMS-SAWP-R4-20-380-1100-M - Download
