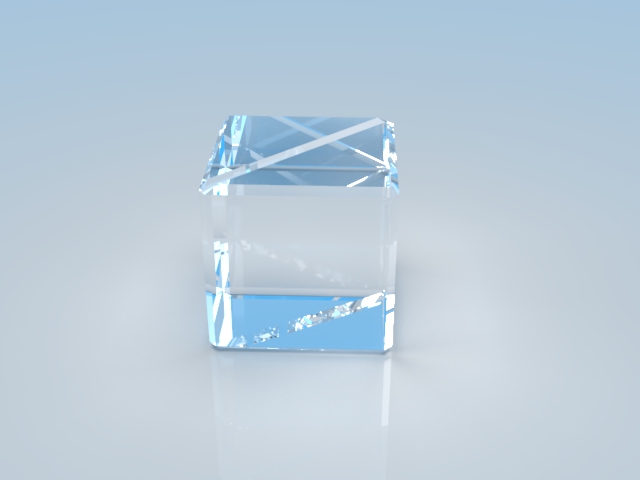

High-Power Polarization Beamsplitter
Overview Specifications and Graphs Order Now!



High Power Polarizing Beamsplitter Cubes are unique as the material used to construct the Beamsplitter Cubes is optically contacted. They are widely used in many applications and have a high damage threshold. Unlike Cemented cubes, optically contacted cubes have their two matching surfaces bonded together through Van der Waals forced of attraction. Beam deviation and transmitted wavefront are excellent. However, the differential expansion can cause stress to be built up within the bonds, resulting in separation. Hence, it requires more protection from stress and temperatures.


Fused Silica is made with materials of high purity, making it ideal for UV or higher energy applications as it is transparent over a wider range of wavelengths.It is scratch resistant and has low thermal expansion

coefficient alongside good optical qualities.For high-energy applications,the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.It Has excellent transmission in the UV dimension.








General Specifications

Type

Optically Contacted High Power Polarization Beamsplitter Cube

Material

UVFS

Dimensional Tolerance (mm)

±0.2

Extinction Ratio

Tp/Ts>1000:1

Beam Deviation(arcmin)

<3

Flatness

<λ/4@633nm

Clear Aperture

>90%

Surface Quality

40/20

Damage Threshold(pulsed)

 >5J/cm²(20ns 20Hz 1064nm)







Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dimension (mm)

Design Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Coating Design Wavelength (nm) Dimension (mm) Extinction Ratio Availability Reference Price
(USD)
UVFS-HPPBSC-12.7-1064
UVFS, Optically Contacted High Power Pol BSC, Dimension= 12.7*12.7*12.7mm, Coating: Tp>95% Rs>99.9% @1064nm 		106412.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-12.7-266
UVFS, Optically Contacted High Power Pol BSC, Dimension= 12.7*12.7*12.7mm, Coating: Tp>90% Rs>99.9% @266nm 		26612.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-12.7-355
UVFS, Optically Contacted High Power Pol BSC, Dimension= 12.7*12.7*12.7mm, Coating: Tp>95% Rs>99.9% @355nm 		35512.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-12.7-532
UVFS, Optically Contacted High Power Pol BSC, Dimension= 12.7*12.7*12.7mm, Coating: Tp>95% Rs>99.9% @532nm 		53212.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-20.0-1064
UVFS, Optically Contacted High Power Pol BSC, Dimension= 20.0*20.0*20.0mm, Coating: Tp>95% Rs>99.9% @1064nm 		106412.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-20.0-266
UVFS, Optically Contacted High Power Pol BSC, Dimension= 20.0*20.0*20.0mm, Coating: Tp>90% Rs>99.9% @266nm 		26612.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-20.0-355
UVFS, Optically Contacted High Power Pol BSC, Dimension= 20.0*20.0*20.0mm, Coating: Tp>95% Rs>99.9% @355nm 		35512.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote
UVFS-HPPBSC-20.0-532
UVFS, Optically Contacted High Power Pol BSC, Dimension= 20.0*20.0*20.0mm, Coating: Tp>95% Rs>99.9% @532nm 		53212.7*12.7*12.7Tp/Ts>1000:1 2-3 Weeks Request for quote

UVFS-HPPBSC-20.0-532 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-20.0-355 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
355

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-20.0-266 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
266

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-20.0-1064 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-12.7-532 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
532

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-12.7-355 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
355

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-12.7-266 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
266

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-12.7-1064 - Parameter

Type
Optically Contacted High Power Polarization Beamsplitter Cube

Material
UVFS

Coating

Design Wavelength (nm)
1064

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>5J/cm²(20ns 20Hz 1064nm)

Dimension (mm)
12.7*12.7*12.7

Dimensional Tolerance (mm)
±0.2

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Beam Deviation (arcmin)
<3

UVFS-HPPBSC-20.0-532 - Download

UVFS-HPPBSC-20.0-355 - Download

UVFS-HPPBSC-20.0-266 - Download

UVFS-HPPBSC-20.0-1064 - Download

UVFS-HPPBSC-12.7-532 - Download

UVFS-HPPBSC-12.7-355 - Download

UVFS-HPPBSC-12.7-266 - Download

UVFS-HPPBSC-12.7-1064 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
