Nd:YVO4 | SIMTRUM Photonics Store

Products / Optics /Crystals /Laser Crystals /Nd:YVO4 /
Nd:YVO4
Overview Order Now!

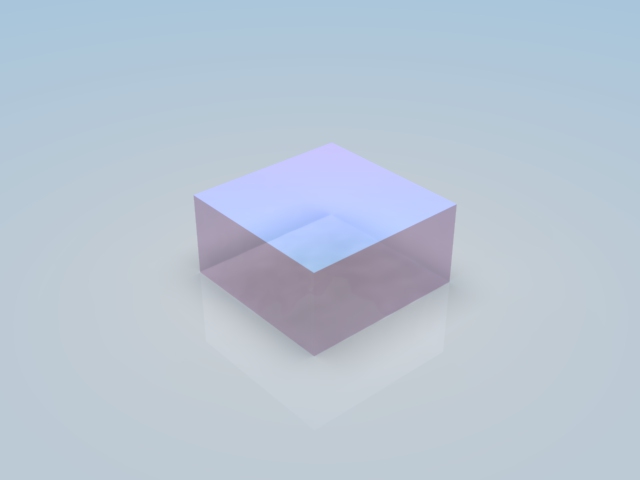

Nd:YVO4 Nonlinear Optical Crystal.jpg

Nd:YVO4(Neodymium-doped yttrium orthovanadate) crystals have become popular in recent times due to progress in crystal growth and also interest in diode pumping. Vanadate crystals have natural birefringent properties that helps prevent thermally induced depolarization loss in high-power lasers. These crystals have typical laser emission wavelength of 1064nm, 914nm and 1342nm. In the emission of 1342nm, the emission line is much stronger than its counter-part Nd:YAG.


Nd:YVO4 boasts a high level of pump absorption, gain, gain bandwidth, wavelength pumping range, shorter upper-state lifetime, high refractive index, low thermal conductivity and birefringence. Applications of Nd:YVO4 includes passive mode-locked laser with high pulse repetition rate of up to 160GHz and short Q-switched pulses.



General Specifications

Material

Nd:YVO4

Dimension Tolerance(mm)

±0.1

Surface   Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

>1 MW/cm2  for 1064nm



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Thickness (mm)

Dimension (mm)


Search Reset
Compare Model Drawings & Specs Coating Dimension (mm) Thickness (mm) Doping Availability Reference Price
(USD)
Nd:YVO4-LC-2-5
Nd:YVO4, Laser Crystal, Dimension=2x2mm, Thickness=5mm 		AR-coating: 808/1064nm2x250.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-3-5
Nd:YVO4, Laser Crystal, Dimension=3x3mm, Thickness=5mm 		AR-coating: 808/1064nm3x350.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-3-10
Nd:YVO4, Laser Crystal, Dimension=3x3mm, Thickness=10mm 		AR-coating: 808/1064nm3x3100.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-1.5-0.3
Nd:YVO4, Laser Crystal, Dimension=1.5x1.5mm, Thickness=0.3mm 		AR-coating: 808nm1.5x1.50.30.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-1.5-0.2
Nd:YVO4, Laser Crystal, Dimension=1.5x1.5mm, Thickness=0.2mm 		AR-coating: 808nm1.5x1.50.20.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-3-0.3
Nd:YVO4, Laser Crystal, Dimension=3x3mm, Thickness=0.3mm 		AR-coating: 808nm3x30.30.5-3% 2-3 Weeks Request for quote
Nd:YVO4-LC-3-0.2
Nd:YVO4, Laser Crystal, Dimension=3x3mm, Thickness=0.2mm 		AR-coating: 808nm3x30.20.5-3% 2-3 Weeks Request for quote

Nd:YVO4-LC-3-0.2 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
3x3

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
0.2

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-3-0.3 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
3x3

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
0.3

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-1.5-0.2 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
1.5x1.5

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
0.2

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-1.5-0.3 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
1.5x1.5

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
0.3

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-3-10 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808/1064nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
3x3

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
10

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-3-5 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808/1064nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
3x3

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
5

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-2-5 - Parameter

Material
Nd:YVO4

Coating
AR-coating: 808/1064nm

Thickness Tolerance (mm)
±0.1

Surface Quality
10/5

Dimension (mm)
2x2

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
5

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
0.5-3%

Nd:YVO4-LC-3-0.2 - Download

Nd:YVO4-LC-3-0.3 - Download

Nd:YVO4-LC-1.5-0.2 - Download

Nd:YVO4-LC-1.5-0.3 - Download

Nd:YVO4-LC-3-10 - Download

Nd:YVO4-LC-3-5 - Download

Nd:YVO4-LC-2-5 - Download
