Nd:KGW | SIMTURM Photonics Store

Products / Optics /Crystals /Laser Crystals /Nd:KGW /

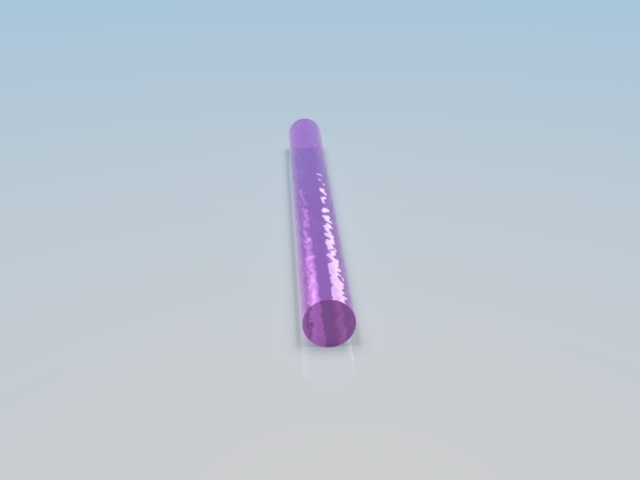

Nd:KGW
Overview Order Now!

Neodymium doped Potassium-Gadolinium Tungstate (Nd:KGW) crystal are excellent laser gain mediums as they have low lasing threshold and high emission sections. They have high optical quality and high bulk resistance to laser radiation. Nd:KGW has much larger output compared to Nd:YAG and a very long crystal lifetime.


It has Raman properties that allows it to produce high intensity Raman peaks and shift readings. The luminescence of Nd:KGW is also very broad and allows it to generate sub picosecond pulses. Applications of Nd:KGW includes diode-pump Q-switched for laser range fingers and Raman converters.


General Specifications

Material

Nd:KGW

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

20000 MW/cm2



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Length (mm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Coating Length (mm) Diameter (mm) Orientation (Θ/φ) (°) Availability Reference Price
(USD)
Nd:KGW-LC-3-50
Nd:KGW, Laser Crystal, Ø=3mm, Length=50mm 		503[010] ±30 min 2-3 Weeks Request for quote
Nd:KGW-LC-9-7
Nd:KGW, Laser Crystal, Ø=9mm, Length=7mm 		9[010] ±30 min 2-3 Weeks Request for quote
Nd:KGW-LC-5-70
Nd:KGW, Laser Crystal, Ø=5mm, Length=70mm 		5[010] ±30 min 2-3 Weeks Request for quote

Nd:KGW-LC-5-70 - Parameter

Material
Nd:KGW

Coating

Diameter (mm)
5

Diameter Tolerance (mm)
±0.1

Surface Quality
10/5

Length (mm)

Length Tolerance (mm)
±0.1

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
[010] ±30 min

Doping
undoped

Nd:KGW-LC-9-7 - Parameter

Material
Nd:KGW

Coating

Diameter (mm)
9

Diameter Tolerance (mm)
±0.1

Surface Quality
10/5

Length (mm)

Length Tolerance (mm)
±0.1

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
[010] ±30 min

Doping

Nd:KGW-LC-3-50 - Parameter

Material
Nd:KGW

Coating

Diameter (mm)
3

Diameter Tolerance (mm)
±0.1

Surface Quality
10/5

Length (mm)
50

Length Tolerance (mm)
±0.1

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
[010] ±30 min

Doping

Nd:KGW-LC-5-70 - Download

Nd:KGW-LC-9-7 - Download

Nd:KGW-LC-3-50 - Download
