Absorptive Neutral Density Filters 450-650nm Coating | SIMTRUM Photonics Store

Products / Optics /Filters /Neutral Density Filters /Absorptive Neutral Density Filters 450-650nm Coating /
Absorptive Neutral Density Filters 450-650nm Coating
Overview Coating Graphs Order Now!

Absorptive ND Filters make use of a coating to allow a specific wavelength range to be absorbed, while the others are transmitted. Such coatings usually have a reflection rate of less than 0.5%. They can also be due to the material and thickness of the material, which has a specific optical density of the glass type. Hence, allowing the absorption of the blocked wavelength range.


The level of attenuation is specified by the Optical Density (OD) of the filter. OD is defined as negative of base 10 logarithm of the transmission coeeficient, where the equation can be shown as:

OD = - Log10(T/100)


Where T is transmission in percentage,

e.g. Nutral Density Filter with T = 1% has OD value of 2

General Specifications

Material

Schott Glass

Type

Absorptive Neutral Density Filter

Bandpass Region(nm)

400-700

Dimension Tolerance(mm)

+0/-0.2

Thickness Tolerance(mm)

± 0.2

Flatness

˂2λ@633nm

Surface Quality

40/20

Clear Aperture

>90%

Parallelism(arcmin)

<5

Chamfer

<0.5mmx45°

Damage Threshold(pulsed)

7.5 J/cm² (10ns/10Hz)


Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line's information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us




We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Optical Density

Dimension (mm)


Search Reset

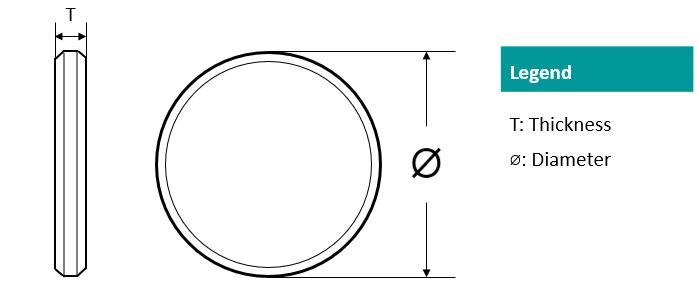

Compare Model Drawings & Specs Dimension (mm) Optical Density Peak Transmittance (%) Bandpass Region (nm) Availability Reference Price
(USD)
SCH-ANDF-25-0.1-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.1,Bandpass Region: 400-700nm 		25.40.181.283400-700 2-3 Weeks Request for quote
SCH-ANDF-25-0.2-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.2,Bandpass Region: 400-700nm 		25.40.266.069400-700 2-3 Weeks Request for quote
SCH-ANDF-25-0.3-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.3,Bandpass Region: 400-700nm 		25.40.353.703400-700 2-3 Weeks Request for quote
SCH-ANDF-25-0.4-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.4,Bandpass Region: 400-700nm 		25.40.443.652400-700 2-3 Weeks Request for quote
SCH-ANDF-25-0.5-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.5,Bandpass Region: 400-700nm 		25.40.535.481400-700 2-3 Weeks Request for quote
SCH-ANDF-25-0.8-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=0.8,Bandpass Region: 400-700nm 		25.40.819.055400-700 2-3 Weeks Request for quote
SCH-ANDF-25-1-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=1,Bandpass Region: 400-700nm 		25.40.112.589400-700 2-3 Weeks Request for quote
SCH-ANDF-25-2-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=2,Bandpass Region: 400-700nm 		25.421.585400-700 2-3 Weeks Request for quote
SCH-ANDF-25-3-U
Schott Glass,Absorptive Neutral Density Filter,Ø=25mm, Optical Density=3,Bandpass Region: 400-700nm 		25.40.30.2400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.1-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.1,Bandpass Region: 400-700nm 		500.181.283400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.2-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.2,Bandpass Region: 400-700nm 		500.266.069400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.3-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.3,Bandpass Region: 400-700nm 		500.353.703400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.4-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.4,Bandpass Region: 400-700nm 		500.443.652400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.5-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.5,Bandpass Region: 400-700nm 		500.535.481400-700 2-3 Weeks Request for quote
SCH-ANDF-50-0.8-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=0.8,Bandpass Region: 400-700nm 		500.819.055400-700 2-3 Weeks Request for quote
SCH-ANDF-50-1-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=1,Bandpass Region: 400-700nm 		500.112.589400-700 2-3 Weeks Request for quote
SCH-ANDF-50-2-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=2,Bandpass Region: 400-700nm 		5021.585400-700 2-3 Weeks Request for quote
SCH-ANDF-50-3-U
Schott Glass,Absorptive Neutral Density Filter,Ø=50mm, Optical Density=3,Bandpass Region: 400-700nm 		500.30.2400-700 2-3 Weeks Request for quote

SCH-ANDF-50-3-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.3

Peak Transmittance (%)
0.2

Bandpass Region (nm)
400-700

SCH-ANDF-50-2-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
2

Peak Transmittance (%)
1.585

Bandpass Region (nm)
400-700

SCH-ANDF-50-1-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.1

Peak Transmittance (%)
12.589

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.8-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.8

Peak Transmittance (%)
19.055

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.5-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.5

Peak Transmittance (%)
35.481

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.4-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.4

Peak Transmittance (%)
43.652

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.3-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.3

Peak Transmittance (%)
53.703

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.2-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.2

Peak Transmittance (%)
66.069

Bandpass Region (nm)
400-700

SCH-ANDF-50-0.1-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
50

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.1

Peak Transmittance (%)
81.283

Bandpass Region (nm)
400-700

SCH-ANDF-25-3-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.3

Peak Transmittance (%)
0.2

Bandpass Region (nm)
400-700

SCH-ANDF-25-2-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
2

Peak Transmittance (%)
1.585

Bandpass Region (nm)
400-700

SCH-ANDF-25-1-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.1

Peak Transmittance (%)
12.589

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.8-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.8

Peak Transmittance (%)
19.055

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.5-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.5

Peak Transmittance (%)
35.481

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.4-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.4

Peak Transmittance (%)
43.652

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.3-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.3

Peak Transmittance (%)
53.703

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.2-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.2

Peak Transmittance (%)
66.069

Bandpass Region (nm)
400-700

SCH-ANDF-25-0.1-U - Parameter

Type
Absorptive Neutral Density Filter

Material
Schott Glass

Thickness Tolerance (mm)
± 0.2

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimension (mm)
25.4

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<5

Flatness
˂2λ@633nm

Optical Density
0.1

Peak Transmittance (%)
81.283

Bandpass Region (nm)
400-700

SCH-ANDF-50-3-U - Download

SCH-ANDF-50-2-U - Download

SCH-ANDF-50-1-U - Download

SCH-ANDF-50-0.8-U - Download

SCH-ANDF-50-0.5-U - Download

SCH-ANDF-50-0.4-U - Download

SCH-ANDF-50-0.3-U - Download

SCH-ANDF-50-0.2-U - Download

SCH-ANDF-50-0.1-U - Download

SCH-ANDF-25-3-U - Download

SCH-ANDF-25-2-U - Download

SCH-ANDF-25-1-U - Download

SCH-ANDF-25-0.8-U - Download

SCH-ANDF-25-0.5-U - Download

SCH-ANDF-25-0.4-U - Download

SCH-ANDF-25-0.3-U - Download

SCH-ANDF-25-0.2-U - Download

SCH-ANDF-25-0.1-U - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
