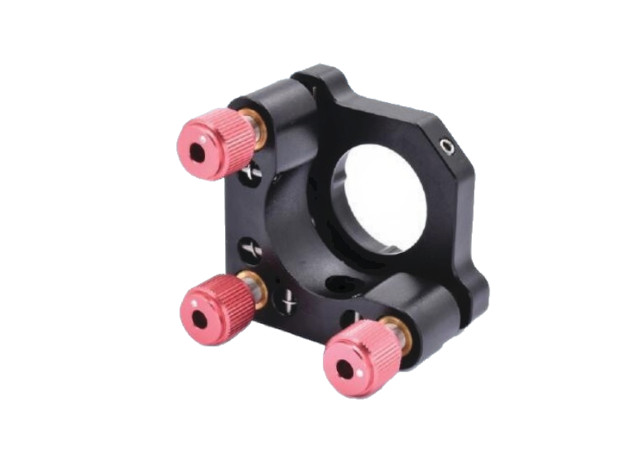

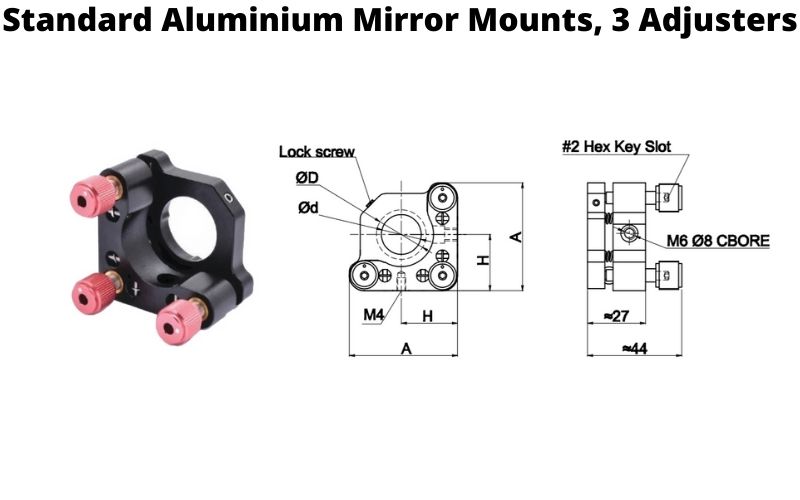

Standard Aluminium Mirror Mounts, 3 Adjusters

• Securely mounts ⌀20mm, ⌀25.4mm, ⌀30mm, ⌀40mm, ⌀50.8mm optics

• Bigger range of angular and linear adjustments as compared to mounts with 2

adjusters

• Suitable for ≥2mm optic thickness

12.7mm Optical Posts

12.7mm Optical Post Holders

Mirrors

Simtrum Part No.	A x A	Outer Diameter (mm)	Inner Diameter (mm)	Hole size	Thickness (mm)	Pack Deal (Pack of 5)
KLMT-20-M4	50 x 50	20	18.5	M4	≥2mm	No
KLMT-25.4-M4	50 x 50	25.4	23.9	M4	≥2mm	No
KLMT-30-M4	52 x 52	30	28.5	M4	≥2mm	No
KLMT-40-M4	62 x 62	40	38.5	M4	≥2mm	No
KLMT-50.8-M4	69 x 69	50.8	48.8	M4	≥2mm	No
The information in the chart above is a general guide to choosing the suitable standard aluminium mirror mounts with 3 adjusters for your optomechanical setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Thickness (mm)	Hole size (mm)	Outer Diameter	Inner Diameter	Availability	Reference Price (USD)
KLMT-20-M4 3D Kinematic Mirror/Lens Mount for ⌀20mm Optics, M4 Tapped Holes, 3 Adjusters	≥2mm	M4	20	18.5	4-6 Weeks	$46.00
KLMT-25.4-M4 3D Kinematic Mirror/Lens Mount for ⌀25.4mm Optics, M4 Tapped Holes, 3 Adjusters	≥2mm	M4	25.4	23.9	4-6 Weeks	$46.00
KLMT-30-M4 3D Kinematic Mirror/Lens Mount for ⌀30mm Optics, M4 Tapped Holes, 3 Adjusters	≥2mm	M4	30	28.5	4-6 Weeks	$48.00
KLMT-40-M4 3D Kinematic Mirror/Lens Mount for ⌀40mm Optics, M4 Tapped Holes, 3 Adjusters	≥2mm	M4	40	38.5	4-6 Weeks	$48.00
KLMT-50.8-M4 3D Kinematic Mirror/Lens Mount for ⌀50.8mm Optics, M4 Tapped Holes, 3 Adjusters	≥2mm	M4	50.8	48.8	4-6 Weeks	$52.00
