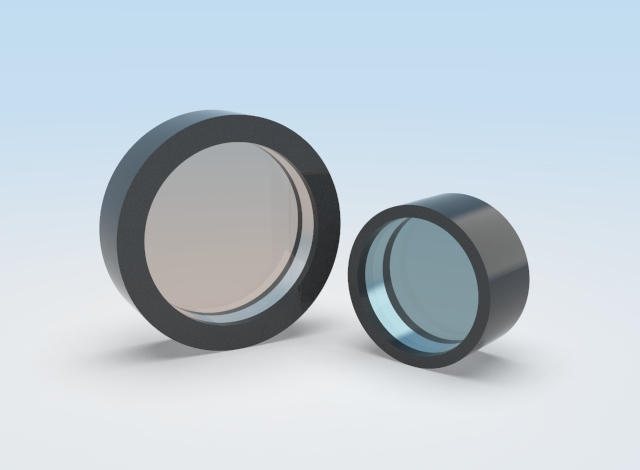

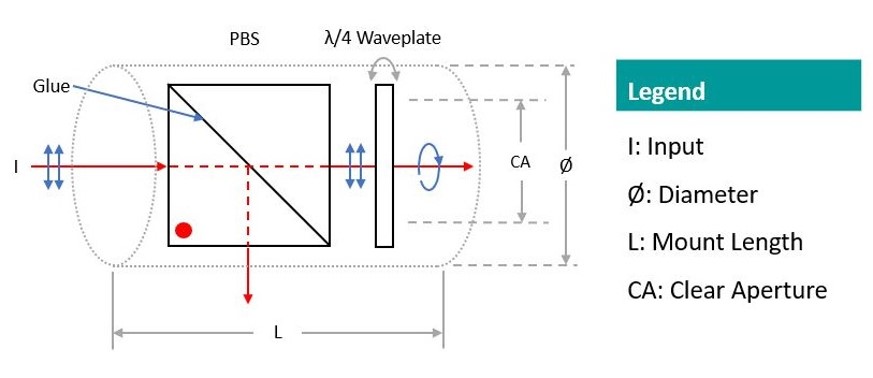

Circular Polarizer is made from a combination of Polarizing Beamsplitter Cube and a Zero Order Quarter Waveplate. By rotating the waveplate, this polarizer is able to generate circular, elliptical, or linearly polarized light. Quartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.

General Specifications
Type	Variable Circular Polarizer
Material	Quartz
Retardation Tolerance	λ/300 (Typical)
Diameter Tolerance (mm)	+0/-0.2
Length Tolerance(mm)	±0.2
Extinction Ratio	Tp/Ts>1000:1
Clear Aperture	10mm
Surface Quality	40/20
Wavefront Distortion	<λ/4@633nm for cube <λ/8@633nm for waveplate
Damage Threshold(pulsed)	>500mJ/cm²(20ns 20Hz @1064nm)

Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Coating	Design Wavelength (nm)	Length (mm)	Diameter (mm)	Availability	Reference Price (USD)
Q-VCP-25.4-1064 Quartz, Variable Circular Polarizer, Ø= 25.4mm, Design Wavelength= 1064nm	R<0.25% @1064nm	1064	31.75	25.4	2-3 Weeks	Request for quote
Q-VCP-25.4-1550 Quartz, Variable Circular Polarizer, Ø= 25.4mm, Design Wavelength= 1550nm	R<0.25% @1550nm	1550	31.75	25.4	2-3 Weeks	Request for quote
Q-VCP-25.4-532 Quartz, Variable Circular Polarizer, Ø= 25.4mm, Design Wavelength= 532nm	R<0.25% @532nm	532	31.75	25.4	2-3 Weeks	Request for quote
Q-VCP-25.4-633 Quartz, Variable Circular Polarizer, Ø= 25.4mm, Design Wavelength= 633nm	R<0.25% @633nm	633	31.75	25.4	2-3 Weeks	Request for quote
Q-VCP-25.4-780 Quartz, Variable Circular Polarizer, Ø= 25.4mm, Design Wavelength= 780nm	R<0.25% @780nm	780	31.75	25.4	2-3 Weeks	Request for quote
