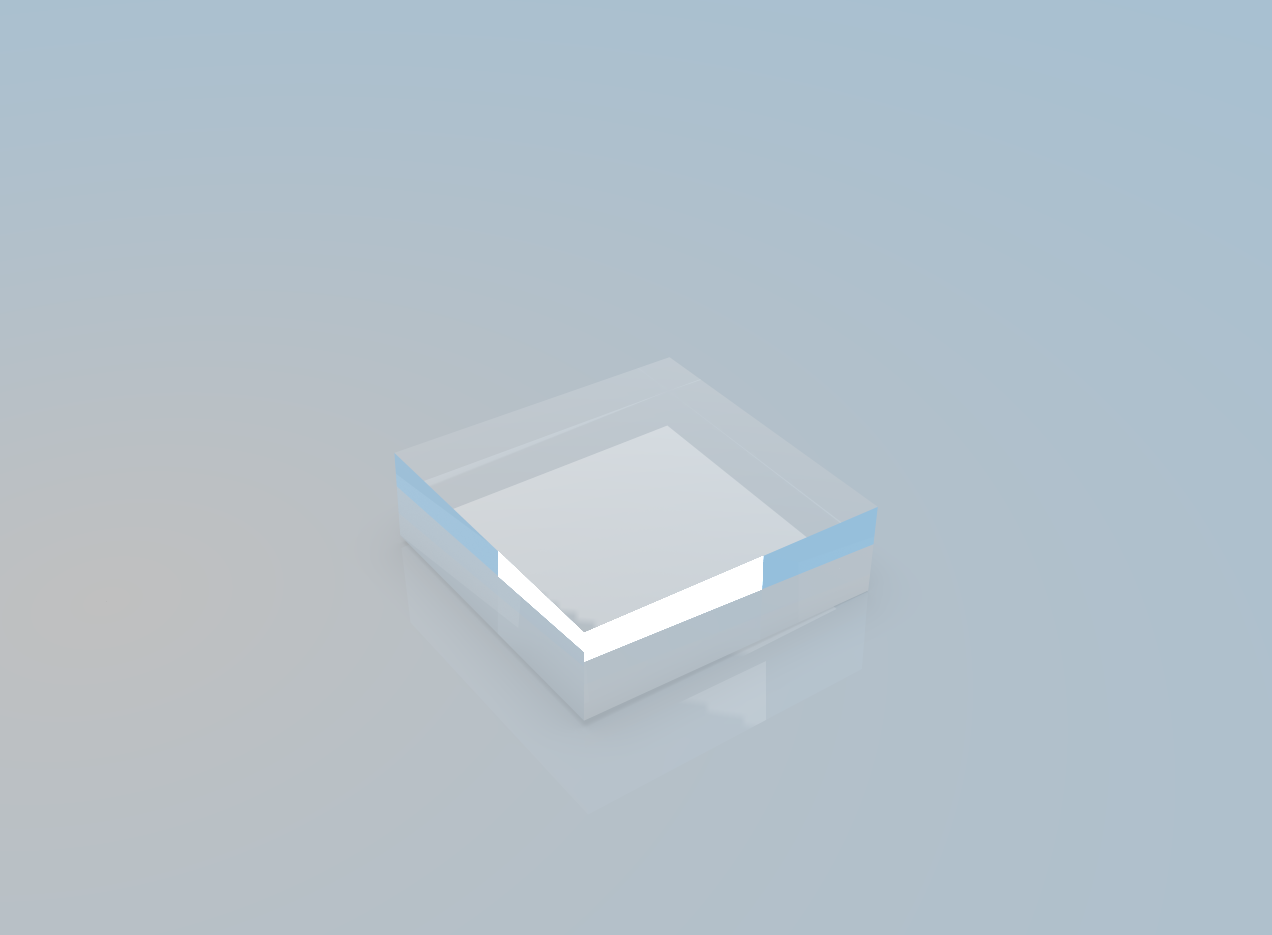

LiIO3 | SIMTRUM Photonics Store

Material

LiIO3

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

500±200 MW/cm²

Typical Application

Type 1

Crystal symmetry

hexagonal

Point group

6

Density

4.487

Mohs Hardness

3.5–4.0

Transparency range, nm

280–4000

Absorption at 1064 nm, cm^-1

< 0.05

Refractive indices at 1064 nm

n_o = 1.8571, n_e = 1.7165

                             at 800 nm

n_o = 1.8676, n_e =   1.7245

                             at 532 nm

n_o = 1.8982, n_e = 1.7480

Phase matching range for Type 1 SHG, nm

570–4000

Acceptances for Type 1 SHG at 1064nm

                                          Angular, mrad×cm

0.77

                                          Spectral, cm^-1×cm

12.74

Walk-off for Type 1 SHG at 1064nm, mrad

74.30

Nonlinear optical coefficient d₃₁, pm/V

4.4 (at 1064 nm)

Effective nonlinearity

d_ooe = d₁₅sinθ

Damage threshold, MW/cm²

> 100 for TEM₀₀, 1064nm, 10ns, 10Hz

Wavelength dispersion of refractive indices (λ – in µm)
