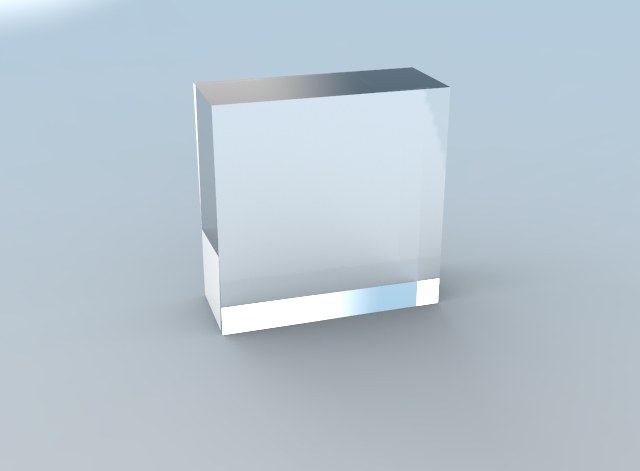

LiNbO3 Crystal has a broad application from the telecommunications to optical waveguide to optical modulators. Its being widely used as frequency doublers for wavelength >1μm and optical parametric oscillators (OPOs) pumped at 1064 nm as well as quasi-phase-matched (QPM) devices. Moreover, due to its large Electro-Optic(E-O) and Acousto-Optic(A-O) coefficients, LiNbO3 crystal is the most commonly used material for Pockel Cells, Q-switches and phase modulators, waveguide substrate, and surface acoustic wave(SAW) wafers.

General Specifications
Material	LN
Coating	P-Coating
Dimension(mm)	6x6
Dimension Tolerance(mm)	±0.1
Orientation (Θ/φ)(°)	51.1/0
Surface Quality	10/5
Flatness	λ/10
Wavefront Distortion	λ/4
Parallelism(arcsec)	20
Damage Threshold(pulsed)	100 MW/cm² (10 ns, 1064nm)
Mount	Unmounted

Physical Properties and Optical Properties
Chemical formula	LiNbO₃
Crystal structure	trigonal
Space group	R3C
Density	4.64 g/cm³
Mohs hardness	5
Optical homogenity	~ 5 × 10^-5 / cm
Transparency range	420 – 5200 nm
Absorption coefficient	~ 0.1 % / cm @ 1064 nm
Refractive indices at 1064 nm	n_e = 2.146, n_o = 2.220 @ 1300 nm >n_e = 2.156, n_o = 2.232 @ 1064 nm >n_e = 2.203, n_o = 2.286 @ 632.8 nm
Sellmeier equations (λ, μm)	>n_o² = 4.9048 + 0.11768 / (λ² – 0.04750) – 0.027169 λ² >n_o² = 4.5820 + 0.099169 / (λ² – 0.04443) – 0.021950 λ²
Thermal expansion coefficient @ 25 °C	//a, 2.0 × 10^-6 / K //c, 16.7 × 10^-6 / K
Thermal conductivity	~ 5 W/m/K @ 25 °C
Thermal optical coefficient	dn_n/dT = -0.874 × 10-6 / K at 1.4 µm dn_e/dT = 39.073 × 10-6 / K at 1.4 µm

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

	Coating	Dimension (mm)	Thickness (mm)	Orientation (Θ/φ) (°)	Availability	Reference Price (USD)
LN-NLC-51.1/0-6-0.05-P LiNbO3 Nonlinear Crystal, 6x6x0.05	P-Coating	6x6	0.05	51.1/0	2-3 Weeks	Request for quote
LN-NLC-51.1/0-6-0.1-P LiNbO3 Nonlinear Crystal, 6x6x0.01	P-Coating	6x6	0.1	51.1/0	2-3 Weeks	Request for quote
LN-NLC-51.1/0-6-0.2-P LiNbO3 Nonlinear Crystal, 6x6x0.02	P-Coating	6x6	0.2	51.1/0	2-3 Weeks	Request for quote
LN-NLC-51.1/0-6-1-P LiNbO3 Nonlinear Crystal, 6x6x1	P-Coating	6x6	1	51.1/0	2-3 Weeks	Request for quote
LN-NLC-51.1/0-6-2-P LiNbO3 Nonlinear Crystal, 6x6x2	P-Coating	6x6	2	51.1/0	2-3 Weeks	Request for quote
LiNbO3-NLC-9-25 LiNbO3, Non-Linear Crystals, Dimension=9x9mm, Thickness=25mm	AR/AR @ 1064 nm	9x9	25		2-3 Weeks	Request for quote
LiNbO3-NLC-6-25 LiNbO3, Non-Linear Crystals, Dimension=6x6mm, Thickness=25mm	AR/AR @ 1064 nm	6x6	25		2-3 Weeks	Request for quote
