Products / Cemented Achromatic Half Waveplates /

Cemented Achromatic Half Waveplates

Overview Specifications and Graphs Order Now!

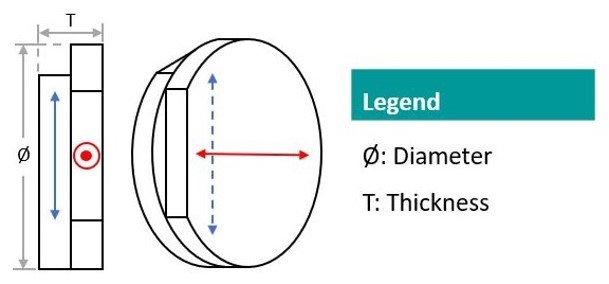

Achromatic Half Waveplates are made from two different birefringent quartz plate with a fast axis quartz plate aligning with slow axis of magnesium fluoride. This allow a retardation value of λ/2 to be achieved across the range of wavelengths targeted.

Cemented Achromatic Half Waveplates have their two components bonded together through cementing. They have a smaller temperature range as the cement could be damaged by a high-powered laser. The beam deviation is relatively around an arc minutes range with a lower transmitted wavefront tolerance. However, this is still useful in low power situations and is economical.

General Specifications
Type	Cemented Achromatic Half Waveplate
Material	Quartz+MgF2
Retardation	λ/2
Retardation Tolerance	λ/100
Dimensional Tolerance(mm)	+0/-0.2
Thickness Tolerance(mm)	±0.1
Parallelism(arcsec)	<10
Clear Aperture	>80%
Surface Quality	40/20
Wavefront Distortion	<λ/4@633nm
Damage Threshold(pulsed)	>500mJ/cm²(20ns 20Hz 1064nm)

Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Design Wavelength (nm)

Diameter (mm)

Search Reset

	Design Wavelength (nm)	Retardation	Diameter (mm)	Mount Diameter (mm)	Availability	Reference Price (USD)
QM-CAHWP-10-450-650-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @450-650nm	450-650	λ/2	10	25.4	2-3 Weeks	Request for quote
QM-CAHWP-10-550-750-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @550-750nm	550-750	λ/2	10	25.4	2-3 Weeks	Request for quote
QM-CAHWP-10-650-1100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @650-1100nm	650-1100	λ/2	10	25.4	2-3 Weeks	Request for quote
QM-CAHWP-10-900-2100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 10mm, AR Coating: R<1% @900-2100nm	900-2100	λ/2	10	25.4	2-3 Weeks	Request for quote
QM-CAHWP-15-450-650-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @450-650nm	450-650	λ/2	15	25.4	2-3 Weeks	Request for quote
QM-CAHWP-15-550-750-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @550-750nm	550-750	λ/2	15	25.4	2-3 Weeks	Request for quote
QM-CAHWP-15-650-1100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @650-1100nm	650-1100	λ/2	15	25.4	2-3 Weeks	Request for quote
QM-CAHWP-15-900-2100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 15mm, AR Coating: R<1% @900-2100nm	900-2100	λ/2	15	25.4	2-3 Weeks	Request for quote
QM-CAHWP-20-450-650-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @450-650nm	450-650	λ/2	20	25.4	2-3 Weeks	Request for quote
QM-CAHWP-20-550-750-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @550-750nm	550-750	λ/2	20	25.4	2-3 Weeks	Request for quote
QM-CAHWP-20-650-1100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @650-1100nm	650-1100	λ/2	20	25.4	2-3 Weeks	Request for quote
QM-CAHWP-20-900-2100-M Quartz+MgF2, Cemented Achromatic Half Waveplate, Ø= 20mm, AR Coating: R<1% @900-2100nm	900-2100	λ/2	20	25.4	2-3 Weeks	Request for quote

QM-CAHWP-20-900-2100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @900-2100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

900-2100

Surface Quality

40/20

Clear Aperture

18mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-20-650-1100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @650-1100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

650-1100

Surface Quality

40/20

Clear Aperture

18mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-20-550-750-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @550-750nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

550-750

Surface Quality

40/20

Clear Aperture

18mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-20-450-650-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @450-650nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

450-650

Surface Quality

40/20

Clear Aperture

18mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-15-900-2100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @900-2100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

900-2100

Surface Quality

40/20

Clear Aperture

13.5mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-15-650-1100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @650-1100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

650-1100

Surface Quality

40/20

Clear Aperture

13.5mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-15-550-750-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @550-750nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

550-750

Surface Quality

40/20

Clear Aperture

13.5mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-15-450-650-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @450-650nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

450-650

Surface Quality

40/20

Clear Aperture

13.5mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-10-900-2100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @900-2100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

900-2100

Surface Quality

40/20

Clear Aperture

8mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-10-650-1100-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @650-1100nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

650-1100

Surface Quality

40/20

Clear Aperture

8mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-10-550-750-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @550-750nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

550-750

Surface Quality

40/20

Clear Aperture

8mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2

QM-CAHWP-10-450-650-M - Parameter

Type

Cemented Achromatic Half Waveplate

Material

Quartz+MgF2

Coating

R<1% @450-650nm

Diameter (mm)

Thickness Tolerance (mm)

±0.1

Design Wavelength (nm)

450-650

Surface Quality

40/20

Clear Aperture

8mm

Damage Threshold (pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)

+0/-0.2

Thickness (mm)

Wavefront Distortion

<λ/4@633nm

Parallelism (arcsec)

<10

Retardation

λ/2

Retardation Tolerance

<λ/100

Mount Diameter (mm)

25.4

Mount Thickness (mm)

Mount Diameter Tolerance (mm)

+0/-0.2

Mount Thickness Tolerance (mm)

±0.2
