Cemented Achromatic Quarter Waveplates | SIMTRUM Photonics Store

Products / Cemented Achromatic Quarter Waveplates /
Cemented Achromatic Quarter Waveplates
Overview Specifications and Graphs Order Now!

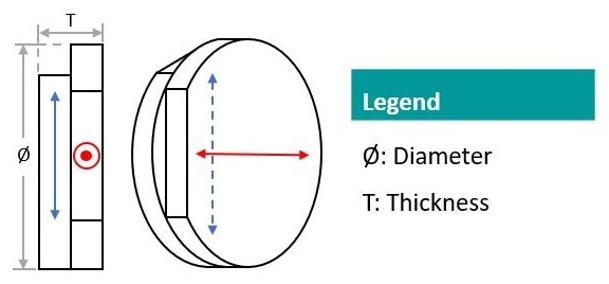

Achromatic Quarter Waveplates are made from two different birefringent quartz plate with a fast axis quartz plate aligning with slow axis of magnesium fluoride. This allow a retardation value of λ/4 to be achieved across the range of wavelengths targeted.


Cemented Achromatic Quarter Waveplates have their two components bonded together through cementing. They have a smaller temperature range as the cement could be damaged by a high-powered laser. The beam deviation is relatively around an arc minutes range with a lower transmitted wavefront tolerance. However, this is still useful in low power situations and is economical.


General Specifications

Type

Cemented Achromatic Quarter Waveplate

Material

Quartz+MgF2

Retardation

λ/4

Retardation Tolerance

λ/100

Dimensional Tolerance(mm)

+0/-0.2

Thickness Tolerance(mm)

±0.1

Parallelism(arcsec)

<10

Parallelism(arcmin)

<3

Clear Aperture

>80%

Surface Quality

40/20

Wavefront Distortion

<λ/4@633nm

Damage Threshold(pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Retardation Diameter (mm) Mount Diameter (mm) Availability Reference Price
(USD)
QM-CAQWP-10-450-650-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 10mm, AR Coating: R<1%@450-650nm 		450-650λ/41025.4 2-3 Weeks Request for quote
QM-CAQWP-10-550-750-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 10mm, AR Coating: R<1%@550-750nm 		550-750λ/41025.4 2-3 Weeks Request for quote
QM-CAQWP-10-650-1100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 10mm, AR Coating: R<1%@650-1100nm 		650-1100λ/41025.4 2-3 Weeks Request for quote
QM-CAQWP-10-900-2100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 10mm, AR Coating: R<1%@900-1800nm 		900-2100 λ/41025.4 2-3 Weeks Request for quote
QM-CAQWP-15-450-650-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 15mm, AR Coating: R<1%@450-650nm 		450-650λ/41525.4 2-3 Weeks Request for quote
QM-CAQWP-15-550-750-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 15mm, AR Coating: R<1%@550-750nm 		550-750λ/41525.4 2-3 Weeks Request for quote
QM-CAQWP-15-650-1100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 15mm, AR Coating: R<1%@650-1100nm 		650-1100λ/41525.4 2-3 Weeks Request for quote
QM-CAQWP-15-900-2100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 15mm, AR Coating: R<1%@900-1800nm 		900-2100 λ/41525.4 2-3 Weeks Request for quote
QM-CAQWP-20-450-650-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 20mm, AR Coating: R<1%@450-650nm 		450-650λ/42025.4 2-3 Weeks Request for quote
QM-CAQWP-20-550-750-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 20mm, AR Coating: R<1%@550-750nm 		550-750λ/42025.4 2-3 Weeks Request for quote
QM-CAQWP-20-650-1100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 20mm, AR Coating: R<1%@650-1100nm 		650-1100λ/42025.4 2-3 Weeks Request for quote
QM-CAQWP-20-900-2100-M
Quartz+MgF2, Cemented Achromatic Quarter Waveplate, Ø= 20mm, AR Coating: R<1%@900-1800nm 		900-2100 λ/42025.4 2-3 Weeks Request for quote

QM-CAQWP-20-900-2100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@900-1800nm

Diameter (mm)
20

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-20-650-1100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@650-1100nm

Diameter (mm)
20

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-20-550-750-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@550-750nm

Diameter (mm)
20

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-20-450-650-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@450-650nm

Diameter (mm)
20

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
18mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-15-900-2100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@900-1800nm

Diameter (mm)
15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-15-650-1100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@650-1100nm

Diameter (mm)
15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-15-550-750-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@550-750nm

Diameter (mm)
15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-15-450-650-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@450-650nm

Diameter (mm)
15

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
13.5mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-10-900-2100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@900-1800nm

Diameter (mm)
10

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
900-2100

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-10-650-1100-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@650-1100nm

Diameter (mm)
10

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
650-1100

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-10-550-750-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@550-750nm

Diameter (mm)
10

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
550-750

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-10-450-650-M - Parameter

Type
Cemented Achromatic Quarter Waveplate

Material
Quartz+MgF2

Coating
R<1%@450-650nm

Diameter (mm)
10

Thickness Tolerance (mm)
± 0.1

Design Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
8mm

Damage Threshold (pulsed)
>500mJ/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Parallelism (arcmin)
<3

Wavefront Distortion
<λ/4@633nm

Parallelism (arcsec)
<10

Retardation
λ/4

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

QM-CAQWP-20-900-2100-M - Download

Download

Download

Download

Download

QM-CAQWP-20-650-1100-M - Download

Download

Download

Download

Download

QM-CAQWP-20-550-750-M - Download

Download

Download

Download

Download

QM-CAQWP-20-450-650-M - Download

Download

Download

Download

Download

QM-CAQWP-15-900-2100-M - Download

Download

Download

Download

Download

QM-CAQWP-15-650-1100-M - Download

Download

Download

Download

Download

QM-CAQWP-15-550-750-M - Download

Download

Download

Download

Download

QM-CAQWP-15-450-650-M - Download

Download

Download

Download

Download

QM-CAQWP-10-900-2100-M - Download

Download

Download

Download

Download

QM-CAQWP-10-650-1100-M - Download

Download

Download

Download

Download

QM-CAQWP-10-550-750-M - Download

Download

Download

Download

Download

QM-CAQWP-10-450-650-M - Download

Download

Download

Download

Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
