Air Spaced Zero Order Quarter Waveplates
Overview Specifications and Graphs Order Now!

Quartz Zero Order Quarter Waveplates are built using two Quartz Multi Order Waveplates to obtain a retardation value of λ/4. By aligning the fast axes of the two waveplates with difference, we can achieve the desired phase difference of π/2. The Multi Order Waveplates can then be combined to form Zero Order Waveplates.


Air Spaced Zero Order Quarter Waveplates have their two components separated such that the problems that would arise are limited. This type of waveplates can have a higher laser damage threshold and greater temperature range while maintaining excellent beam deviation and transmitted wavefront. However, it is also of a higher cost.



Quartz are excellent birefringent crystals. Due to its high UV, VIS, and NIR transmittance, and its ability to rotate polarized light and high damage threshold, it is very useful for transmittance from 190-2900nm wavelength. With high hardness properties, it is commonly used in the retardation plate. Quartz can exhibit circular birefringence allowing the ordinary and extraordinary beam to propagate with the same velocity using the same refractive index. Hence its effect is useful in rotators.


General Specifications

Type

Air Spaced Zero Order Quarter Waveplate

Material

Quartz

Retardation

λ/4

Dimensional Tolerance(mm)

+0/-0.2

Parallelism(arcsec)

<1

Clear Aperture

>80%

Surface Quality

20/10

Wavefront Distortion

<λ/8@633nm

Damage Threshold(pulsed)

>10J/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Design Wavelength (nm) Diameter (mm) Mount Diameter (mm) Availability Reference Price
(USD)
Q-AZQWP-10-1030-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@1030nm 		10301025.4 In Stock Request for quote
Q-AZQWP-10-1053-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@1053nm 		10531025.4 In Stock Request for quote
Q-AZQWP-10-1064-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@1064nm 		10641025.4 In Stock Request for quote
Q-AZQWP-10-266-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@266nm 		2661025.4 In Stock Request for quote
Q-AZQWP-10-355-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@355nm 		3551025.4 In Stock Request for quote
Q-AZQWP-10-405-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@405nm 		4051025.4 In Stock Request for quote
Q-AZQWP-10-488-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@488nm 		4881025.4 In Stock Request for quote
Q-AZQWP-10-532-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@532nm 		5321025.4 In Stock Request for quote
Q-AZQWP-10-980-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 10mm, AR Coating: R<0.25%@980nm 		9801025.4 In Stock Request for quote
Q-AZQWP-12.7-1030-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@1030nm 		103012.725.4 In Stock Request for quote
Q-AZQWP-12.7-1053-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@1053nm 		105312.725.4 In Stock Request for quote
Q-AZQWP-12.7-1064-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@1064nm 		106412.725.4 In Stock Request for quote
Q-AZQWP-12.7-266-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@266nm 		26612.725.4 In Stock Request for quote
Q-AZQWP-12.7-355-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@355nm 		35512.725.4 In Stock Request for quote
Q-AZQWP-12.7-405-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@405nm 		40512.725.4 In Stock Request for quote
Q-AZQWP-12.7-488-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@488nm 		48812.725.4 In Stock Request for quote
Q-AZQWP-12.7-532-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@532nm 		53212.725.4 In Stock Request for quote
Q-AZQWP-12.7-980-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 12.7mm, AR Coating: R<0.25%@980nm 		98012.725.4 In Stock Request for quote
Q-AZQWP-20-1030-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@1030nm 		10302025.4 In Stock Request for quote
Q-AZQWP-20-1053-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@1053nm 		10532025.4 2-3 Weeks Request for quote
Q-AZQWP-20-1064-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@1064nm 		10642025.4 2-3 Weeks Request for quote
Q-AZQWP-20-266-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@266nm 		2662025.4 2-3 Weeks Request for quote
Q-AZQWP-20-355-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@355nm 		3552025.4 2-3 Weeks Request for quote
Q-AZQWP-20-405-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@405nm 		4052025.4 2-3 Weeks Request for quote
Q-AZQWP-20-488-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@488nm 		4882025.4 2-3 Weeks Request for quote
Q-AZQWP-20-532-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@532nm 		5322025.4 2-3 Weeks Request for quote
Q-AZQWP-20-632.8-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@633nm 		632.82025.4 2-3 Weeks Request for quote
Q-AZQWP-20-800-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@800nm 		8002025.4 2-3 Weeks Request for quote
Q-AZQWP-20-808-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@808nm 		8082025.4 2-3 Weeks Request for quote
Q-AZQWP-20-980-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 20mm, AR Coating: R<0.25%@980nm 		9802025.4 2-3 Weeks Request for quote
Q-AZQWP-25.4-1030-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@1030nm 		103025.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-1053-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@1053nm 		105325.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-1064-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@1064nm 		106425.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-266-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@266nm 		26625.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-355-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@355nm 		35525.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-405-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@405nm 		40525.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-488-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@488nm 		48825.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-532-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@532nm 		53225.430 2-3 Weeks Request for quote
Q-AZQWP-25.4-980-M
Quartz, Air Spaced Zero Order Quarter Waveplate, Ø= 25.4mm, AR Coating: R<0.25%@980nm 		98025.430 2-3 Weeks Request for quote

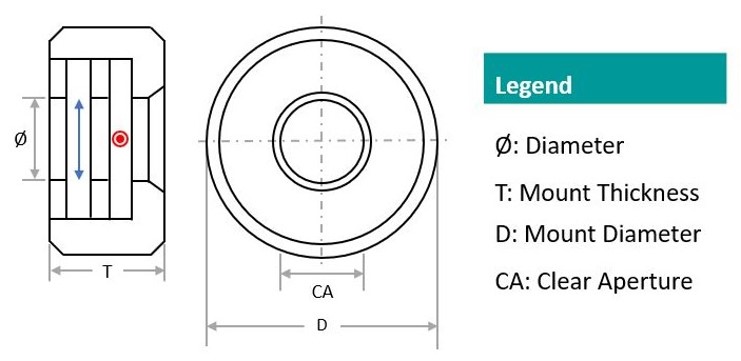

Q-AZQWP-25.4-980-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@980nm

Diameter (mm)
25.4

Design Wavelength (nm)
980

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-532-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@532nm

Diameter (mm)
25.4

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-488-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@488nm

Diameter (mm)
25.4

Design Wavelength (nm)
488

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-405-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@405nm

Diameter (mm)
25.4

Design Wavelength (nm)
405

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-355-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@355nm

Diameter (mm)
25.4

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-266-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@266nm

Diameter (mm)
25.4

Design Wavelength (nm)
266

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-1064-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1064nm

Diameter (mm)
25.4

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-1053-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1053nm

Diameter (mm)
25.4

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-1030-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1030nm

Diameter (mm)
25.4

Design Wavelength (nm)
1030

Surface Quality
20/10

Clear Aperture
22.9mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
30

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-980-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@980nm

Diameter (mm)
20

Design Wavelength (nm)
980

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-808-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating

Diameter (mm)
20

Design Wavelength (nm)
808

Surface Quality
60/40

Clear Aperture
15mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
±0.1

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
λ/500

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.1

Q-AZQWP-20-800-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating

Diameter (mm)
20

Design Wavelength (nm)
800

Surface Quality
60/40

Clear Aperture
15mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
±0.1

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
λ/500

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.1

Q-AZQWP-20-632.8-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@633nm

Diameter (mm)
20

Design Wavelength (nm)
632.8

Surface Quality
60/40

Clear Aperture
15mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
±0.1

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
λ/500

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.1

Q-AZQWP-20-532-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@532nm

Diameter (mm)
20

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-488-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@488nm

Diameter (mm)
20

Design Wavelength (nm)
488

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-405-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@405nm

Diameter (mm)
20

Design Wavelength (nm)
405

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-355-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@355nm

Diameter (mm)
20

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-266-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@266nm

Diameter (mm)
20

Design Wavelength (nm)
266

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-1064-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1064nm

Diameter (mm)
20

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-1053-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1053nm

Diameter (mm)
20

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-20-1030-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1030nm

Diameter (mm)
20

Design Wavelength (nm)
1030

Surface Quality
20/10

Clear Aperture
18mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-980-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@980nm

Diameter (mm)
12.7

Design Wavelength (nm)
980

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-532-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@532nm

Diameter (mm)
12.7

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-488-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@488nm

Diameter (mm)
12.7

Design Wavelength (nm)
488

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-405-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@405nm

Diameter (mm)
12.7

Design Wavelength (nm)
405

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-355-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@355nm

Diameter (mm)
12.7

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-266-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@266nm

Diameter (mm)
12.7

Design Wavelength (nm)
266

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-1064-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1064nm

Diameter (mm)
12.7

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-1053-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1053nm

Diameter (mm)
12.7

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-12.7-1030-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1030nm

Diameter (mm)
12.7

Design Wavelength (nm)
1030

Surface Quality
20/10

Clear Aperture
11.5mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-980-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@980nm

Diameter (mm)
10

Design Wavelength (nm)
980

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-532-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@532nm

Diameter (mm)
10

Design Wavelength (nm)
532

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-488-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@488nm

Diameter (mm)
10

Design Wavelength (nm)
488

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-405-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@405nm

Diameter (mm)
10

Design Wavelength (nm)
405

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-355-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@355nm

Diameter (mm)
10

Design Wavelength (nm)
355

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-266-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@266nm

Diameter (mm)
10

Design Wavelength (nm)
266

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/100

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-1064-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1064nm

Diameter (mm)
10

Design Wavelength (nm)
1064

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-1053-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1053nm

Diameter (mm)
10

Design Wavelength (nm)
1053

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-10-1030-M - Parameter

Type
Air Spaced Quartz Zero Order Quarter Waveplate

Material
Quartz

Coating
R<0.25%@1030nm

Diameter (mm)
10

Design Wavelength (nm)
1030

Surface Quality
20/10

Clear Aperture
8mm

Damage Threshold (pulsed)
>10J/cm²(20ns 20Hz 1064nm)

Dimensional Tolerance (mm)
+0/-0.2

Wavefront Distortion
<λ/8@633nm

Parallelism (arcsec)
<1

Retardation
λ/4

Retardation Tolerance
<λ/300

Mount Diameter (mm)
25.4

Mount Thickness (mm)
6

Mount Diameter Tolerance (mm)
+0/-0.2

Mount Thickness Tolerance (mm)
±0.2

Q-AZQWP-25.4-980-M - Download

Q-AZQWP-25.4-532-M - Download

Q-AZQWP-25.4-488-M - Download

Q-AZQWP-25.4-405-M - Download

Q-AZQWP-25.4-355-M - Download

Q-AZQWP-25.4-266-M - Download

Q-AZQWP-25.4-1064-M - Download

Q-AZQWP-25.4-1053-M - Download

Q-AZQWP-25.4-1030-M - Download

Q-AZQWP-20-980-M - Download

Q-AZQWP-20-808-M - Download

Q-AZQWP-20-800-M - Download

Q-AZQWP-20-632.8-M - Download

Q-AZQWP-20-532-M - Download

Q-AZQWP-20-488-M - Download

Q-AZQWP-20-405-M - Download

Q-AZQWP-20-355-M - Download

Q-AZQWP-20-266-M - Download

Q-AZQWP-20-1064-M - Download

Q-AZQWP-20-1053-M - Download

Q-AZQWP-20-1030-M - Download

Q-AZQWP-12.7-980-M - Download

Q-AZQWP-12.7-532-M - Download

Q-AZQWP-12.7-488-M - Download

Q-AZQWP-12.7-405-M - Download

Q-AZQWP-12.7-355-M - Download

Q-AZQWP-12.7-266-M - Download

Q-AZQWP-12.7-1064-M - Download

Q-AZQWP-12.7-1053-M - Download

Q-AZQWP-12.7-1030-M - Download

Q-AZQWP-10-980-M - Download

Q-AZQWP-10-532-M - Download

Q-AZQWP-10-488-M - Download

Q-AZQWP-10-405-M - Download

Q-AZQWP-10-355-M - Download

Q-AZQWP-10-266-M - Download

Q-AZQWP-10-1064-M - Download

Q-AZQWP-10-1053-M - Download

Q-AZQWP-10-1030-M - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)

Sales Enquiry：+65 6996 0391       Email：info@simtrum.com

Address:Blk 71, #06-03, Ayer Rajah Crescent Singapore 139951

Copyright © 2021 SIMTRUM Pte. Ltd. All right reserved. www.simtrum.com
