Dichroic Sheet Polarizers | SIMTRUM Photonics Store

Products / Optics /Polarization Components /Optical Polarizers /Film Polarizer /Dichroic Sheet Polarizers /
Dichroic Sheet Polarizers
Overview Specifications and Graphs Order Now!

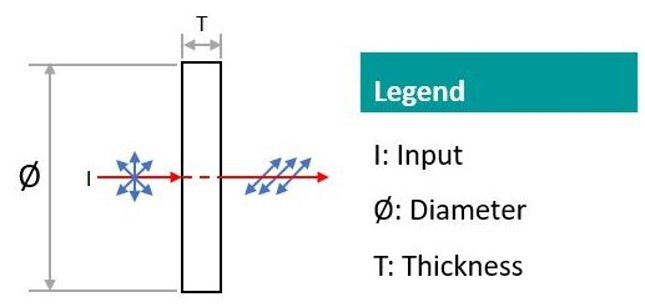

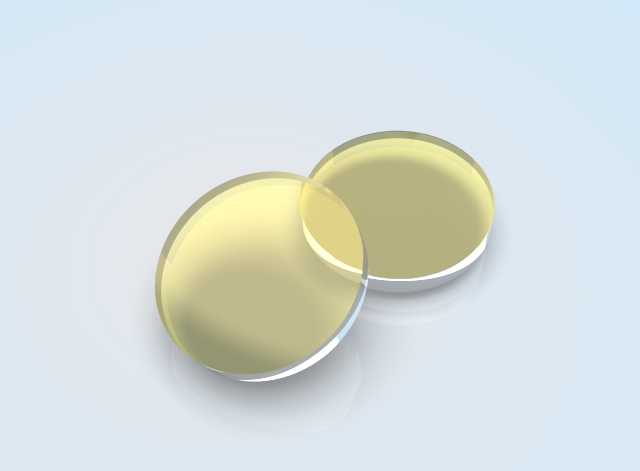

Dichroic Sheet Polarizer is made of dichroic film that is covered with two glass plates. As incoming light beam passes through the polarizer, there will be an orthogonal polarization from the beam that is absorbed while the other is transmitted across. As such, Dichroic Sheet Polarizer is typically used to convert unpolarized beam to linearly polarized beam. Dichroic Sheet Polarizer is able to accommodate a wider angle compared to polarizing prisms, but it is not suitable for high powered applications.






General Specifications

Type

Dichroic Sheet Polarizer

Diameter Tolerance (mm)

+0/-0.2

Thickness Tolerance(mm)

+0/-0.2

Acceptance Angle

>20°

Extinction Ratio

>1000:1

Clear Aperture

>90%

Surface Quality

40/20

Damage Threshold(pulsed)

>10W/cm²



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Design Wavelength (nm)

Diameter (mm)


Search Reset
Compare Model Drawings & Specs Coating Design Wavelength (nm) Extinction Ratio Diameter (mm) Availability Reference Price
(USD)
BB-DSP-12.7-400-700
BK7/B270, Dichroic Sheet Polarizer, Ø= 2.5mm, Uncoated, DWL= 400-700nm 		T> 70% @400-700nm400-700>1000:112.7 2-3 Weeks Request for quote
BB-DSP-25.4-400-700
BK7/B270, Dichroic Sheet Polarizer, Ø= 2.5mm, Uncoated, DWL= 400-700nm 		T> 70% @400-700nm400-700>1000:125.4 2-3 Weeks Request for quote
BB-DSP-50.8-400-700
BK7/B270, Dichroic Sheet Polarizer, Ø= 2.5mm, Uncoated, DWL= 400-700nm 		T> 70% @400-700nm400-700>1000:150.8 2-3 Weeks Request for quote

BB-DSP-50.8-400-700 - Parameter

Type
Dichroic Sheet Polarizer

Material
BK7/B270

Coating
T> 70% @400-700nm

Diameter (mm)
50.8

Diameter Tolerance (mm)
+0.0/-0.2

Thickness Tolerance (mm)
+0/-0.2

Design Wavelength (nm)
400-700

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>10W/cm2

Thickness (mm)
2.5

Extinction Ratio
>1000:1

Acceptance Angle
>20°

BB-DSP-25.4-400-700 - Parameter

Type
Dichroic Sheet Polarizer

Material
BK7/B270

Coating
T> 70% @400-700nm

Diameter (mm)
25.4

Diameter Tolerance (mm)
+0.0/-0.2

Thickness Tolerance (mm)
+0/-0.2

Design Wavelength (nm)
400-700

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>10W/cm2

Thickness (mm)
2.5

Extinction Ratio
>1000:1

Acceptance Angle
>20°

BB-DSP-12.7-400-700 - Parameter

Type
Dichroic Sheet Polarizer

Material
BK7/B270

Coating
T> 70% @400-700nm

Diameter (mm)
12.7

Diameter Tolerance (mm)
+0.0/-0.2

Thickness Tolerance (mm)
+0/-0.2

Design Wavelength (nm)
400-700

Surface Quality
40/20

Clear Aperture
>90%

Damage Threshold (pulsed)
>10W/cm2

Thickness (mm)
2.5

Extinction Ratio
>1000:1

Acceptance Angle
>20°

BB-DSP-50.8-400-700 - Download

BB-DSP-25.4-400-700 - Download

BB-DSP-12.7-400-700 - Download
