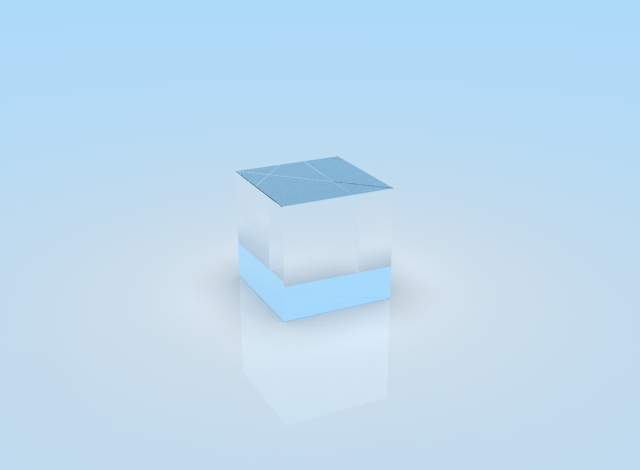

BK7 Broadband Polarization Beamsplitter Cube
Overview Specifications and Graphs Order Now!

Broadband Polarizing Beamsplitter Cube is used to split or combine light spectrum in UV, VIS, or IR wavelengths. As it is a polarizing beamsplitter, the polarization of the outgoing beams remains the same when the incoming beam is a varied polarized light. Being partial-reflective coated mirrors, but often used with the incident of angle at 45°, cube beam splitters consist of a thin cube of optical glass with a different type of coatings.


BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for

precision lenses. It is the ideal choice for general purpose visual and NIR

applications as it has excellent transmission.


General Specifications

Type

Broadband Polarization Beamsplitter Cubes

Material

BK7

Dimensional Tolerance(mm)

±0.2

Angle of Incidence(degree)

0

Extinction Ratio

Tp/Ts>1000:1

Beam Deviation(arcmin)

<3

Flatness

<λ/4@633nm

Clear Aperture

>90%

Surface Quality

40/20

Chamfer

<0.5mmx45°

Damage Threshold(pulsed)

>500mJ/cm²(20ns 20Hz 1064nm)



Update Coming soon!

As our website is in Soft Launch, we are currently updating our website to reflect our full capability.

This product line’s information/specification will be updated soon. The information is available upon request.

Apologies for the inconvenience caused.

Contact Us



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dimension (A=B=C) (mm)

Wavelength (nm)


Search Reset
Compare Model Drawings & Specs Coating Extinction Ratio Wavelength (nm) Dimension (A=B=C) (mm) Availability Reference Price
(USD)
BK7-BPBSC-12.7-1200-1600
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% at 0° AOI from 1200 - 1600nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @1200-1600nmTp/Ts>1000:11200-160012.7 2-3 Weeks Request for quote
BK7-BPBSC-12.7-450-650
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% at 0° AOI from 450 - 650nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @450-650nmTp/Ts>1000:1450-65012.7 2-3 Weeks Request for quote
BK7-BPBSC-12.7-650-900
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% at 0° AOI from 650 - 900nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @650-900nmTp/Ts>1000:1650-90012.7 2-3 Weeks Request for quote
BK7-BPBSC-12.7-900-1200
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=12.7mm, Coating: Ravg < 0.5% at 0° AOI from 900 - 1200nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @900-1200nmTp/Ts>1000:1900-120012.7 2-3 Weeks Request for quote
BK7-BPBSC-25.4-1200-1600
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% at 0° AOI from 1200 - 1600nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @1200-1600nmTp/Ts>1000:11200-160025.4 2-3 Weeks Request for quote
BK7-BPBSC-25.4-450-650
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% at 0° AOI from 450 - 650nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @450-650nmTp/Ts>1000:1450-65025.4 2-3 Weeks Request for quote
BK7-BPBSC-25.4-650-900
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% at 0° AOI from 650 - 900nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @650-900nmTp/Ts>1000:1650-90025.4 2-3 Weeks Request for quote
BK7-BPBSC-25.4-900-1200
BK7, Broadband Polarization Beamsplitter Cubes, Dimension=25.4mm, Coating: Ravg < 0.5% at 0° AOI from 900 - 1200nm, Extinction Ratio: Tp/Ts>1000:1 		Ravg < 0.5% @900-1200nmTp/Ts>1000:1900-120025.4 2-3 Weeks Request for quote

BK7-BPBSC-25.4-900-1200 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @900-1200nm

Wavelength (nm)
900-1200

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-25.4-650-900 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @650-900nm

Wavelength (nm)
650-900

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-25.4-450-650 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @450-650nm

Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-25.4-1200-1600 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
25.4

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-12.7-900-1200 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @900-1200nm

Wavelength (nm)
900-1200

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-12.7-650-900 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @650-900nm

Wavelength (nm)
650-900

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-12.7-450-650 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @450-650nm

Wavelength (nm)
450-650

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-12.7-1200-1600 - Parameter

Type
Broadband Polarization Beamsplitter Cubes

Material
BK7

Coating
Ravg < 0.5% @1200-1600nm

Wavelength (nm)
1200-1600

Surface Quality
40/20

Clear Aperture
>90%

Chamfer
<0.5mmx45°

Damage Threshold (pulsed)
7.5 J/cm2 (10ns/10Hz)

Dimensional Tolerance (mm)
±0.2

Angle of Incidence (degree)
0

Flatness
<λ/4@633nm

Extinction Ratio
Tp/Ts>1000:1

Transmitted Beam Deviation (arcmin)
<3

Dimension (A=B=C) (mm)
12.7

Split Ratio
50:50±5% T=(Ts+Tp)/2 R=(Rs+Rp)/2

Reflected Beam Deviation (arcmin)
<3

BK7-BPBSC-25.4-900-1200 - Download

BK7-BPBSC-25.4-650-900 - Download

BK7-BPBSC-25.4-450-650 - Download

BK7-BPBSC-25.4-1200-1600 - Download

BK7-BPBSC-12.7-900-1200 - Download

BK7-BPBSC-12.7-650-900 - Download

BK7-BPBSC-12.7-450-650 - Download

BK7-BPBSC-12.7-1200-1600 - Download

Accessories

Compare Model Drawings & Specs Availability Reference Price
(USD)
