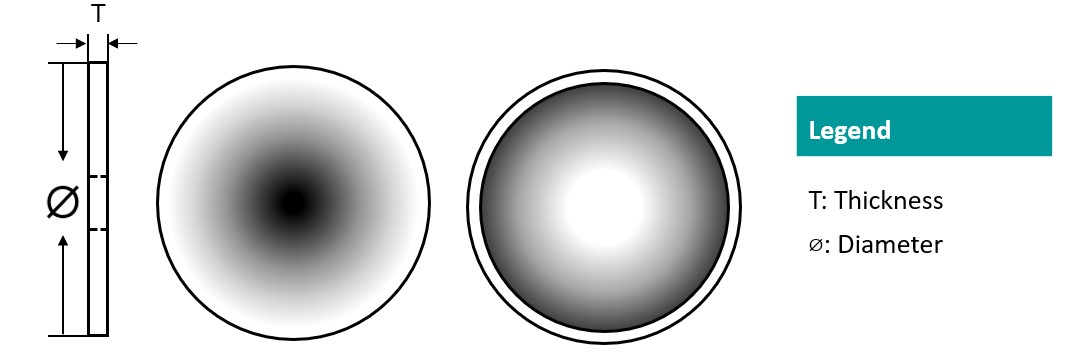

Radial Continuous ND Filters
Overview Coating Graph Order Now!

Radial Continuous ND Filters can adjust the intensity of incoming light beam to be transmitted by translating along its diameter to centre axis. The spectrum passes through will continue to maintain its neutral spectrum energy distribution. This filter is commonly used in laser and medical application. By combining two filters, fixed density attenuation effect across a greater area can be obtained. The spectral range of our filters features a wavelength of 250-2500nm.


BK7 is the most common optical glass used in high-quality optical components as it is a hard glass that can withstand a variety of physical and chemical exposure. Relatively scratch and chemical resistant, it has a low bubble and inclusion content, therefore making it an ideal choice for precision lenses. It is the ideal choice for general purpose visual and NIR applications as it has excellent transmission.


General Specifications

Material

BK7

Type

Radial Continuous ND Filter

Standard Deviation of Optical Density

±5%

Diameter Tolerance(mm)

+0/-0.15

Standard Wavelength(nm)

550

Spectral Range(nm)

380-2000

Thickness Tolerance(mm)

±0.1

Standard Linearity

±5%

Surface Quality

40-20

Clear Aperture

>85%

Parallelism(arcmin)

3

Chamfer

<0.5mmx45°

Damage Threshold(pulsed)

7.5J/cm² (10ns/10Hz)

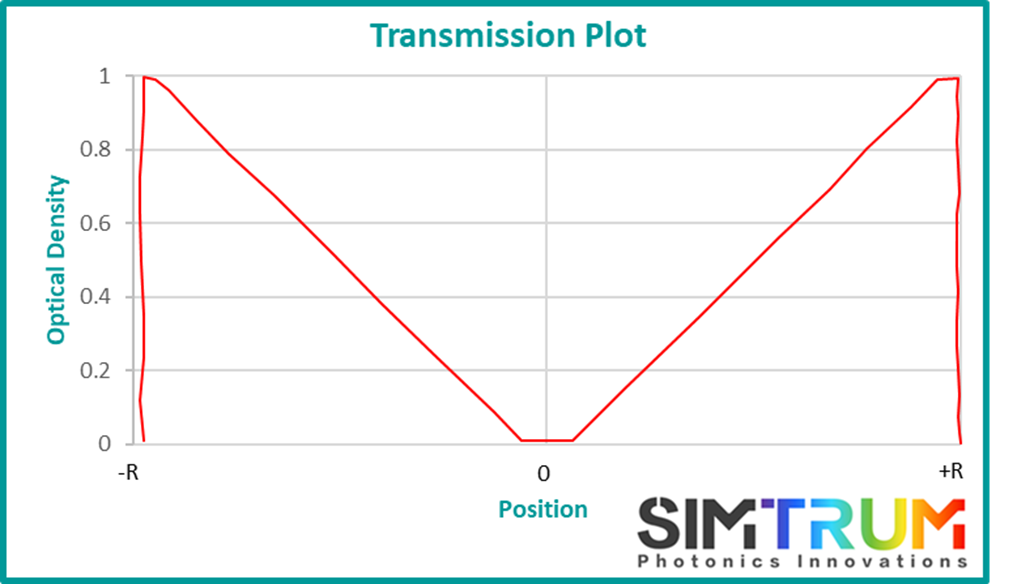

The level of attenuation is specified by Optical Density (OD) of the filter.

OD is defined as negative of the base 10 logarithm of the transmission coefficient,

The equation can be shown as:


OD= - Log10 (T/100)


Where T is transmission in percentage.

E.g. A Neutral Density Filter with T= 1% has OD of 2.





We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Dark Zone

Optical Density

Diameter (mm)
