Material

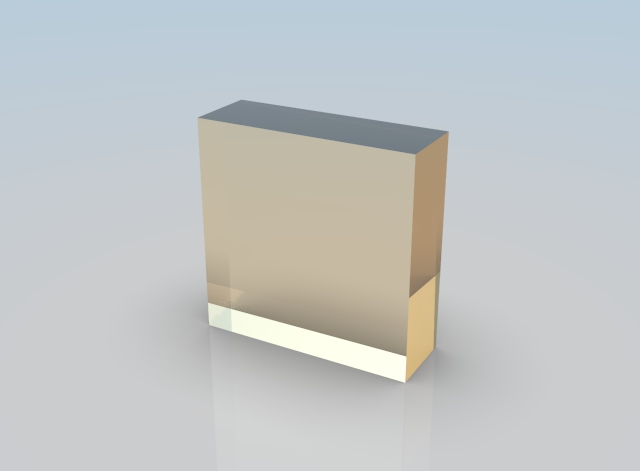

AgGaS2

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

10-20MW/cm2

Mount

Unmounted

Typical Application

DFG @ 1.2-2.4 μm/2.4-11 μm

Crystal symmetry

Point group

Lattice Constants, Å                                                       a

                                                                          c

5.757

10.305

Density

Optical  Properties

Optical transmission, µm

Indices of Refraction at

1.06µm                                                                         no

                                                                         ne

2.4508

2.3966

5.3µm                                                                           no

                                                                         ne

2.3954

2.3421

10.6µm                                                                         no

                                                                         ne

2.3466

2.2924

Absorption Coefficient, cm^-1 at

10.0µm

11.0µm

Nonlinear Optical Properties

Laser damage threshold, MW/cm²

at pulse duration, ns

at wavelength, µm

Nonlinearity, pm/V

Phase matching angle for Type 1 SHG at 10.6µm, deg

Walk-off angle at 5.3µm, deg

Thermal Properties

Melting point, °C

Thermal Expansion Coefficient, 10^-6/°K

||

||
