KGW

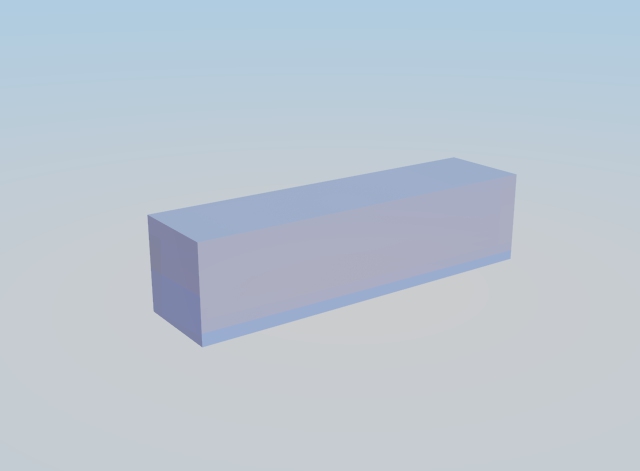

KGW(Potassium Gadolinium Tungstate) is a non-linear crystal that has good mechanical properties, high damage threshold, good thermal conductivity and a wide transparency range that makes it very compatible for SRS(Surface Raman Scattering) processes for picosecond applications.


They have two Raman modes at 768cm-1 and 901cm-1, which is also pump polarization dependent. They can also be used as frequency converters in tunable lasers to extend tuning range.




General Specifications

Material

KGW

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20

Damage Threshold(pulsed)

>10000 MW/cm2



Physical Properties and Optical Properties

Crystal symmetry

monoclinic,   C2/c

Transmission range

0.35–5.5 µm

Density

7.27 g/cm3

Hardness Mohs

4-5

Refractive indices @ 1064 nm

ng = 2.061; nm = 2.010; np = 1.982

Raman shift

901 cm-1 (p[mm]p)

768 cm-1 (p[gg]p)

Raman gain, pump 1064 nm

3.3 cm/GW (901 cm-1)

4.4 cm/GW (768 cm-1)

Thermal conductivity, W/mK

Ka=2.6; Kb=3.8; Kc=3.4

∂n/∂T

0.4 × 10-6 K-1

Optical Damage Threshold

> 10 GW/cm2



Automatic Quotation Generation (Recommended)

To generate an automatic quotation request please login using the Sign In button (top right of the screen).

New users will be given the opportunity to register. Join our mailing list and follow us on linkedin for constant updates.


Technical Assistance and Email Quotations (Recommended for Custom Orders, inquiries)

For technical assistance, custom orders or email quotations, drop us an email at info@simtrum.com.

We will get back to you within 3 working days.


Local Same Day Service

SINGAPORE: For same day service, please contact us at 6996 0391. Office Hours: 9am - 6pm (+8GMT)

For more contact information click here.


International Inquiries

SIMTRUM provides worldwide shipping and inquiry management. Please contact us for more information.


Dimension (mm)


Search Reset
Compare Model Drawings & Specs Dimension (mm) Thickness (mm) Availability Price
(USD)
KGW-NLC-7-30
KGW, Non-Linear Crystal, Dimension=7x7mm, Thickness=30mm, b-cut
7x730 In Stock Request for quote
KGW-NLC-5x7.5-30
KGW, Non-Linear Crystal, Dimension=5x7.5mm, Thickness=30mm, b-cut
5x7.530 In Stock Request for quote

KGW-NLC-5x7.5-30 - Parameter

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Dimension (mm)
5x7.5

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
30

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
undoped

KGW-NLC-7-30 - Parameter

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Dimension (mm)
7x7

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
30

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Doping
undoped

KGW-NLC-5x7.5-30 - Download

KGW-NLC-7-30 - Download
