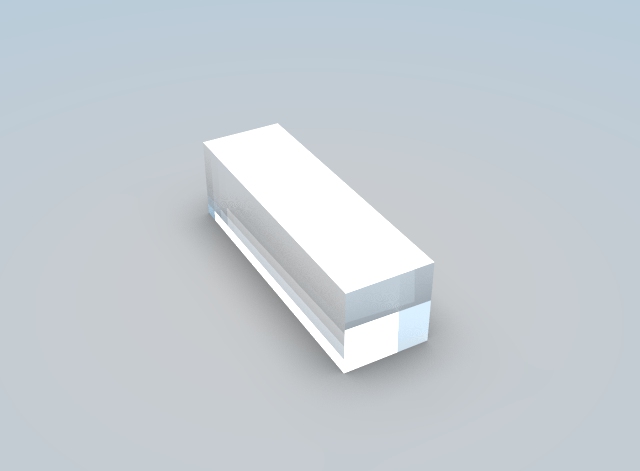

Ba(NO3)2(Barium Nitrate) is a non-linear crystal with a wide optical transmission range from 350-1800nm, a vibrational Raman mode of 1047cm-1 and high quantum conversion efficiency for 1st and 2nd Stokes components.
This makes it very suitable for Raman applications. In fact, they have the highest gain coefficient among other SRS(surface raman scattering) crystals, where the gain coefficient affects the threshold for Raman laser. Ba(NO3)2 are also used as frequency converters in tunable lasers for the extension of tuning range. One such application would be as a substitute forfrequency converter in organic dye
solutions, which would improve the device’s performance characteristics.
General Specifications
Material
Ba(NO3)2
Dimension Tolerance(mm)
±0.1
Surface Quality
10/5
Flatness
<λ/6@633nm
Wavefront Distortion
λ/8
Parallelism(arcsec)
<20
Damage Threshold(pulsed)
400MW/cm2
Physical Properties and Optical Properties
Crystal symmetry
cubic, P213
Transmission range
0.35 – 1.8 µm
Density
3.25 g/cm3
Hardness Mohs
2.5 – 3
Refractive indices @ 1064 nm
n= 1.555
Raman shift
1048 cm-1
Raman gain, pump 1064 nm
11 cm/GW
Thermal conductivity, W/mK
1.17
∂n/∂T
20×10-6 K-1
Optical Damage Threshold
~ 0.4 GW/cm2
