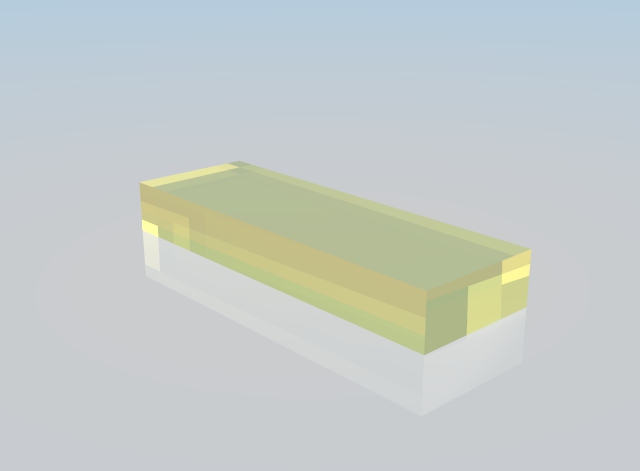

Mg LiNbO3
Overview Order Now!


Magnesium-doped lithium niobate(Mg:LiNbO3) is one of the most used non-linear optical material in terahertz sources on SPS(Simulated Photon Scattering), yielding frequency tunable output from 1-3THz.


This crystal comes from doping magnesium to LiNbO3 as LiNbO3 is prone to optical damage from short wavelength laser light, has refractive index fluctuations. After magnesium is added in, it has better resistance to optical damage, low absorption loss and no refractive index fluctuation within the crystal.





General Specifications

Material

Mg LiNbO3

Dimension Tolerance(mm)

±0.1

Surface Quality

10/5

Flatness

<λ/6@633nm

Wavefront Distortion

λ/8

Parallelism(arcsec)

<20



We are here for you!




Drop us an email at info@simtrum.com to get the Best Price today.

Want more technical information? Click Here for the professional Customized System/ Solutions.




Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards.

Click it now.


Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news.

(Sign in button on the top right of the screen).



Thickness (mm)


Search Reset
Compare Model Drawings & Specs Dimension (mm) Thickness (mm) Orientation (Θ/φ) (°) Availability Reference Price
(USD)
Mg LiNbO3-NLC-51.1/0-6x2-0.8
Mg LiNbO3, Non-Linear Crystal, (Θ/φ)=51.1/0, Dimension=6x2mm, Thickness=0.8mm 		6x251.1/0 2-3 Weeks Request for quote
Mg LiNbO3-NLC-51.1/0-6x2-1.8
Mg LiNbO3, Non-Linear Crystal, (Θ/φ)=51.1/0, Dimension=6x2mm, Thickness=1.8mm 		6x251.1/0 2-3 Weeks Request for quote
Mg LiNbO3-NLC-51.1/0-6x2-2
Mg LiNbO3, Non-Linear Crystal, (Θ/φ)=51.1/0, Dimension=6x2mm, Thickness=2mm 		6x2251.1/0 2-3 Weeks Request for quote

Mg LiNbO3-NLC-51.1/0-6x2-2 - Parameter

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
6x2

Dimensional Tolerance (mm)
±0.1

Thickness (mm)
2

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
51.1/0

Doping
5% Mg

Mg LiNbO3-NLC-51.1/0-6x2-1.8 - Parameter

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
6x2

Dimensional Tolerance (mm)
±0.1

Thickness (mm)

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
51.1/0

Doping
5% Mg

Mg LiNbO3-NLC-51.1/0-6x2-0.8 - Parameter

Thickness Tolerance (mm)
± 0.1

Surface Quality
10/5

Clear Aperture
>90%

Dimension (mm)
6x2

Dimensional Tolerance (mm)
±0.1

Thickness (mm)

Flatness
<λ/6@633nm

Wavefront Distortion
λ/8

Parallelism (arcsec)
<20

Orientation (Θ/φ) (°)
51.1/0

Doping
5% Mg

Mg LiNbO3-NLC-51.1/0-6x2-2 - Download

Mg LiNbO3-NLC-51.1/0-6x2-1.8 - Download

Mg LiNbO3-NLC-51.1/0-6x2-0.8 - Download
