Products / Light Analysis /Spectrometers /THz time domain spectrometer /THz 3D tomographic detector / THz small Angle incidence reflection measurement probe TA-RP15 /

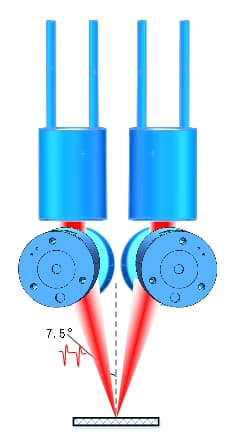

Measurement modes: reflection spectrum, reflection imaging； Reflection angle: incident ray beam and sample normal angle 7.5 °； Focal length: 101.6mm

MODEL:THz small Angle incidence reflection measurement probe TA-RP15

$2002.16 4~6 weeks Drawings

Save To My List

* The prices are indicative only. Please contact us for an official quote. This is single product page, for detail specification please refer to product main page

Related Products Detailed Introduction

Compare	Model		Drawings & Specs	Availability	Reference Price
		LA-HT01-SCA-3D Scanning range: ≥500 ps； Dynamic range: better than 90 dB； Detection speed: ≥24 Hz@67 ps/≥18 Hz@134 ps/≥10 Hz@330 ps； Imaging range: 500*500 mm^2 Max； Imaging resolution: ± 30μm (depth direction); 1mm (surface)； Scanning step: 50μm； Repeated positioning accuracy: ≤ 20μm； Sample table adjustment range: height adjustment range: ≥10 mm; Levelness is adjustable		4~6 weeks	$74613.92

Compatible

Compare	Model		Drawings & Specs	Availability	Reference Price
		THz vertical incidence probe TA-RP90 Measurement modes: reflection spectrum, reflection imaging		4~6 weeks	$5005.41

Product Specifications

Sample type	Dielectric materials / nonmetallic materials
Major function	measurement pattern	Positive incident reflection, Angle reflection measurement mode. With the scanning platform, it can realize the function of spectrum formation, imaging, and spectrum integrated display function.
	Imaging mode	Time-domain imaging, frequency domain imaging, absorption imaging, maximum / minimum time-of-flight imaging, maximum / minimum peak imaging, peak peak imaging
	Image processing algorithm	We offer three dimensional tomography algorithm packages that can be customized for classification and target detection.
Performance index	scanning scope	≥500 ps
	dynamic range	Better than 90 dB
	Detection speed	≥24 Hz@67 ps、≥18 Hz@134 ps、≥10 Hz@330 ps
	Imaging range	Maximum of 500mm * 500mm
	Imaging resolution	± 30μm (depth direction); 1mm (surface)
	step size	50μm
	Repeat positioning accuracy	≤20μm
	Samrange of adjustment range	The height can be adjusted with a range of 10 mm;
Navar	AI atlas analysis edge computer, Ubuntu system, Python SDK
Appendix	Probe module
Service environment	Temperature range: 10~30℃; Relative humidity: 80%
