co-linear VIS Guided MIR QCL & ICL Alignment System-Pointer

Products / Lasers/Light /Quantum Cascade Lasers /MIR QCL Turn-Key System (3-13μm) /co-linear VIS Guided MIR QCL & ICL Alignment System-Pointer /
co-linear VIS Guided MIR QCL & ICL Alignment System-Pointer
Overview Specifications Related Products Order Now!
SIMTRUM provides Pointer: Co-linear VIS Guided MIR QCL & ICL Alignment System, which is a cutting-edge, all-in-one solution for Mid-IR QCL & ICL designed to meet your alignment operation needs. Equipped with either a Quantum Cascade Laser (QCL) or Interband Cascade Laser (ICL), this integrated system combines a ruggedized opto-mechanic system, co-linear VIS guidance beam for alignment, driver, and temperature controller for optimal efficiency and precision. Pointer does not allow for wavelength tuning or power adjustment. Wavelength and output power of the loaded MIR chip are customizable, ask us for a custom device.

Features
  • Turn-key solution for operating a QCL or ICL as a simple laser source
  • Extremely simple operation by two push buttons
  • Not Tunable
  • Calibrated optical power
  • Collimated output beam
  • Colinear visible laser for alignment aid
  • Integrated internal temperature safety monitoring
  • Air cooled laser head
  • Simple remote operation interface
  • User-adjustable levelling legs for height and pointing adjustment
  • Levelling legs spacing compatible with optical bread board with standard metric and imperial spacing
  • Additional precision interfaces available for integration
  • Output power up to 40mW on demand

Applications
  • Mid-IR Target Pointer
  • Mid-IR/Visible Alignment Beam
  • Blinking Beacon











Specifications

Parameter [Unit] Min. Value Typical Value Max. Value Note
Beam Diameter [mm] 3.2 4 4.8 Diameter at internal packaging window exit.
Beam Divergence [mrad] - <6 8 Divergence, measured at 1/e2 from the peak of the distribution.
Beam Central Wavelength [μm] 3 - 12 Central Wavelength (Not Tunable) is dependent on the chip installed; QCL chips are available on demand.
Pulse Length [ns] - 500 -
Pepetition Rate [kHz] - 200 -
Output Power [mW] - 5 9.6
（>40mW on demand）		 Output power is dependent on the chip installed. 9.6 mW max value is necessary for a Class 1 product.

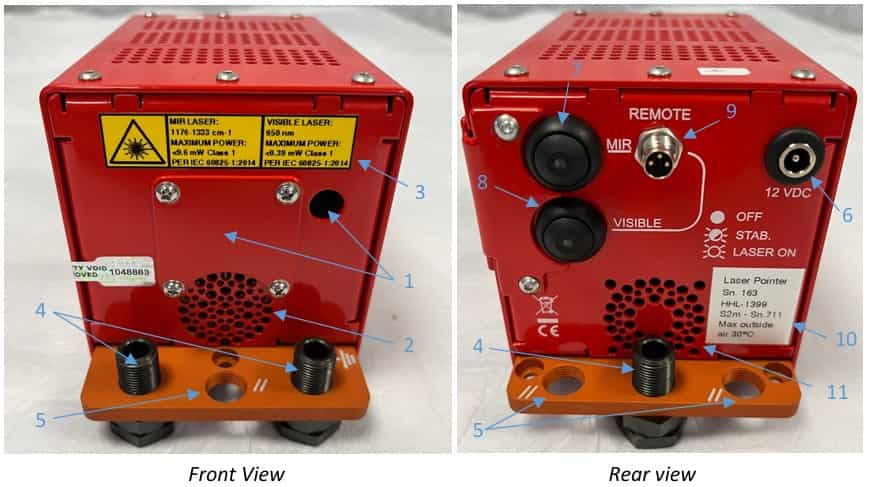

Product Appearence

1 - Laser beam output – Option dependent, precise beam option shown.
2 - Air inlet
3 - Laser safety label
4 - Levelling legs with lock nuts
5 - Imperial spacing levelling legs locations
6 - 12 VDC power supply connection
7 - Mid IR laser turn ON push button with status LED
8 - Visible laser turn ON push button with status LED
9 - Remote control connector
10 - Product label
11 - Air Outlet



Product Wavelength Avg. Power Tuning Range Output Mode
MIR Single-Channel Wide Spectrum Tunable Laser – SuperTune 4-5μm
(5-12μm customizable)		 max. 20 mW >96cm-1@2197.8cm-1
(＞200nm@4.55μm)		 Free Space
MIR Multi-Channel Widely Tunable External Cavity QCL-Glider 3-13μm max. 30 mW ＞2200cm-1
(Max. 4 chips loaded)		 Free Space/Fibered
3-12μm
max. 40 mW
Not Tunable
Free Space
CW LWIR Quantum Cascade Lasers (4-17μm) 4-17 μm ＞ 5 mW - -
HHL housed CW MIR Single Mode (DFB) QCL(4-9.7μm) 4-9.7 μm 5-20 mW ~3cm-1 Free Space
CW MIR Room Temperature Single Mode (DFB) QCL(4-12μm 4-12μm 1-200mW ~3cm-1 Free Space/Fibered

Technical Guide

If you need our technical team for guidance on product selection or customization, please help to provide below technical information, it helps to speed up the process.



Items Detail Unit Remark
Application
Working Wavelength   μm
Wavelength Tuning Range   nm
Operating Mode   / CW/ Pulse
Output Power   W
Power Stability   %
