Tilt Platforms

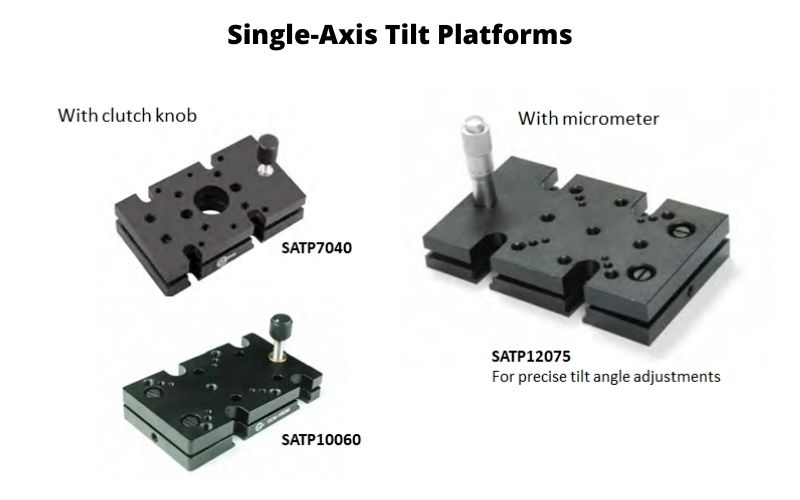

Single-Axis Tilt Platforms Multi-Axis Tilt Platforms Related Products Order Now!

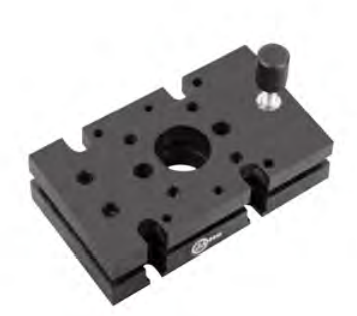

• Tilt about single axis

• Tilt angle of ±3.8°

• Clutch knob and micrometer version available

Simtrum Part No.	Tilt Angle(°)	Hole Type	Platform dimensions(mm)
SATP7040	±3.8	Top:⌀15,M6,M4,M3 Bottom: ⌀6mm counterbore ⌀3.5mm	70x40
SATP12075	±3.8	Top:M6,M4,M3 Bottom: ⌀11mm counterbore ⌀7mm	120x75
SATP10060	±3.8	Top: M6,M4,M3, M2 Bottom: ⌀10.5mm counterbore ⌀6.5mm	100x60
The information in the chart above is a general guide to choosing the suitable Single-Axis Tilt Platforms for your motion setup. Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

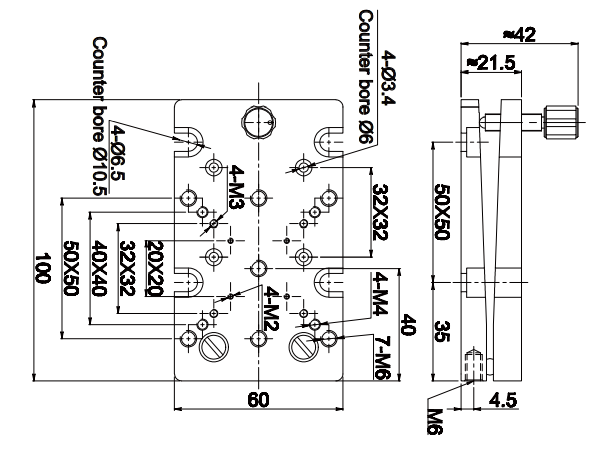

Drawings

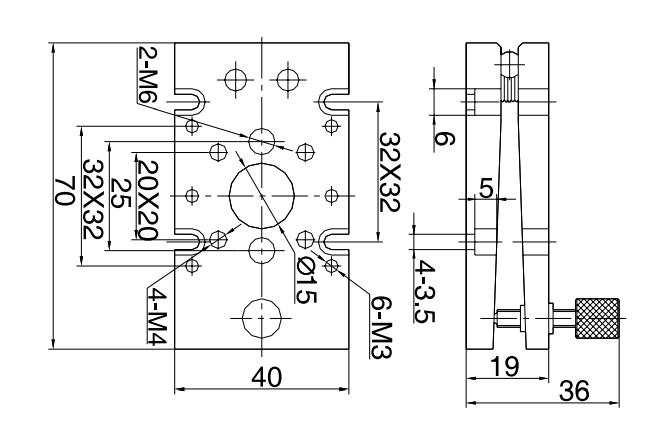

SATP7040

SATP12075

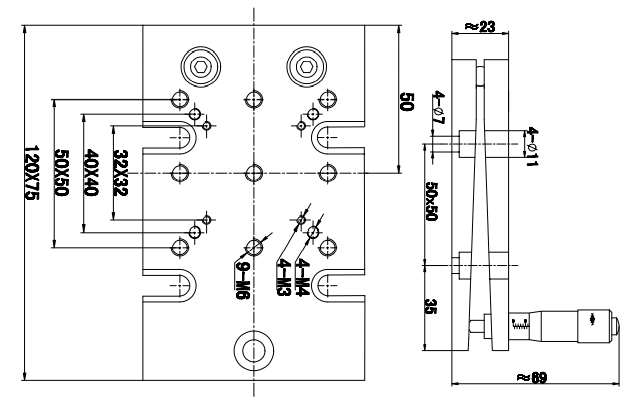

SATP10060

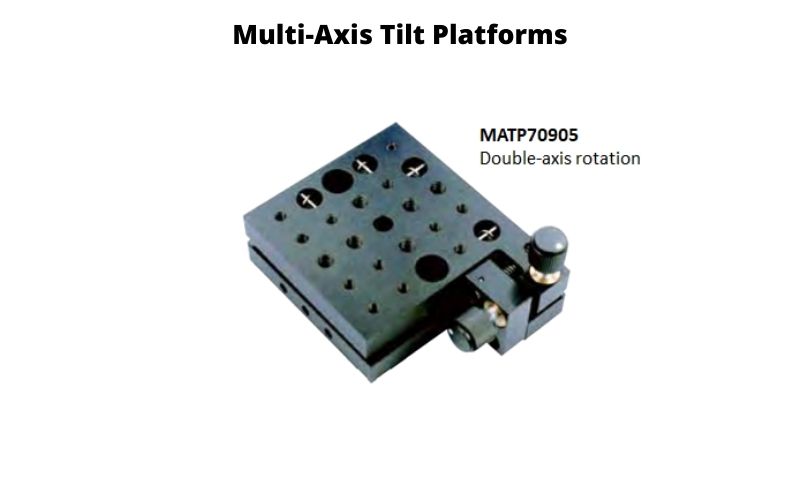

• Double-axis rotation

• ±1.8° tilt angle, ±1.8° rotation angle

Simtrum Part No.

Tilt Angle(°)

Rotation Angle(°)

Hole Type

Platform dimensions(mm)

MATP70905

±1.8°

Top: M6, M4, M3

Bottom:

⌀11mm counterbore ⌀6.5mm

70x90.5

The information in the chart above is a general guide to choosing the suitable multi-axis tilt platforms for your motion setup.

Feel free to contact Simtrum Pte Ltd at +65-6996 0391 or email us at info@simtrum.com. Our product team will be happy to help you make the right product selection.

Drawings

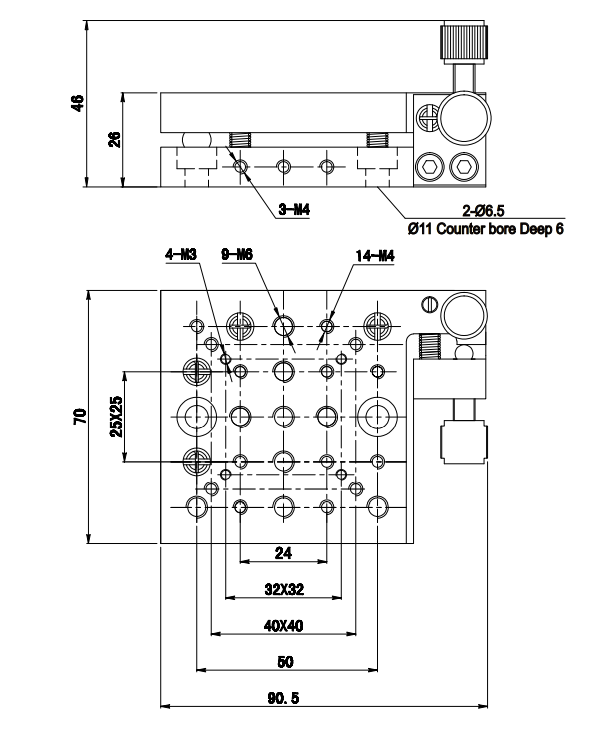

MATP70905

	Manual Goniometric Stages	Manual Rotation Stages	Optomechanics

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

	Platform dimensions (mm)	Tilt Angle(°)	Availability	Reference Price (USD)
MATP70905 Multi-Axis Tilt Platform, Tilt Angle=±1.8°, Rotation Angle=±1.8°, Platform dimension=70x90.5mm			4-6 Weeks	$152.52
SATP7040 Single-Axis Tilt Platform, Tilt Angle=±3.8°, Platform dimension=70x40mm		±3.8	4-6 Weeks	$83.58
SATP12075 Single-Axis Tilt Platform, Tilt Angle=±3.8°, Platform dimension=120x75mm	120x75	±3.8	4-6 Weeks	$146.27
SATP10060 Single-Axis Tilt Platform, Tilt Angle=±3.8°, Platform dimension=100x60mm		±3.8	4-6 Weeks	$123.28
