Deuterium Halogen Light (180 - 2500nm)

Overview Related Product Order Now!

Ultraviolet to NIR High-quality Long-life Scientific Research

Broadband Light Source

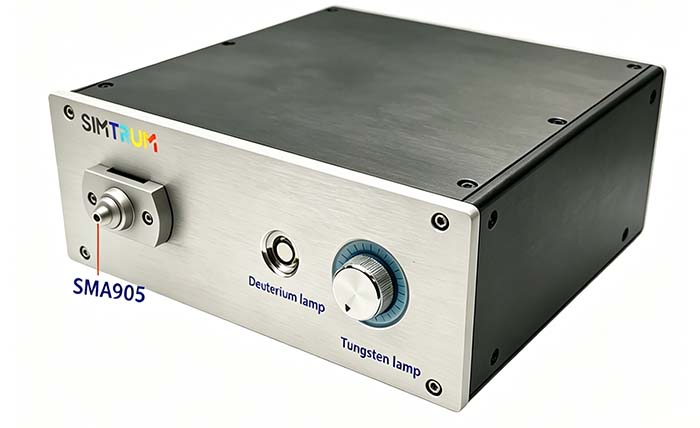

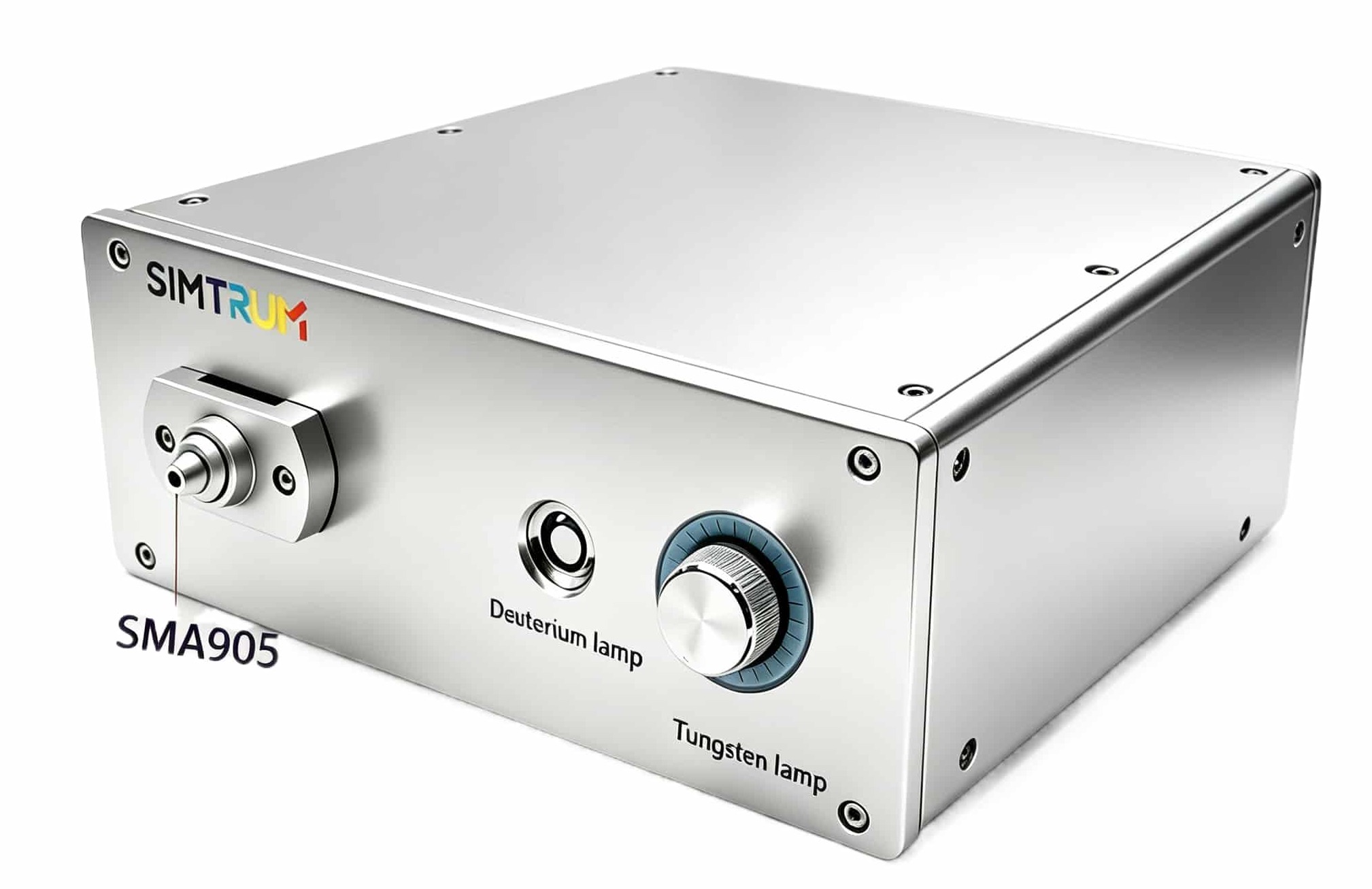

The DH2000 composite light source for laboratory applications integrates continuous deuterium and tungsten halogen broadband spectra in one channel. The integrated spectrum provides continuous output from 190nm to 2500nm.

The continuous spectral range emitted by deuterium lamps ranges from 190 – 400nm in the ultraviolet band to 400-800 nm in the visible light, making deuterium lamps a high-precision light source for analytical measuring instruments, such as liquid chromatography.

The light-emitting principle of tungsten-halogen bulbs is realized by using the principle of heat-emitting objects and the principle of thermal radiation. Tungsten-halogen bulbs conduct enough current to the filament, and the filament will emit light when it heats up to an incandescent state. The wavelength range of tungsten halogen bulbs is usually 360nm-2000nm. The life of a tungsten halogen bulb is related to its operating temperature. The higher the color temperature, the shorter the lifespan.

Features

● Experimental grade high stability, high-quality deuterium lamp and tungsten halogen lamp.

● Efficient cooling system.

● Provides a continuous output of 190-2000 nm continuous spectrum radiation.

● High power output can achieve a balanced spectral output of deuterium-halogen lamps, and the output spectral intensity of halogen lamps can be adjusted (adjustment range: 0~100%).

● SMA905 standard interface output.

● Deuterium lamp and tungsten halogen lamp can be turned on separately.

● Long life and high stability.

● Suitable for UV spectroscopy.

Application

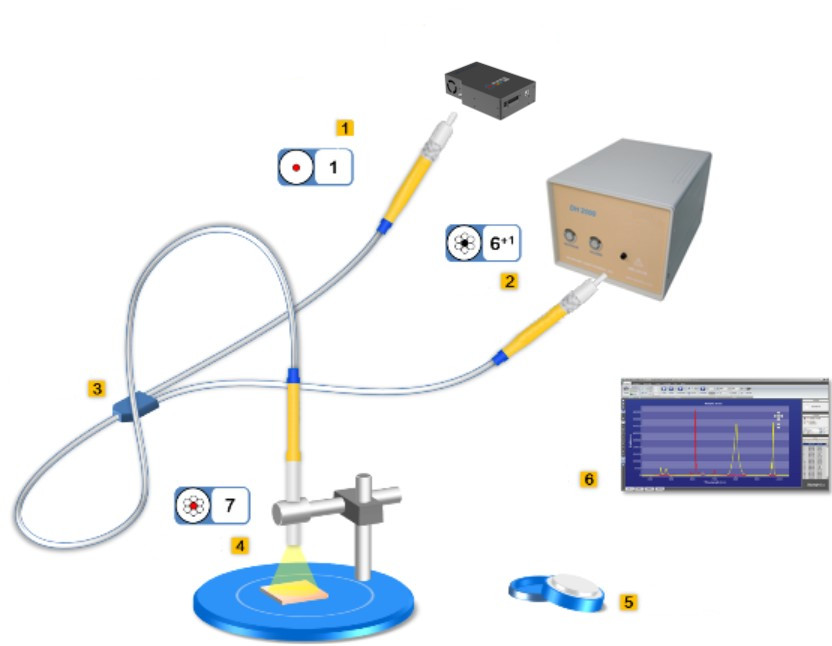

Custom Y-fiber Reflection / Fluorescence Detection

1 Spectrometer

2 Light Source

3 Y-Fiber

4 Optical holder (Reflection)

5 Standard white reference

6 Software

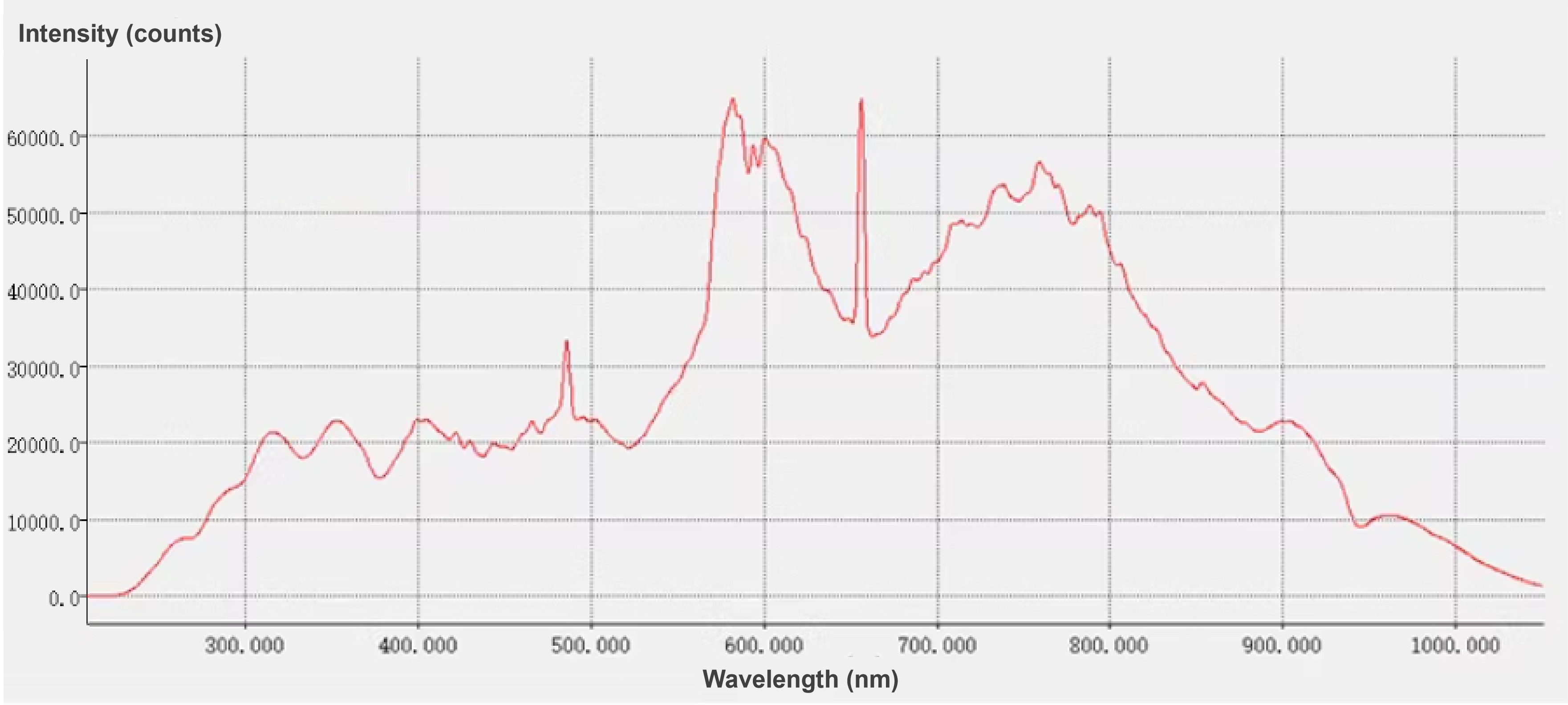

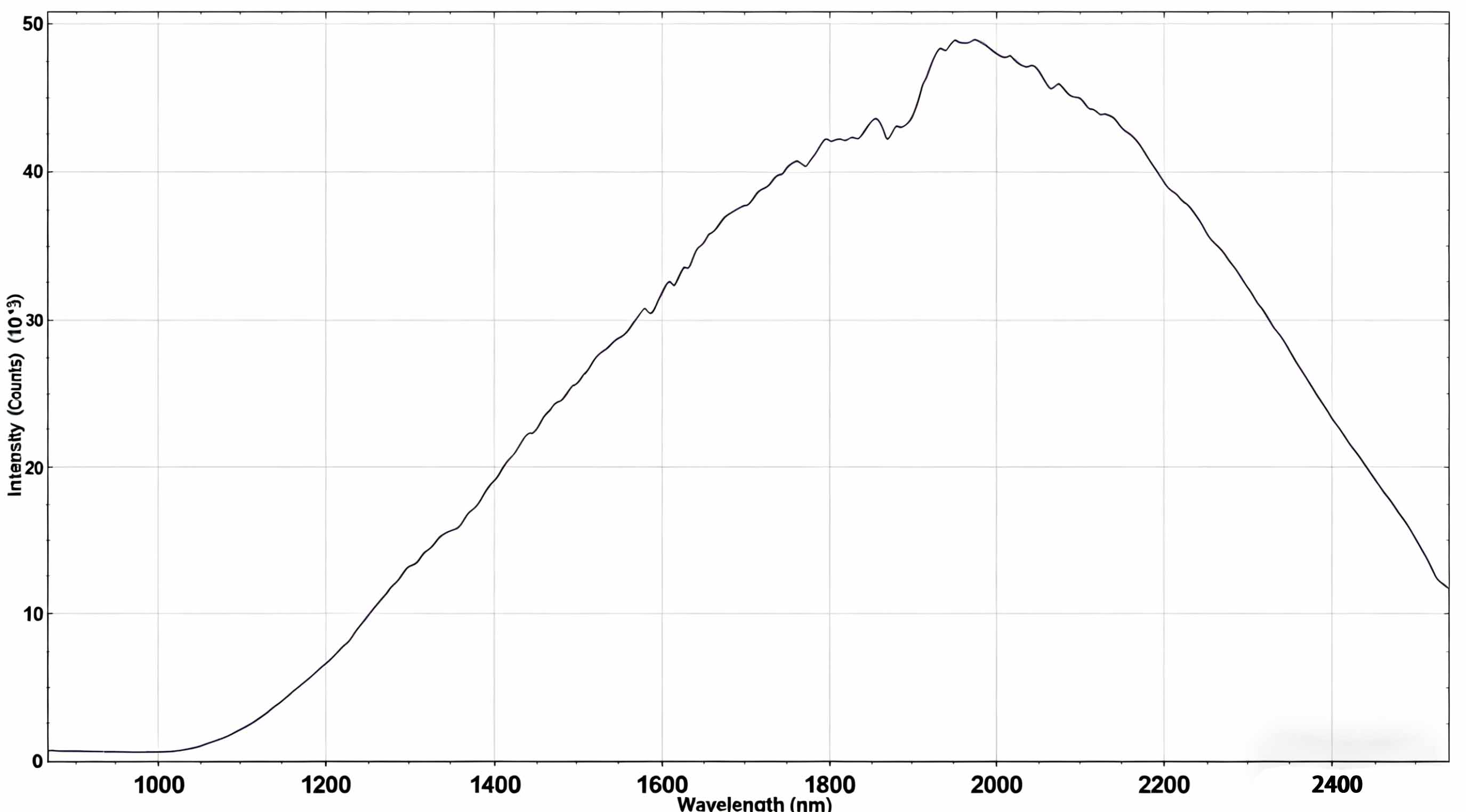

Spectral Curve

Product specifications and Brochures

Product Brochure Link:

Model	DH2000	DH2000-L
Size	200mm x 145mm x 110mm
Weight	3.5kg
Power	25 W (deuterium lamp) 10 W (halogen lamp)	30 W (deuterium lamp) 20 W (halogen lamp)
Wavelength Range	190-400 nm (deep UV deuterium lamp bulb) 360-2500 nm (halogen bulb)	180-400 nm (deep UV deuterium lamp bulb) 360-2500 nm (halogen bulb)
Humidity Range	5-95%
Output Interface	SMA905 (optional FC/PC)
Life	1,500 hours	2000 hours
Deuterium Lamp Voltage	Lighting voltage 580 V@20 ℃
Voltage Drift	< 0.01 % per hour
Voltage Stability	< 5x10^-6 peak-to-peak (0.1-10.0 Hz)
Operating Temperature	5 ℃ - 35 ℃
Radiation Characteristics	1.0 mm aperture, Numerical aperture NA0.22~0.37	0.5 mm aperture, Numerical aperture NA0.22~0.37
Power Consumption	~78VA	~83VA
Preheat Time	30 minutes (deuterium lamp) / 20 minutes (halogen lamp)
Powered by	85~250V AC 50~60Hz
Trigger / Shutter Input	TTL; the maximum does not exceed 200ms
Trigger / Shutter Connection	SUB-D-15 pin

Product Type	Wavelength Range	Power output	Color Temperature	Lifespan	Bulb Voltage / Power
Deuterium Light Source	185 - 600 nm	25W-30W (deuterium lamp)	N/A	1,500 hours	Lighting voltage 580 V@20 ℃
Halogen Light Source	360 - 2500 nm	1.7-8.5 mW	2330K - 3000K	2,000 - 10,000 hours	3.5 V - 12 V
Deuterium & Halogen Light Source	360 - 2500 nm	3.0-8.5 mW	2800K - 3000K	2,000 - 10,000 hours	5 - 20 W
Infrared Tungsten Light Source	450 - 5500 nm	7.5 W	1900k	≥ 5,000 hours	N/A
Calibration Light Source - Mercury Argon	253 - 1700 nm	N/A	N/A	≥ 6,000 hours	N/A
Calibration Light Source - Neon	540 - 754 nm	N/A	N/A	N/A	N/A
Calibration Light Source - Xenon Lamp	916 - 1984 nm	3 W	N/A	3,000 hours	N/A
Xenon Light Source	200 - 2000 nm	8.0 mW	N/A	≥ 1,000 hours	50 W

Technical Support Available: Contact us | You can download our full Product Line Card Click Here

We are here for you!


Drop us an email at info@simtrum.com to get the Best Price today.		Want more technical information? Click Here for the professional Customized System/ Solutions.


Don't have time to search the products one by one? No worries. you can download the full range of SIMTRUM Product Line Cards. Click it now.		Want to stay closer to the Market Dynamics and Technological Developments? Just take 5 seconds to Sign In as a member of SIMTRUM, we will bring you the most up-to-date news. (Sign in button on the top right of the screen).

Search Reset

Compare	Model		Drawings & Specs	Availability	Reference Price (USD)
		DH2000 Deuterium Halogen Light Source, Wavelength range 190-400nm(deuterium)/360-2500nm(halogen), Power output 25W(deuterium lamp)/10W(halogen lamp)		4-6 Weeks	$1380.00
		DH2000-L Deuterium Halogen Light Source, Wavelength range 180-400nm(deuterium)/360-2500nm(halogen), Power output 30W(deuterium lamp)/20W(halogen lamp)		4-6 Weeks	$1850.00

DH2000-L - Parameter

DH2000 - Parameter

DH2000-L - Download

DH2000 - Download
